Буровая установка для бурения воды XSL5/500 280


Поделиться:


Цена:100 000,00 $ - 160 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 119000.70 $* 124950.11 $*
Aug-15-2025 118000.47 $* 123900.45 $*
Jul-15-2025 99000.45 $* 103950.10 $*
Jun-15-2025 116000.56 $* 121800.98 $*
May-15-2025 101000.34 $* 106050.24 $*
Apr-15-2025 114000.86 $* 119700.32 $*
Mar-15-2025 113000.96 $* 118650.11 $*
Feb-15-2025 112000.8 $* 117600.35 $*
Jan-15-2025 111000.31 $* 116550.80 $*

Характеристики


Water drill rig 500 meters XSL5/280 bohole water drilling machine



Product Description


New intelligent control system provides strong and stable exhaust pressure with more economical fuel consumption according to working conditions,drilling deeper, wider and more efficient.





Screw rotor:


With high efficiency, extremely low failure rate, and a five-year warranty, the original Sullair rotor compressor air end imported from the US guarantees a care-free experience.





Engine:


Engines are supplied by world-known brands and feature strong power. good reliability, fuel economy, easy maintenance, and sufficient supply of spare parts.





Smart control system:


Precise control system ensures that the output power of engine well matches the air end power, and guarantees quick response to the demand of air volume regulation and engine speed regulation. The compressor can switch from high and low output pressure or vice versa at any time, providing flexible and economic solutions under different working conditions.





Parameter











































































































































Parameter



Unit



XSL5/280



Drilling capability



Drilling depth



m



500(φ89)



Max. diameter of working floor



mm



φ400



Feeding system



Max. liting capacity



kN



280



Max. feeding capacity



kN



120



Max. lifting speed



m/min



30



Max. feeding speed



m/min



60



Stroke



mm



7000



Top drive



Max. torque



N.m



9200/4600



Max. speed



r/min



95/190



I.D



mm



φ55



Deck engine



Type




YC6J175-T302



Rated power



kW



129



Tool winch



Hoisting capacity



kN



15



Breakout device



Max. breakout torque



N.m



32000



Mud pipe



I.D



mm



φ55



Max. pressure



MPa



8



Chassis



Highest speed



km/h



2



Max. climbing gradient



%



39



Max. ground clearance of crawler



mm



1300



Max. inner distance between front support legs



mm



2900



Max. iner dstance between back support legs



mm



2700



Working dimension



mm



4650*3200*9800



Transportation dimension



mm



5900*2100*2660



Weight



t



12

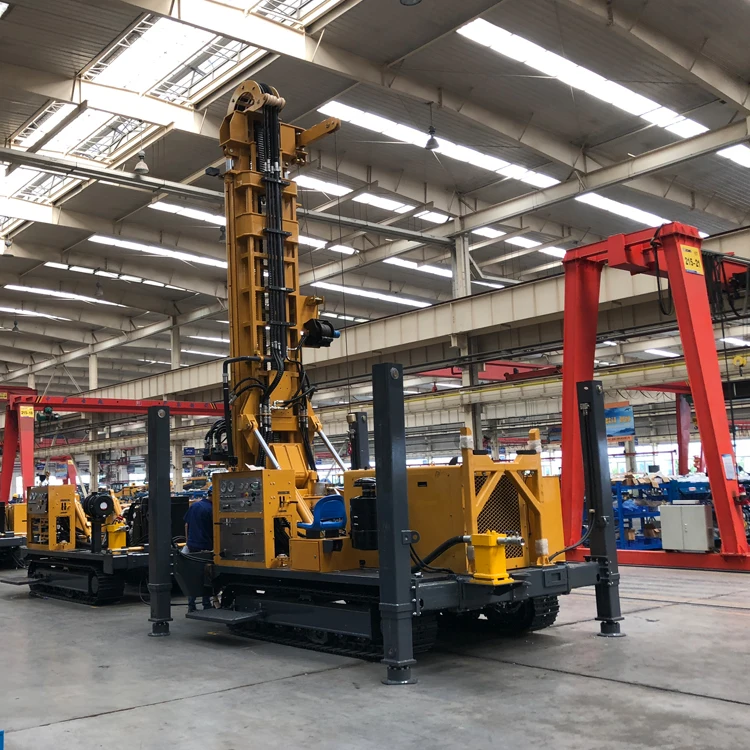

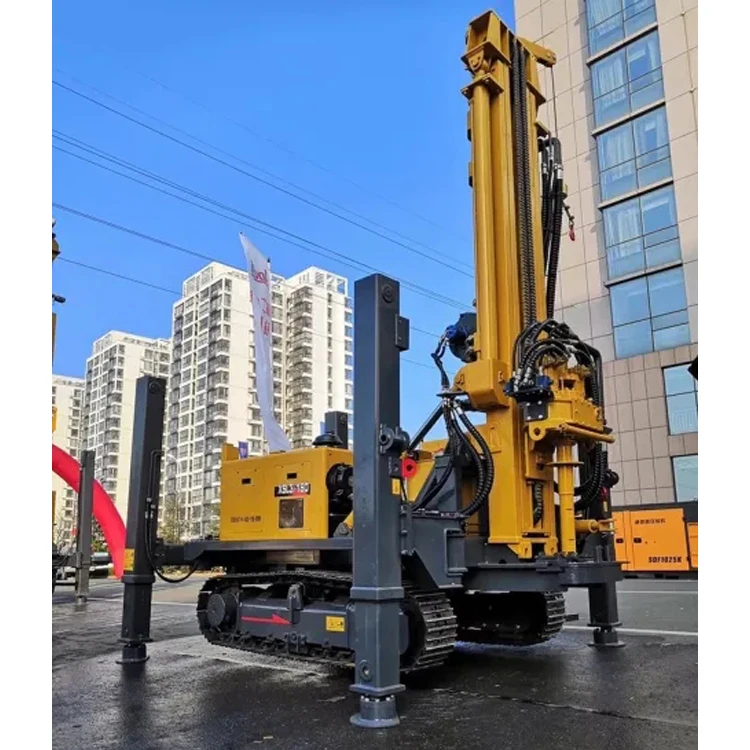

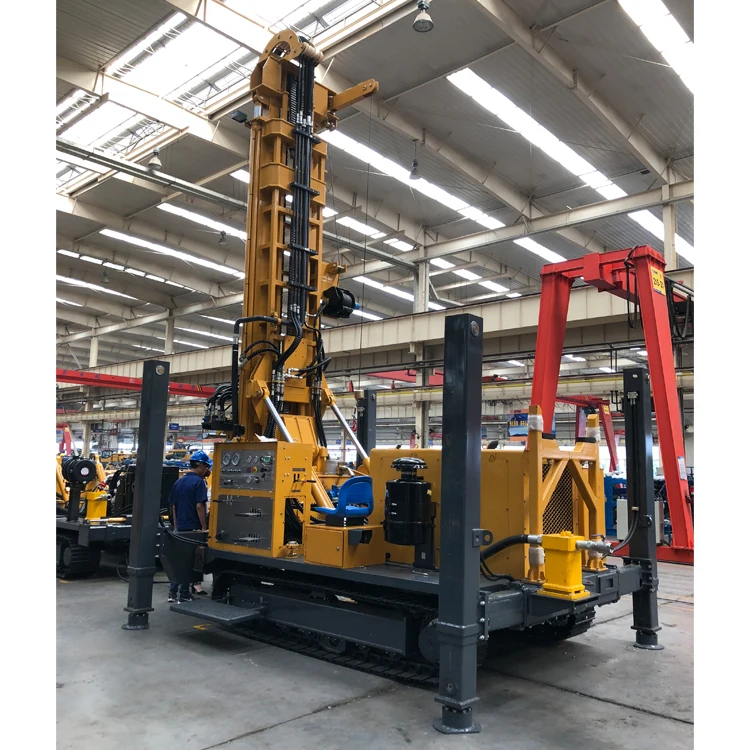

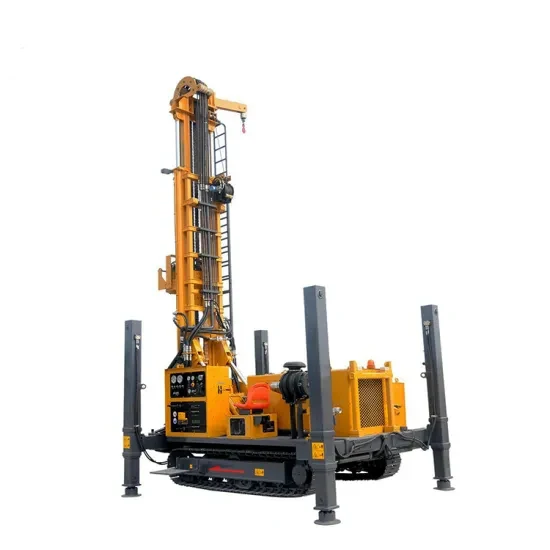

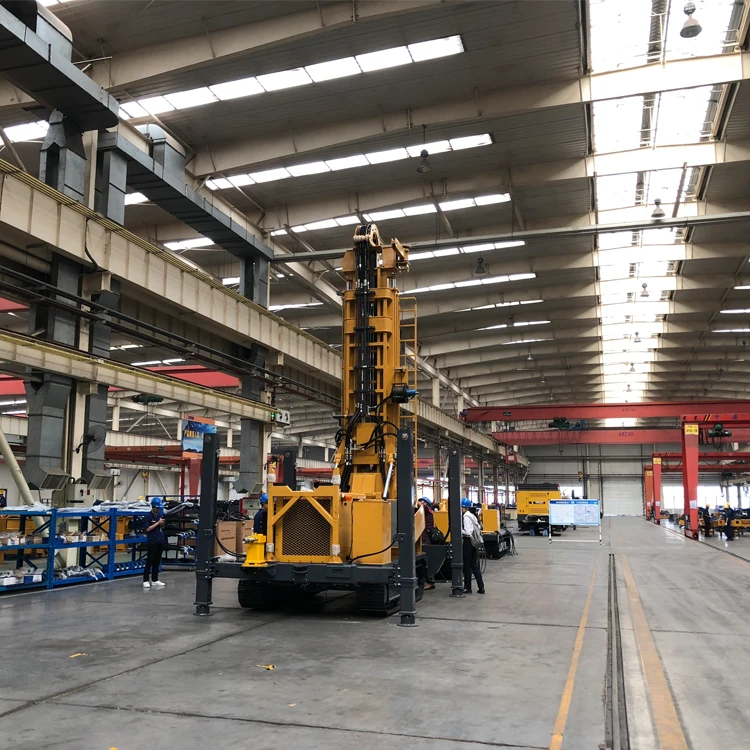

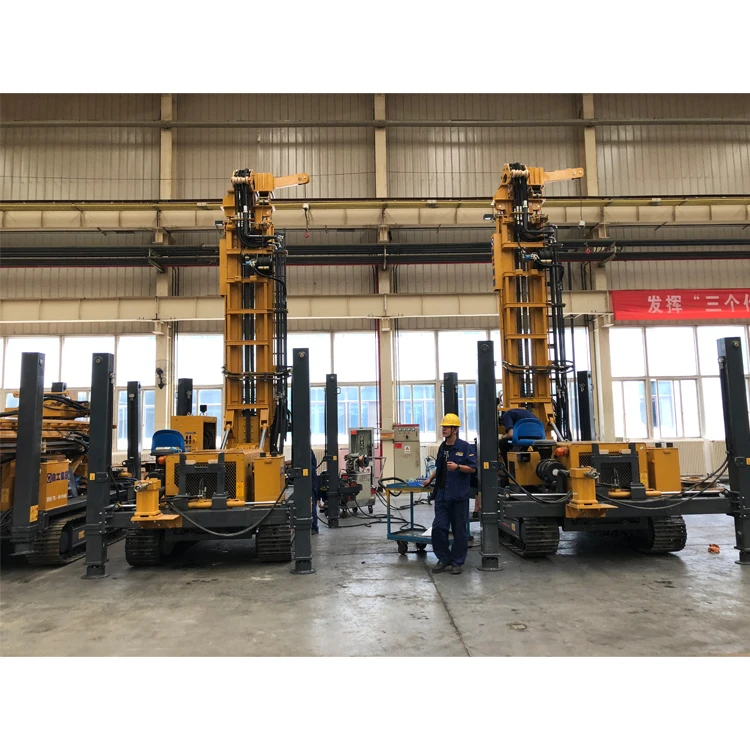

Pictures:


Photos (47).jpg





Photos (6).jpg
