Характеристики
Product Group
Products Description

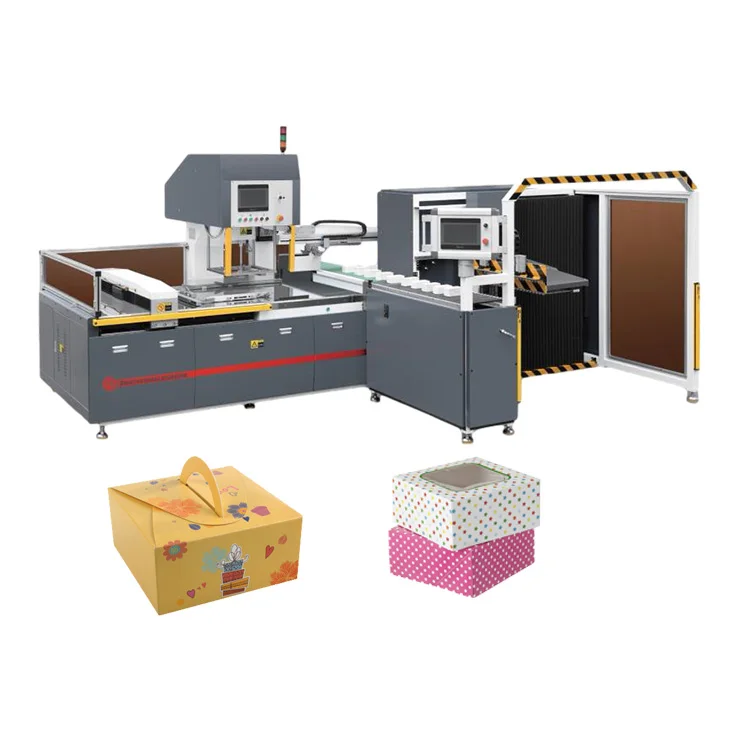

QDQF-1080TRP
Automatic Stripping +Rotary Head+Manipulator+Collection
Main Function:

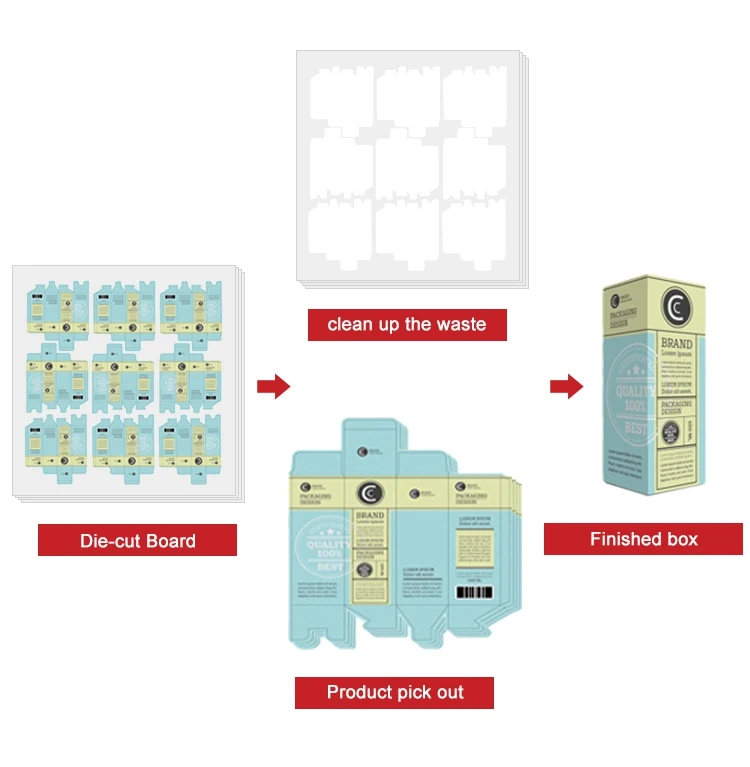

1. Taking out finished products after die cutting process,for waste stripping.
2. Applied for many die-cut product such as labels, hang tags, business cards,
gift boxes, food boxes, paper cups and other die cutting products in paper
or plastic, PU leather.
3.Automatically taking out product with manipulator arm and stack product
onto delivery belt.
4. Rotary head of stripping to take out the opposite direction die cutting products easily .
5. Collection station to remove the products off the machine automatically.
6. PLC controlled with smart & easy operation.
7. Automatic lubrication system for machine better maintenance.
8. Different shapes can be custom-made as customer requirement.
2. Applied for many die-cut product such as labels, hang tags, business cards,
gift boxes, food boxes, paper cups and other die cutting products in paper
or plastic, PU leather.
3.Automatically taking out product with manipulator arm and stack product
onto delivery belt.
4. Rotary head of stripping to take out the opposite direction die cutting products easily .
5. Collection station to remove the products off the machine automatically.
6. PLC controlled with smart & easy operation.
7. Automatic lubrication system for machine better maintenance.
8. Different shapes can be custom-made as customer requirement.
Adjustable hydraulic system
Safety fence
Centralized lubrication system
Paper gauge with hidden motor and ball screw
Model | QDQF-920TRP | QDQF-1080TRP |
Machine Size | L4200 x W2800 x H1950 | L4600xW3000xH1950 |
Max sheet size (X x Y) mm | 920 x 680 | 1080 x 780 |
Min sheet size (X x Y) mm | 550 x 400 | 650 x 450 |
Max pile height / mm | 100 | 100 |
Min pile height / mm | 40 | 40 |
Work table height mm | 850 | 850 |
Max product size to be punched out | 360 x 360 | 390 x 390 |
Min. product size to be punched out | 30*30 | 30*30 |
Stripping speed times/min | 15-22 | 15-22 |
Max. force (bar) | 70 | 70 |
Air consumption L/min | 5 | 5 |
Manipulator Grip Range /mm | 30-280 | 30-300 |
Manipulator Grip Weight | 50-1500g | 50-1800g |
Max Power | 6.9kw 380V | 6.9kw 380V |
Net Weight | 3.4T | 3.8T |
Package Size | 2000x1800x1900 | 2000x1800x1900 |
2700x1950x2250 | 3100x2250x2250 | |
Gross Weight | 3.6T | 4.0T |
