Hengwang HWY-160 гусеничная портативная буровая установка для бурения скважин на воду 150
- Категория: >>>
- Поставщик: Shanghai,Hengwang,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 16660.42 $* | 17493.79 $* |
| Aug-17-2025 | 16520.86 $* | 17346.9 $* |
| Jul-17-2025 | 13860.74 $* | 14553.97 $* |
| Jun-17-2025 | 16240.45 $* | 17052.90 $* |
| May-17-2025 | 14140.9 $* | 14847.0 $* |
| Apr-17-2025 | 15960.81 $* | 16758.55 $* |
| Mar-17-2025 | 15820.5 $* | 16611.84 $* |
| Feb-17-2025 | 15680.78 $* | 16464.91 $* |
| Jan-17-2025 | 15540.85 $* | 16317.88 $* |
Характеристики
Product Description
* Drilling depth: 150m
* Drilling diameter: 130-203mm
* Engine Power: 60Kw
* Competive Price
* Site Instrcution and Installation
* Professtional After-Sales Team
* CE, BV, TUV, ISO
Contact to Inquire
Hengwang HWY-160 Crawler-mounted portable water well drilling rigs Borehole drill rig 150m drilling rig
Hengwang HQZ series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.
It can drill 160m and the drilling diameter is from 130mm to 230mm,It has 30m/h drilling speed.
This machine is the portable and pneumatic type.It is a very popular for home use because the small body.The width for this machine is only 1.2m and the length is only 2.1m.The whole machine design is compact and does not occupy land.
It can drill 160m and the drilling diameter is from 130mm to 230mm,It has 30m/h drilling speed.
Technical Parameters
Hengwang HWY-160 Crawler-mounted portable water well drilling rigs Borehole drill rig 150m drilling rig
Model | HWY-160 |
Drilling diameter | Φ130-Φ203mm |
Drilling depth | 150m |
Walking speed | 2.5KM/h |
Gradeability | 30° |
Engine Power | 60KW,YUCHAI |
Rotation speed | 65-100r/min |
Swing torque | 4500N.m |
Maximum lifting force | 10-15ton |
Maximum rod length | 2.4m |
Air consumption | 10-25m2/min |
Working air pressure | 1.2-3.0mpa |
Drill pipe diameter | Φ76-Φ89mm |
Dimensions (L * W * H) | 2800*1200*1900mm |
Machine weight | 3t |

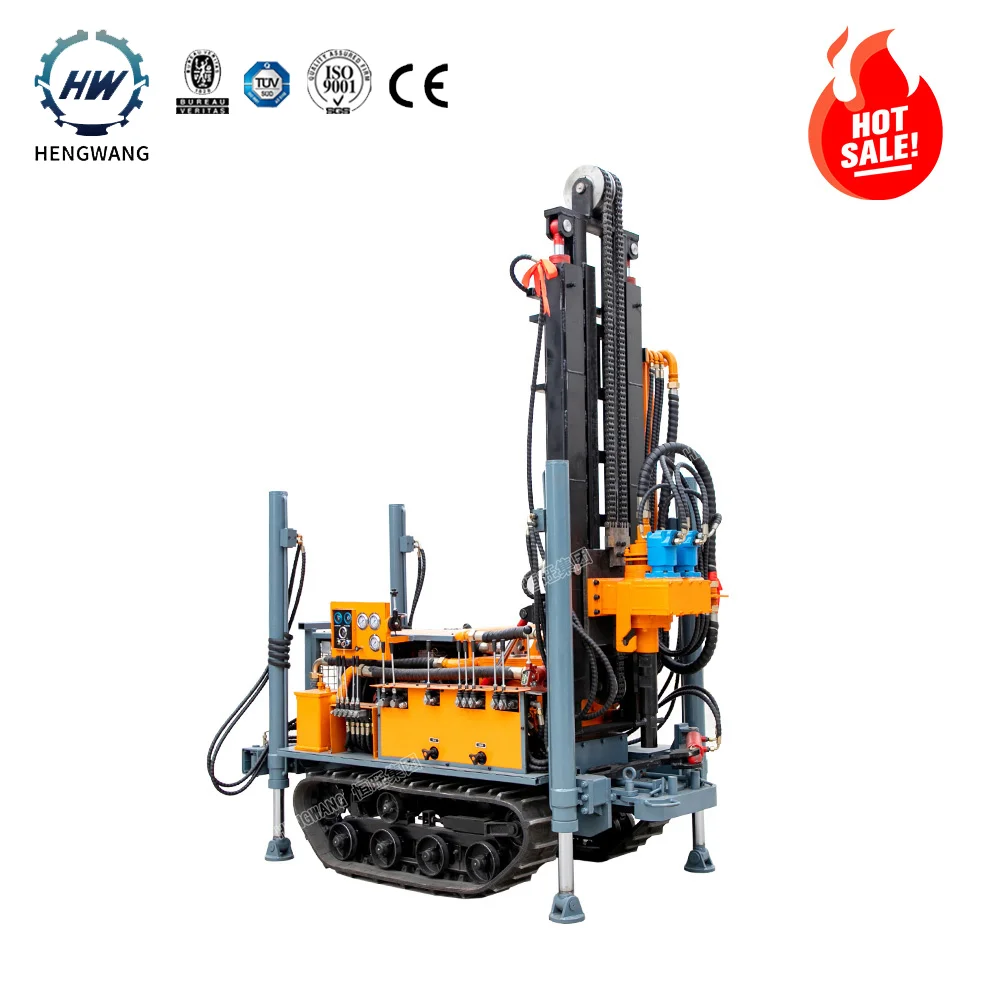

Hot Sale !!!

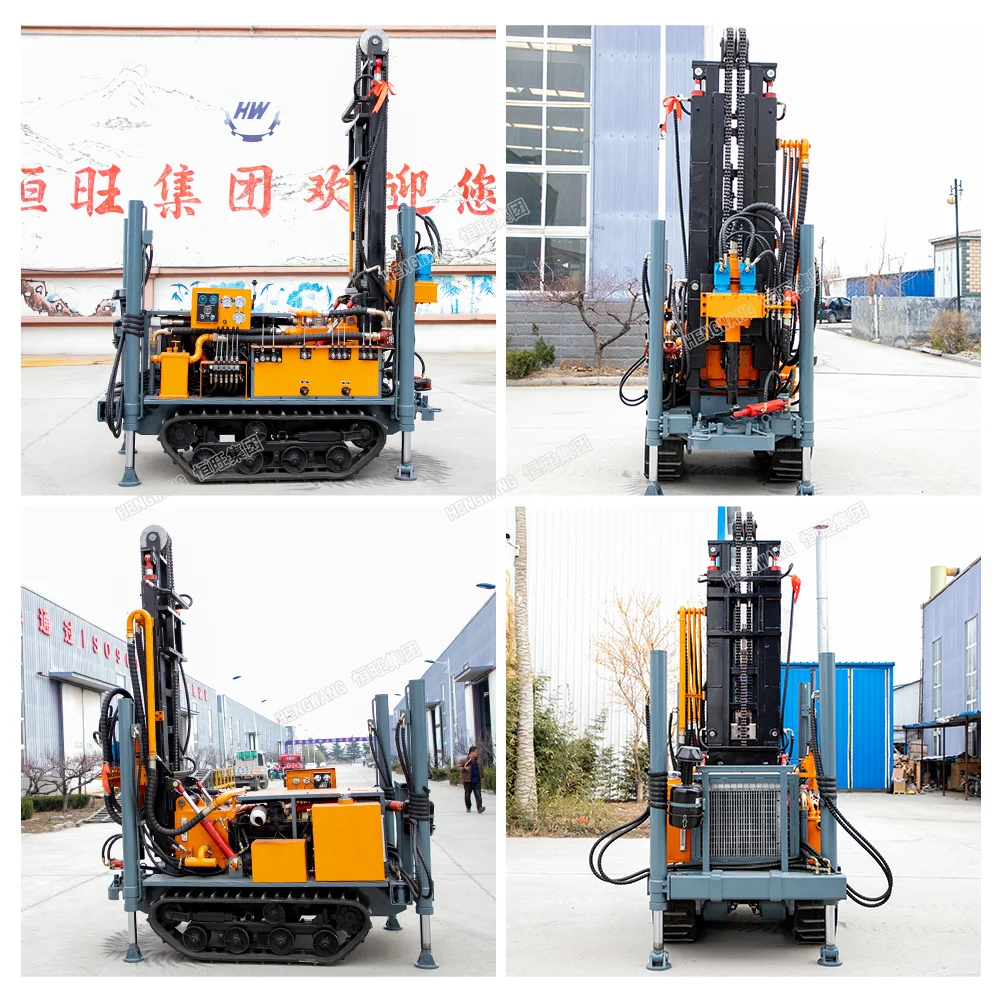

Details Images
Hengwang HWY-160 Crawler-mounted portable water well drilling rigs Borehole drill rig 150m drilling rig
Customer Feedback
General application, any special requirements, please consult us.
Packaging & transportation
1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;

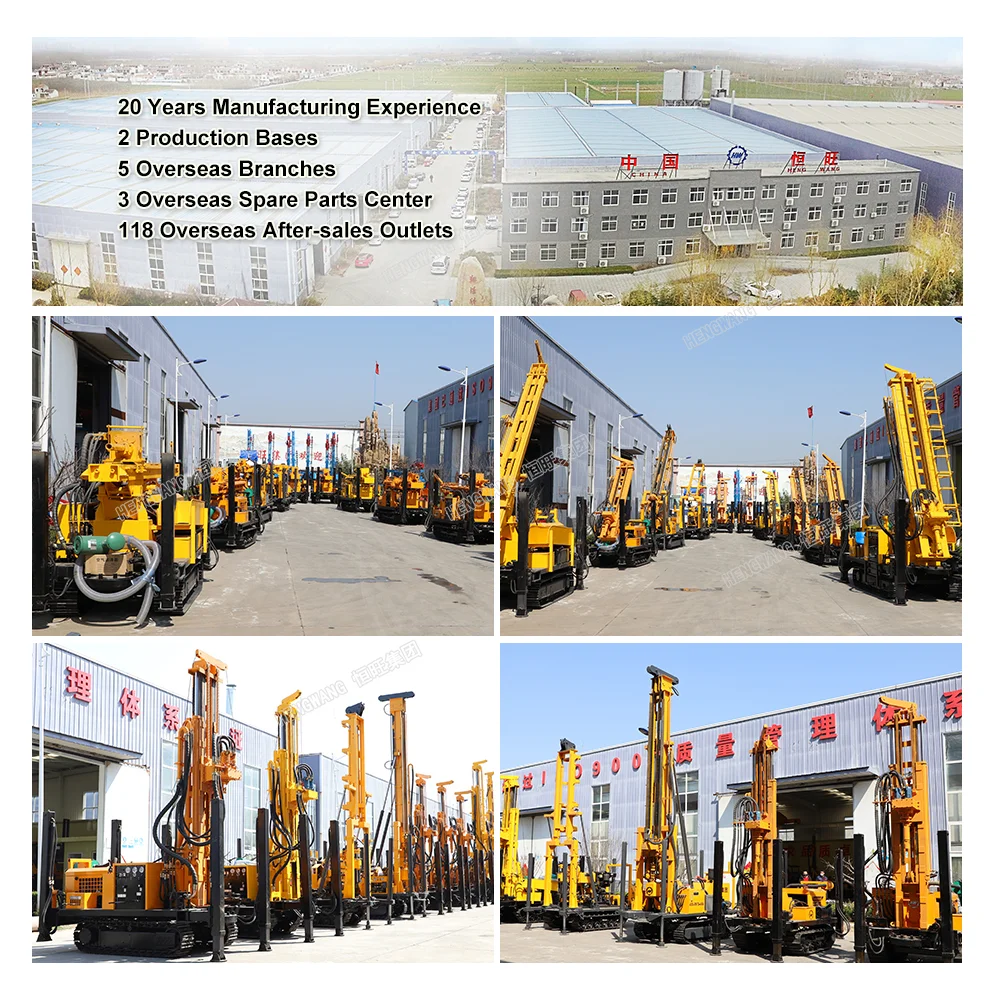

Company Profile
Hengwang HWY-160 Crawler-mounted portable water well drilling rigs Borehole drill rig 150m drilling rig
Cerficate: CE
Product Name: Drilling Rig
Certificate No.: M.2019.206.C3842
Certificate No.: M.2019.206.C3842
Cerficate: CE
Product Name: Pile Driver
Certificate No.: M.2019.206.C0231
Certificate No.: M.2019.206.C0231
Contact us
