Высококачественная Вертикальная пила для резки алюминиевых и композитных

Описание и отзывы

Трекер стоимости

Характеристики

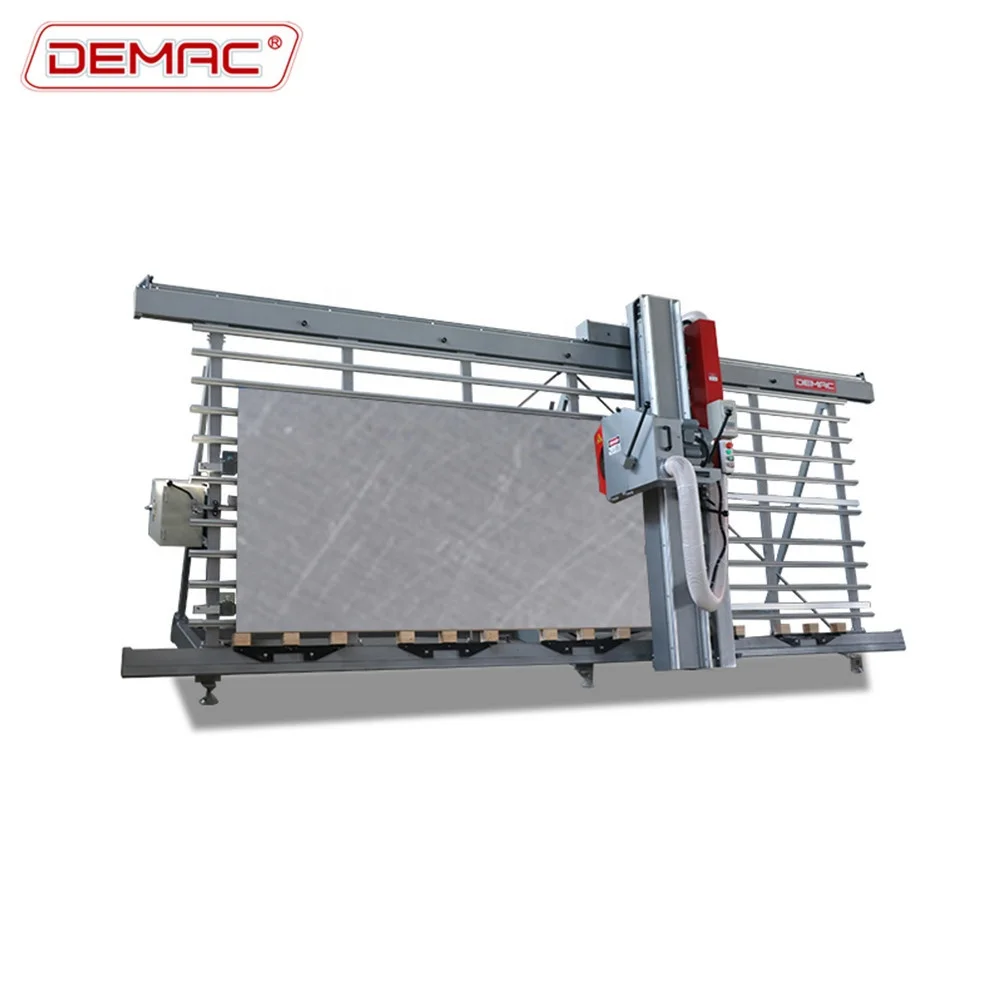

Aluminum Composite Panel Cutting/Grooving Machine

LMX–1600



Main specification and technical parameter

Power supply	Made to order
Cutting motor power	2.2KW
Motor rotary speed	2850r/min
Cutting width	max 4100mm
Cutting height	max 1600mm

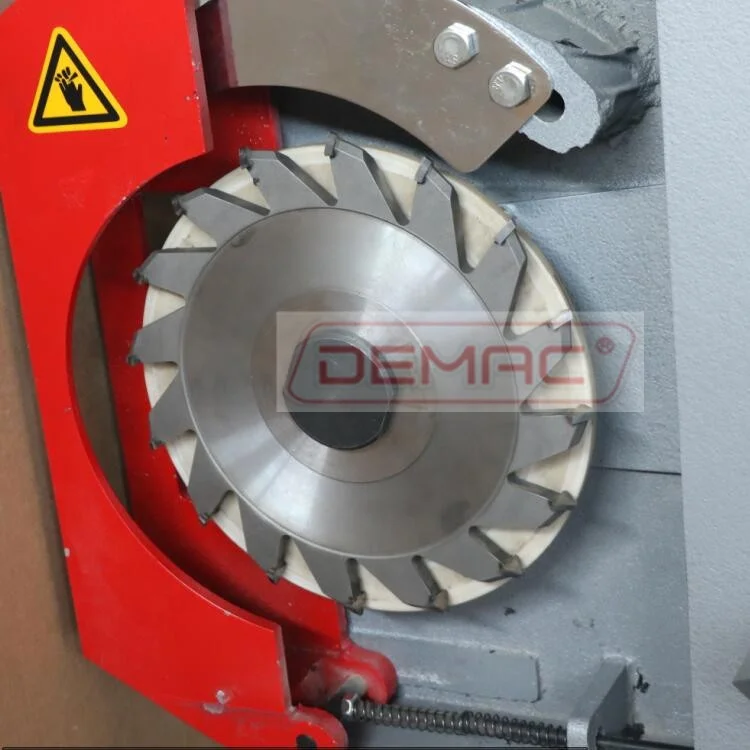

Milling cutter size	φ250mm×16mm×φ30mm  (92&135°)     Z=12 φ250mm×φ30mmX3.2  (saw blade cut off)     Z=80
Contour dimension	5400mm×1200mm×2600mm
Weight	1500Kg

Equipment Processing accuracy:

1.       Groove linear in horizontal milling: ≤0.25/1000mm;

2.       Groove linear in vertical milling: ≤0.25/1000mm;

3.       Cutting surface roughness:Ra12.5∪m

4.       Two IS vertical slots max deviation from standard line ≤1;

5.       The parallelism of two milling slots in the same direction ≤0.25/1000mm

Equipment features:

1.       Milling cutters can work in horizontal and vertical way

2.       There is pulling device at the bottom and middle position which is convenient for the different size processing;

3.       The interval subsection orientation device and the lock device are set in the movable frame;

4.       Used for milling processing of the profile bending parts of aluminum curtain wall;

5.       Processing range (L×H): 4100×1600mm;

6.       The slot depth can be adjusted for the special designed cutters;













Why choose Demac products??

1.Demac product is widely used in almost all the materials which you can think of.

2.Demac machine with high precision and high reputation is the most reliable goods you can choose.

3.Demac company has all kinds machines in store, the delivery time is much shorter than other companies.

4.Guarantee the complete machine for 12 months, except the consumable parts.

5.Demac company has international tech service office and provides 24 hours online service and tech support for customers.

Services

The engineer is available to travel aboard, help the installation, maintenance and training staff.



By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation.



We always looking for long term cooperation, not one time deal.
