Мощный Фокусируемый лазерный модуль 450 нм 40 Вт лазерная головка для лазерной режущей машины инструменты
- Категория: Laser Equipment Parts >>>
- Поставщик: Henan,Lunyee,Industrial,Automation,Equipment,Co.,Limited.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 171.12 $* | 174.73 $* |
| Jul-17-2025 | 139.77 $* | 142.75 $* |
| Jun-17-2025 | 169.13 $* | 172.52 $* |
| May-17-2025 | 167.95 $* | 170.56 $* |
| Apr-17-2025 | 134.63 $* | 137.22 $* |
| Mar-17-2025 | 165.91 $* | 168.42 $* |
| Feb-17-2025 | 163.74 $* | 166.19 $* |
| Jan-17-2025 | 162.62 $* | 165.69 $* |
Характеристики
Packing list: 1*40W laser 1*Focusing column（2cm)
1* 3p-3p laser wire 1*3p-4p laser wire
1* protection Goggles
1* 3p-3p laser wire 1*3p-4p laser wire
1* protection Goggles
Product Description
Module Input： | 40W |
Optical power output： | 15W |
Wavelength： | 450nm |
Working Voltage： | DC 12V |
Input Voltage： | DC12V 3-4A |
PWM/TTL Input： | DC 5V |
Safe temperature ： | <60 ℃ |
Life Time： | 10000-20,000 hours |

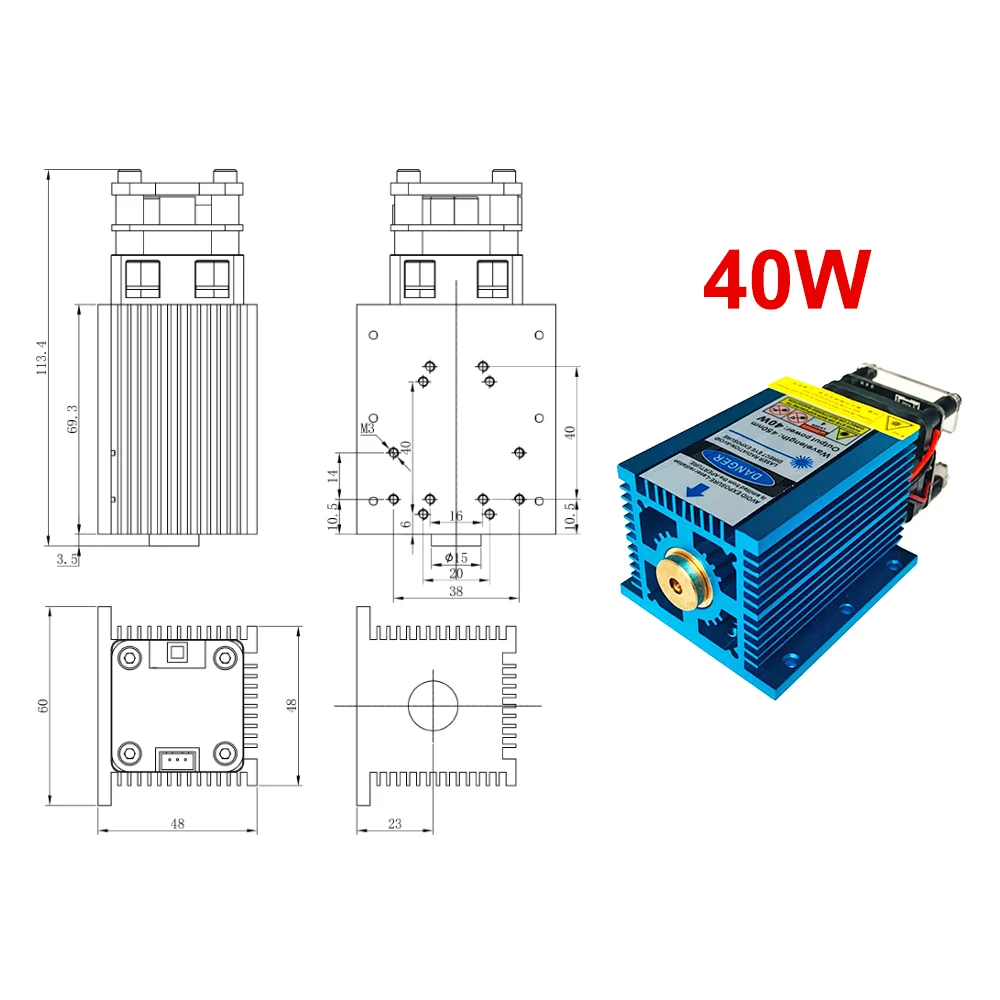

Laser Size: | 33*33*120mm / 60*60*70mm |
Product Details
Engraving distance 2cm
The laser can engraving on stainless steel but I suggest the stainless steel is better have coating！

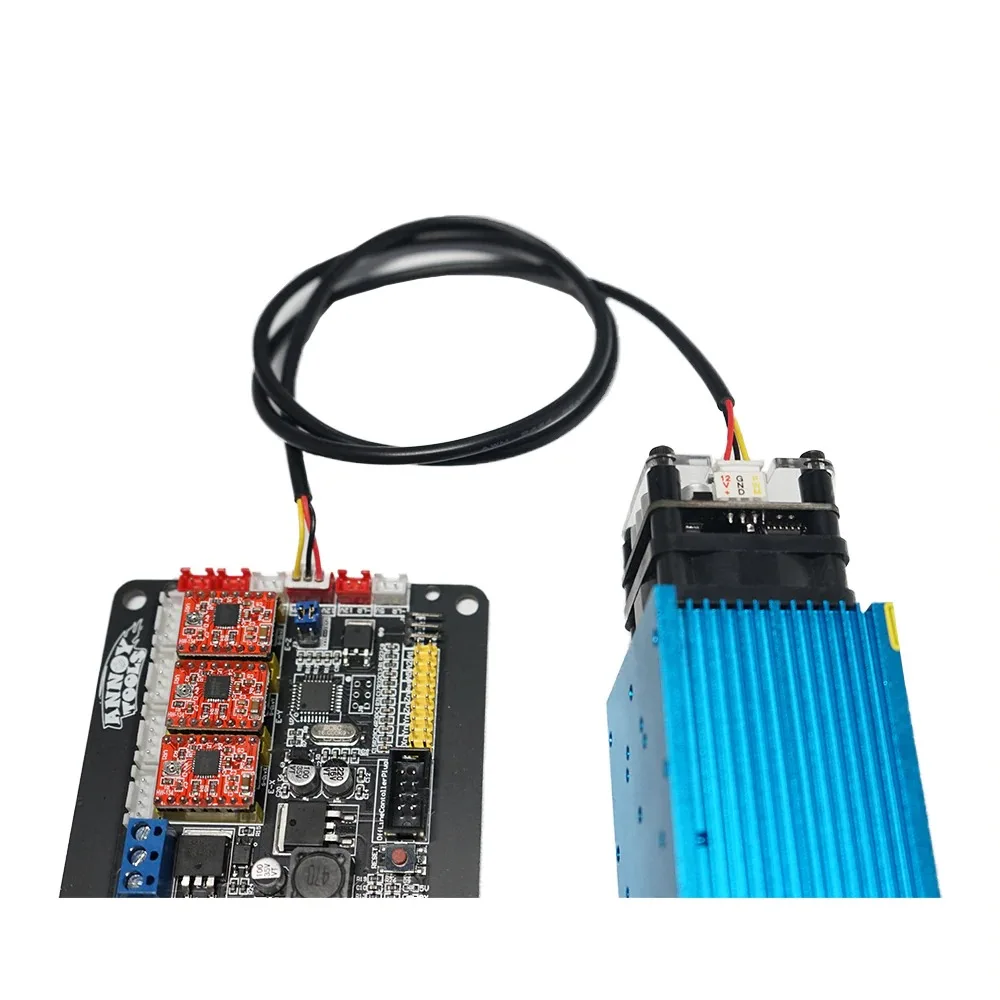

3Pin laser connection diagram 2Pin-2Pin laser connection diagram

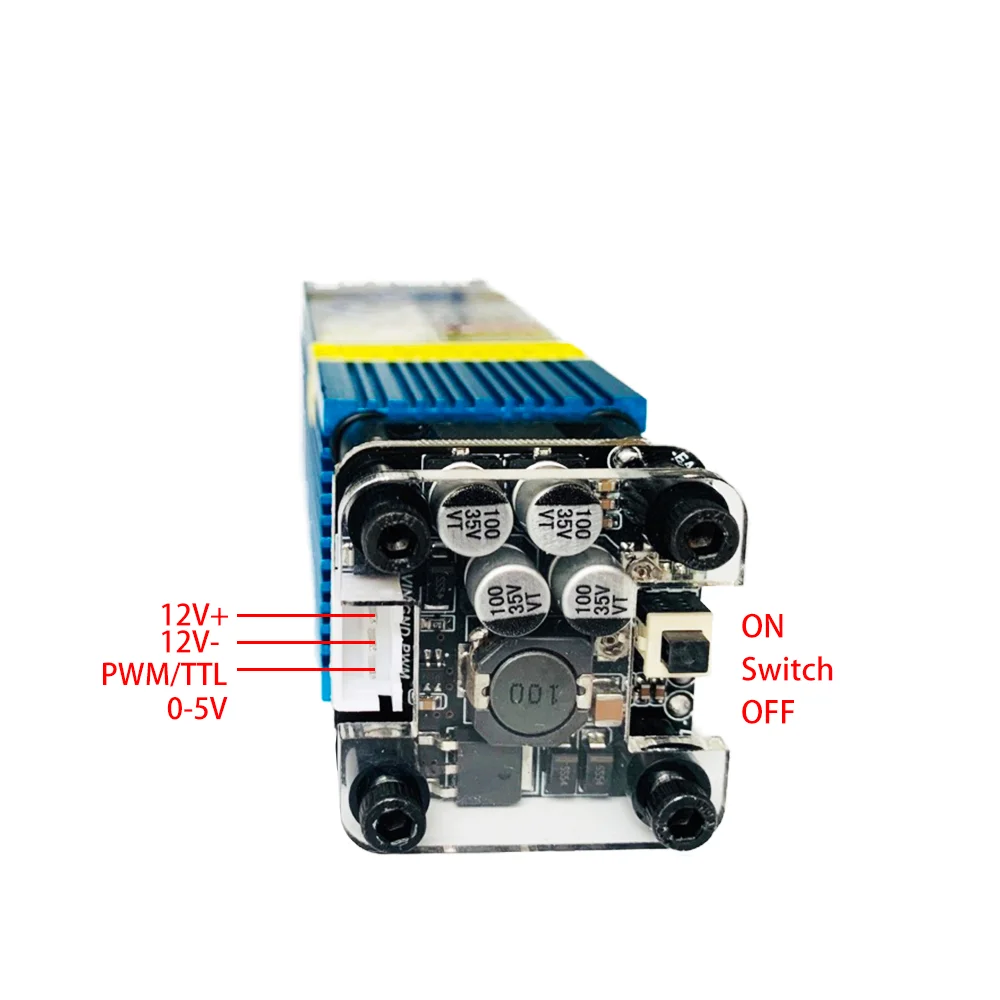

3pin wire: Red is 12V+, Black is 12V-, Yellow is PWM/TTL(0-5v)
4pin wire: Red is 12V+,Black is 12V-, Yellow is PWM/TTL+, White is PWM/TTL
4pin wire: Red is 12V+,Black is 12V-, Yellow is PWM/TTL+, White is PWM/TTL
Software
Product Effect
Company Profile
FAQ
What material can Engrave?
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/Stone/Ceramics/ Stainless Steel
What material can Not Engrave?
Metal/Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material
