Китайское Оборудование высокоэффективное ручное портативное Индукционное паяльное оборудование для обогрева
- Категория: Other Welding Equipment >>>
- Поставщик: Zhengzhou,Daqing,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 6283.61 $* | 6597.41 $* |
| Aug-19-2025 | 6230.81 $* | 6542.16 $* |
| Jul-19-2025 | 5227.90 $* | 5488.92 $* |
| Jun-19-2025 | 6125.18 $* | 6431.95 $* |
| May-19-2025 | 5333.1 $* | 5600.21 $* |
| Apr-19-2025 | 6019.23 $* | 6320.43 $* |
| Mar-19-2025 | 5966.35 $* | 6264.69 $* |
| Feb-19-2025 | 5914.50 $* | 6210.21 $* |
| Jan-19-2025 | 5861.53 $* | 6154.30 $* |
Характеристики
China machinery equipment high efficiency hand held portable induction brazing equipment for heater welding
Product Overview

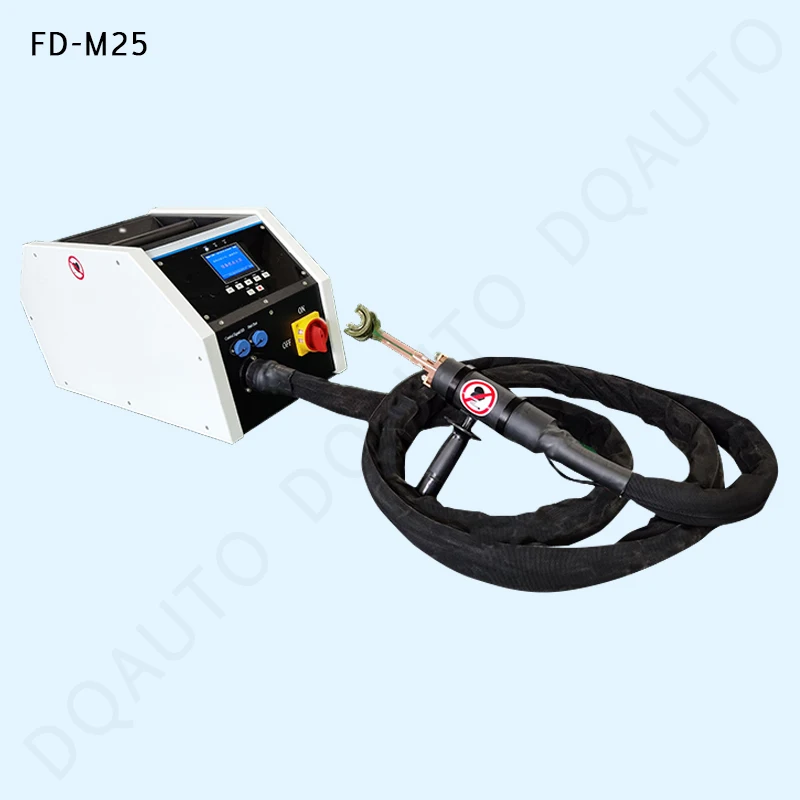

FD-M series hand held induction heater
DQAUTO portable induction heating power supply FD-M series adopts DSP digital control system and The coaxial transformer with
small size and light weight is specially designed for supporting industrial robots and automation equipment And a highly
integrated power supply for manual hand-held heating, It is widely used in brazing/welding, curing, Thermal expansion,
hardening/quenching, straightening, etc.
small size and light weight is specially designed for supporting industrial robots and automation equipment And a highly
integrated power supply for manual hand-held heating, It is widely used in brazing/welding, curing, Thermal expansion,
hardening/quenching, straightening, etc.
FD-M series induction heating machine can provide a max intermittent output power of 10-40KW (6-25KW for continuous output), and frequency range of 20-50KHZ.
PRODUCT SPECIFICATIONS
Specifications and technical parameters | ||||||||||
Model | FD-M25 | FD-M40 | FD-M50 | FD-M60 | ||||||
Input power | Input voltage（50HZ） | 360-420V | 360-420V | 360-420V | 360-420V | |||||
Continuous input current | 15A | 24A | 30A | 36A | ||||||
Intermittent input current | 25A | 40A | 50A | 60A | ||||||
Power output | Continuous output power | 10 KW | 15 KW | 20 KW | 25 KW | |||||
Max output power | 15 KW | 25 KW | 32 KW | 40 KW | ||||||
Output frequency | 20-50KHZ | 20-50KHZ | 20-50KHZ | 20-50KHZ | ||||||
Cooling water flow | 2 L/min | 4 L/min | 6 L/min | 7 L/min | ||||||
Cooling water pressure | 4-8bar | 4-8bar | 4-8bar | 4-8bar | ||||||
Max inlet water temperature | 32℃ | 32℃ | 32℃ | 32℃ | ||||||
Cooling water quality requirements | Scale free purified water | Scale free purified water | Scale free purified water | Scale free purified water | ||||||
Generator parameters | Generator size | 600*306*328mm | 600*306*328mm | 600*306*328mm | 600*306*328mm | |||||
Generator weight | 30 kg | 32 kg | 38 kg | 40 kg | ||||||
Coaxial transformer parameters | Transformer size | φ50*160mm | φ50*160mm | φ50*160mm | φ80*160mm | |||||
Transformer weight | 2.5kg | 2.6kg | 2.8kg | 4.5kg | ||||||
Flexible cable length | 2-10m | 2-10m | 2-10m | 2-10m | ||||||
Digital induction heating machine features:
◇ Color screen display: well display the working heating current curve, frequency, heating time, etc.
◇ Equipped with multi-function buttons: realize fast parameters setting.
◇ Fully closed induction heating box design: ensure clean working environment.
◇ Rich interface form: well working with PLC and automatic systems.

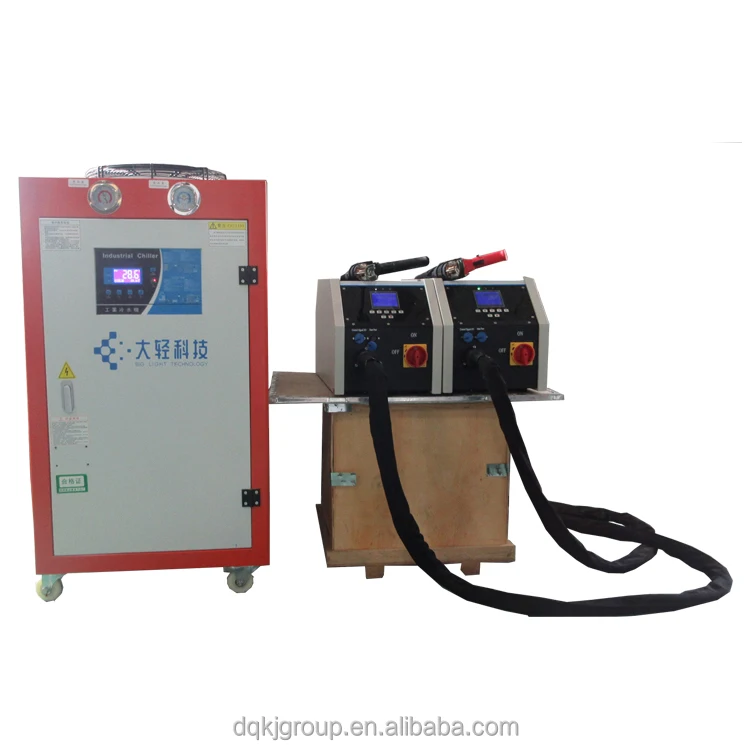

◇ Professional industrial chiller: ensure the complete digital induction heating machine working in the best situations.
◇ Induction heating coils: special design, easy to install.
◇ Coaxial transformer: light, high integration, easy to operate, long using life.
◇ Flexible water cable: length can be customized, normally 2-10m.
◇ Equipped with multi-function buttons: realize fast parameters setting.
◇ Fully closed induction heating box design: ensure clean working environment.
◇ Rich interface form: well working with PLC and automatic systems.
◇ Professional industrial chiller: ensure the complete digital induction heating machine working in the best situations.
◇ Induction heating coils: special design, easy to install.
◇ Coaxial transformer: light, high integration, easy to operate, long using life.
◇ Flexible water cable: length can be customized, normally 2-10m.
Successful Project
Company Profile
ZHENGZHOU DAQING INTELLIGENT TECHNOLOGY GROUP CO.,LTD. takes induction brazing as its research direction, covering the development and application of induction heating power supply technology, automation equipment and industrial robots, and has a number of core patented technologies.
The company's main products include four series of products: digital induction heating equipment, coaxial transformers, assembly line induction brazing equipment, intelligent double-station induction brazing equipment, and automatic turntable induction brazing equipment. Provide customers with a full range of solutions based on induction heating technology, including induction heating power supply design, sensor design, automatic equipment and production lines, remote monitoring and industrial robot integrated applications. Applications involve various industries and fields such as household appliance industry, machinery manufacturing, medical equipment, hardware and electrical machinery, refrigeration and heating and ventilation.
The company's main products include four series of products: digital induction heating equipment, coaxial transformers, assembly line induction brazing equipment, intelligent double-station induction brazing equipment, and automatic turntable induction brazing equipment. Provide customers with a full range of solutions based on induction heating technology, including induction heating power supply design, sensor design, automatic equipment and production lines, remote monitoring and industrial robot integrated applications. Applications involve various industries and fields such as household appliance industry, machinery manufacturing, medical equipment, hardware and electrical machinery, refrigeration and heating and ventilation.
OUR SERVICES
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1. Why tell us the details of your work piece first?
We need to select the type of equipment and customize the induction heating machine according to the condition of your work piece.
2. What work piece information we need to know?
Induction heat treatment
①material ②drawing ③size(diameter,length) ④temperature
2. What work piece information we need to know?
Induction heat treatment
①material ②drawing ③size(diameter,length) ④temperature
⑤ work speed ⑥quenching depth ⑦other heating request
Induction forging
①material ②size(diameter,length or length,width,height) ③temperature
④work speed ⑤other heating request
Induction brazing
①material ②size ③solder ④temperature ⑤work speed ⑥other heating request
Induction melting
①material ②melting quantity ③temperature ④heating time
①material ②size(diameter,length or length,width,height) ③temperature
④work speed ⑤other heating request
Induction brazing
①material ②size ③solder ④temperature ⑤work speed ⑥other heating request
Induction melting
①material ②melting quantity ③temperature ④heating time
Welcome send inquiry to us, for free to get technical support.
