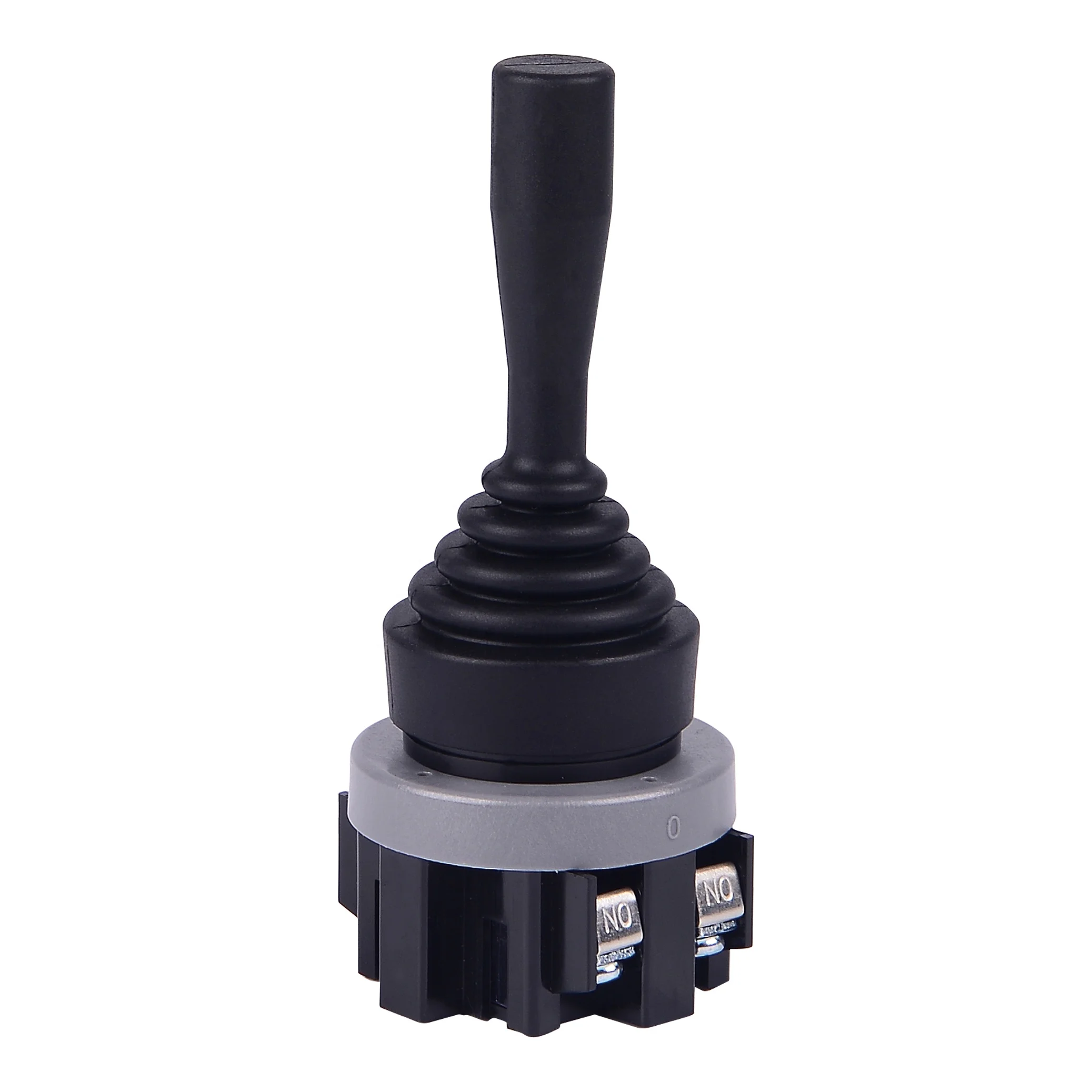

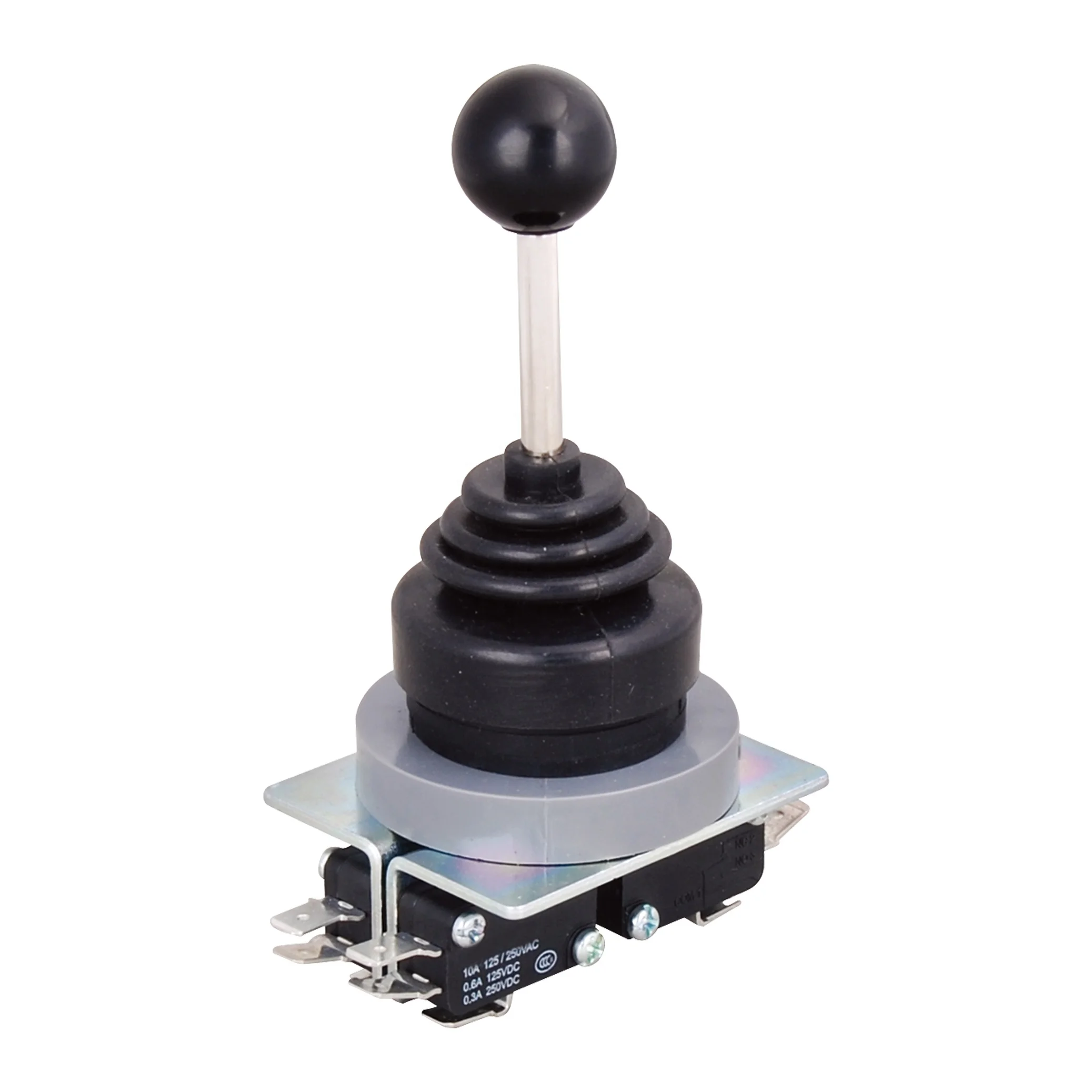

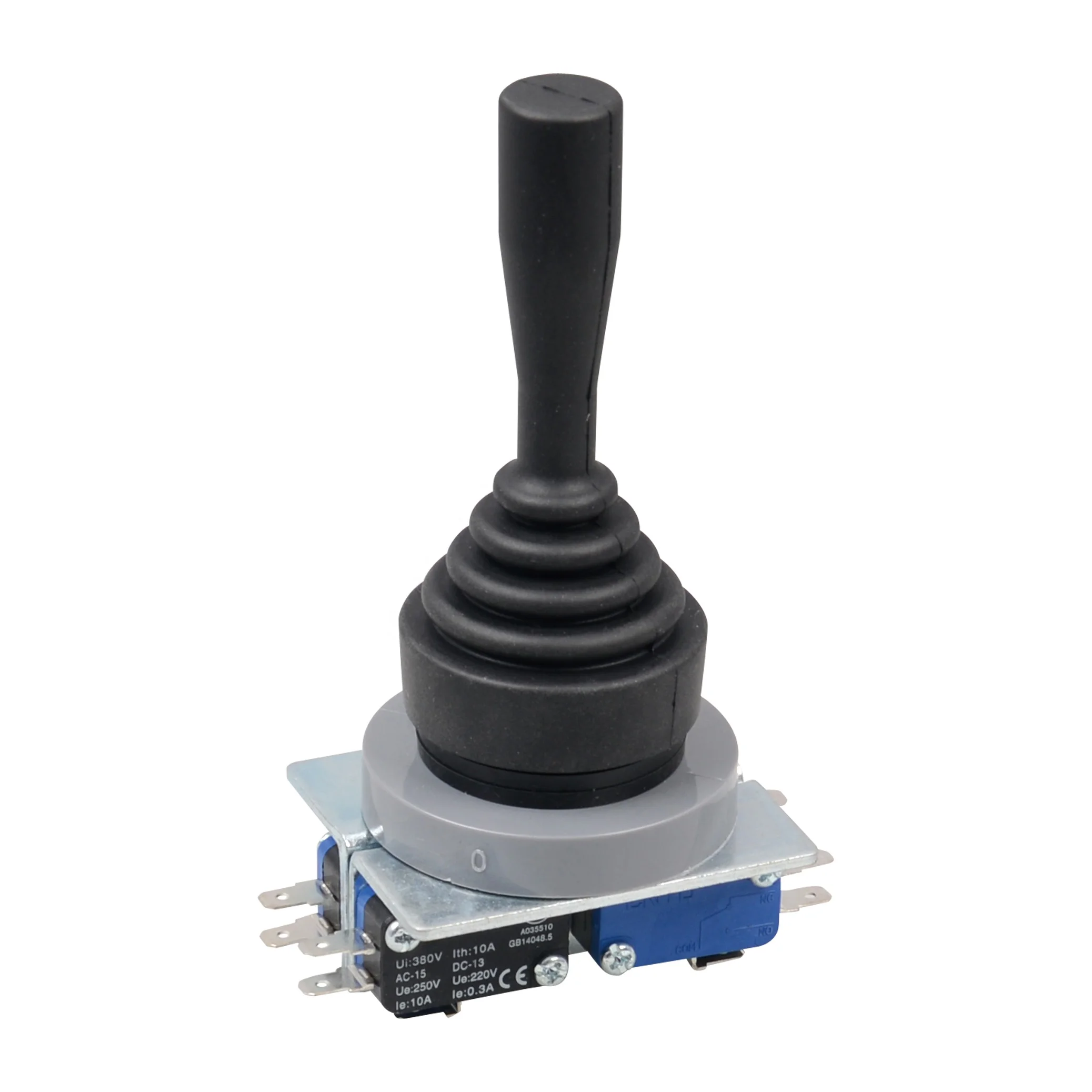

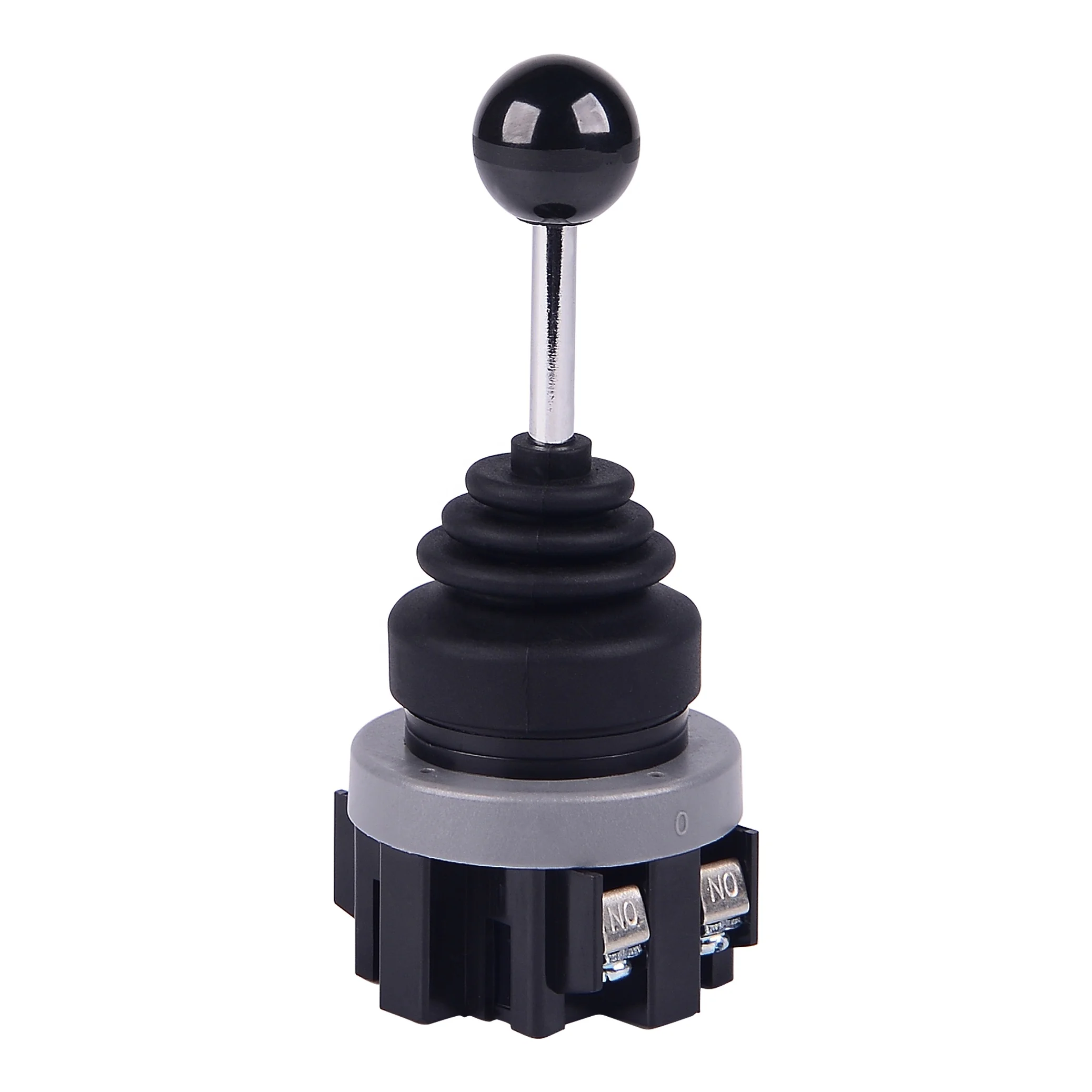

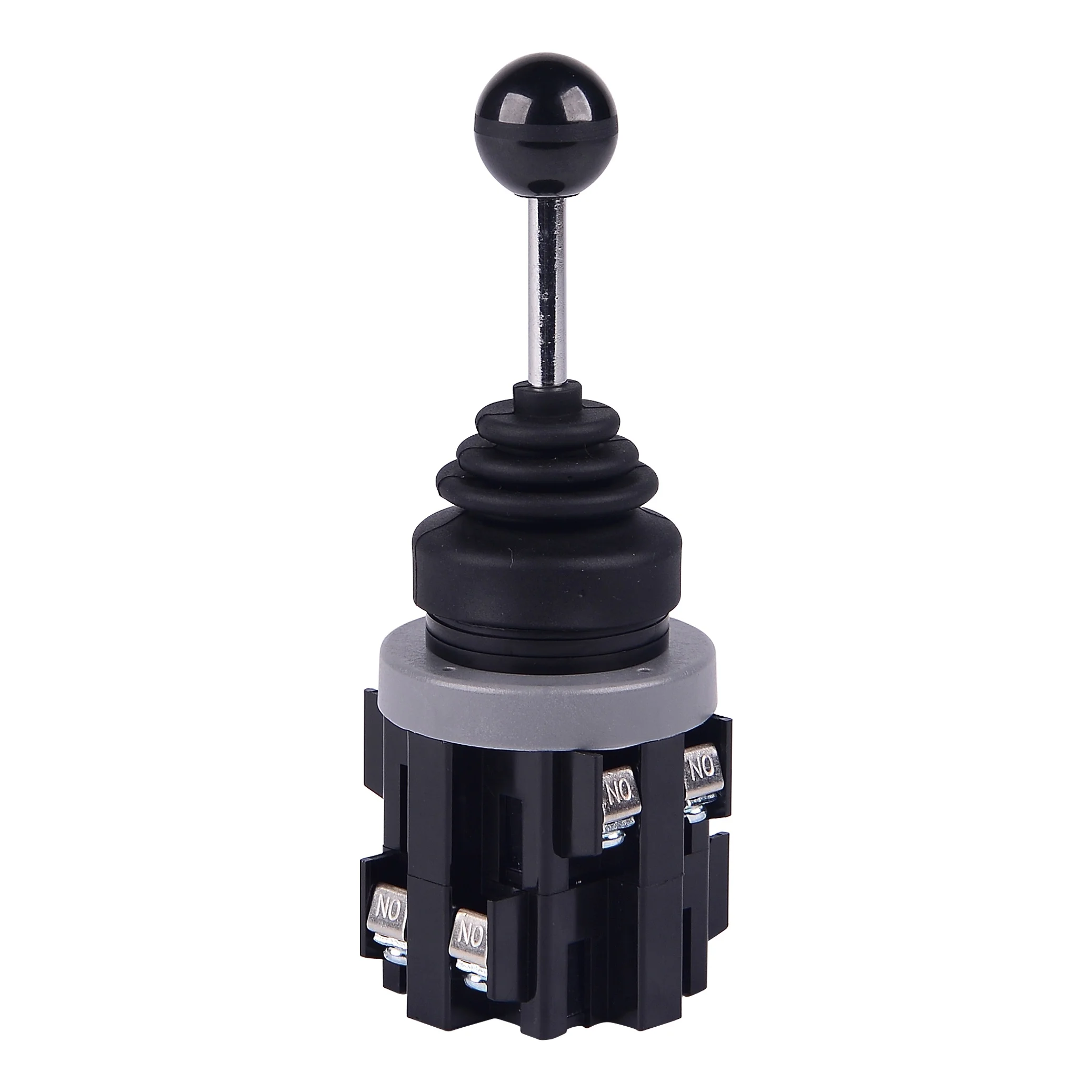

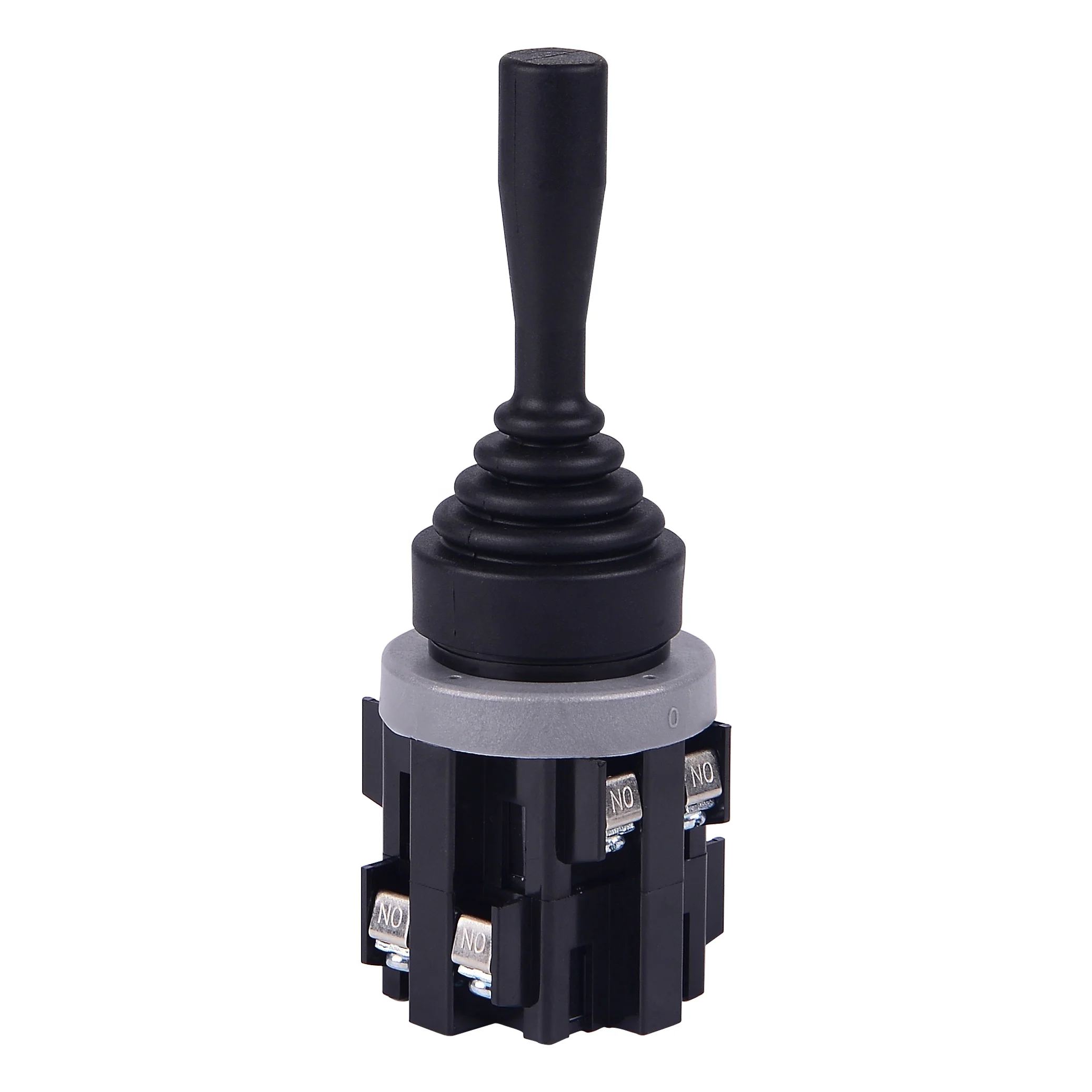

Однорычажный переключатель CNTD три режима работы безопасности водонепроницаемый 10A/6A/3A 50A/30A/10A CMRSN-304 30
- Категория: Other Switches >>>
- Поставщик: CNTD,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.42 $* | 0.86 $* |
| Aug-16-2025 | 0.10 $* | 0.76 $* |
| Jul-16-2025 | 0.47 $* | 0.54 $* |
| Jun-16-2025 | 0.74 $* | 0.0 $* |
| May-16-2025 | 0.35 $* | 0.45 $* |
| Apr-16-2025 | 0.5 $* | 0.58 $* |
| Mar-16-2025 | 0.27 $* | 0.64 $* |
| Feb-16-2025 | 0.37 $* | 0.69 $* |
| Jan-16-2025 | 0.77 $* | 0.13 $* |
Характеристики
Features
Smoothly and swiftly handle the lever in four directions upward, rightward , downward, and leftward
Three alternatives of movement are attainable in each direction: Go-on, auto-return, and blockade-enforcing
Operate in four, three, or two directions with the switch
Rubber bushing is water-proof, oil-resistant, and dustpreventive
Model Number Structure
Item | Code | Description |
Type | CMR | Round type |
CMS | Square type | |
CMRS | Round type | |
CMRN | Seal Round | |
Mounting Hole | 30 | Ф30m/m only |
No.of contact Blocks fitted | 1~4 | 1~4 |
Actuating keys | 1 | Go-on |
2 | Auto-return | |
0 | Blockade-enforcing | |
Type of contact Blocksfitted | 00 | None |
10 | 1a(1NO) | |
20 | 2a(2NO) | |
01 | 1b(1NC) | |
02 | 2b(2NC) | |
11 | 1a1b(1NO-1NC) |
Note: When you place order, please kindly designate clockwise the movement way and type of contact fitted
Ratings
AC | Rated voltage | 110V | 220V | 440V | ||
Rated current | 10A | 6A | 3A | |||
Breaking current capacity | 50A | 30A | 10A | |||
DC | Resistance Load | Rated voltage | 110V | 220V | 600V | |
Rated Current | 2.2A | 1.1A | 0.4A | |||
Breaking Current | 2.42A | 1.21A | 0.44A | |||
Inductive Load | Rated Current | 1.2A | 0.45A | 0.2A | ||
Breaking Current | 1.32A | 0.5A | 0.22A | |||
