Характеристики

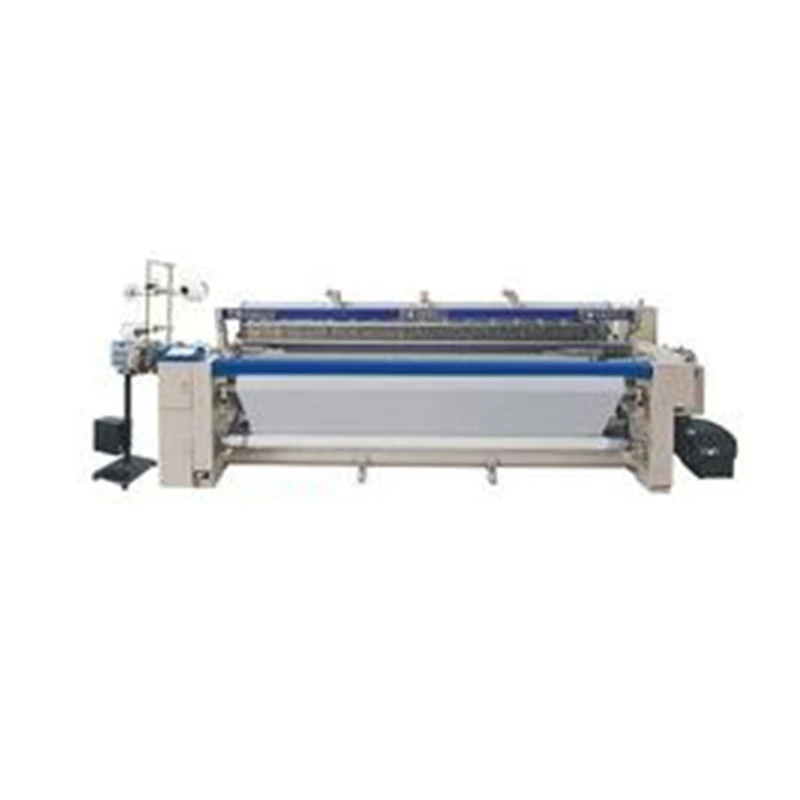

QDP4100 High Speed Air Jet Loom
QDP 4100 air - jet loom is a new type of air - jet loom which is improved professionally on the basis of common type.Through innovation, the QDP 4100 is highly enhanced in terms of air delivery, peeling, coiling, transmission and body stability.Therefore, it gets better performance at high speed. QDP 4100 air jet looms are currently used in a wider range of applications, this model can be equipped with a single pump, double nozzles and electronic feeding system, can be equipped with flat openings, CAM openings and dobby openings.
Main Specification
ITEM | QDP 4100 High Speed Air Jet Loom |
Reed Width | 140, 150, 170, 190, 210, 230, 260, 280, 320, 340, 360cm |
Middle Wall | 450kg wall thickness 40mm |
Speed | 800-1000 RPM |
Heddle Frames | Plain shedding 2~8 pieces, Cam shedding 4~12 pieces, Dobby shedding 16 pieces |
Motor | 1.5kw,2.2kw, 2.6kw, 2.8kw, 3.0kw, 3.5kw, 4.0kw, 4.5kw |
Weft Density | 5~60 picks/cm |
Main features:
1. Adopt short motion beat-up, adapt to high-speed weaving and reduce the damage of the reed to the fabric;
2. Shorten the length of the fabric from the stitch to the roller, reduce the rebound, which is conducive to improving the stability of the stitch;
3. Integral wall panel, increase the longitudinal support of the frame, improve the stability of the frame;
4. Eccentric shaft structure is adopted to reduce beating weft vibration
5. 1-4 color crank opening or crank 6 connecting rod configuration;
6. Stable rear beam tensile structure negative loosening;
By shortening the path before weaving, higher density stable weaving is possible.
From fine yarn to coarse yarn, from narrow to wide, to unbalanced fabric, in order to expect to be able to correspond to a wider range of woven products.
1. Adopt short motion beat-up, adapt to high-speed weaving and reduce the damage of the reed to the fabric;
2. Shorten the length of the fabric from the stitch to the roller, reduce the rebound, which is conducive to improving the stability of the stitch;
3. Integral wall panel, increase the longitudinal support of the frame, improve the stability of the frame;
4. Eccentric shaft structure is adopted to reduce beating weft vibration
5. 1-4 color crank opening or crank 6 connecting rod configuration;
6. Stable rear beam tensile structure negative loosening;
By shortening the path before weaving, higher density stable weaving is possible.
From fine yarn to coarse yarn, from narrow to wide, to unbalanced fabric, in order to expect to be able to correspond to a wider range of woven products.
DETAILED SPECIFICATIONS OF QDP4100 HIIGH SPEED AIR JET LOOM
Reed width | 140, 150, 170, 190, 210, 230, 260, 280, 320, 340, 360cm |
Middle wall | 4cm thickness, heavier and stronger. Main wall 450 for QDP4100 high speed air jet loom |
Gears in box | Applied with DATONG(Taiwan) gears, it has the advantages of super silent, wear-resisting, low vibration, oil not easily turning black etc. |
Zero~Max | Shimpo Japan |
Take-up device | Take-up device |
Hearld frames | DaPeng brand, strengthen design, 6~16 frames Specially designed from Niupai for QDP4100 high speed air jet loom |
Nozzle | Korea nozzle |
Electric control box | XINLIAO brand |
Motor | Guofang brand(for exporting), 2% electricity saving |
Belt | Sanmen Chunguang |
Oil seal | Qingdao Kaka |
Qingdao Dapeng Machinery Co., Ltd. has advanced processing equipment and excellent technicians, mainly produces all kinds of DJW series of high-speed heavy water jet loom, from 3.4 to 4.6 m wide water jet loom air jet loom DJA series, DP series nonwoven equipment. Company to market demand-oriented and continuing commitment to product development and promotion. DJW Series Water Jet Loom in mechanical structures and electrical intelligence has done a major breakthrough, so that a wider range weaving, cloth quality, further enhanced. The company spirit of "low-cost weaving meet customer demand for high-quality fabrics," as the goal. Ad hering to the "technology innovation, quality and steady improvement, service excellenceH business philosophy, for its customers to manufacture exquisite products, offer perfect service. Is willing to sincerely cooperate closely with the new and old customers to create a harmonious and win-win future.
For more details of QDP4100 high speed air jet loom, please feel free to contact us, we will get back to you as soon as possible!
Welcome to visit our factory, welcome to inspect our demo machine of QDP4100 high speed air jet loom.
Welcome to visit our factory, welcome to inspect our demo machine of QDP4100 high speed air jet loom.
