Герметичное портативное зарядное устройство серии PA1K3 мощностью 1300 Вт для свинцово-кислотных аккумуляторных батарей или литиевых
- Категория: On Board Chargers >>>
- Поставщик: Nanjing,Pengtu,Power,Supply,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 126.18 $* | 129.18 $* |
| Jul-19-2025 | 102.57 $* | 104.36 $* |
| Jun-19-2025 | 124.45 $* | 126.45 $* |
| May-19-2025 | 123.14 $* | 125.22 $* |
| Apr-19-2025 | 98.40 $* | 100.17 $* |
| Mar-19-2025 | 121.6 $* | 123.37 $* |
| Feb-19-2025 | 120.72 $* | 122.56 $* |
| Jan-19-2025 | 119.74 $* | 121.51 $* |
Характеристики
Product Overview

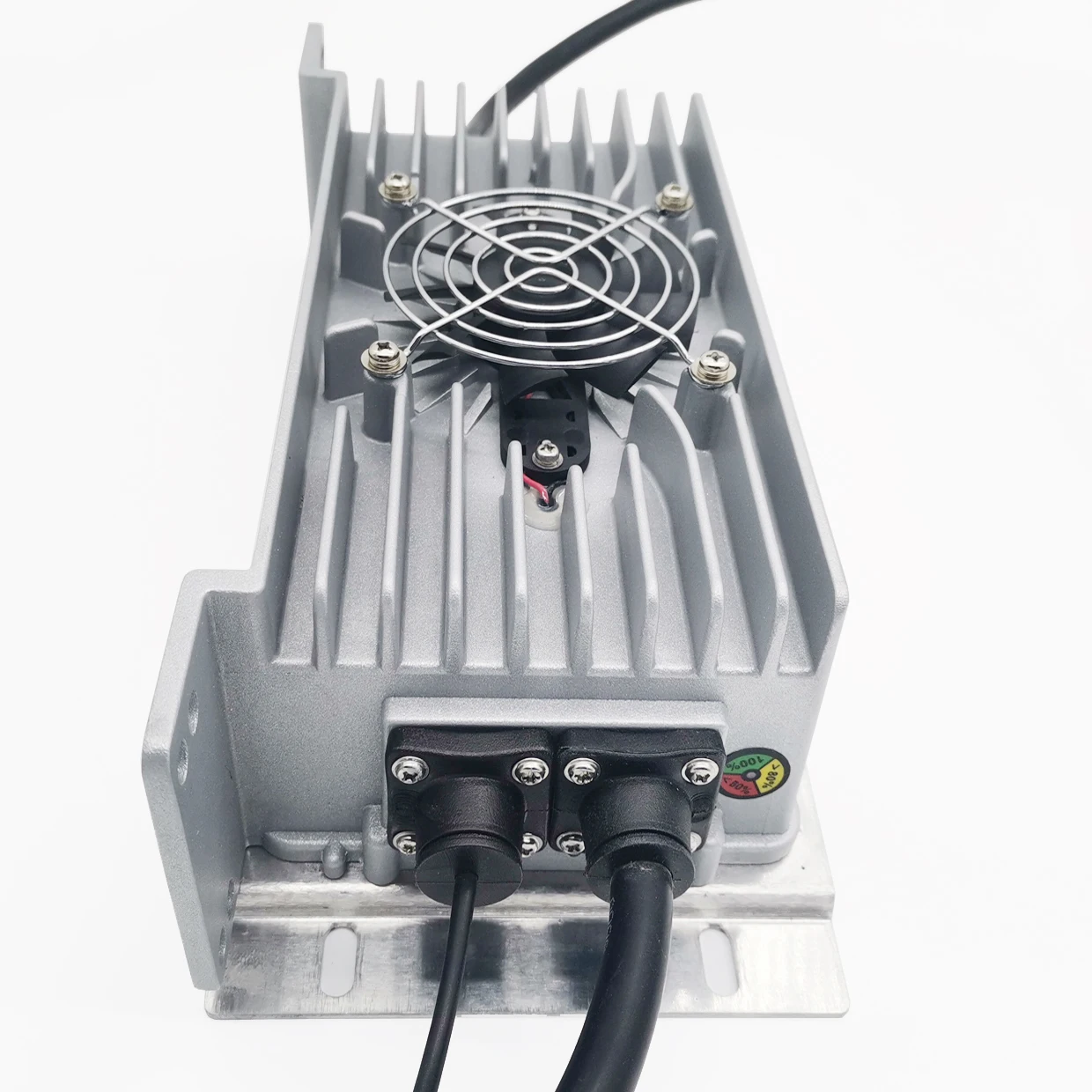

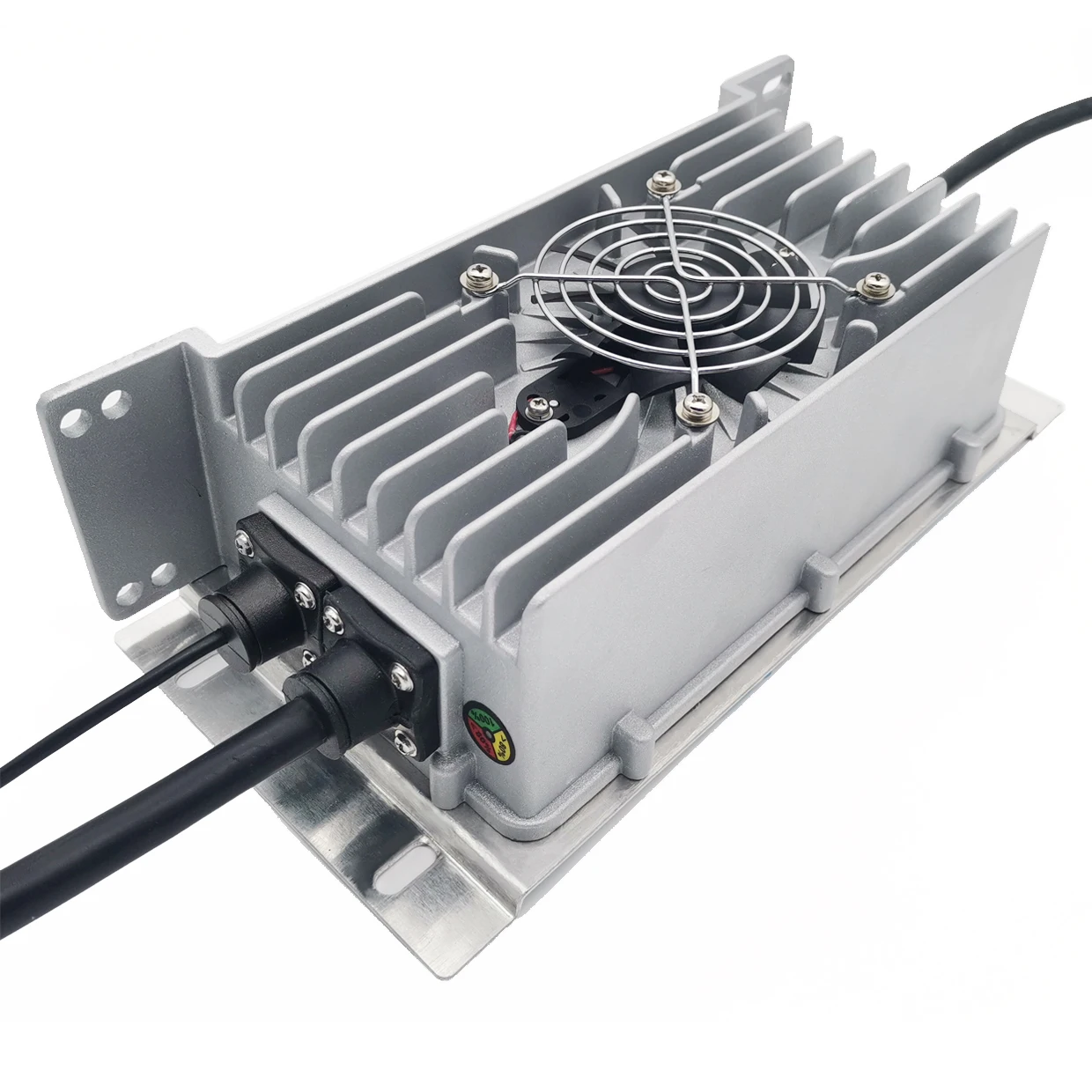

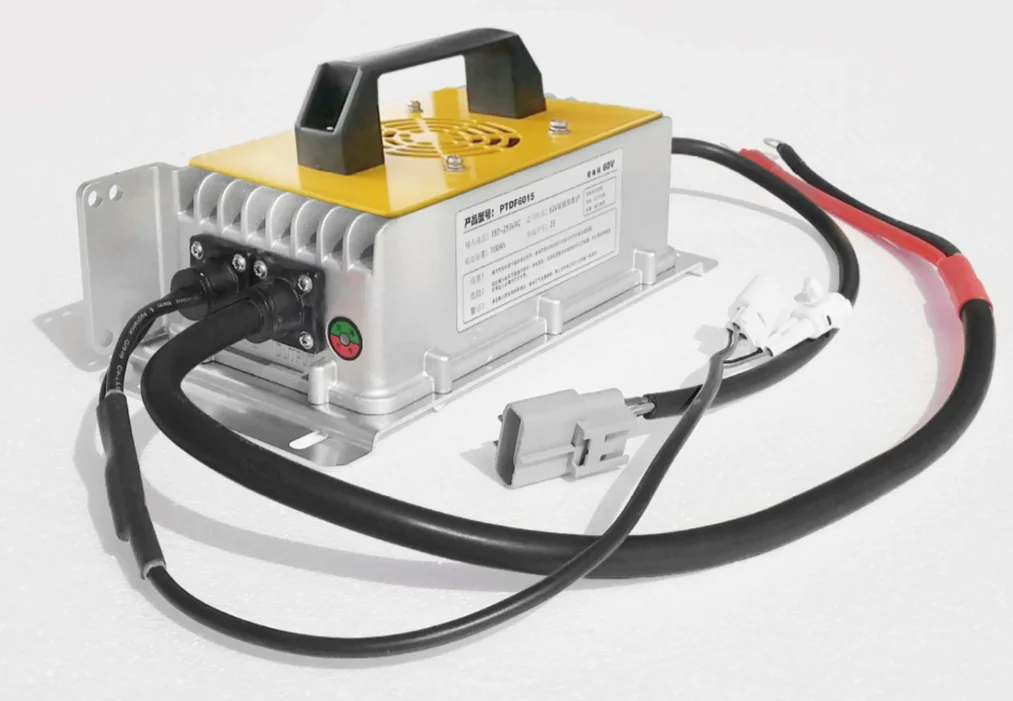

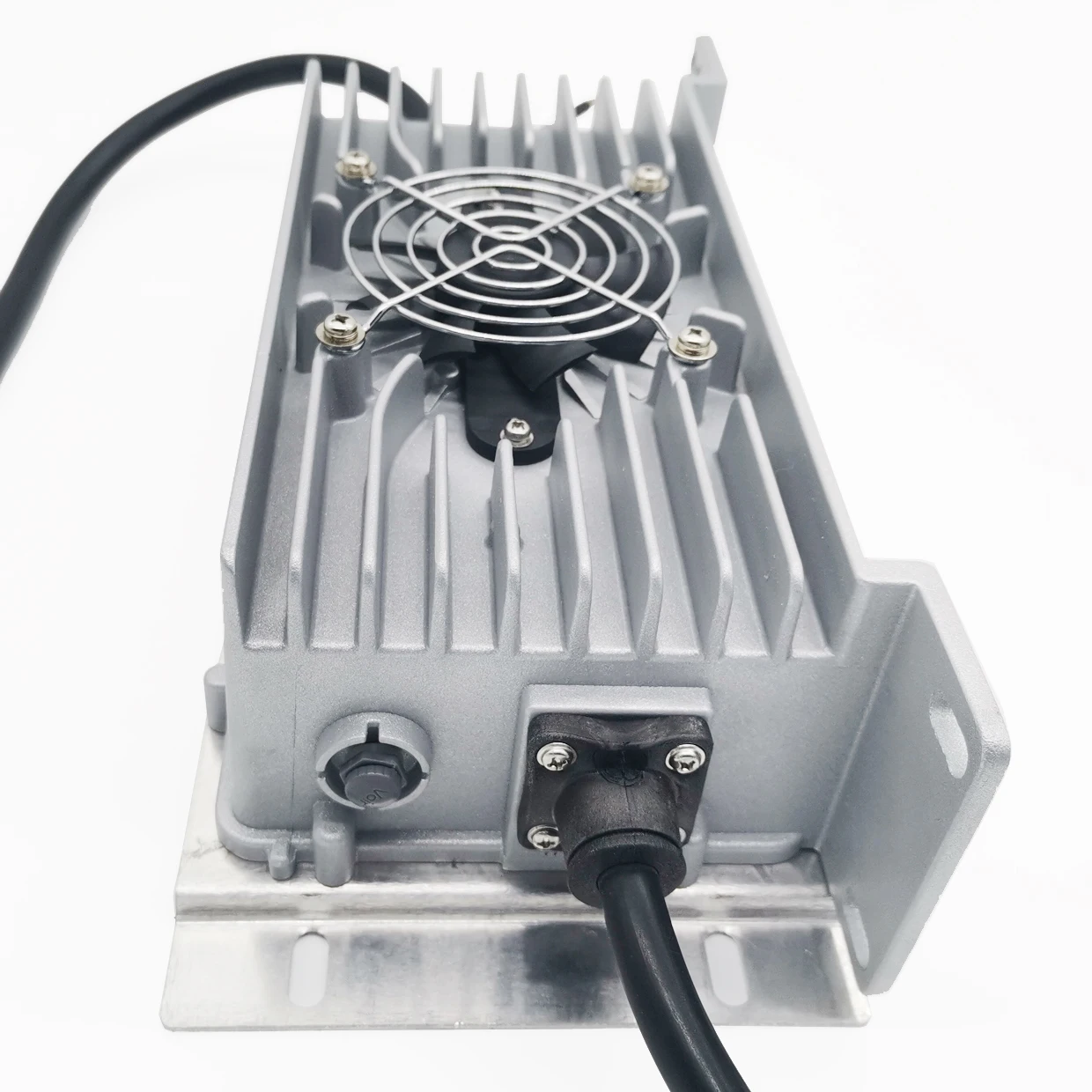

1300W Series Sealed portable charger
The chargers are designed with integrated die-casting structure. They are suitable for flooded lead-acid batteries, sealed
(colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. Widely used in the cycling charge and floating charge of battery packs in the E-car, E-motorcycle, sightseeing car,patrol car, forklift , AGV, communication,power, ship ,etc.
(colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. Widely used in the cycling charge and floating charge of battery packs in the E-car, E-motorcycle, sightseeing car,patrol car, forklift , AGV, communication,power, ship ,etc.
FEATURES AT A GLANCE
. Can be with CAN bus;
. Can be connected with three-color indicator light;
. Charging lock function (The vehicle power system can be locked through the relay during charging process.);
. Meet the requirements for various occasions.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Ac input voltage range | 180-260VAC; 45-65HZ |
2 | AC max input current | 7A@220VAC |
3 | Power Factor | ≥0.98 |
4 | Max Efficiency | 93% (Full Load@220VAC) |
5 | Noise | ≤45dB |
6 | Protection grade | IP67 |
7 | Net weight | 3.2kg±0.3kg |
8 | Working temperature | -30°C~＋55°C |
9 | Storage temperature | -40°C~＋95°C |
Mechanical Drawing
Model List
Item | Battery Rated Voltage | Max output current |
PA1K3M24FB30 | 24V | 30A |
PA1K3M36FB30 | 36V | 30A |
PA1K3M48FB20 | 48V | 20A |
PA1K3M48FB25 | 48V | 25A |
PA1K3M60FB18 | 60V | 18A |
PA1K3M60FB20 | 60V | 20A |
PA1K3M72FB18 | 72V | 18A |
Protection Function
. Output over current Protection. Output over voltage Protection
. Output short circuit protection
. Output no-load protection
. Output reverse connection protection
. Input over voltage protection
. Input under voltage protection
. Over temperature protection
. CAN failure protection
. Fully charge automatic shutdown
In order to confirm if our charger is suitable for your battery pack, please send the following infomations to us by email:
(1) battery type:
(2) number of cells in series:
(3) capacity of battery pack(AH):
(4) The maximum charge voltage:
(5) AC input volt:
(6) with CAN or enable:
(7) if with CAN, tell us the BMS brand
AC cable and DC cable: matching socket without AC/DC cable.
(1) battery type:
(2) number of cells in series:
(3) capacity of battery pack(AH):
(4) The maximum charge voltage:
(5) AC input volt:
(6) with CAN or enable:
(7) if with CAN, tell us the BMS brand
AC cable and DC cable: matching socket without AC/DC cable.
Certifications
