Машина для прошивки картонных коробок/машина изготовления коробок из гофрированного картона по
- Категория: Упаковочные формовочные машины >>>
- Поставщик: Hebei,Maowei,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 10591.12 $* | 11121.61 $* |
| Aug-20-2025 | 10502.27 $* | 11027.9 $* |
| Jul-20-2025 | 8811.24 $* | 9252.94 $* |
| Jun-20-2025 | 10324.63 $* | 10840.96 $* |
| May-20-2025 | 8989.29 $* | 9438.90 $* |
| Apr-20-2025 | 10146.22 $* | 10653.8 $* |
| Mar-20-2025 | 10057.60 $* | 10560.59 $* |
| Feb-20-2025 | 9968.32 $* | 10466.11 $* |
| Jan-20-2025 | 9879.32 $* | 10373.63 $* |
Характеристики
Product Description

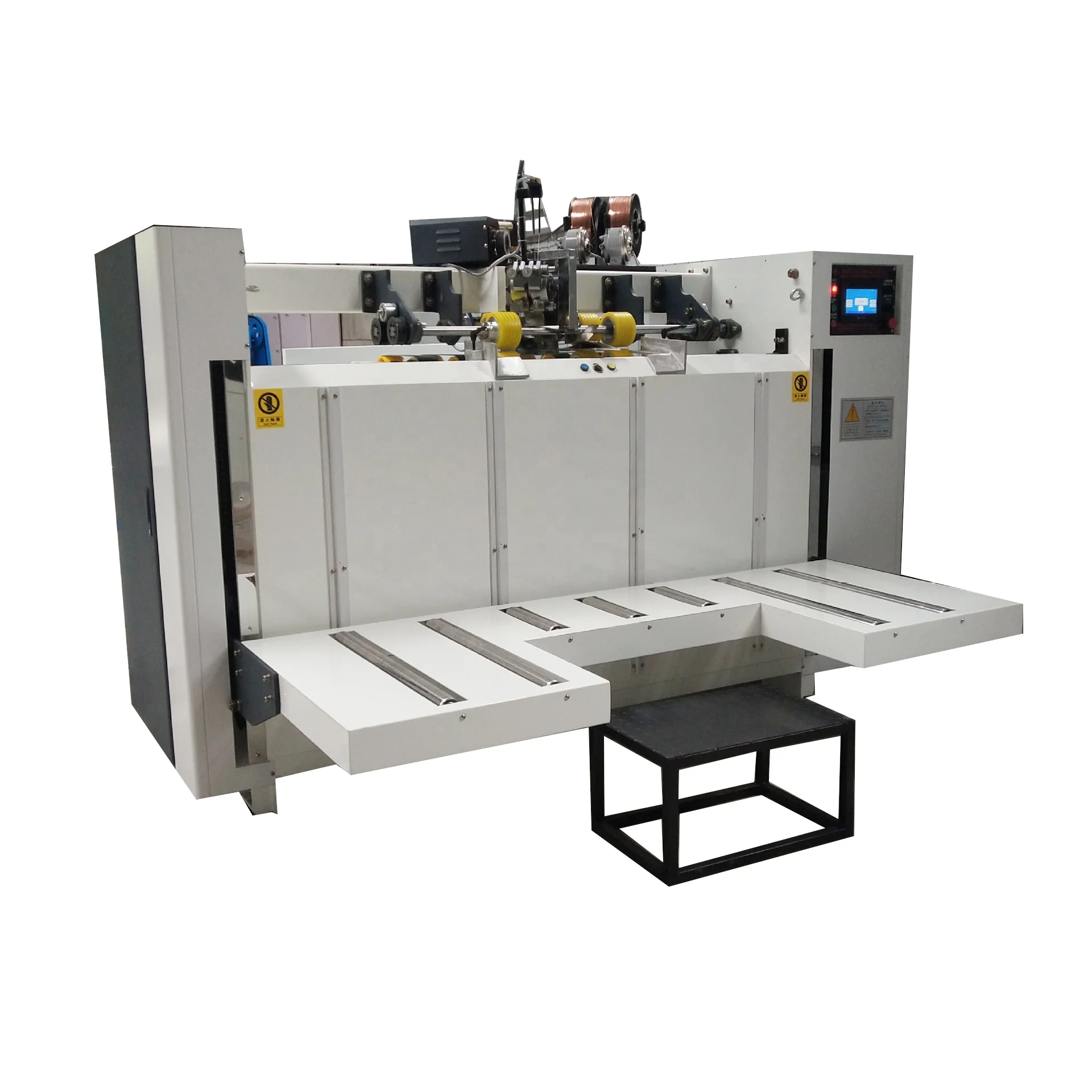

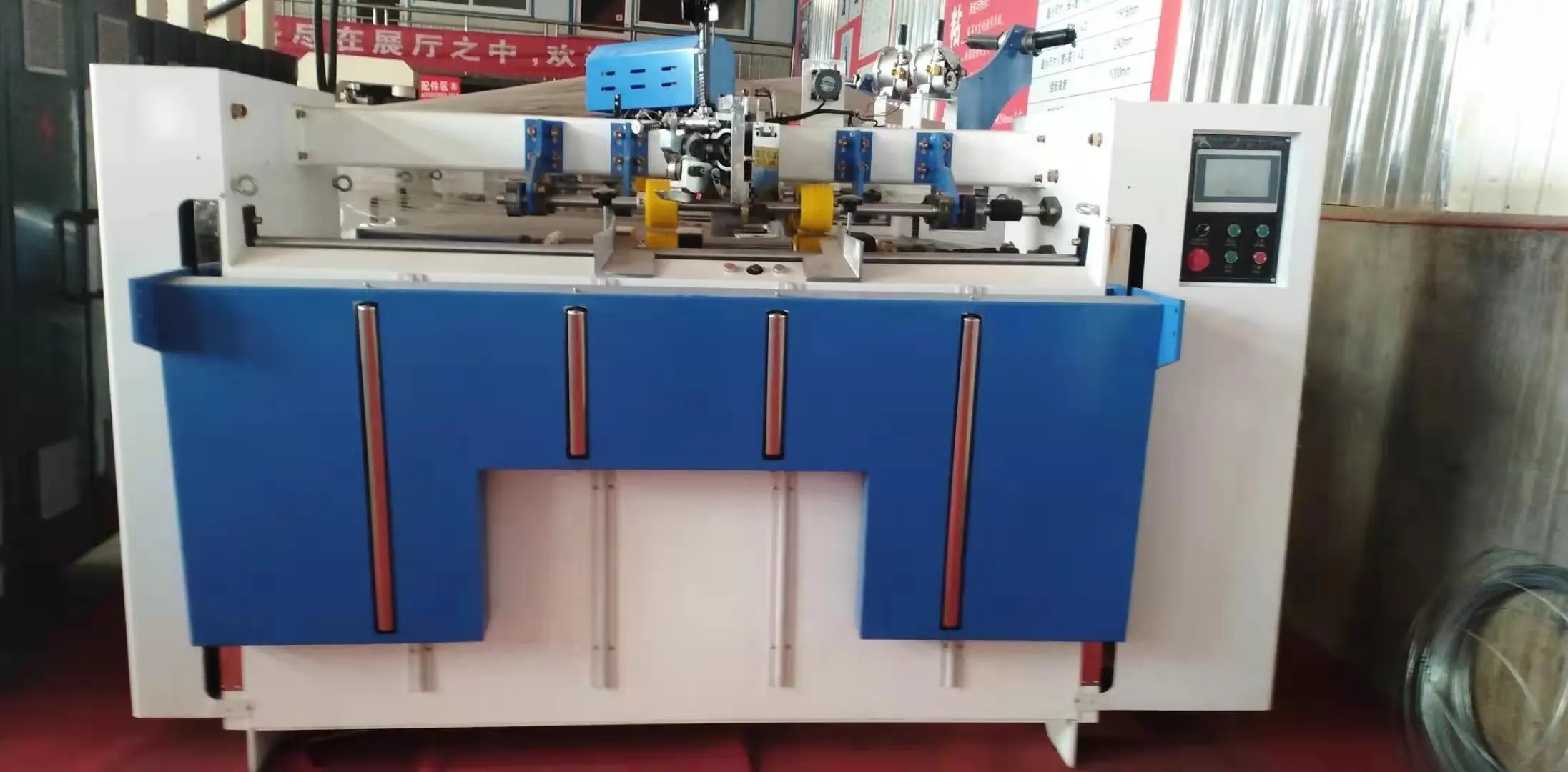

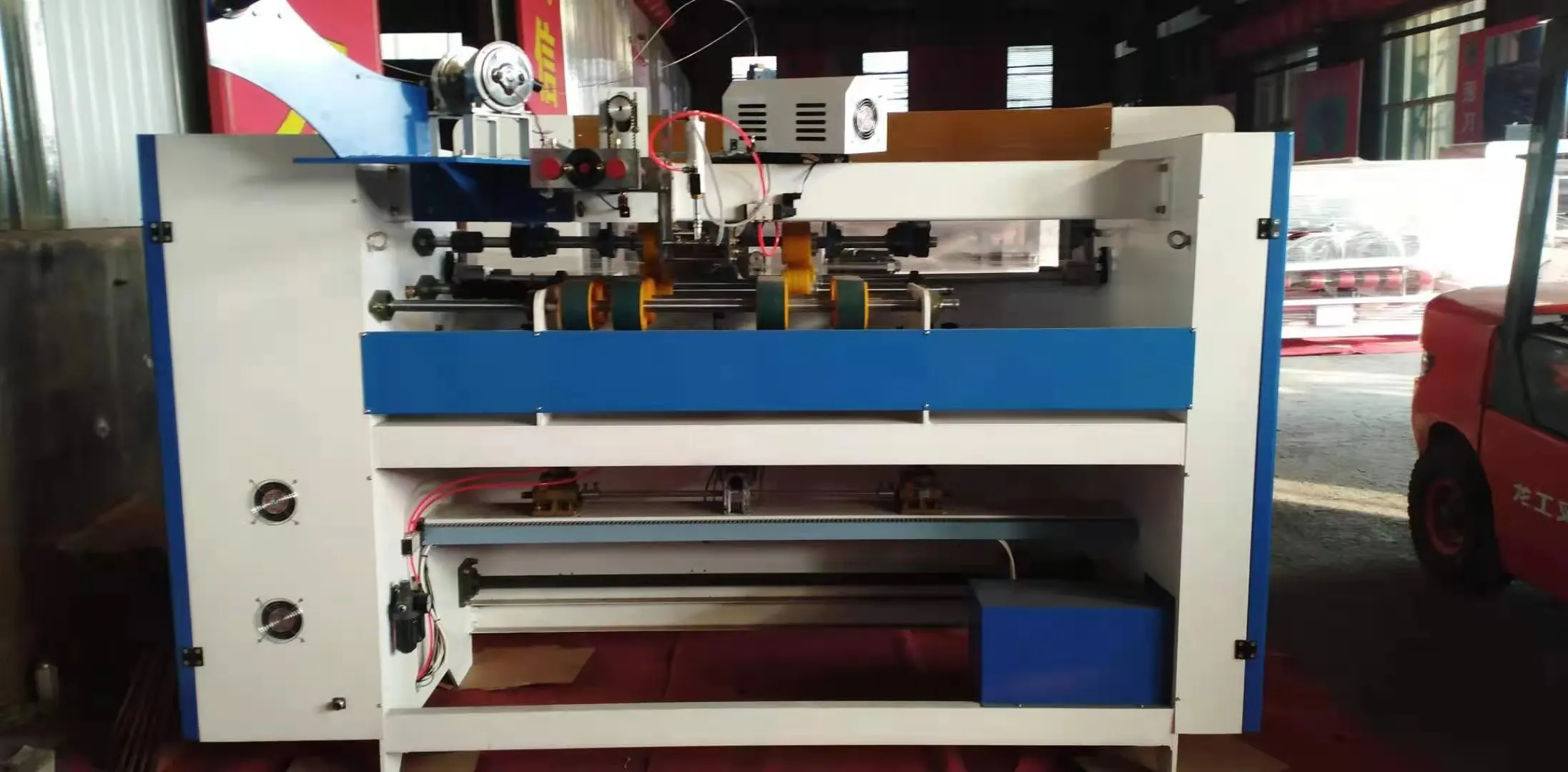

carton stitching machine / used corrugated cardboard carton box making machinery
1) Mitsubishi original imported double servo drive, accurate precision, mechanical transmission part reduced, can effectively reduce the failure rate of machinery.
2) Mitsubishi touch screen operation, the parameters(stitching distance, stitching number, stitching type,rear baffle) change easily and quickly.
3) The whole control system adopts Omron PLC control system.
4) The real electric baffle is driven by stepping motor, accurate size, more convenient and quick to change size.
5) The full contactor in the control box adopts Schneider brand.
6) Photoelectric and proximity switches are brand Omron.
7) Bottom die, blade made of Japanese tungsten steel(wear-resistand)
8) The whole group of nail head are all made of special steel, computer gongs precision processing.
9) Can nail single nail /, double nail //, strength the nail(// / //, both end are double nail, middle nail is single) one time completion, can be suitable for different customers to nail different requirements.
10) It only takes one minute to change the size of the carton and adjust the nail distance of the carton, greatly savingtime and convenient operation,
11) The front-end feed section counts automatic, and the feed station is equipped with photoelectric induction device,which automatic rise when feeding paper.
12) The back section has the function of automatic counting, and the number of finished sheets can be stacked according to the set number( 1-99) and sent to the end of the delivery machine for convenient packing and bundling.
Max.size(A+B)×2 | 3600mm |
Min.size(A+B)×2 | 600mm |
Max.shake cover C | 350mm |
Min.shake cover C | 65mm |
Min.width(C+D+C) | 350mm |
Max.box width(B) | 700mm |
Min.box width(B) | 150mm |
Max.box length(A) | 1100mm |
Min. Box length(A) | 150mm |
Total power(kw) | 4kw |
Machinery floor space | 2800×2600mm |
Machine weight(kg) | 1500Kg |
Nial distance(min/max mm) | 20-120mm |
Machine speed/min | 600 nail/min |
Nail wire type | 17,18 |
Nail number | 1-99 |
We have a professional team of electrical engineers to create a stable and reliable control system.
 |  |
Product details
 | The whole group of nail head is made of special steel. |
 | Famous trademark Schneider. |
 | Servo motor control. |
|
|  |
 |  |  |
