LEJIANG YJ-125 круглая машина для резки ткани
US $10.00-$1000
Распродажа машина для резки ковров с ЧПУ ткани пневматическим осциллирующим ножом
- Категория: Cloth Cutting Machines >>>
- Поставщик: Jinan,AccTek,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 16065.44 $* | 16868.30 $* |
| Aug-15-2025 | 15930.39 $* | 16727.56 $* |
| Jul-15-2025 | 13365.27 $* | 14033.51 $* |
| Jun-15-2025 | 15660.72 $* | 16443.88 $* |
| May-15-2025 | 13635.84 $* | 14317.5 $* |
| Apr-15-2025 | 15390.80 $* | 16160.35 $* |
| Mar-15-2025 | 15255.50 $* | 16018.39 $* |
| Feb-15-2025 | 15120.83 $* | 15876.62 $* |
| Jan-15-2025 | 14985.55 $* | 15734.6 $* |
Характеристики
Hot Sale Carpet CNC Cutting Machine Fabric Pattern Cutting Machine With Pneumatic Oscillating Knife AKZ1625

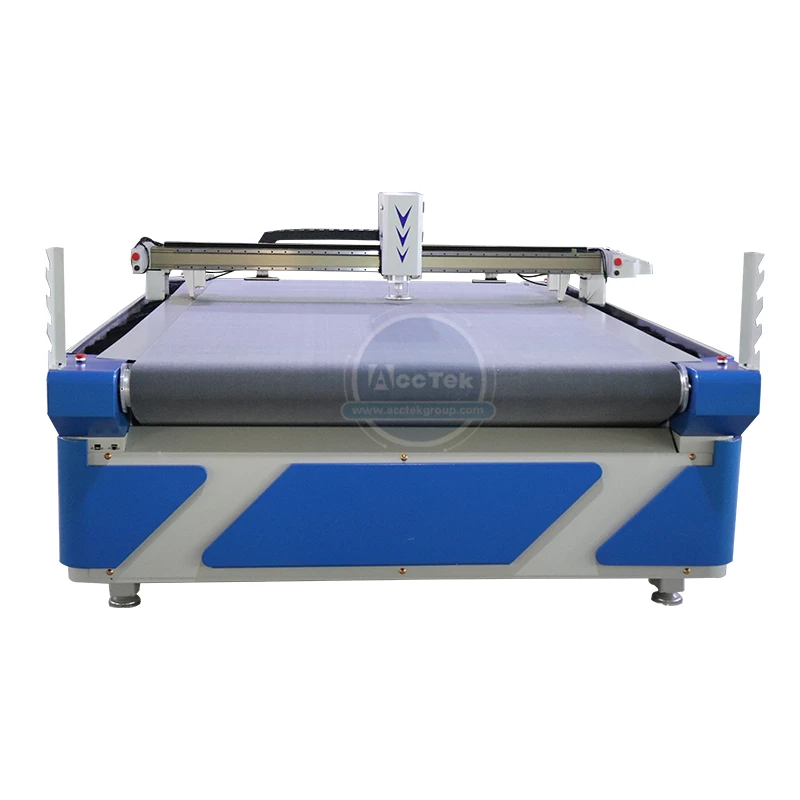

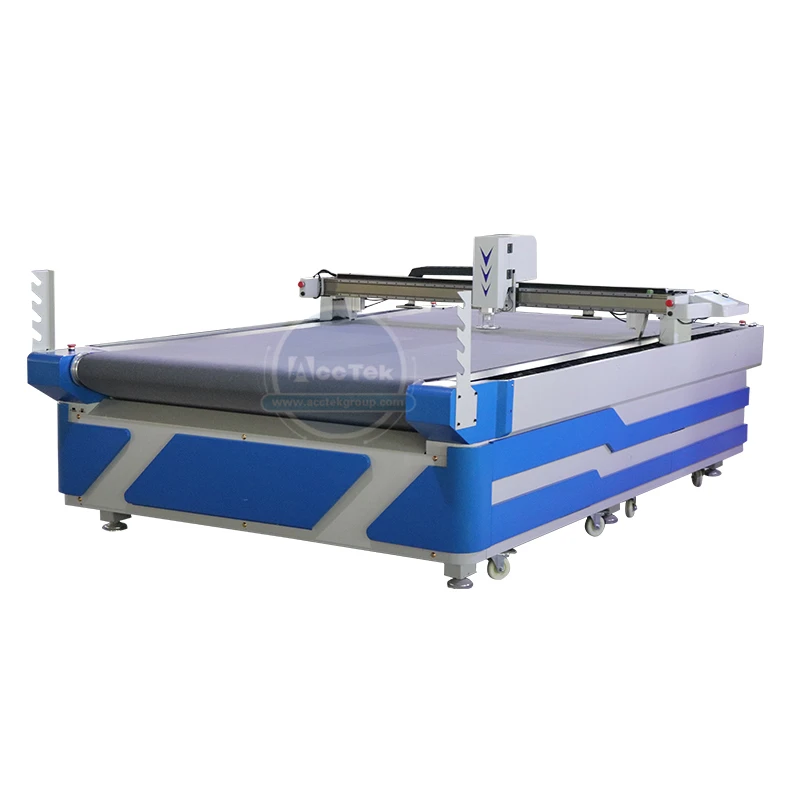

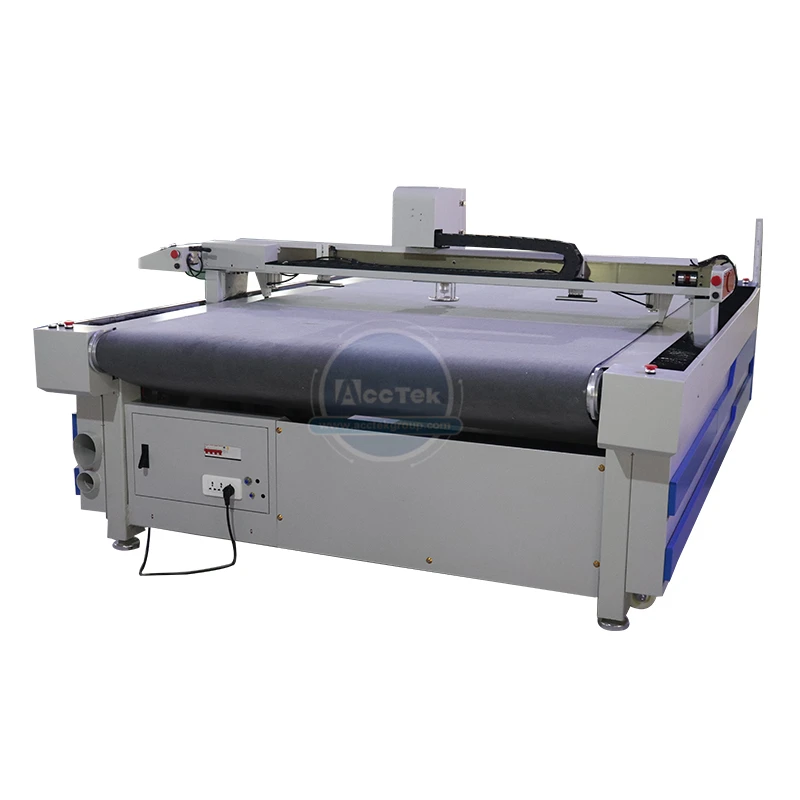

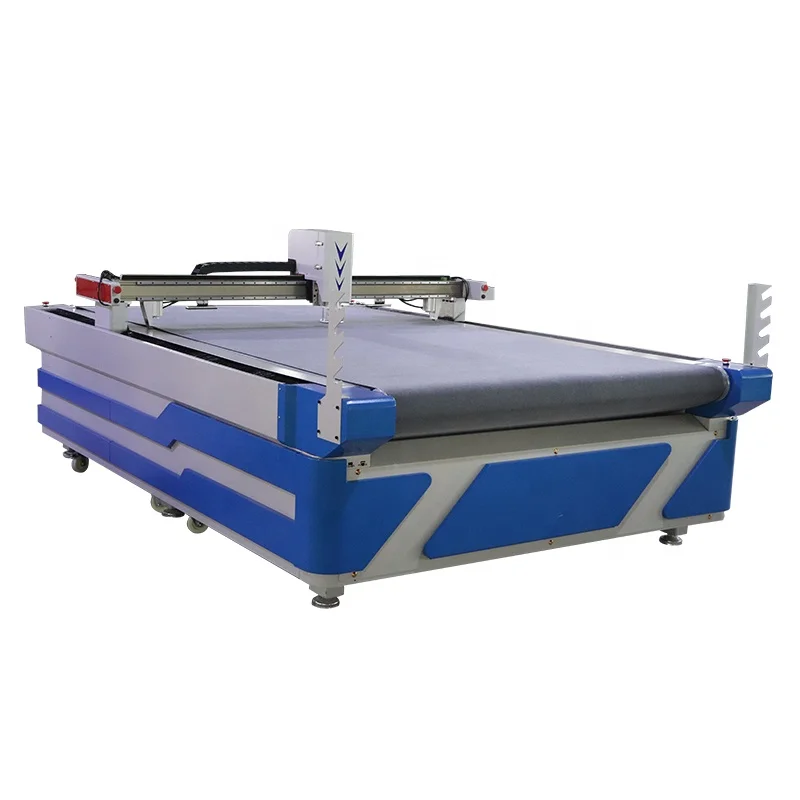

Machine Show
Main Features
1.Vibrating knife cutting technology
Saves the cost and time of manufacturing, management and storage of cutter. Farewell completely to the traditional manual cutting technology, and take the lead in the area of digital tool free die processing.
2. Multifunctional cutting head design
Highly integrated multi group processing tools, can be in a unit of work for interactive cutting, punching, marking, to achieve a one stop operation.
3. Powerful layout and control system
Can achieve automatic layout and accurate calculation thus accurately calculating costs, accurately controlling material distribution, and truly realizing the digital zero inventor strategy.
4. Fast cutting speed
The cutting speed is fast, the maximum speed can reach 1500mm/s, the actual cutting speed will vary due to the hardness, density, thickness of the materials.
Saves the cost and time of manufacturing, management and storage of cutter. Farewell completely to the traditional manual cutting technology, and take the lead in the area of digital tool free die processing.
2. Multifunctional cutting head design
Highly integrated multi group processing tools, can be in a unit of work for interactive cutting, punching, marking, to achieve a one stop operation.
3. Powerful layout and control system
Can achieve automatic layout and accurate calculation thus accurately calculating costs, accurately controlling material distribution, and truly realizing the digital zero inventor strategy.
4. Fast cutting speed
The cutting speed is fast, the maximum speed can reach 1500mm/s, the actual cutting speed will vary due to the hardness, density, thickness of the materials.
Machine Advantages
Compared with laser machine
Compared with manual

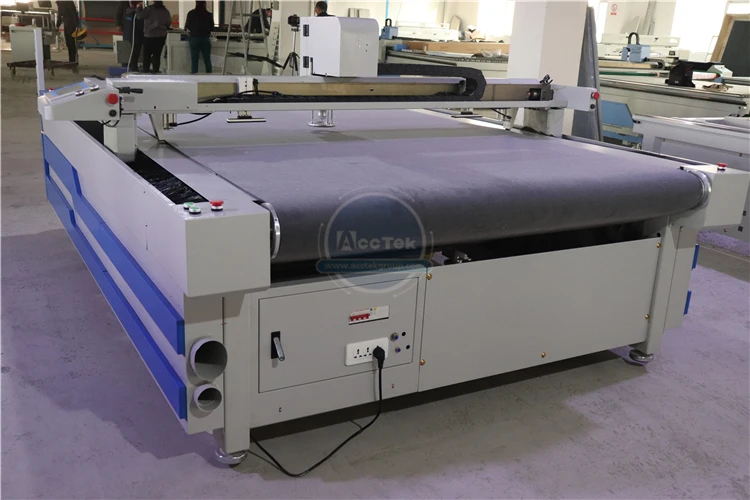

Machine Details
Technical Parameters
Model | AKZ1625 |
Max. cutting size | 1600*2500mm |
Power | 12KW |
Cutting head | Pneumatic oscillating knife cutting head |
Control system | Ruida control system |
Driving system | Taiwan Delta servo motor and driver |
Security configuration | High sensitive infrared induction |
Material fixing method | High power vacuum absorption with felt |
Travelling speed | Maximum 1 500 mm/s |
Cutting speed | Maximum 1 200 mm/s (can be set up according to different cutting materials) |
Cutting material | Corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey board, paperboard, car sticker, adhesive sticker, etc. |
Cutting thickness | Maximum 20mm (can be set up according to different materials and tools) |
Repeated positioning accuracy | ±0.05mm |
Data transmission method | USB port or Ethernet |
Support file | DXF, PLT, AI, SVG, PDF, NC, DST, DSB, etc. |
Operation environment | Temperature 0-40℃, Humidity 20%-80%RH |
Application and Working Samples
Applicable Materials
It can cut fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc.
It can cut fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc.
Applicable Industries
It's widely used for packaging protection, advertising display, termal insulation, model & mock up making,
puzzle and pattern cutting, etc.
puzzle and pattern cutting, etc.
Our Services
1) Guarantee
1 year guarantee of the whole machine.
2) Software issue
Our technician is able to re-install or set up by remote for free.
3) Hardware issue
Main parts (excluding the consumables) shall be replaced or repaired free of charge if there is any problem during the warranty period.
4) Support online
Our technician is able to teach you online to run the machine or eliminate the fault for free.
5) Training in AccTek factory
We are able to train your staff after placed order in our factory for free.
6) On-site training (Recommended, the most effective way)
We are able to send technician to your workshop to do the installation and training. You will need bear the related costs (flight, visa, hotel, training costs, etc.)
1 year guarantee of the whole machine.
2) Software issue
Our technician is able to re-install or set up by remote for free.
3) Hardware issue
Main parts (excluding the consumables) shall be replaced or repaired free of charge if there is any problem during the warranty period.
4) Support online
Our technician is able to teach you online to run the machine or eliminate the fault for free.
5) Training in AccTek factory
We are able to train your staff after placed order in our factory for free.
6) On-site training (Recommended, the most effective way)
We are able to send technician to your workshop to do the installation and training. You will need bear the related costs (flight, visa, hotel, training costs, etc.)
