Жесткая коробка машина по производству коробок HM-600G автоматическая для склеивания и кляксовая
- Категория: Packaging Forming Machines >>>
- Поставщик: Guangdong,Hongming,Intelligent,Joint,Stock,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.79 $* | 0.81 $* |
| Aug-17-2025 | 0.69 $* | 0.70 $* |
| Jul-17-2025 | 0.28 $* | 0.40 $* |
| Jun-17-2025 | 0.38 $* | 0.36 $* |
| May-17-2025 | 0.57 $* | 0.75 $* |
| Apr-17-2025 | 0.5 $* | 0.7 $* |
| Mar-17-2025 | 0.7 $* | 0.25 $* |
| Feb-17-2025 | 0.25 $* | 0.76 $* |
| Jan-17-2025 | 0.18 $* | 0.75 $* |
Характеристики
Product Description

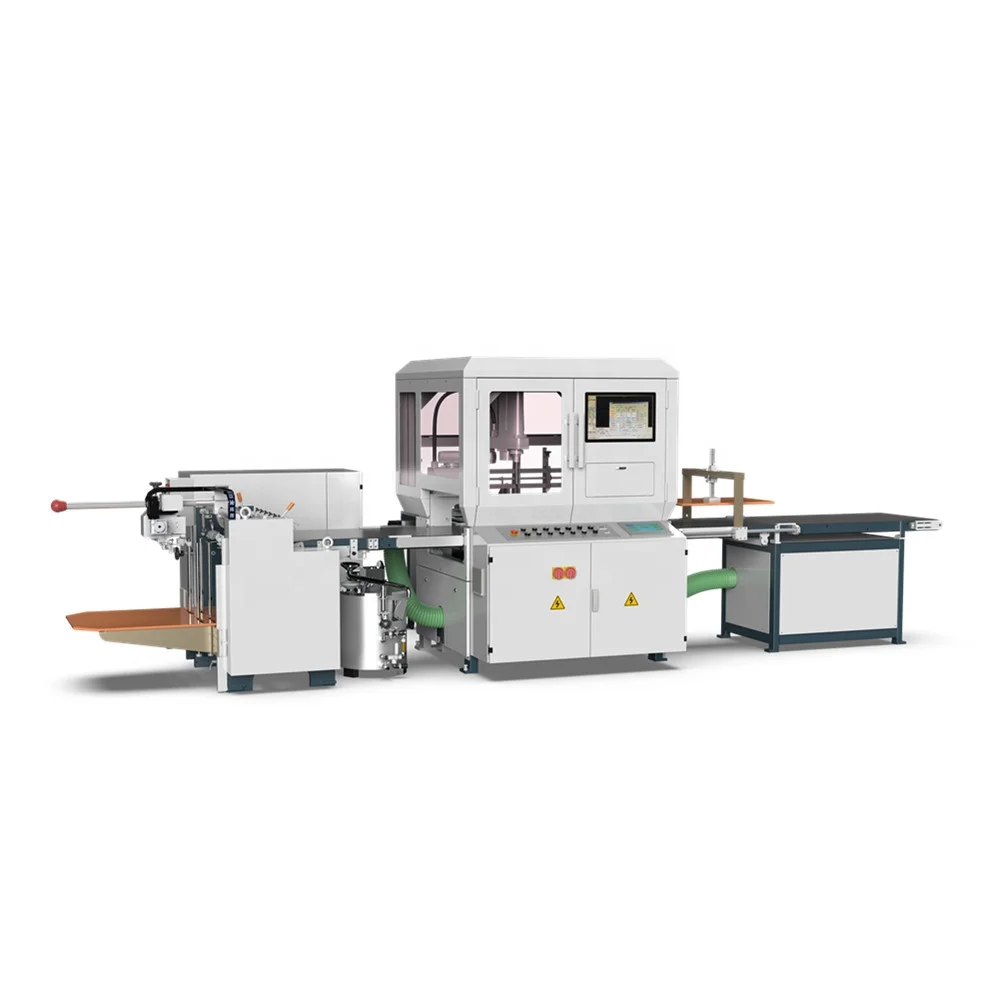

HM-600G Automatic Gluing and Spotter Machine is an automatic equipment for high-precision positioning of large-size premium boxes. It's suitable to all kinds of rigid box positioning process.

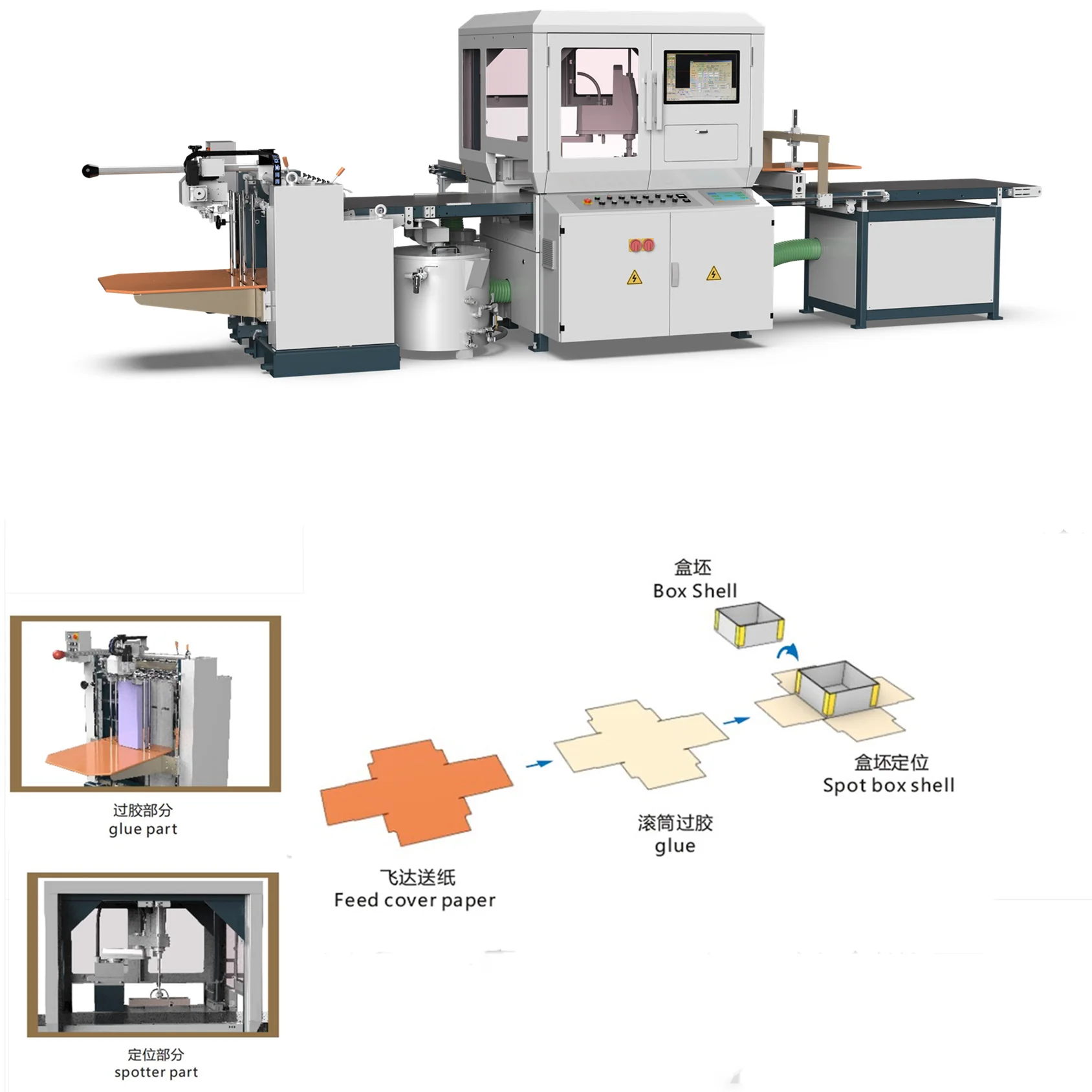

This machine adopts PLC and touch screen man-machine control system and CCD positioning system to realize paper feeding, glue and positioning automatically. In feeder, the conveyor and conveyor belts are driven by servo system .The machine has continuously variable transmission and enjoys high accuracy ,easy adjusting ,and high efficency .The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ±0.05mm, and the speed is faster.
This machine adopts PLC and touch screen man-machine control system and CCD positioning system to realize paper feeding, glue and positioning automatically. In feeder, the conveyor and conveyor belts are driven by servo system .The machine has continuously variable transmission and enjoys high accuracy ,easy adjusting ,and high efficency .The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ±0.05mm, and the speed is faster.
Specification
Model | HM-600G |
Length of paper size | 180-850mm |
Width of paper size | 610-95mm |
Thickness of paper size | 80-160gsm |
Length of Finished Box Size | 60-600mm |
Width of Finished Box Size | 50-400mm |
Height of Finished Box Size | 12-130 |
Paper Pile Height Max. | 320mm |
Glue Tank Volume | 30L |
Air Supply | 100L/min, 0.8MPa |
Speed | <=30pcs/min |
Total Power | 14kW |
Voltage | AC380V |
Power Consumption | 4kW/h |
Net Weight | 2000kg |
Features and Function
1. Automatic production for the positioning process of various paper and box shells.
2. Parameter adopts computer digital setting.
3. Auto error stop and display.
4. Automatically feed paper and box shell.
5. 24-hours control for glue pre-heating.
6. Adopts servo motor control system..
7. CCD positioning system and robot arm for positioning the box shell (positioning accuracy±0.05mm)
8. Automatic control system of glue viscosity (optional)
2. Parameter adopts computer digital setting.
3. Auto error stop and display.
4. Automatically feed paper and box shell.
5. 24-hours control for glue pre-heating.
6. Adopts servo motor control system..
7. CCD positioning system and robot arm for positioning the box shell (positioning accuracy±0.05mm)
8. Automatic control system of glue viscosity (optional)
Packing & Delivery
vacuum packaging + wooden
Company Profile
Guangdong Hongming Intelligent Joint Stock Co., Ltd (Formerly Dongguan Hongming Machinery Co., Ltd) is the leading professional manufacturer who makes automatic rigid box making machines and hardcover books making machines in china. It was established in 1999.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
Exhibition
FAQ
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
