Автоматическая круглая бутылка мешок банок маркировочная машина для
- Категория: Labeling Machines >>>
- Поставщик: Wenzhou,Wanhe,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1666.15 $* | 1749.43 $* |
| Aug-18-2025 | 1652.36 $* | 1735.24 $* |
| Jul-18-2025 | 1386.7 $* | 1455.30 $* |
| Jun-18-2025 | 1624.38 $* | 1705.86 $* |
| May-18-2025 | 1414.38 $* | 1485.51 $* |
| Apr-18-2025 | 1596.10 $* | 1676.40 $* |
| Mar-18-2025 | 1582.35 $* | 1661.78 $* |
| Feb-18-2025 | 1568.16 $* | 1646.9 $* |
| Jan-18-2025 | 1554.39 $* | 1632.50 $* |
Характеристики
Product Description
Introduction:
WH-120R is suitable for self-adhesive labeling of round bottles, round cans, PET bottles, plastic bottles, glass bottles, metal bottles and other round bottles.
It is widely used in cosmetics, beverage, food, medicine and other industries, greatly improving productivity and labeling quality.
2. Using the ingenious extrusion device to load materials, only need to put items, pull down the pressure handle to complete labeling.
3. It is easy to switch the labels of different work pieces.
4. With synchronous belt traction, the mechanical stability is greatly improved.
5. Desktop design, simple structure, small shape, powerful function.
6. High sensitivity of object and label detection with advanced electric eye.
Features:
1. The labeling accuracy is high.
2. Using the ingenious extrusion device to load materials, only need to put items, pull down the pressure handle to complete labeling.
3. It is easy to switch the labels of different work pieces.
4. With synchronous belt traction, the mechanical stability is greatly improved.
5. Desktop design, simple structure, small shape, powerful function.
6. High sensitivity of object and label detection with advanced electric eye.
Model | WH-120R |
Voltage | AC220V/50HZ |
Driving Motor | Step Motor |
Speed | 20-30 pcs/min |
Bottle Diameter | 30-80mm |
Label Height | 30-100mm |
Label Length | 30-200mm |
Label roll Diameter | 75-250 mm |
Labeling Precision | ±1mm |
Max. Conveyor Loading | 10kg |
Product Detail
Product Advantages：
Labeling tray
Min.label roll Inner diameter: Ø75mm
Max.label roll out diameter: Ø260mm
Min.label roll Inner diameter: Ø75mm
Max.label roll out diameter: Ø260mm

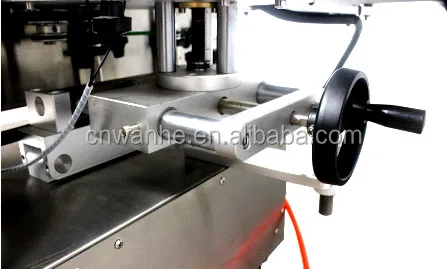

Hand Wheel
Front and rear distance can be adjusted according to the sample.

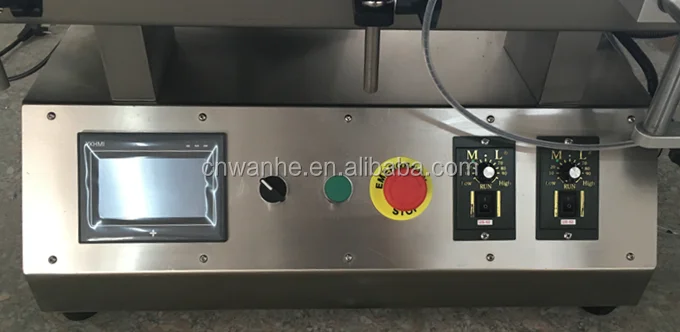

PLC Control panel
Reasonable layout
Use-friendly operation
Use-friendly operation
Precision sensing, quality sensor
Press labeling device, make label close-fitting.labeling smooth, no wrinkles, improve packaging quality.

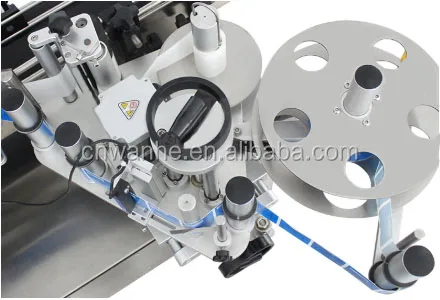

Roll to Roll Labeling Part
Intelligent control, automatic photoelectric tracking, with no matter no labeling, no standard automatic calibration and label
automatic detection function, prevent leakage and label waste.
automatic detection function, prevent leakage and label waste.
Frame
Touch Screen and PLC
Stepping Motor
Bottle Sensor
Label Sensor
Belt Motor
Conveyor Motor
① Frame | 201stainless steel |
② Touch Screen and PLC | YKHMI |
③ Stepping Motor | YAKO |
④ Bottle Sensor | AUTONICS |
⑤ Label Sensor | AUTONICS |
⑥ Belt Motor | MAILI |
⑦ Conveyor Motor | MAILI |
Finished Product Display
Welcome to contact us for more detail and get free customized machine solution!
How about factory
Wenzhou Wan he machinery co., ltd. is located in Wenzhou, Zhejiang Province who is supplying packaging machines, filling machine,sealing machine, bottle plant for seven years.
We have own associated factory whose name is Wenzhou Lian yuan machinery Co. Ltd. Our modern standard workshops are around 3,500 square meters of area. We are such comprehensive manufacturer who composed of research, development and production.
Our company has invested the force into the new technological area of packaging machine all the time since its foundation. And now we have formed in ourselves' special competitive market that based on the advanced technologies. We have obtained C E certificates for their products.
Our products have 20 series with 80 types of machines. Such as, Automatic Powder/Granule packaging machine, Automatic Cup filling & sealing machine, Vacuum packaging machine Automatic bottling plant, Automatic bottling plant, Automatic Liquid packaging machine, Plastic Bag sealer, Pad printer, Ribbon hot printer, thermal shrink packaging machine, strapping machine, Hand wrapper Desktop container sealer.
Our products are sealing well not only on domestic market but also on international market, such as American, Africa, Middle East and Europe. Our company has always been the good quality, excellent service waiting for every friend to visit us and sincere cooperation, join hands to create brilliant.
Our company has invested the force into the new technological area of packaging machine all the time since its foundation. And now we have formed in ourselves' special competitive market that based on the advanced technologies. We have obtained C E certificates for their products.
Our products have 20 series with 80 types of machines. Such as, Automatic Powder/Granule packaging machine, Automatic Cup filling & sealing machine, Vacuum packaging machine Automatic bottling plant, Automatic bottling plant, Automatic Liquid packaging machine, Plastic Bag sealer, Pad printer, Ribbon hot printer, thermal shrink packaging machine, strapping machine, Hand wrapper Desktop container sealer.
Our products are sealing well not only on domestic market but also on international market, such as American, Africa, Middle East and Europe. Our company has always been the good quality, excellent service waiting for every friend to visit us and sincere cooperation, join hands to create brilliant.
Factory View
Why choose Us
Customer Visit & Feedback
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Inquiry and consulting support.
* Customizatiom.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Training how to instal the machine, training how to use the machine.
* 12 months warranty.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Packing & Delivery
One Set Machine's Outer Packing Data | ||
Size | 130cm*85cm*75cm | |
Weight | 136kg | |
Detail | The normal package is standard export wooden case or pack it according to customers' special request. Good package Make sure package quality for customer. Experience of loading Every month loading container. | |
FAQ
