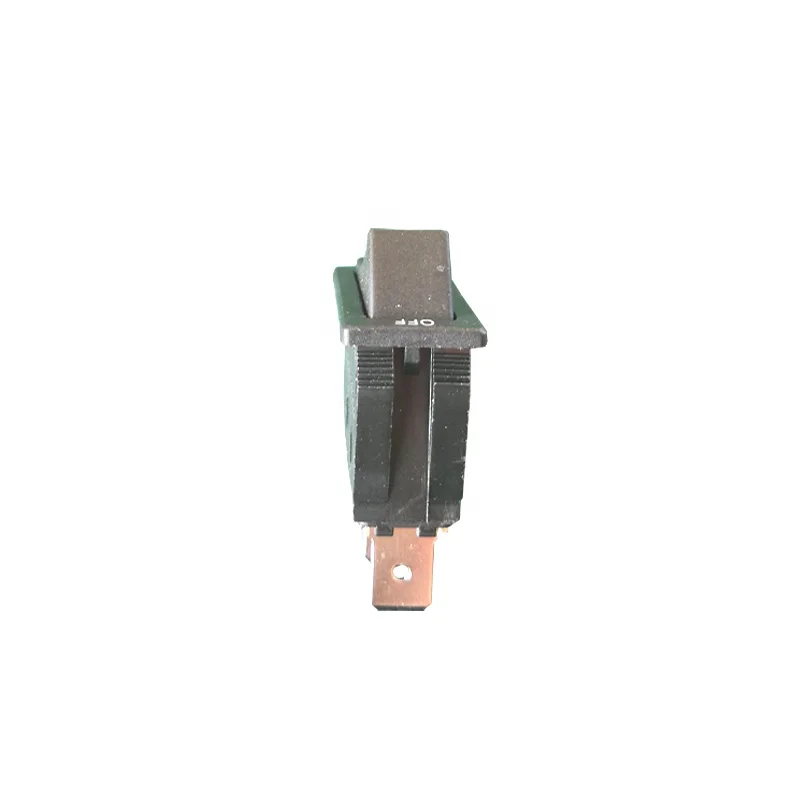

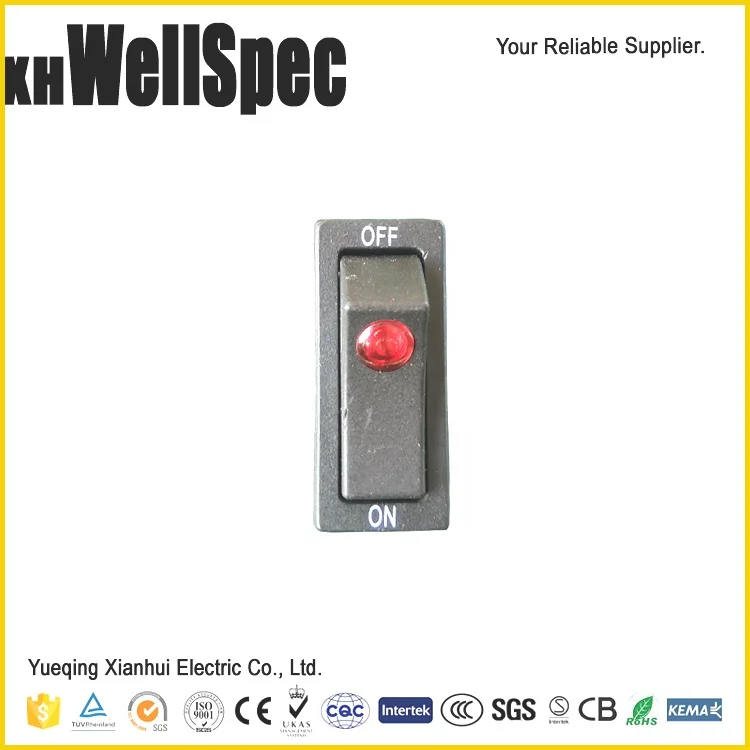

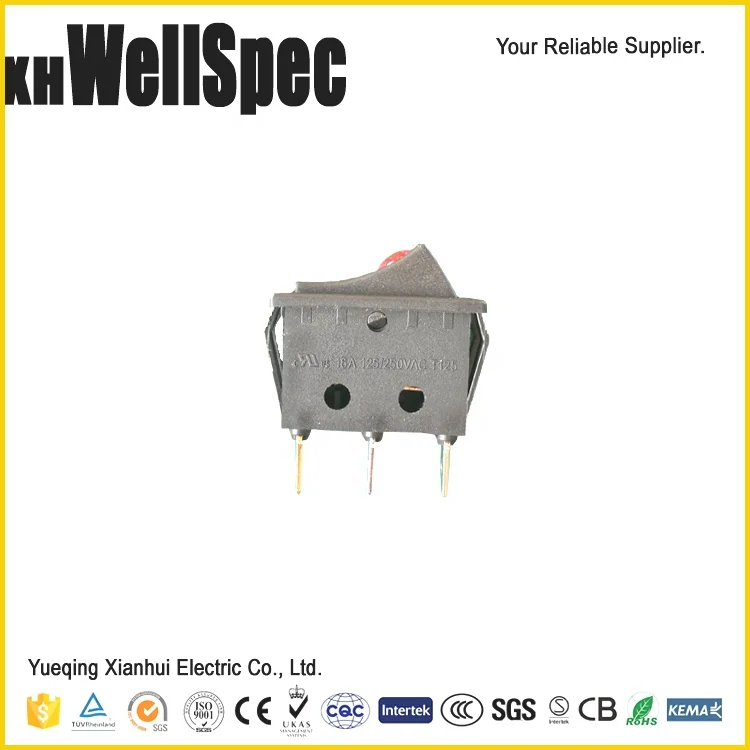

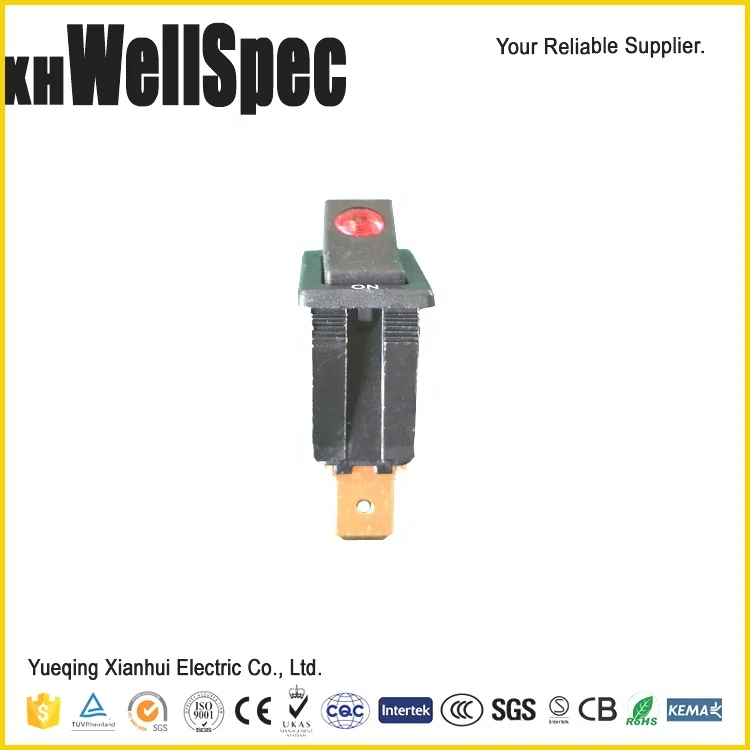

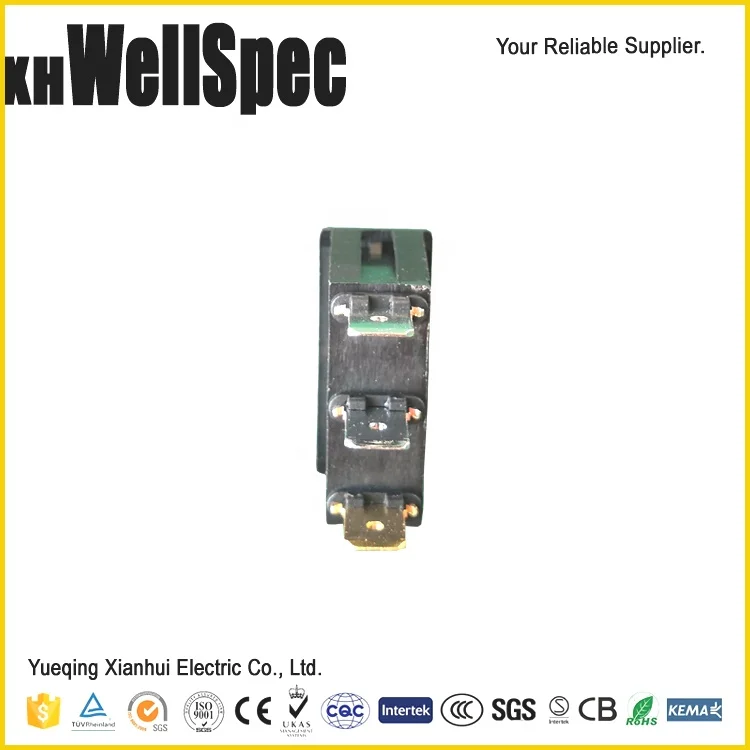

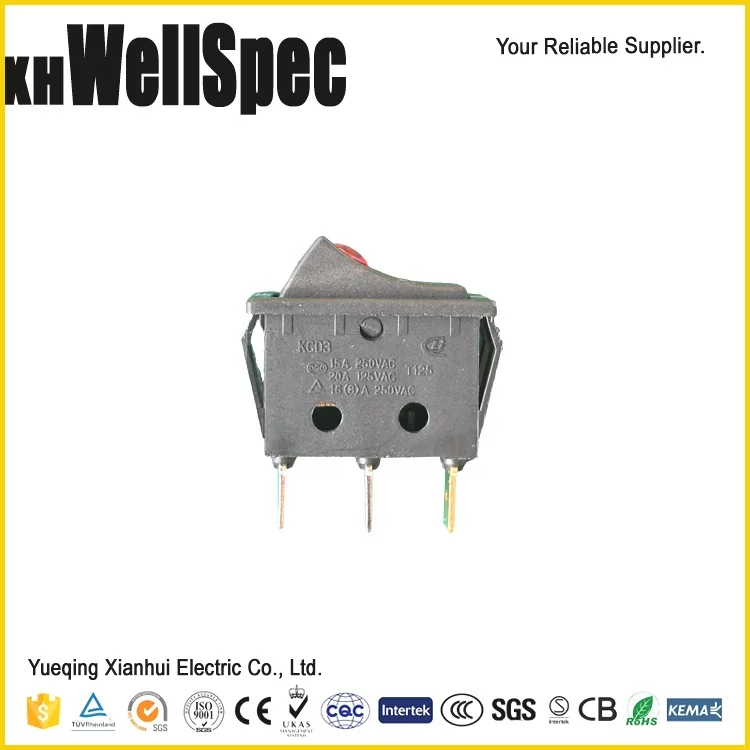

KCD3 Rocker Switch adopts the high quality PA66 for injection molding, the shell is high strength and good heat resistance. Thediestructures are special design, all action positions are high accuracy. The switch button push sounds silvery, feel perfect and good rhythm. Our switches are fast action, long life, high reliability, stability and good appearance. We specialize in switches field for more than ten years and we have established business relationship with many world famous company such as Whirlpool, Siemens, Electrolux, Panasonic, Eaton and Emerson etc. Micro switch, micro switch t85 5e4, kw3 oz micro switch, micro switch 25t85 micro switch, 40t85 micro switch
A. UL, CE, RoHS TUV, CCC approved, ISO9001:2008.
B. 1-6A 250VAC/ 10A125VAC
C. Materials:
Base plastic---Nylon 66
Button plastic---PC or Nylon 66
Copper parts such as terminal----Copper H62
Terminal surface treatment----- tin plating
Contact----Compound Silver
Spring----Tungsten steel
1. Application
Our KCD Rocker Switch are widely used for microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, electric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine etc.
A. Ambient air temperature: -25oC~+125C, the highest monthly mean temperature should not exceed +35oC;
B. Altitude for installing place should not exceed 2000m;
C. Atmospheric relative humidity: + 40 ℃ not more than 50%, the highest humidity is 90%, air relative humidity of 85% or less;
D. Pollution level: level 2;
2. Quality Assurance of Our Switches:
A. The main materials used in our micro switches are high quality PA66 for injection molding, pure cooper H62 for terminals, 301stainless steel for spring and compound silver for contact.
B. Thediestructures are special design, all action positions are high accuracy.
C. A Variety of levers and contact terminals are available for choosing and low to high operating force are available choosing for various types.
D. Fast action, long life, high reliability and stability.
E. 100% Inspection before shipment.
3. Matters Need Attention:
A. When fixing the switch on equipment, please use the small screw M2 to fix it with the torque below 0.098N·m on the smooth surface. In addition, we recommend to add place washers to prevent loosening of the screws;
B. Please note that the action body should not be directly exerted force on the button or the actuator when it’s in free state, but shall be exerted force on the button in the vertical direction when using;
C. The action setting after action shall be based on above 70% of O.T. value. Under the condition of switch, do not set the action body at the position of action limit, so as to avoid the opening and closing and over-travel that are accompanied by impact and shorten the service life;
D. When hand welding, please use a temperature control of electric temperature 320℃, finish the work in 3 seconds and don’t exert force on the terminal;
E. It is recommended to use low-power circuit type (Au plated contact) when using at small current and voltage.
