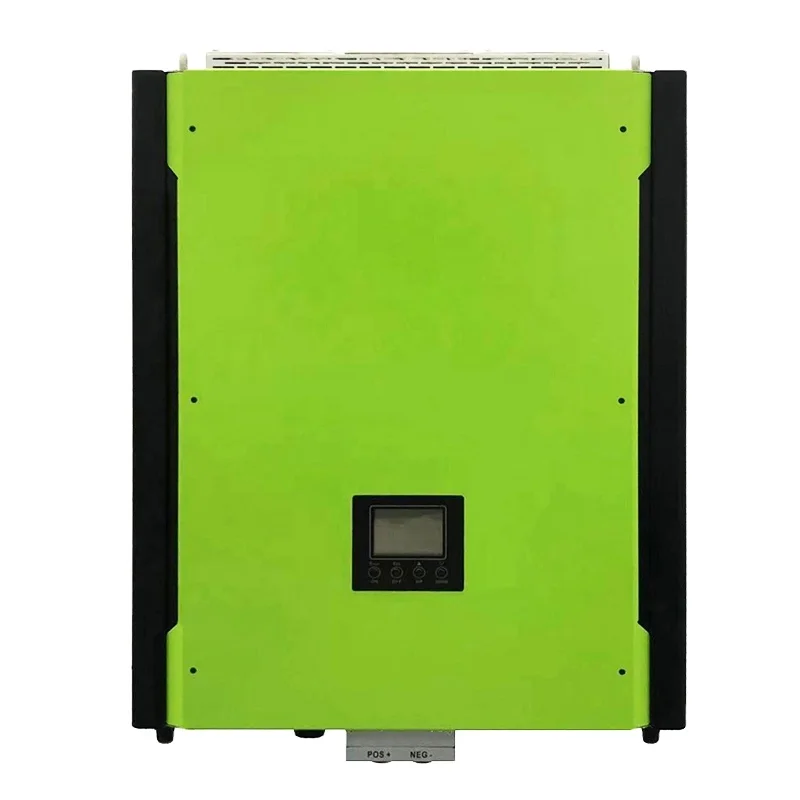

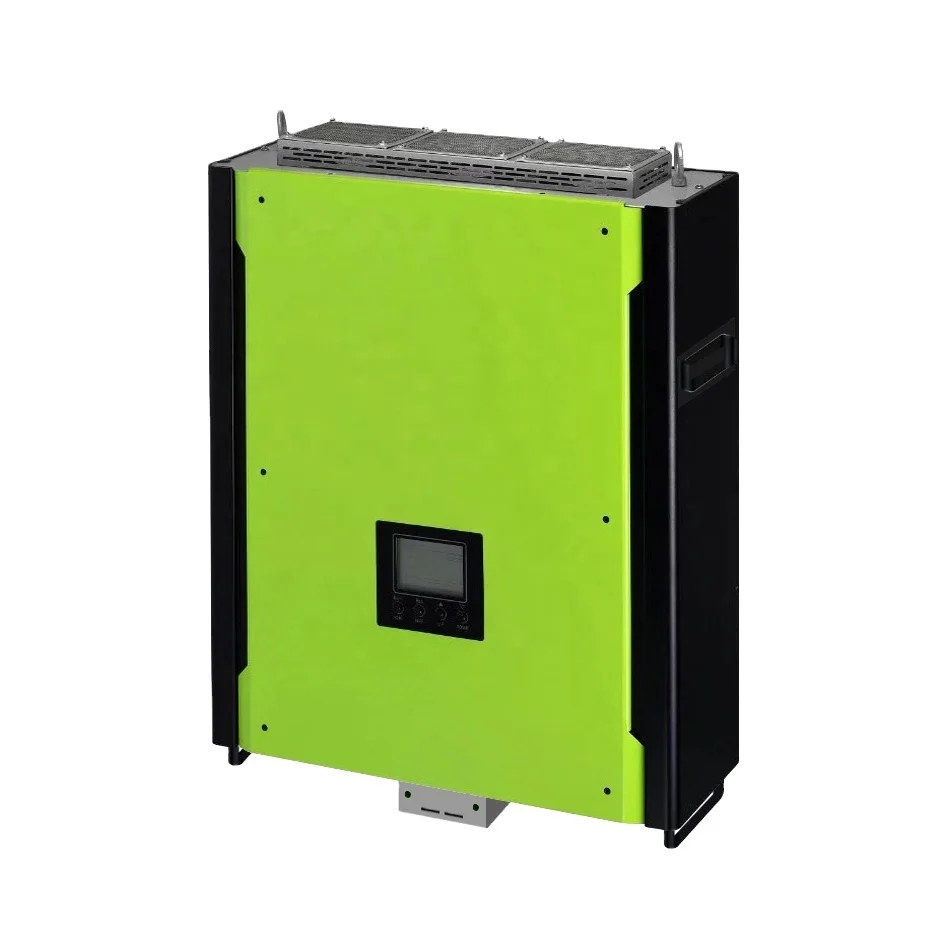

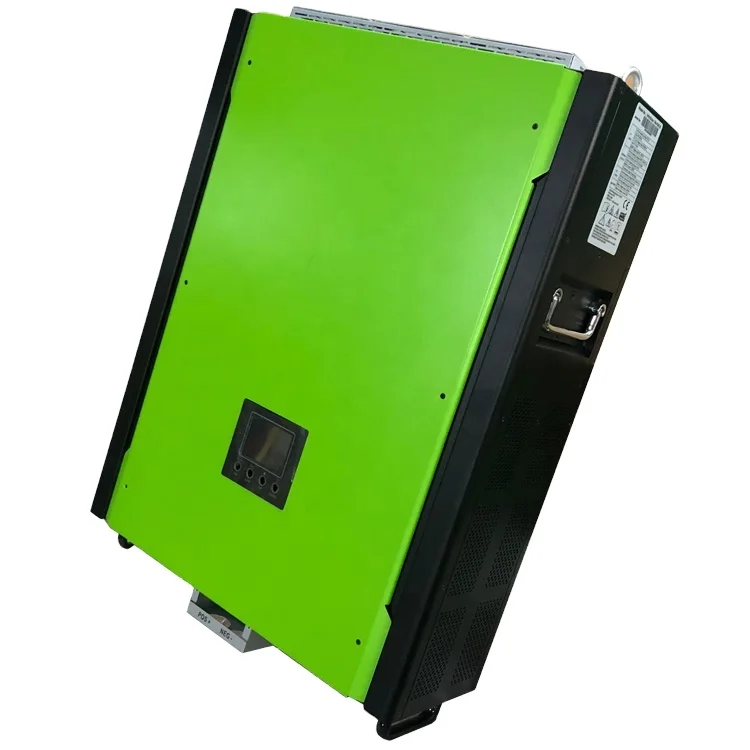

PowMr 10KW 15KW Solar Hybrid PV Inverter Parallel 6 Units With 3 Phase 380V  On Off Grid System Inverter



Powmr 10KW 15KW Solar Hybrid PV Inverter Parallel 6 Units With 3 Phase 380V  On Off Grid System Inverter.

Depending on different power situations, this hybrid inverter is designed to generate continuous power from PV solar modules (solar panels), battery, and the utility. When MPP input voltage of PV modules is within acceptable range (see specification for the details), this inverter is able to generate power to feed the grid (utility) and charge battery. This inverter is only compatible with PV module types of single crystalline and poly crystalline. Do not connect any PV array types other than these two types of PV modules to the inverter. Do not connect the positive or negative terminal of the solar panel to the ground. See Figure 1 for a simple diagram of a typical solar system with this hybrid inverter

Note: By following the EEG standard, every inverter sold to German area is not allowed to charge battery from Utility. The relevant function is automatically disabled by the software.

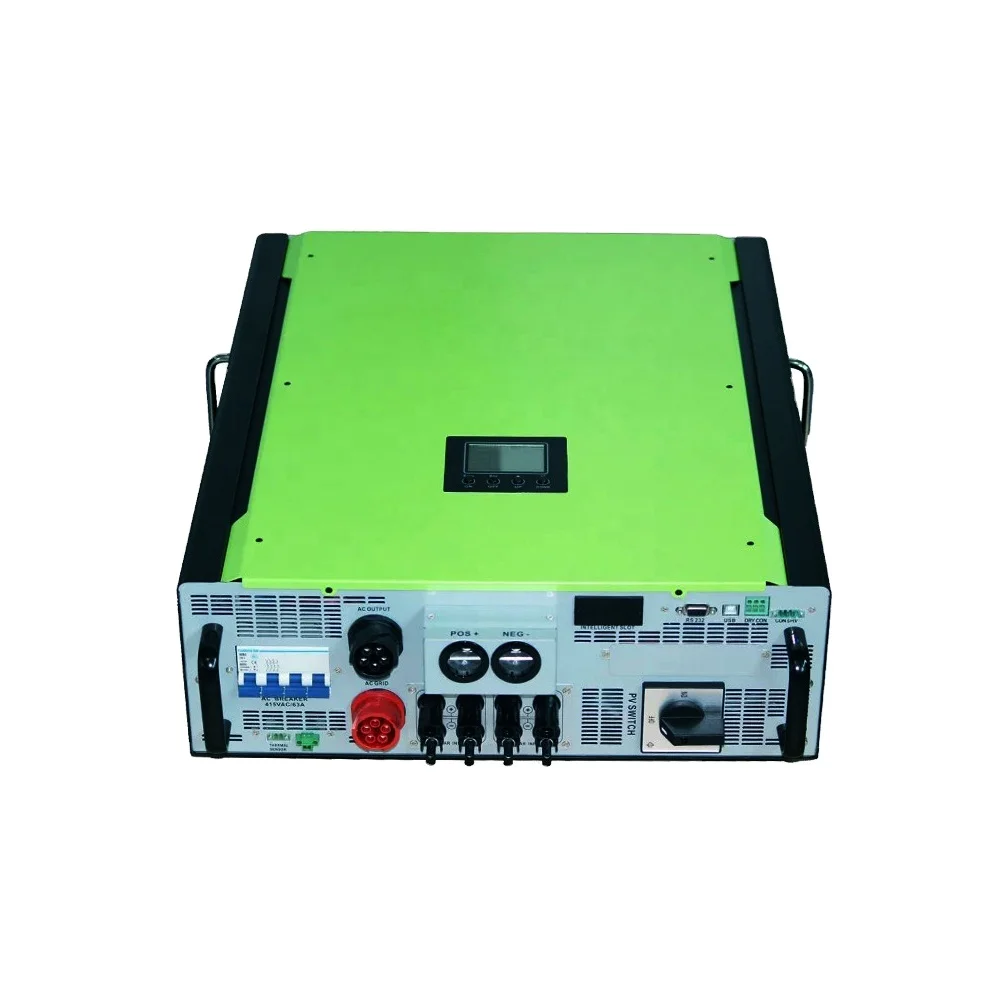

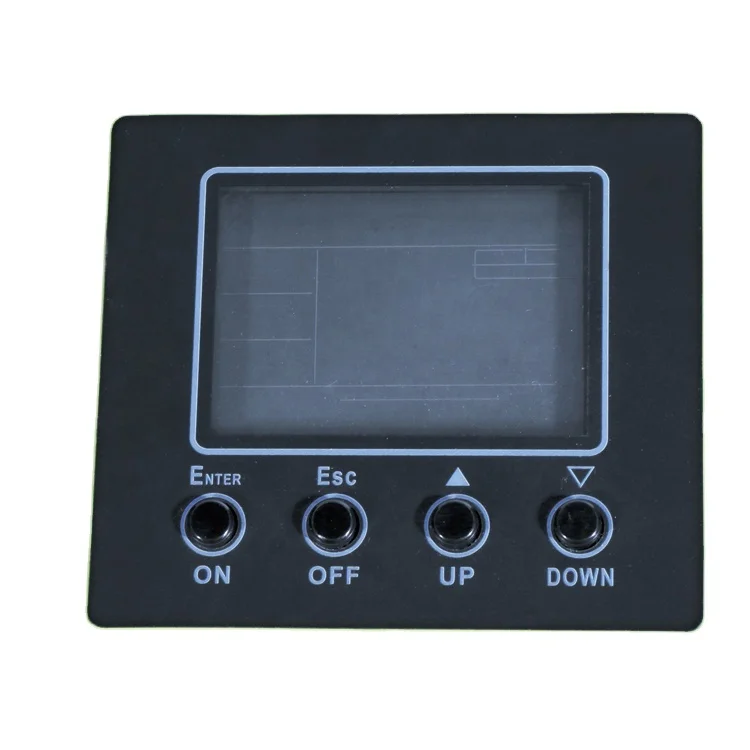

1. LCD display panel


2. Operation buttons


3. AC Grid connectors


4. AC output connectors (Load connection)


5. PV connectors


6. DC Switch


7. Battery thermal sensor


8. EPO


9. Current sharing port


10. Relay control port


11. Dry contact


12. USB communication port


13. RS-232 communication port


14. Parallel communication port


15. Intelligent slot


16. Battery connectors


17. Connector for surge protective device (Reserve)



Inverters Configuration

Two inverters in parallel:





Three inverters in parallel:





Six inverters in parallel:
