LEJIANG YJ-125 круглая машина для резки ткани
US $10.00-$1000
Автоматический инструмент ЧПУ вращающийся нож режущий станок для резки кожевенного картона древесины МДФ ПВХ
- Категория: Cloth Cutting Machines >>>
- Поставщик: Jinan,AccTek,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 14637.74 $* | 15369.85 $* |
| Aug-15-2025 | 14514.10 $* | 15240.7 $* |
| Jul-15-2025 | 12177.88 $* | 12786.68 $* |
| Jun-15-2025 | 14268.3 $* | 14981.78 $* |
| May-15-2025 | 12423.6 $* | 13044.59 $* |
| Apr-15-2025 | 14022.24 $* | 14723.59 $* |
| Mar-15-2025 | 13899.9 $* | 14594.17 $* |
| Feb-15-2025 | 13776.20 $* | 14465.77 $* |
| Jan-15-2025 | 13653.17 $* | 14336.77 $* |
Характеристики

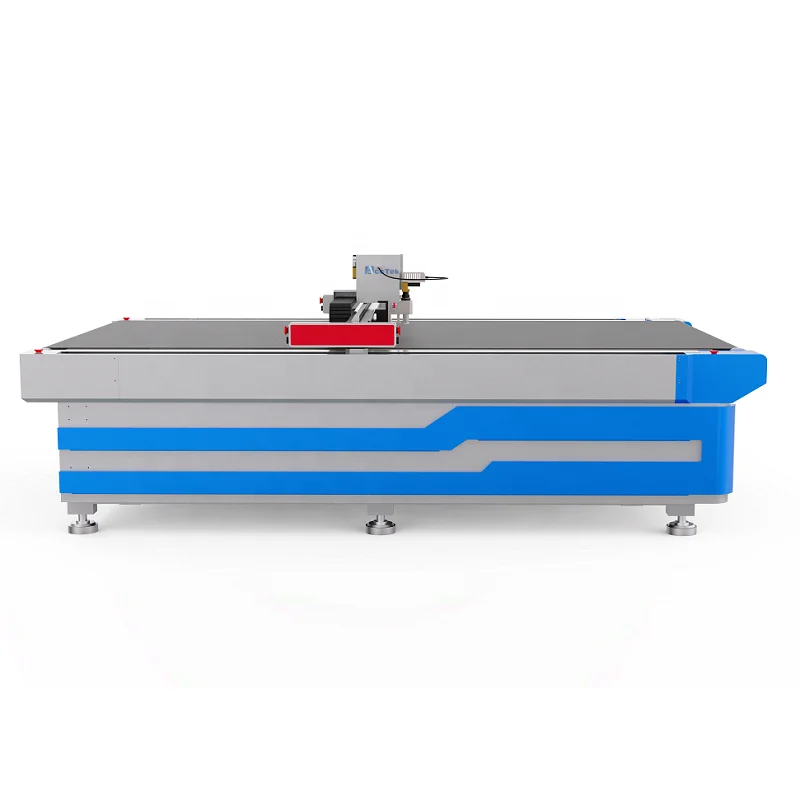

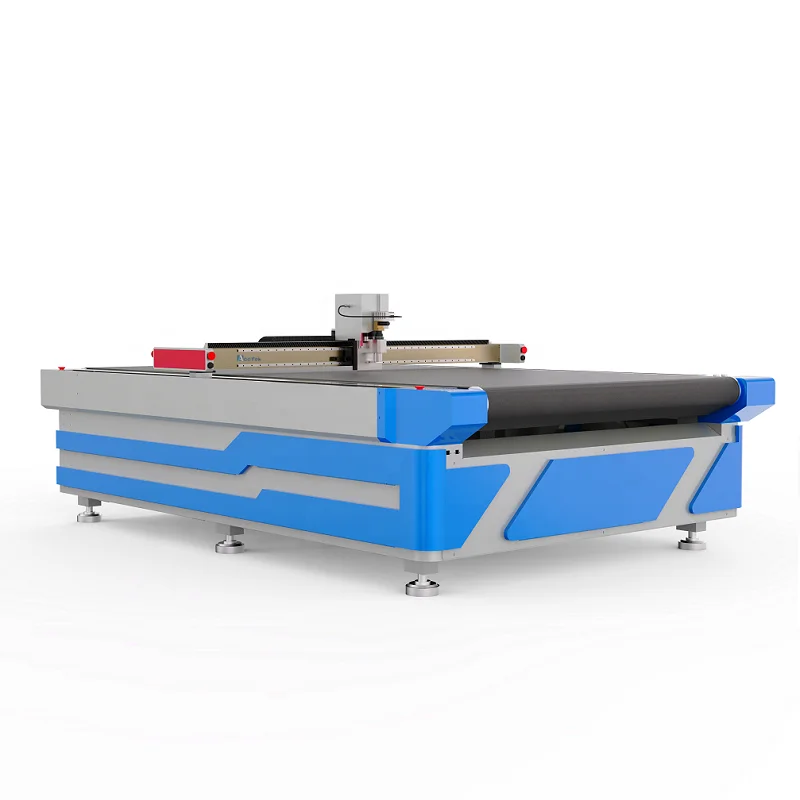

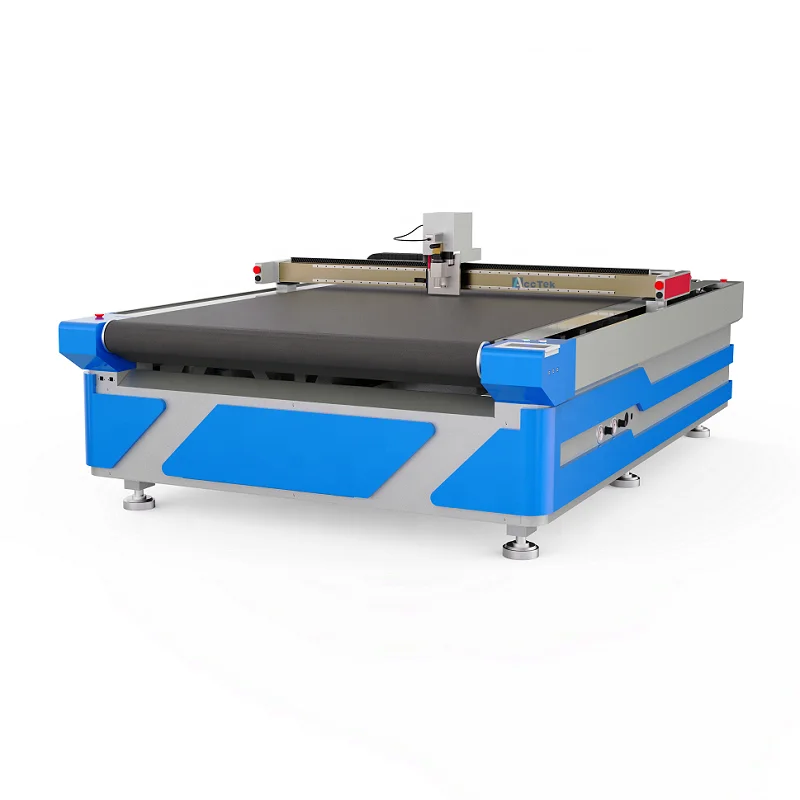

Machine Images
Factory industrial 1625 1610 foam cloth leather cutting machine oscillating knife cutting plotter fur with stretching device
Machine parameter
Model | AKZ1625 | ||||||
Max. cutting size | 1600*2500mm | ||||||
Power | 12KW | ||||||
Multi-functional tool head | Oscillating straight knife/Round knife/pneumatic knife/identification roller/marker pen holder/punching hole device/V-groove cut tool/ CCD camera/tangential knife/drilling tool/projector/etc.(optional) | ||||||
Security configuration | High sensitive infrared induction | ||||||
Travelling speed | Maximum 1500mm/s | ||||||
Cutting speed | Max. 1200mm/s (can be set up according to different materials) | ||||||
Movement speed | 1200mm/s Maximum 1200mm/s | ||||||
Cutting speed | Maximum 800mm/s (can be set up according to different cutting materials) | ||||||
Cutting material | Corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey board, paperboard, car sticker, adhesive sticker, etc. | ||||||
Cutting thickness | Maximum 20mm (can be set up according to different materials and tools) | ||||||
Material fixing method | High power vacuum absorption with felt | ||||||
Repeated positioning accuracy | ±0.03mm | ||||||
Mechanical Precision | Maximum 0.03mm | ||||||
Drive system | Taiwan Delta servo motor, Taiwan PMI linear guide rails | ||||||
Control system | Ruida control system | ||||||
Data transmission method | USB port or Ethernet | ||||||
Support file | DXF, PLT, AI, SVG, PDF, NC, DST, DSB, etc | ||||||
Operation environment | Temperature 0-40℃, Humidity 20%-80%RH | ||||||
Working voltage | 380V/220V/50Hz/60Hz | ||||||
Product Detail
Machine advantage
Application and Working Samples
Our Services
1)1years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2)Lifetime maintenance free of charge.
3)Free training course at our plant.
4)We will provide the consumable parts at an agency price when you need replacement.
5)24 hours on line service each day, free technical support.
6)Machine has been adjusted before delivery.
7)Our staff can be sent to your company to install or adjust if necessary.
2)Lifetime maintenance free of charge.
3)Free training course at our plant.
4)We will provide the consumable parts at an agency price when you need replacement.
5)24 hours on line service each day, free technical support.
6)Machine has been adjusted before delivery.
7)Our staff can be sent to your company to install or adjust if necessary.
