Лидер продаж микро линейный актуатор tr8 * 2 внешний мини шаговый двигатель nema 17 42 мм длина

Описание и отзывы

Трекер стоимости

Характеристики

All Products Link:

https://szmelike.en.alibaba.com/productlist.html?spm=a2700.shop_pl.88.8.2eaa6304nzO4Ll

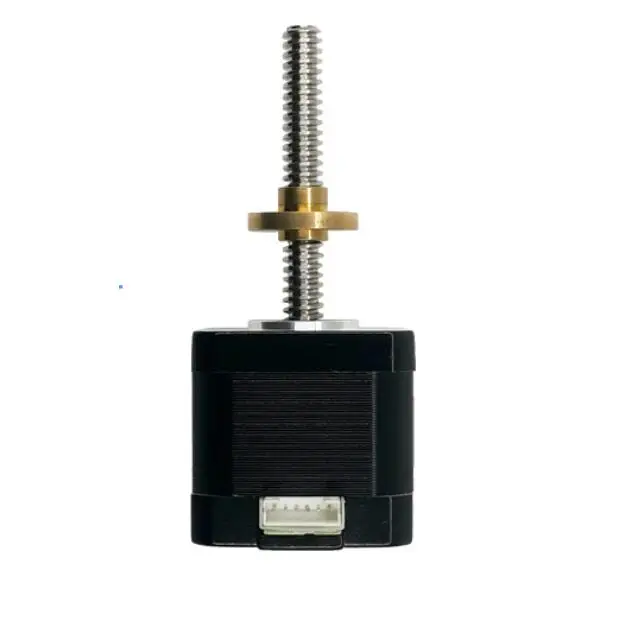

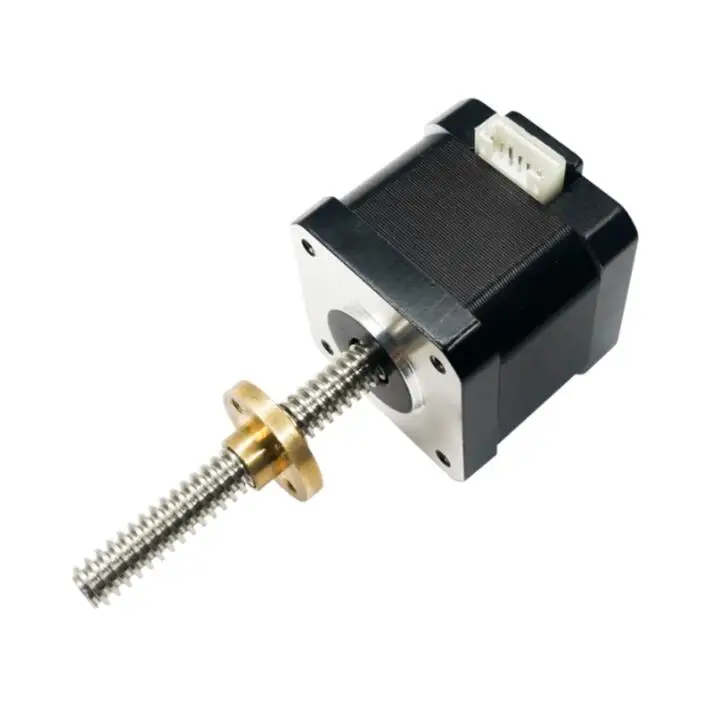

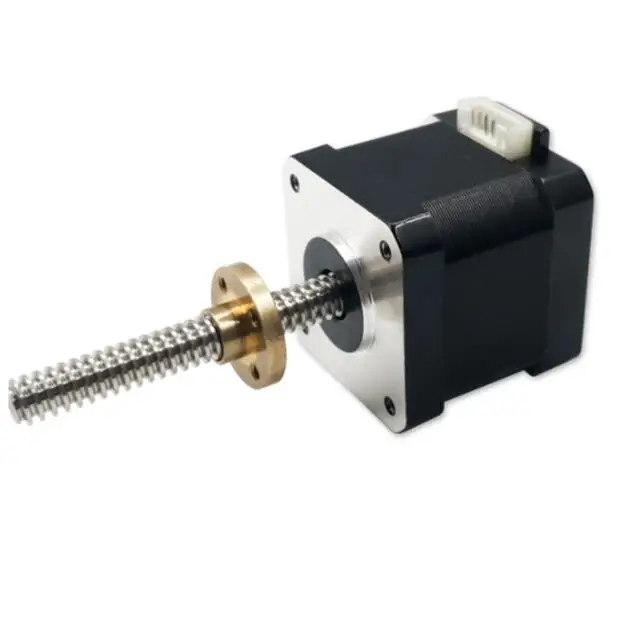

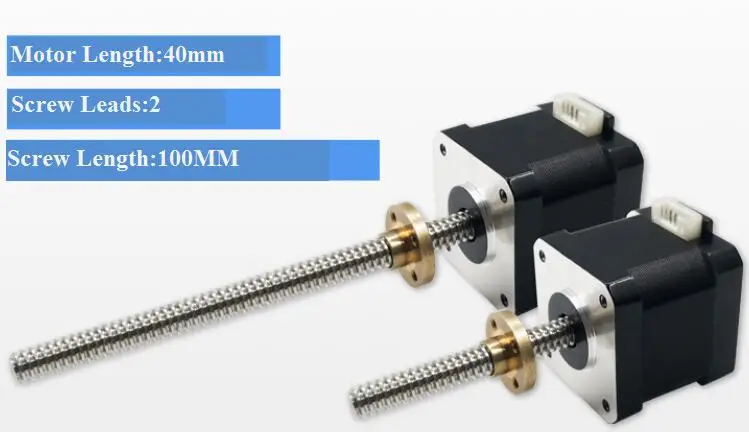

Hot sale micro linear actuatorTr8*2 miniature external linear nema 17 stepper motor 42mm linear stepping motor length 40mm



Specifications:



Parameter	Unit	Value
phase		2
Step Angle		1.8°
Motor Length	mm	42
Rated Current	A	1.7
Screw Diameter	mm	8
Screw Lead	mm	2
Screw Length	mm	100
Linear Travel per Step	mm	0.01
Holding torque	N.m	45
Rotor Inertia	gcm²	54
Weight	kg	0.21

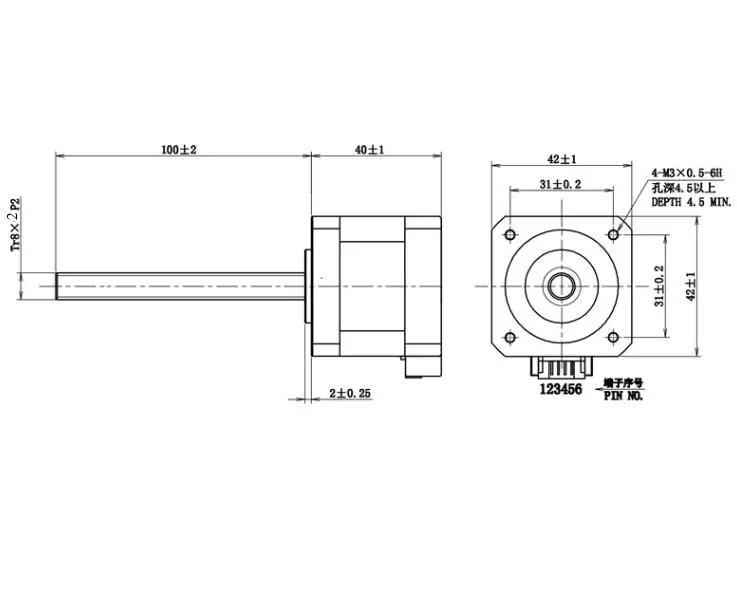

Dimensions:(Unit:mm)



  Product List:



Model	Rated Current	Screw Diameter	Screw Length	Screw Leads	Linear Travel/Step
42H40-0802-200	1.7A	8mm	200mm	2mm	0.01mm(1.8°)
42H40-0802-300	1.7A	8mm	300mm	2mm	0.01mm(1.8°)
42H40-0804-100	1.7A	8mm	100mm	4mm	0.02mm(1.8°)
42H40-0804-200	1.7A	8mm	200mm	4mm	0.02mm(1.8°)
42H40-0804-300	1.7A	8mm	300mm	4mm	0.02mm(1.8°)
42H40-0808-100	1.7A	8mm	100mm	8mm	0.04mm(1.8°)
42H40-0808-200	1.7A	8mm	200mm	8mm	0.04mm(1.8°)
42H40-0808-300	1.7A	8mm	300mm	8mm	0.04mm(1.8°)
42H48-0802-100	2.0A	8mm	100mm	2mm	0.01mm(1.8°)
42H48-0802-200	2.0A	8mm	200mm	2mm	0.01mm(1.8°)
42H48-0802-300	2.0A	8mm	300mm	2mm	0.01mm(1.8°)
42H48-0804-100	2.0A	8mm	100mm	4mm	0.02mm(1.8°)
42H48-0804-200	2.0A	8mm	200mm	4mm	0.02mm(1.8°)
42H48-0804-300	2.0A	8mm	300mm	4mm	0.02mm(1.8°)
42H48-0808-100	2.0A	8mm	100mm	8mm	0.04mm(1.8°)





Match drive
