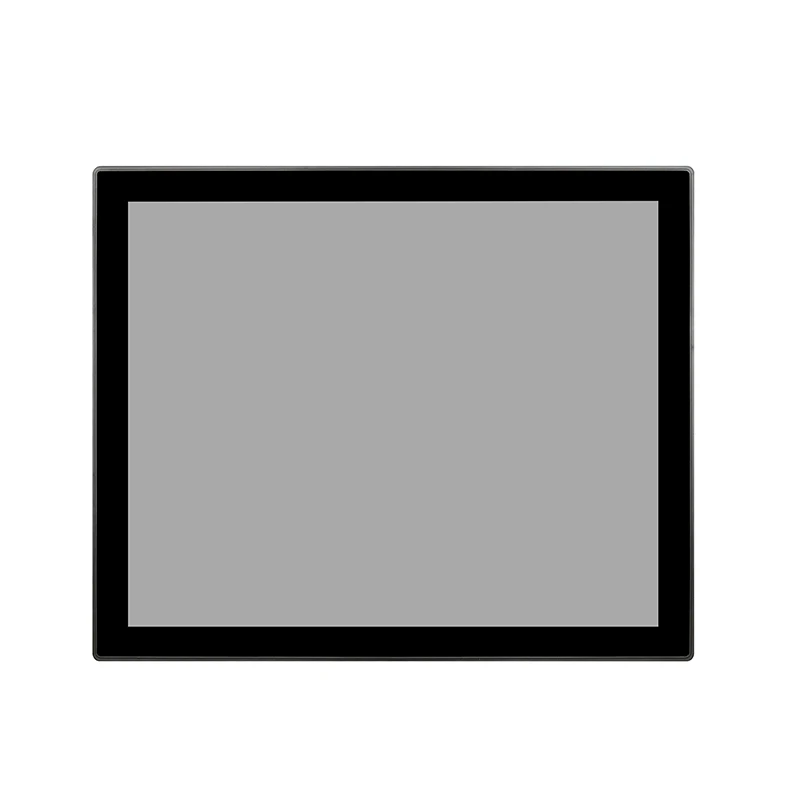

1. Front bezel seamless design, front panel IP65 waterproof.
2. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
3. High performance mainboard, 7x24 continuous operation.

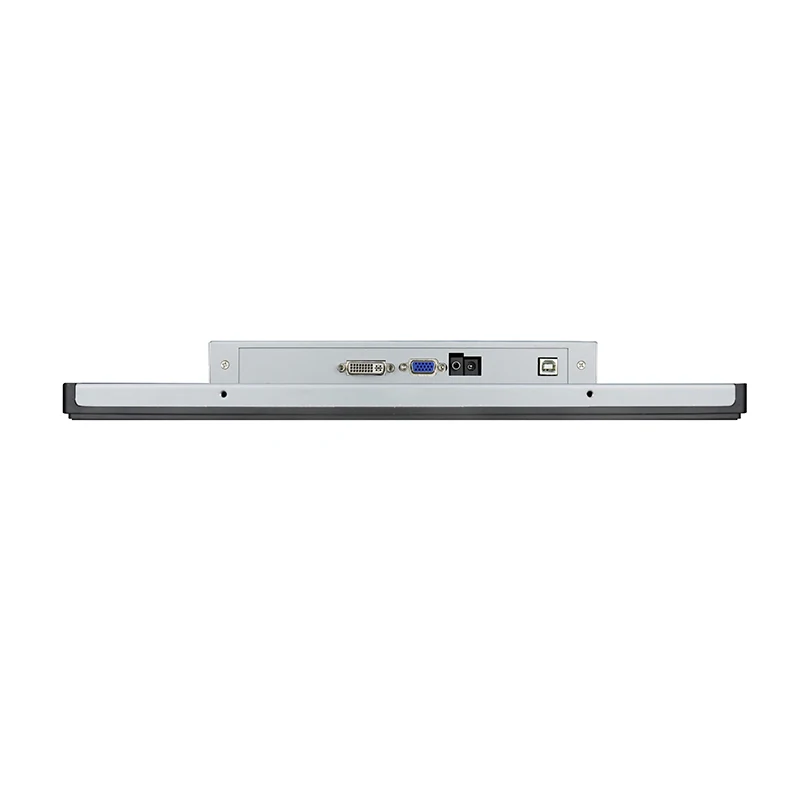

4. VGA+DVI interfaces, USB for touch.
5. Support wall mounting, open frame mounting, desk stand mouting, etc.
Specification
Model:SL500M
LCD panel
Panel size
15" 17" 19" 21.5"
Resolution
1024*768, 1280*1024, 1440*900, 1920*1080
Aspect ratio
4:3, 16:9
Support Color
16.7M colors
Brightness (cd/m²)
300 nits
Contrast ratio
1000:1
View angle
85°/85°/80°/85° (R/L/U/D)
Touch panel
Touchscreen Type
Project Capacitive Touch (10 points )
Surface Hardness
7H
Luminousness
90%
Touch Interface
USB (RS232 optional)
Touch response time
2ms
Working Life
>50 million times
Touch options
(4 or 5 wires restive touch, IR touch optional)
Signal Ports
VGA
1×VGA
DVI
1×DVI
OSD
OSD control
Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS
Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply
AC 100 - 240V , 50-60Hz
Working voltage
DC 12V
Power consumption
≤30W
Enclosure
Material
Plastic front bezel+Galvanized plate back
Color
Black, white
VESA mounting
75×75mm/100×100mm
IP grade
front panel IP65 waterproof
Operating Environment
Temperature Range
operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity
operating: 10% to 80% , storage :5% to 90%
Other
Accessories
Power adapter, VGA cable, USB touch cable, screws, user manual, warranty card
Mounting
embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty
1 year warranty
Certificates
CE,FCC,RoHS
Packing&Shipping
Shipping
1). 3~10days (differ from country via express) 2). 15-35days(depends on quantity&season) by sea Shipping mode: 1. via express 2. via air 3. via sea.
Certifications
Company Introduction
FAQ
Q1: Are you manufacturer?
A: Yes, sincerely welcome you to visit us in China.
Q2: Can you OEM or ODM?
A: Yes, we have strong developing team. The products can be made according to your request.
Q3: Can we print our logo?
A: Yes, we can print your logo.
Q4: Is the sample available?
A: Yes, we are very glad to make the samples for your test.
Q5: What is the warranty?
A: Normally for one years warranty. If it is our quality problem, we will replace the new one or provide relevant spares and parts.
Q6: What is the MOQ?
A: For our first cooperation, your small order is acceptable.
Q7: What kinds of certificate do you have?
A:CE,ISO,RoHS and so on.
Q8: How long is the production time?
A: For samples, the lead time is about 2-7days. For mass production, It depends on the quantity.
Q9: How about shipment?
A: For small order, we can ship it by DHL, FedEx,UPS, TNT, etc. For big order, we can ship it by sea or by air.
Q10: What kinds of payment methods do you accept?
A: You can make the payment to our bank account, Western Union or PayPal.
