25 кВА 20 кВт Ricardo K4100D звукостойкий дизельный
- Категория: Diesel Generators >>>
- Поставщик: Fujian,Agestar,Electrical,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 3334.68 $* | 3401.0 $* |
| Jul-16-2025 | 2704.29 $* | 2758.96 $* |
| Jun-16-2025 | 3281.74 $* | 3347.15 $* |
| May-16-2025 | 3255.89 $* | 3320.11 $* |
| Apr-16-2025 | 2599.49 $* | 2651.98 $* |
| Mar-16-2025 | 3203.34 $* | 3267.38 $* |
| Feb-16-2025 | 3176.82 $* | 3240.37 $* |
| Jan-16-2025 | 3150.21 $* | 3213.46 $* |
Характеристики
Product Description

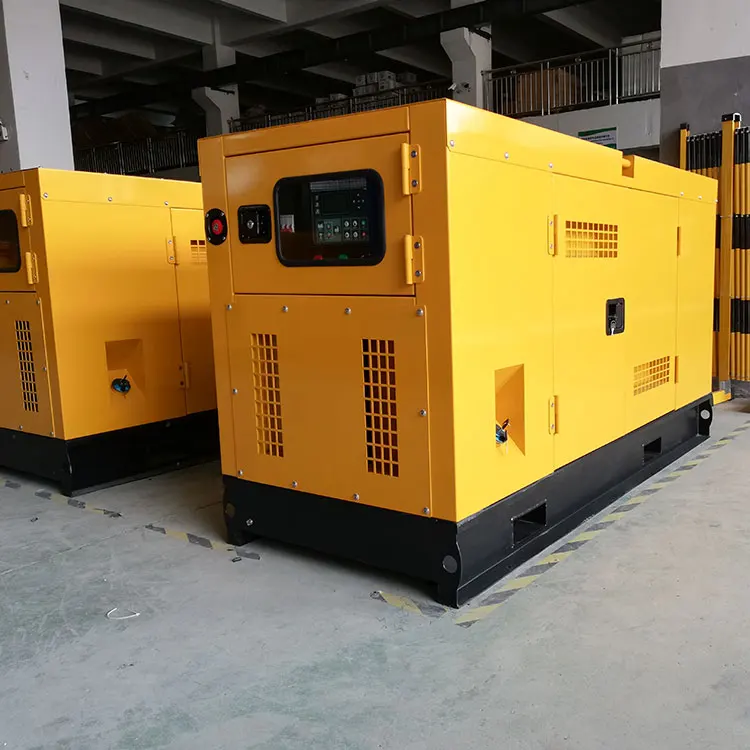

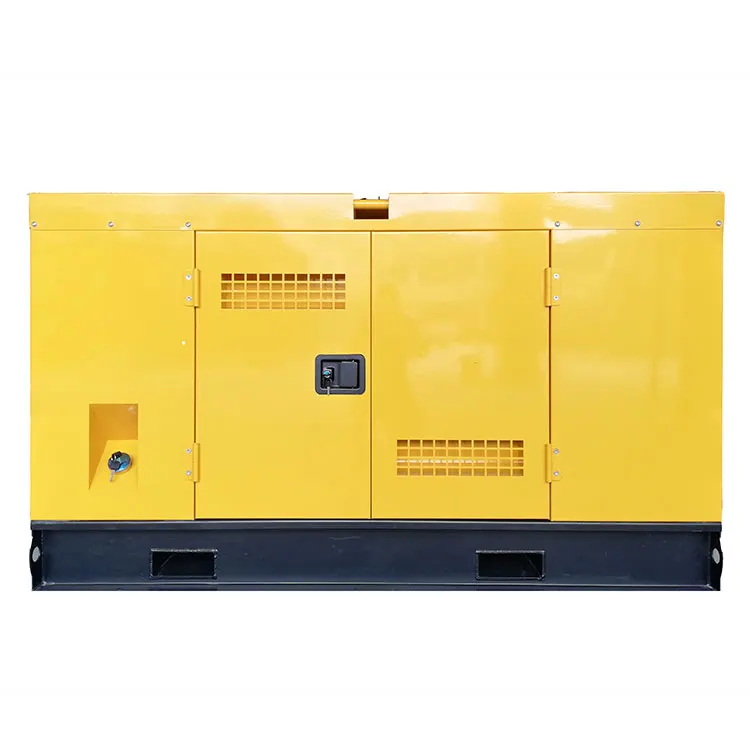

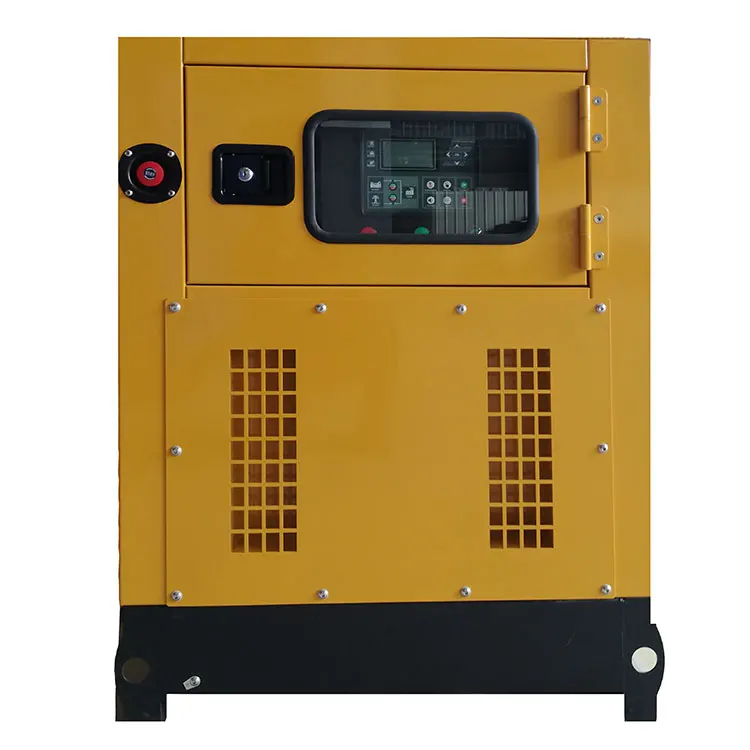

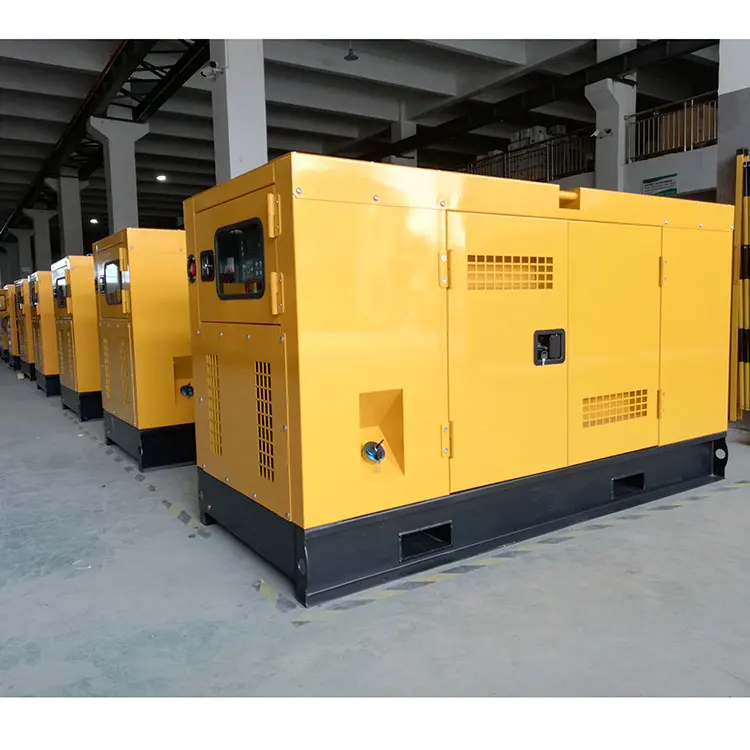

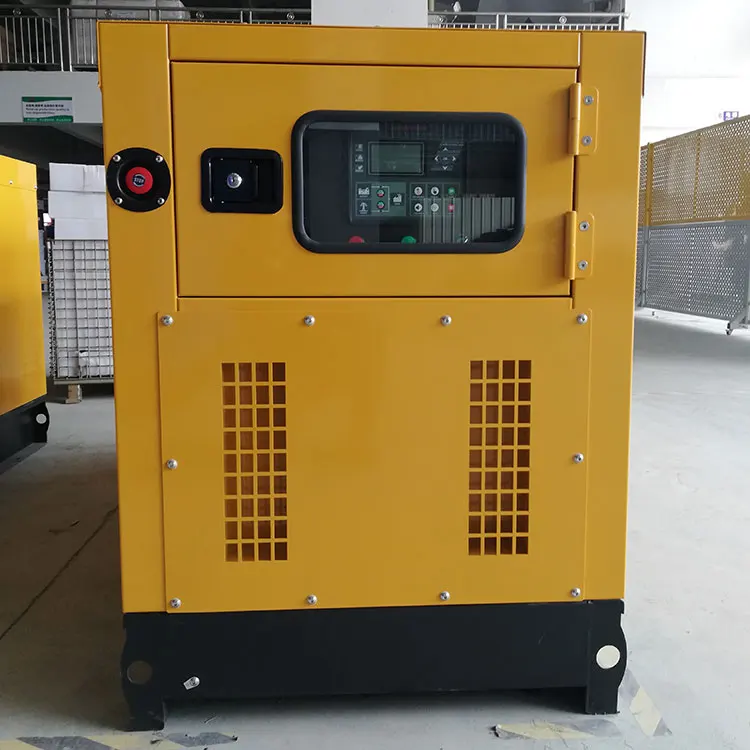

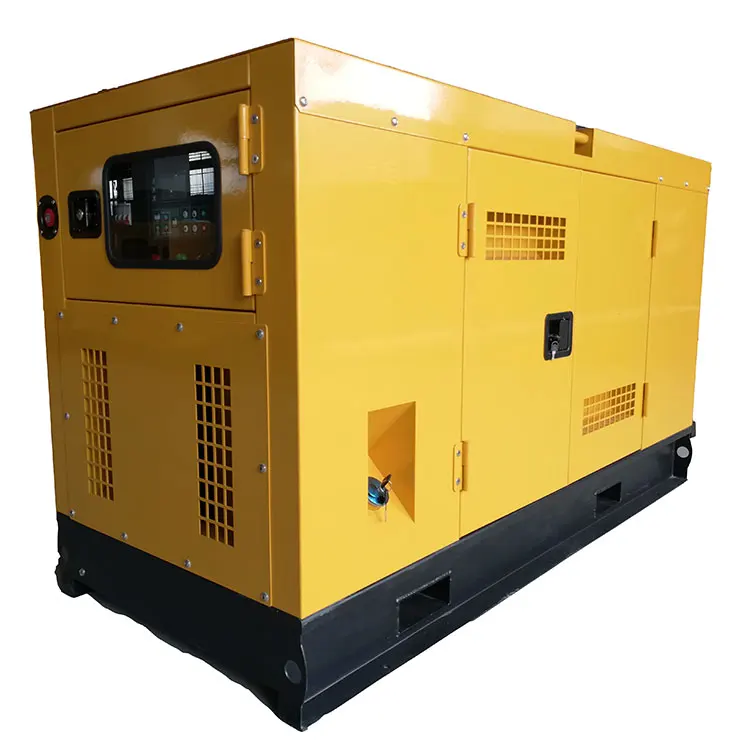

25kva 25 kva 20 kw Ricardo K4100D Sound proof diesel generator
RICARDO series generator sets adopt R4105&R6105 series engines produced by ShanDong HuaFeng Engine Co., Ltd.。ShanDong HuaFeng Engine Co., Ltd. is one joint-venture invested by three companies in domestis and overseas, engaging in production, trade and scientific research; R4105&R6105 series engines have more fine performances including low oil consumption, high reliability, easy to start etc.
Generally the generators adobt our company’s ASG series brushless three phase synchronous alternator. If the customer requires that also could adopt TFX series compound excitation alternator or STC series third-harmonic excitation alternator or other alternators.
The generator set is made up of diesel engine, synchronous generator, control system, radiator and other accessories, and the control system is made up of volt meter, frequency meter, a.c. ampere meter, d.c. ampere meter, water temperature meter, oil temperature meter, oil pressure meter, fuel meter, contoller for protection, transfer switch system and other accessories. Different starting type including manual&electric&automatic Transfer can be selected by our customer。
The generator sets also can adopt fuel box at bottom, contoller with four protections(high water temperature, high oil temperature, low oil pressure, over speed);also can design for silent, fully automatic transfer and automatic parallel system
Generally the generators adobt our company’s ASG series brushless three phase synchronous alternator. If the customer requires that also could adopt TFX series compound excitation alternator or STC series third-harmonic excitation alternator or other alternators.
The generator set is made up of diesel engine, synchronous generator, control system, radiator and other accessories, and the control system is made up of volt meter, frequency meter, a.c. ampere meter, d.c. ampere meter, water temperature meter, oil temperature meter, oil pressure meter, fuel meter, contoller for protection, transfer switch system and other accessories. Different starting type including manual&electric&automatic Transfer can be selected by our customer。
The generator sets also can adopt fuel box at bottom, contoller with four protections(high water temperature, high oil temperature, low oil pressure, over speed);also can design for silent, fully automatic transfer and automatic parallel system
Specification
25kva 25 kva 20 kw Ricardo K4100D Sound proof diesel generator | ||||||
Silent Type Diesel Generator Set | ||||||
GenSet Model | GW-25S | Rated Power (KW) | 20 | |||
Engine Model | K4100D | Rated Power (KVA) | 25 | |||
Alternator Model | STC-20KW | Standby Power(KW) | 22 | |||
Frequency (Hz) | 50 | Standby Power(KVA) | 27.5 | |||
Phase | Three Phase | N.W (kg) | 850 | |||
Rated Current (A) | 36.1 | Size (L*W*H)mm | 2000×800×1150 | |||
Details of Engine | ||||||
Brand/Original | Weifang | Type | 4-Stroke,V In-line,Water Cool, Electric start | |||
Engine Model | K4100D | Cylinder No | 4 | |||
Displacement ( L) | 3.6 | Bore and Stroke (mm) | 100*115 | |||
Rated Power (KW) | 30.1 | Volume of Oil (L) | 10 | |||
Rated Power (KVA) | 38 | Combustion | Vortex Design | |||
Fuel Consumption(g/kw.h) | 236 | Aspiration Type | Natural Aspirated | |||
Governor | Machinery Governor | Radiator Water Tank | 40℃ | |||
Details of Alternator | ||||||
Brand/Original | Agestar | Efficient | 89% | |||
Alternator Model | STC-20KW | A.V.R | ||||
Type | Brush | Protection | IP21 | |||
Prime Power (KW) | 20 | Insulation | Class B | |||
Winding Lead | 12 | Factor | 0.8 | |||
Packing & Delivery
First, the generator set covered by epe foam and plastic film, then plywood case, wooden case are optional.
Company Profile
Fujian Agestar Electrical Machinery Co.,Ltd was established in 2014,before that it is a lamination manufacturer, located in Fujian Province, the southeast China. Step by step, we had been developing into a factory that professional in design and manufacture alternator, electric motor, diesel generating set and water pump. With a rich experience in this filed, we are successfully design, manufacturing and exporting our goods to many countries. We are proud to be associated with a bank of loyal and happy customers. All this has come after rugged product testing of a quality product produced by us, after honoring our commitments of timely deliveries and round the clock after sales service support given to our esteemed customers. We invest continuously to improve our management, keep adopting international latest advanced technology so that our products will always match international standard for excellent performances and reliability. With great enthusiasm and persistence efforts and your great support, Agestar company will moving toward more and more successfully.
Main products
FAQ
Q: Can I use our own logo?
A: Yes, we can produce by using your own logo if you need.
Q: Do you have customized service for your standard goods?
A:Yes, customized service acceptable.
Q:How do you make sure alternator quality?
A:We have our own inspection procedures.Every model we have a standard design and test few models before mass production. Also the CE and ISO standard make production goes well. For production process, random inspection will be arranged and final test to make sure qualified products before shipping.
Q:What's your lead time?
A:Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders.
Q:When will you reply after got my inquiries?
A:We will response within 24 hours once get your inquires.
Q:What's the minimum order quantity?
A:Our minimum order quantity depends on different goods and model, please contact us to check details.
Q:Can I visit your company?
A:Yes, warmly welcome to visit our factory. We will assist you arrange the schedule.
A:Yes, warmly welcome to visit our factory. We will assist you arrange the schedule.
