Product Overview
Products Description

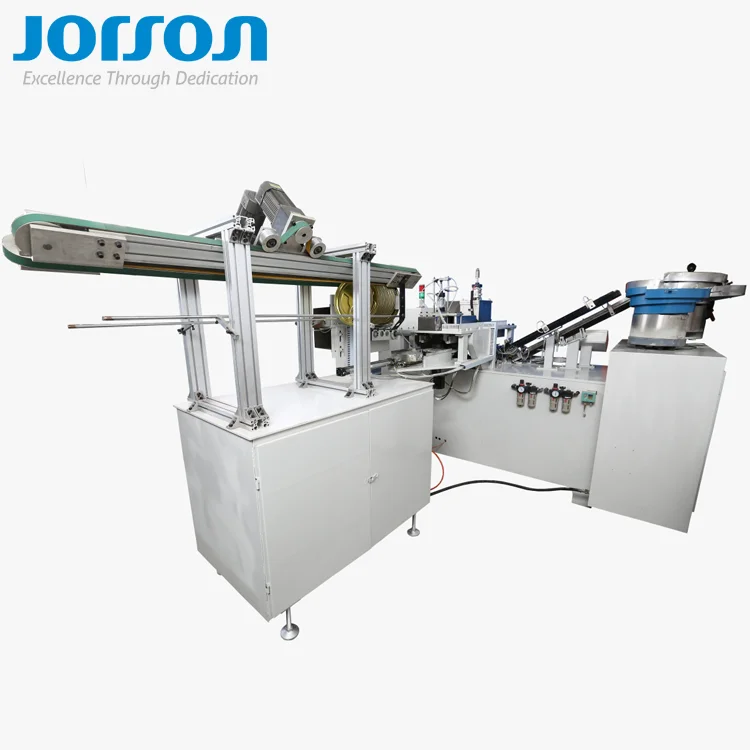

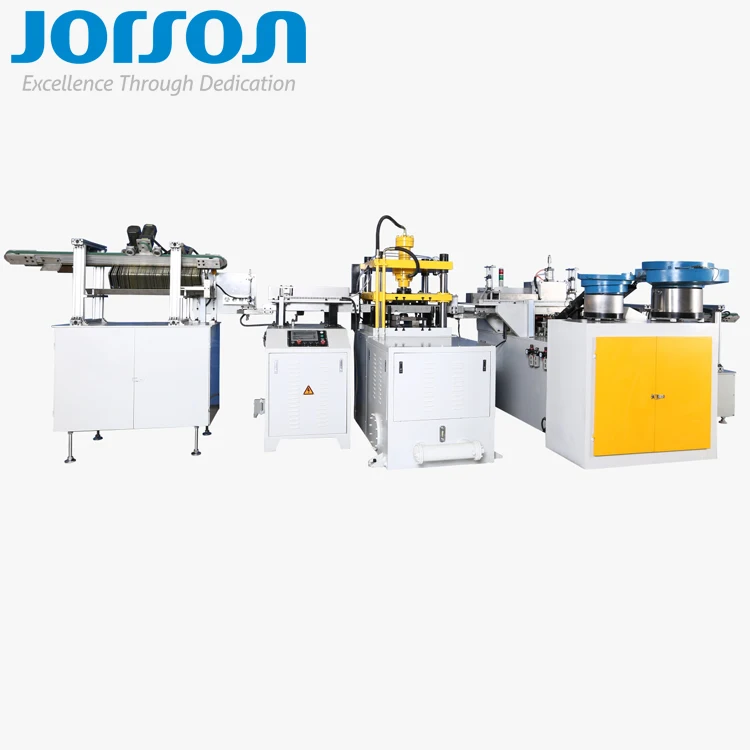

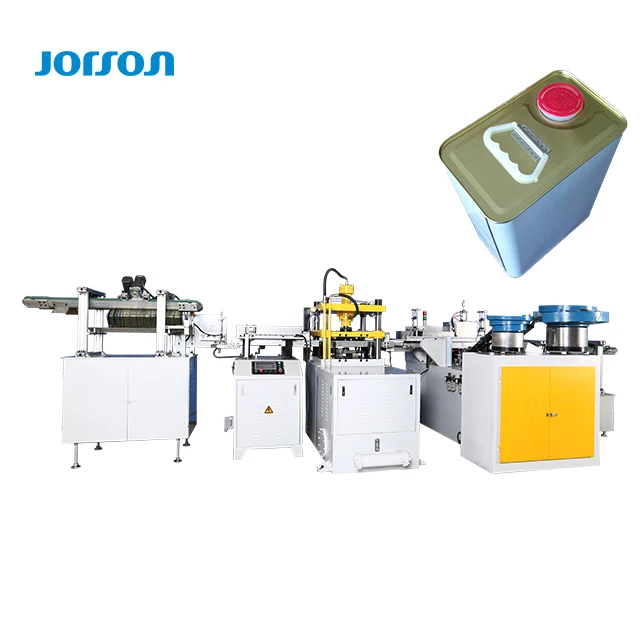

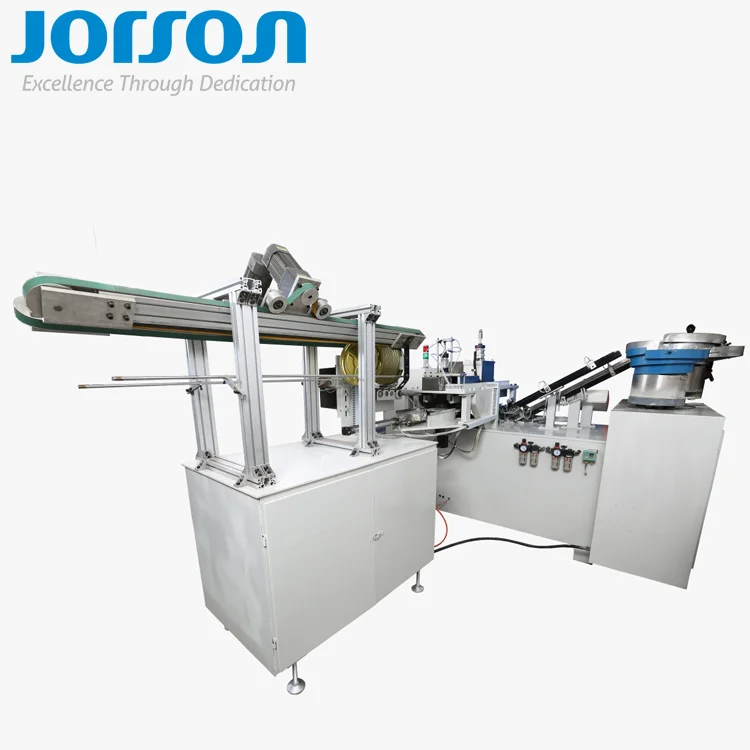

4-18L Full-auto perforation & spot welding machine for square ends
This machine is combined plastic handle shape-punching,ear welder hole punching together with ear welding,which breaks through traditional production process, uses "rivet" type welding ear and coil type plastic belt which punching into shape and welding, it saves not only material, but also the labor cost.
The machine adopts cam moving, cam transmission, feeding with electric cylinder and Siemens moving control system to make it run precision highly,flexible and good stability with high speed.
The machine adopts cam moving, cam transmission, feeding with electric cylinder and Siemens moving control system to make it run precision highly,flexible and good stability with high speed.
Product Specification
Product Paramenters
Main Parameters | ||
Applicable cans | Tinplate round can | |
Output | 60CPM | |
Production Range | ϕ155-180mm | |
Applicable Height | 155-300mm | |
Distacne Between the Top End and the Center Of Ear | 33-40mm(Adjustable) | |
Tinplate's Thickness of Can Body | 0.23-0.30mm | |
Tinplate's Thickness of Welding Ears | ≥0.32 | |
Transforme Secondary Current | APP. 5000A | |
Applicable Air Pressure | ≥0.6MPa | |
Weight | APP. 4.2T | |
Connecting Height | 1000±20mm | |
Dimension (L*W*H) | 3800*2700*2400mm | |
Whole Power | 70KW | |
