Сетчатая наклонная Монтажная система для плитки крюк крыши Солнечная монтажная
- Категория: Продукты солнечной энергетики >>>
- Поставщик: Xiamen,Art,Sign,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.32 $* | 0.50 $* |
| Aug-16-2025 | 0.33 $* | 0.9 $* |
| Jul-16-2025 | 0.75 $* | 0.42 $* |
| Jun-16-2025 | 0.32 $* | 0.19 $* |
| May-16-2025 | 0.69 $* | 0.38 $* |
| Apr-16-2025 | 0.3 $* | 0.27 $* |
| Mar-16-2025 | 0.94 $* | 0.71 $* |
| Feb-16-2025 | 0.67 $* | 0.0 $* |
| Jan-16-2025 | 0.7 $* | 0.72 $* |
Характеристики
Off Grid Pitched Tile Mounting System Tile Roof Hook Solar Mounting Structure

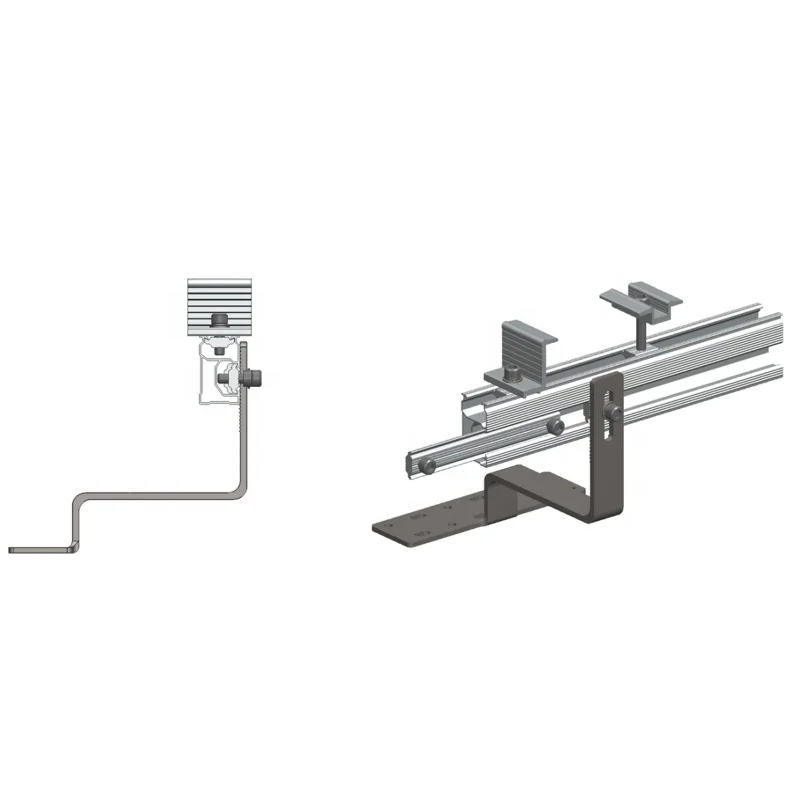

Installation Steps:

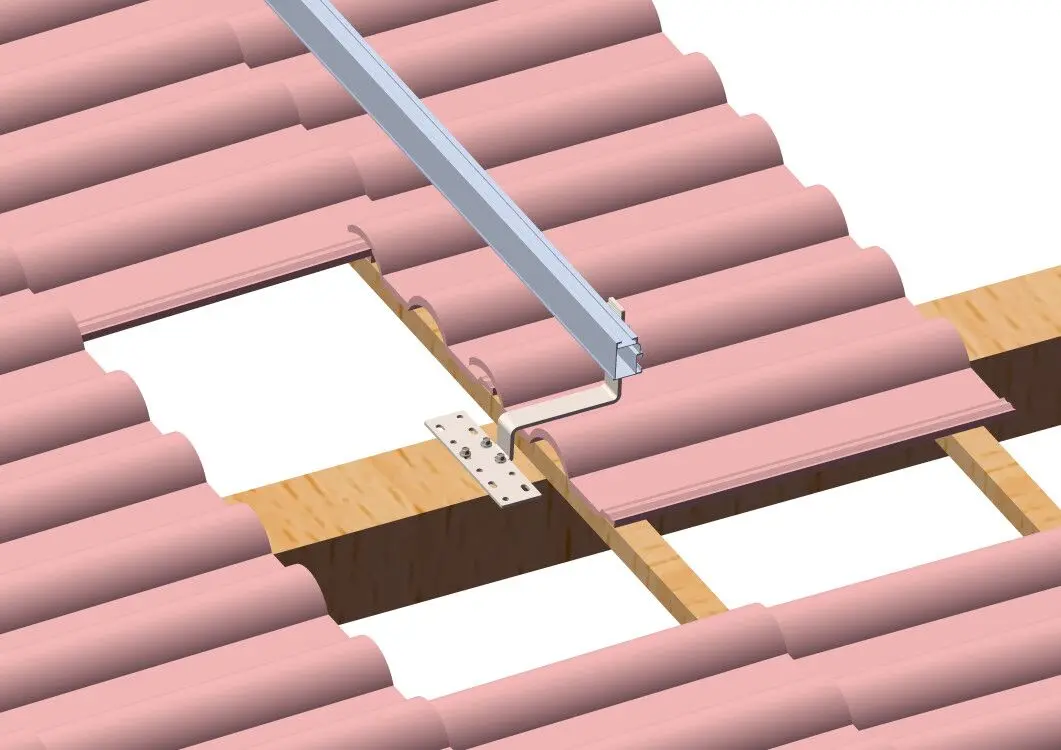

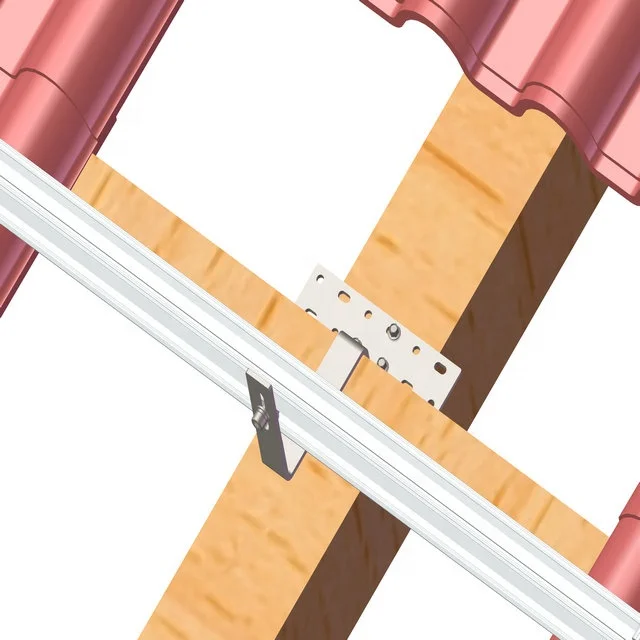

Step 1: Position the stainless steel solar hook and tighten it with M6.3 screw.
Step 2: Attached to aluminum rails' slot and fasten it with M8 bolt.

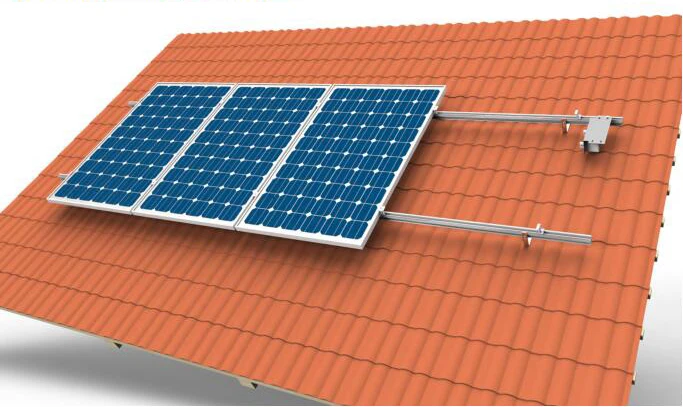

Step 3: Fix solar panels with mid clamp and end camp.
Design Features | ① D nut design: faster installation which saves your labor cost. ② Rails are pre-cut in customized length, clamps and hooks are pre-assembled. | |
Place of Origin | Xiamen China (mainland) | Brand Name | Art Sign Energy |
Mode Number | AS-SR-TRMS | Wind Load | up to 60m/s |
Material | Aluminum 6005-T5 | Snow Load | up to 1.5KN/m2 |
Surface treament | Anodized above 10um | Packing | carton / wooden case |
Color | Silver | Warranty | 20 years Quality Warranty and 25 years Service life |
Selling Units | per meter/ per pcs | Package Type | Inner packing:wrapping paper/film/carton; Outer packing: wooden case | ||||
Lead Time： | Quantity(Sets) Est. | 1 - 1000 | 1001 - 5000 | 5001 - 10000 | >10000 | ||
Time(days) | 15 | 20 | 25 | To be negotiated | |||
Installation Site | Nakashibetsu, Japan | Project capacity | Solar mounting type | Aluminum ground mounting system |
32MW | ||||
Installation Site | The Dominican Republic | Project capacity | Solar mounting type | Aluminum roof mounting system |
599.95KW | ||||
Q:Why choose Art Sign Energy?
A: We have been specialized in solar mounting designing and producing more than 15 years, all of our products are exported to Japan, Brazil, Belgium, South Africa etc.
A: We have been specialized in solar mounting designing and producing more than 15 years, all of our products are exported to Japan, Brazil, Belgium, South Africa etc.
What we care is quality and friendly long term relationship with you.
Q: If any quality problem caused, what you can do?
A: Art Sign Energy can issue you an warranty letter which ensure that if any quality problem cause within our warranty time, we will send the replacement to you without any charge.
A: Generally, for LCL goods is 7-15 working days, FCL can be 20-35 working days. For more, it should be negotiated.
We are verified with ISO9001, so our production management system is completed.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
For more request, we can discuss and make a payment plan according to both of our financial situation.
