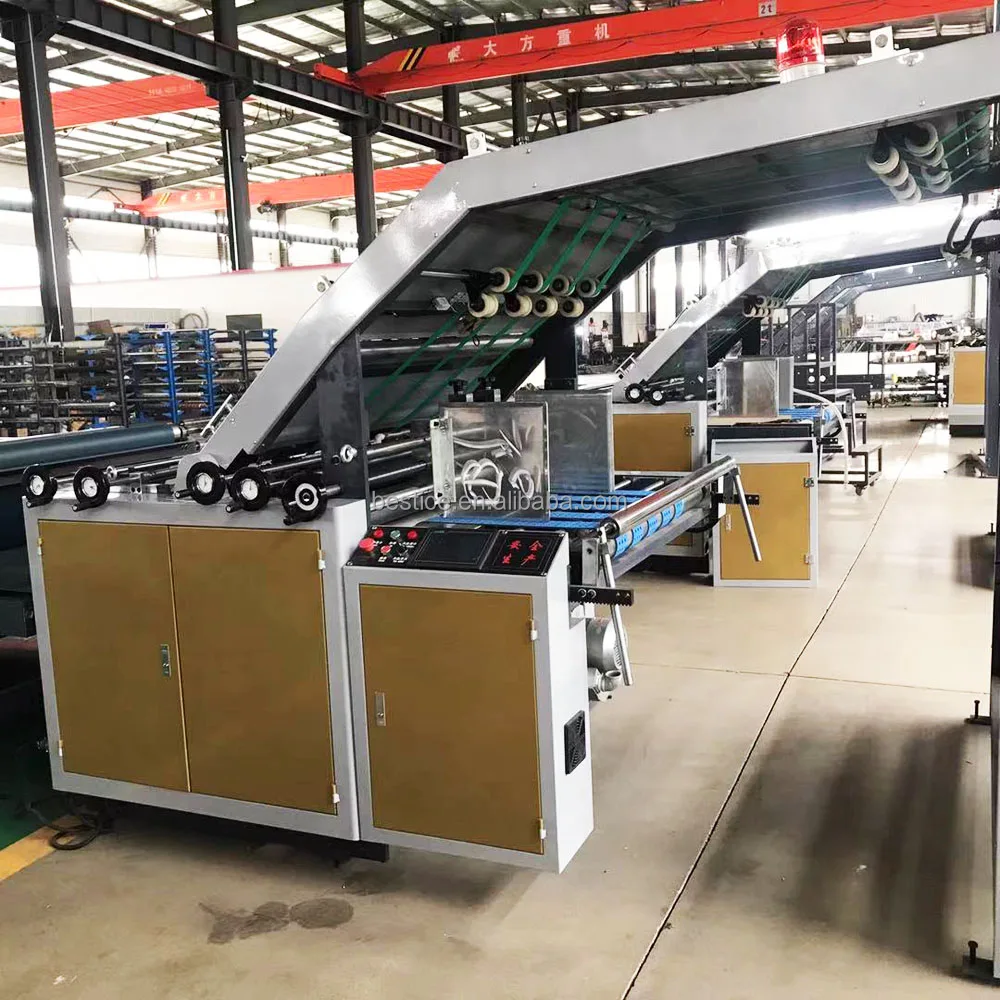

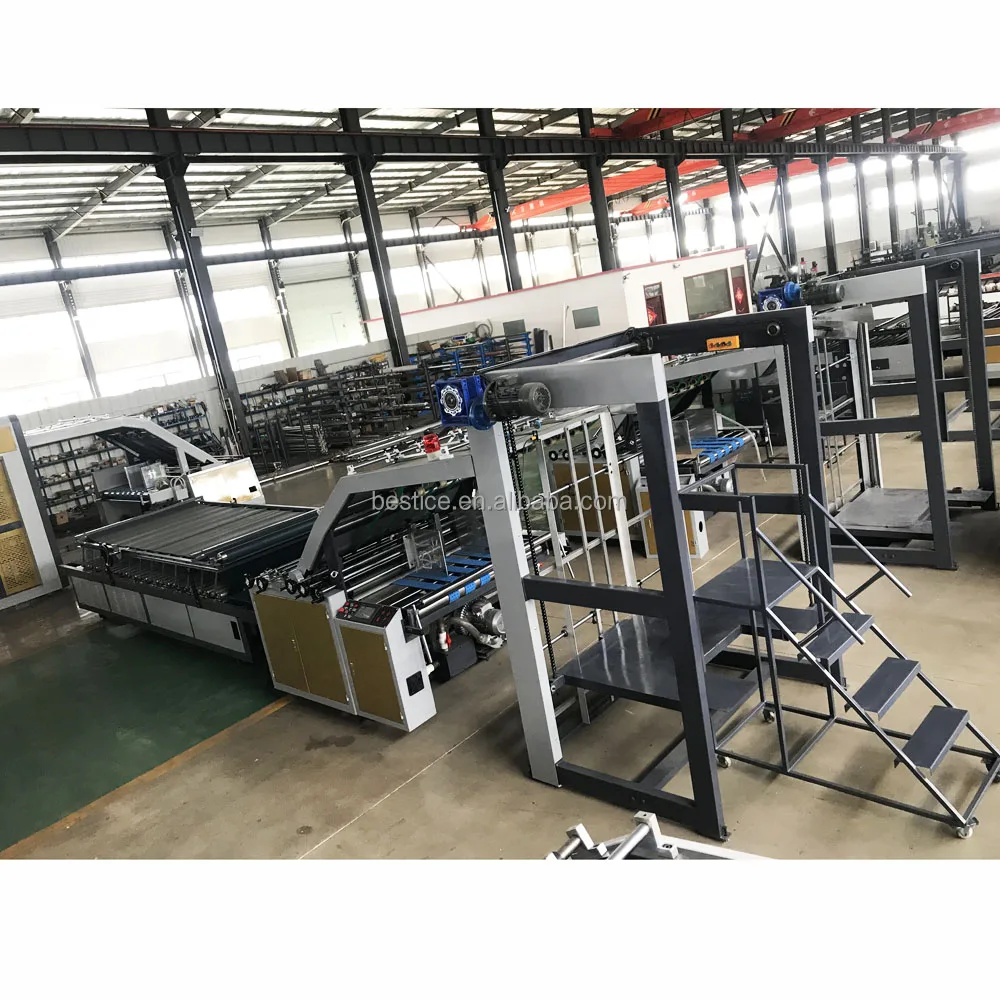

Corrugated paperboard and paper gluing and pressing machine
>>Application:
The semi-auto flute laminating machine is suitable for laminating the color printed surface paper and corrugated paper lamination. It adopts automatic suction bottom paperboard feeding device; simple operation, easy maintenance.
>>Configurations:
1. The semi-auto flute laminating machine is used for laminate the printed faced paper with the corrugated paper together

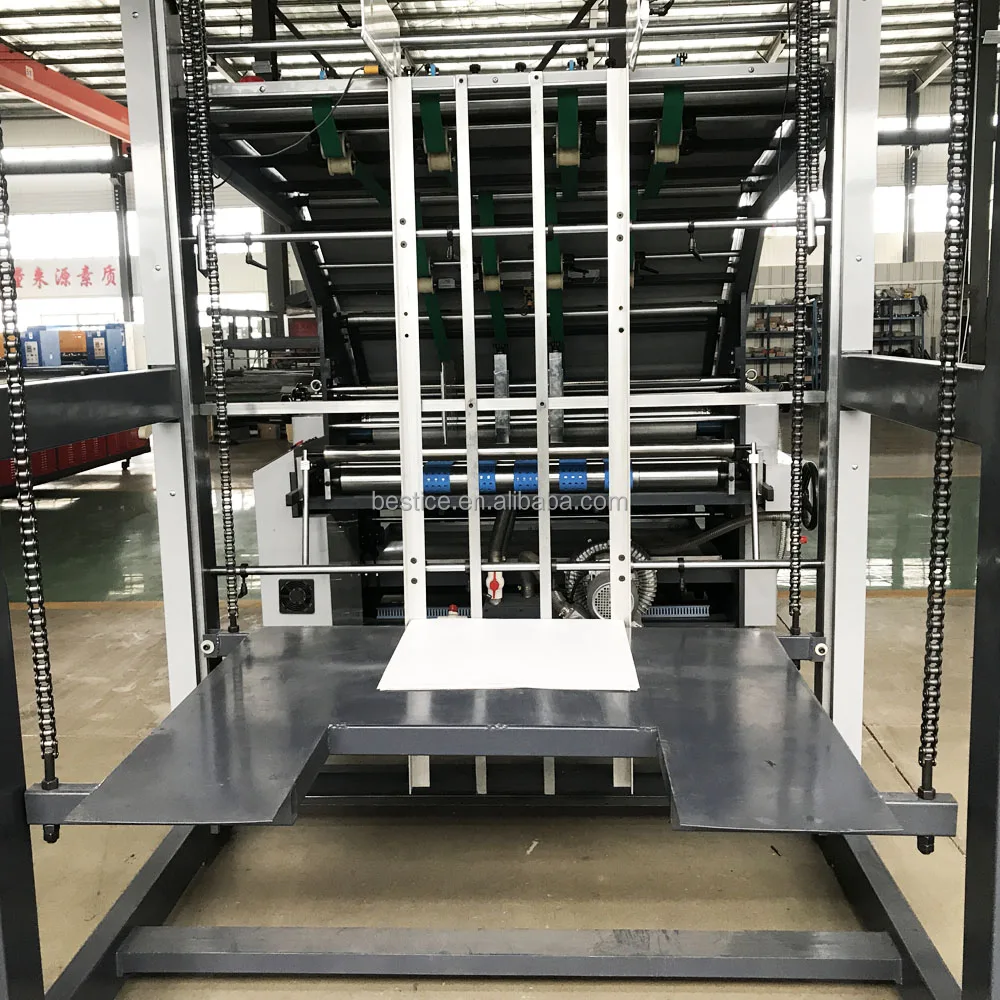

2. The bottom corrugated paperboard adopts automatic suction feeding way, continuously automatic tracking according the face paper feeding speed.
3. New concept of front gauge positioning, high accurate; Bottom paperboard never advance .Surface paper and advance amount can be adjusted.
4. Manually feeding faced printed paper and the high frame stable choice which easy for paper feeding.
5. Automatic glue supply system, the thickness of glue can be adjusted. Also it equipped with glue recycling system to avoid the waste of glue.
6. Floating type movable press bed ensure that the lamination corrugated paperboard will not be crushed and also ensure the paperboard flat and straight.
>>Parameters
Model
BZJ-1300
BZJ-1450
BZJ-1600
Max sheet size
1300*1100mm
1450*1100mm
1600*1100mm
Min sheet size
350*350mm
350*350mm
350*350mm
Lamination precision
≤±1mm
≤±1mm
≤±1mm
Machine speed
0-5000 pcs/hour
0-5000 pcs/hour
0-5000 pcs/hour
Working speed
2000-4500pcs/h
2000-4500pcs/h
2000-4500pcs/h
Control
PLC & touch screen
PLC & touch screen
PLC & touch screen
Power
About 8kw
About 8kw
About 9kw
Weight
3500kgs
4000kgs
4500kgs
Machine size
10000×2200×2600mm
10000×2350×2600mm
10000×2500×2600mm
Related Products
Certificates
Packaging & Shipping
Export standard wooden case suitable for long time ocean shipping.
Our Services
Pre-sales
As long as you tell us your detail requirement then we will supply the appropriate and cost-effective machines for you. And we have the R&D department and can customize for you. For all your request, we will supply best suggestion and solution on time.
On sale
During the manufacturing time, if you have any query, you can contact with us freely You could contact us by e-mail, or by Skype, Whatsup, or Wechat and QQ.
Welcome you to visit our factory to check the machine. We will pick you up from airport or train station.
After-sale service
We have the engineers available for overseas service, Installation and setup and train your worker for running the machine. If you meet anything you can not solve then you can conatct us freely. We will cooperate with you to solve it.
QC
All our machine will be tested by our QC department before shipping, to ensure every machine will work well after they reach you. The QC is through all production, from raw materials, processing, assembling, finished machine testing.
Customer &Exhibition
We coopreate with the customers worldwide, America, Canada, Spain, Germany, Romania, Japan, india, Pakistan, Bangladesh, Uzbekistan, Mexico, Chile, Brazil, Middle east, Africa, ect
Company Information
Hebei Bestice Machinery factory was established in 1998 and we are professional in manufacturing carton box machines and slitter, rewinder, cutter for tapes, paper and film which is widely used in various industries.
Carton box making machine mainly including: corrugated cardboard production line, automatic/semi-automatic printing slotting and die cutting machine, automatic/semi-autoamtic laminator, automatic/semi-automatic carton folding gluing machine,carton stitching machine, single facer flute corrugation machine, sheet cutter, thin blade slitter scorer etc.
Slitter, Cutter, Rewinder machine for tape,paper and film mainly including: automatic cutting machine, rewinding machnie, BOPP tape slitting rewinding machine, film/paper slitter rewinder, cross cutting machine, coating machine, printing machine etc.
All of our machines are heavy duty construction and built by high quality components for reliability and long life service; it guarantee to provide an excellent return for your capital investment. We already cooperated with the customers from America, Canada, Spain, England, Japan, Russia, India, Malaysia, Bangladesh, Pakistan, Saudi Arabia, Ethiopia, Algeria, Mexico, Chile etc.
We sincerely hope: we work together for better future!
