VMC1060 Fanuc фрезерный станок с ЧПУ цена 3 оси вертикальный обрабатывающий
- Категория: Machine Tool Equipment >>>
- Поставщик: Shandong,Woda,Heavy,Machinery,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 23562.29 $* | 24740.3 $* |
| Aug-16-2025 | 23364.84 $* | 24532.58 $* |
| Jul-16-2025 | 19602.2 $* | 20582.38 $* |
| Jun-16-2025 | 22968.0 $* | 24116.58 $* |
| May-16-2025 | 19998.20 $* | 20998.56 $* |
| Apr-16-2025 | 22572.63 $* | 23701.6 $* |
| Mar-16-2025 | 22374.86 $* | 23493.61 $* |
| Feb-16-2025 | 22176.84 $* | 23285.66 $* |
| Jan-16-2025 | 21978.8 $* | 23077.31 $* |
Характеристики
VMC1060 Fanuc CNC Machine Price 3 axis Vertical Machining Center
Application:
VMC1060 Fanuc CNC Machine Price 3 axis Vertical Machining Center suitable for the production of multi-variety, medium and small batch products, showing the superiority of processing complex and high-precision parts; It is suitable for high-efficiency and high-precision automatic processing of small and medium-sized parts in the fields of teaching, aerospace, military and national defense, automobile and motorcycle, engineering machinery, refrigeration and petrochemical, and rolling stock.
Product Overview
Features:
1.High rigidity: It adopts bed-type machining center structure. The machine tool is composed of base, sliding seat, work table, column and headstock. The main basic parts are analyzed by finite element structure, the structure is reasonable and the rigidity is large; all machine tool castings are hot. Aging treatment, precision has long-term stability.
2.The machine tool adopts high-speed, high-precision and high-rigidity spindle unit. The spindle material is made of
high-performance alloy steel. The high-speed precision bearing for the spindle is used, and the high-speed grease is used. The spindle speed reaches 8000 rpm and the spindle radial runout is less than 0.008/300.
3. direction feed adopts C3 grade double nut preloaded precision ball screw. The servo motor is directly connected with the lead screw through high torque and low inertia inlet elastic coupling to ensure positioning accuracy and repeat positioning accuracy.
2.The machine tool adopts high-speed, high-precision and high-rigidity spindle unit. The spindle material is made of
high-performance alloy steel. The high-speed precision bearing for the spindle is used, and the high-speed grease is used. The spindle speed reaches 8000 rpm and the spindle radial runout is less than 0.008/300.
3. direction feed adopts C3 grade double nut preloaded precision ball screw. The servo motor is directly connected with the lead screw through high torque and low inertia inlet elastic coupling to ensure positioning accuracy and repeat positioning accuracy.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Table size (mm) | 1200x600 |
2 | X axis travel (mm) | 1100 |
3 | Y axis travel (mm) | 600 |
4 | Z axis travel (mm) | 600 |
5 | Max. worktable load (KG) | 800 |
6 | T slot(number-width-pitch) | 5-18x100 |
7 | Max. spindle speed(rpm) | 8000 |
8 | Spindle taper | BT40 |
9 | Main motor power (KW) | 11 |
10 | Cutting feed speed | 1-10000 |
11 | Machine weight (KG) | 6100 |
12 | Overall dimension (mm) | 3100*2420*2800 |
Details Description
Taiwan Line Rail and Screw
Taiwan Line Rail and Screw
Heavy load, good stability .
High Precision and Rigidity
Machine body
Precision casting,reasonable structure,strong rigidity
High-strength cast iron materials are used for the bed, worktable, sliding seat, column, headstock and other large parts
Ensure that the whole machine has sufficient strength, rigidity and high stability

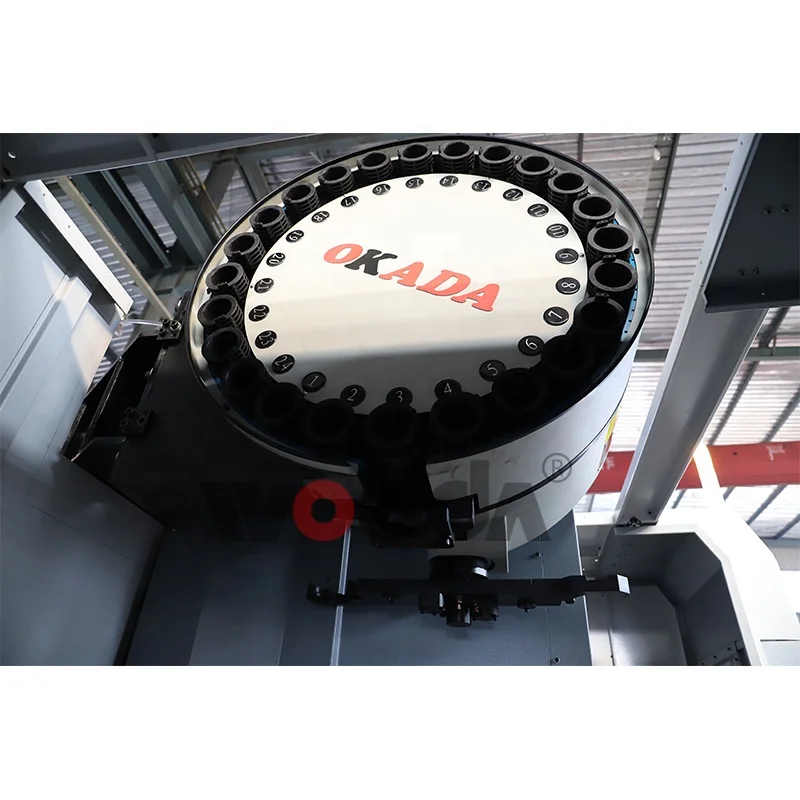

Taiwan ATC
Using Taiwan OKADA Arm/Armless Magazine.
High speed and noiseless operation, change
The knife process is fast and accurate.
The knife process is fast and accurate.
Taiwan Spindle
The spindle group adopts Taiwan 8000rpm synchronous belt spindle unit, which has high precision and high rigidity. The bearing adopts P4 grade spindle special NSK bearing

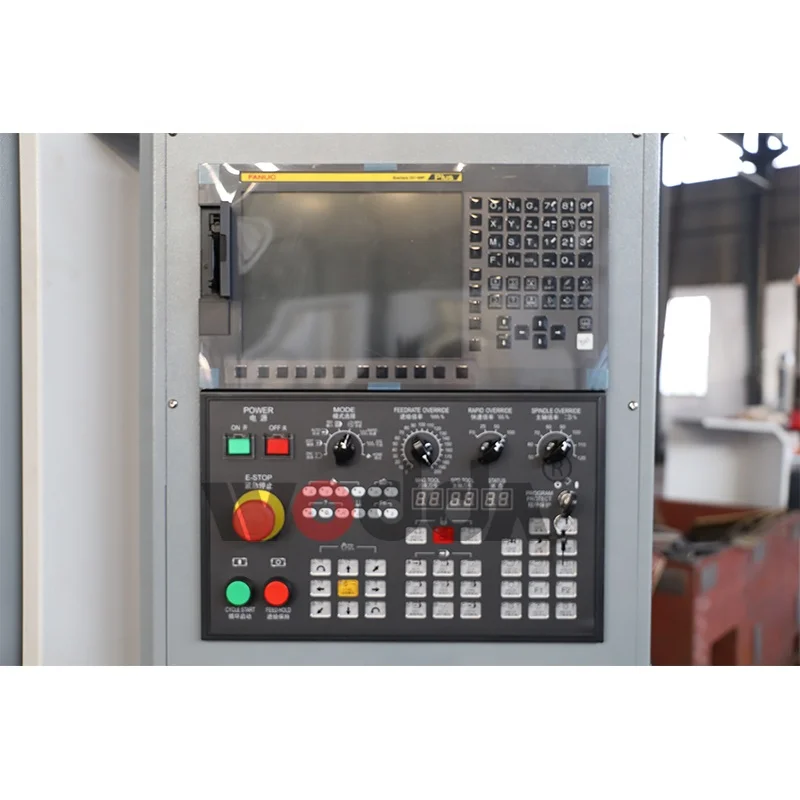

CNC System
A variety of CNC systems for your choice
Siemens
Fanuc
GSK
KND
Auto Lubrication
Guide rails and ball screws adopt centralized automatic lubrication system
Inject oil into each lubrication part regularly and quantitatively to ensure uniform lubrication of each sliding surface, effectively reducing Friction resistance improves the movement accuracy and ensures the service life of the ball screw pair and guide rail
Company Profile
About Us
Shandong Woda heavy machinery Co.,LTD is located in Tengzhou city, Shandong Province,China. We specialized inmanufacturing &exporting machine tools for many years.Our product range is Hydraulic press machines, Shearing Machines, Bending Machines, CNC machines, Lathes, Milling machines, Drilling Milling Machines, Metal band saws, Shaper ,Slotting Machines and Radial Drilling Machine.
Certifications
VMC1060 Fanuc CNC Machine Price 3 axis Vertical Machining Center
Our hydraulic presses are all in accordance with export standards
Product packaging
VMC1060 Fanuc CNC Machine Price 3 axis Vertical Machining Center
1. The machine adopts export standard packaging to prevent damage such as damage, deterioration and pollution of the goods.2.Export packaging is adapted to the requirements of various modes of transport. Such as shipping export packaging needs to be trong, anti-extrusion, anti-collision; railway export packaging transportation requires packaging shock.
FAQ
Q: How about your after sale service?
A: Our high efficiency CNC Machining Center for sale quality Warranty time is 12 months and We can Provide Technical support online service and Machine operation Video . We also can provide on-site training and commissioning Video
Q:How about your machine quality?We are worry about the quality.
A: WODA is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
A: Our high efficiency CNC Machining Center for sale quality Warranty time is 12 months and We can Provide Technical support online service and Machine operation Video . We also can provide on-site training and commissioning Video
Q:How about your machine quality?We are worry about the quality.
A: WODA is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
