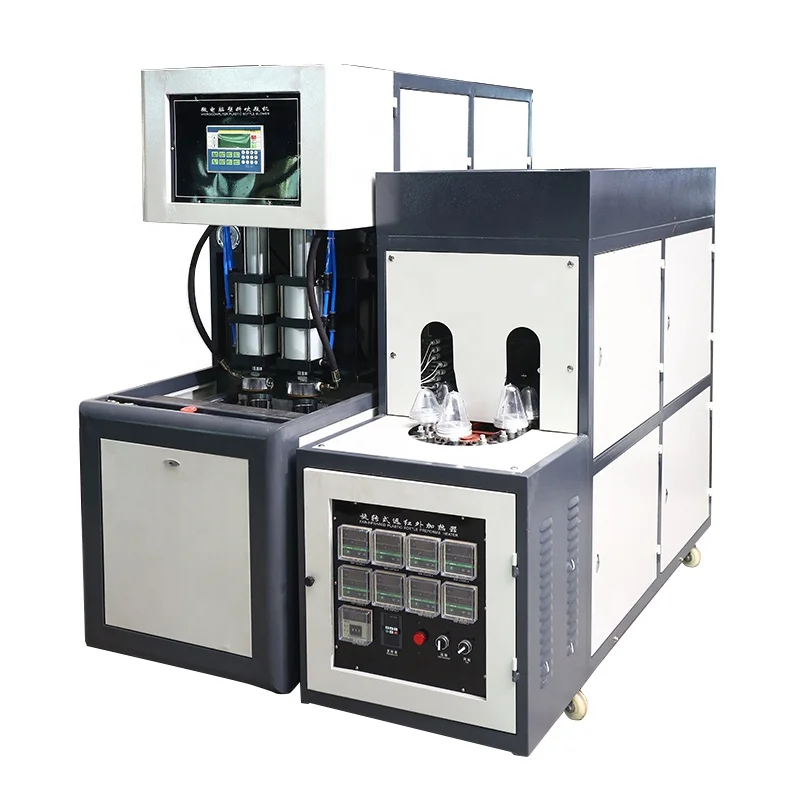

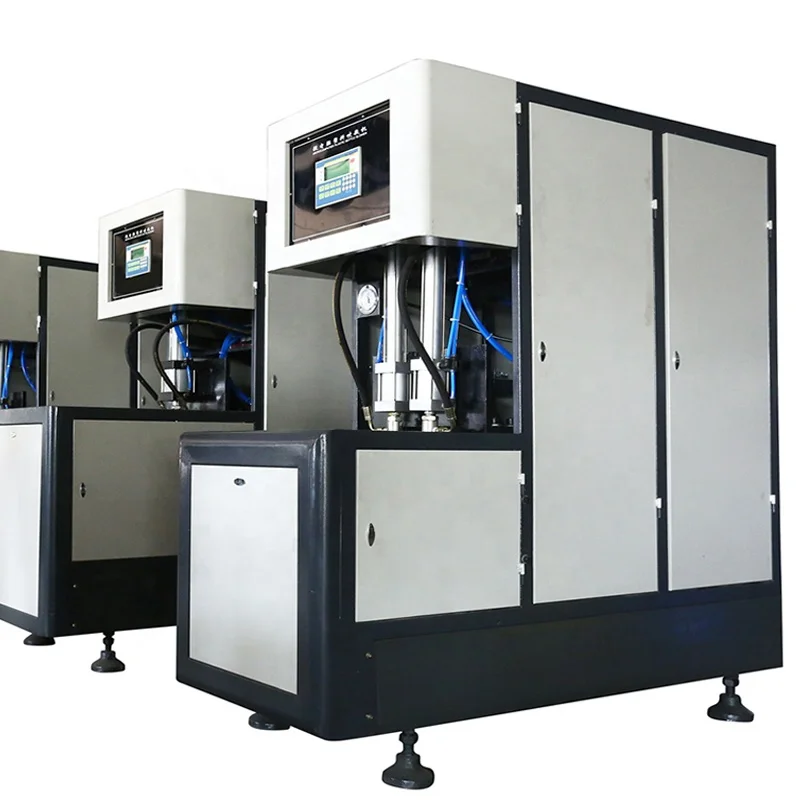

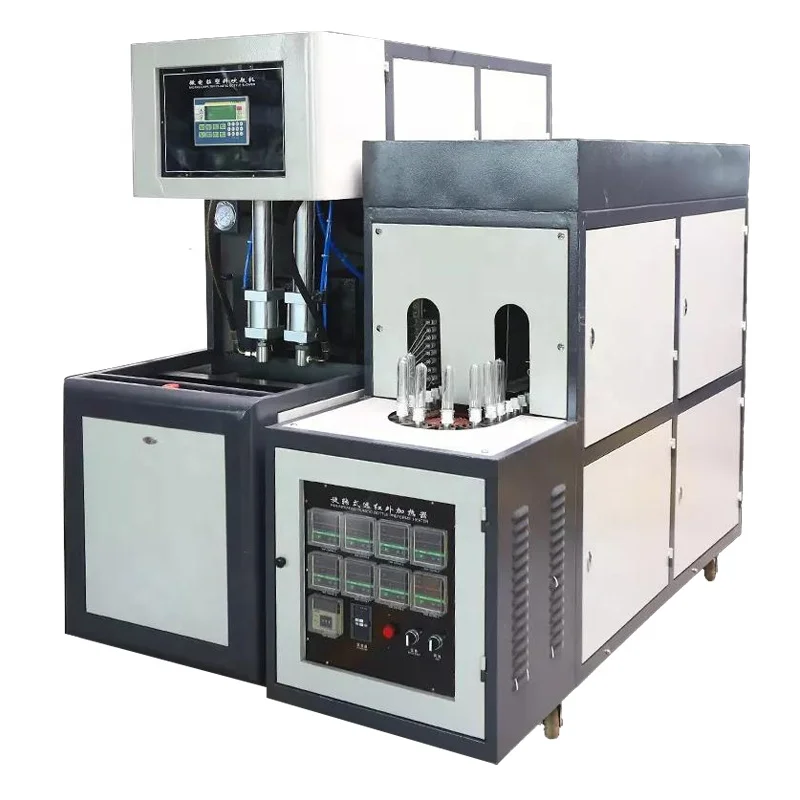

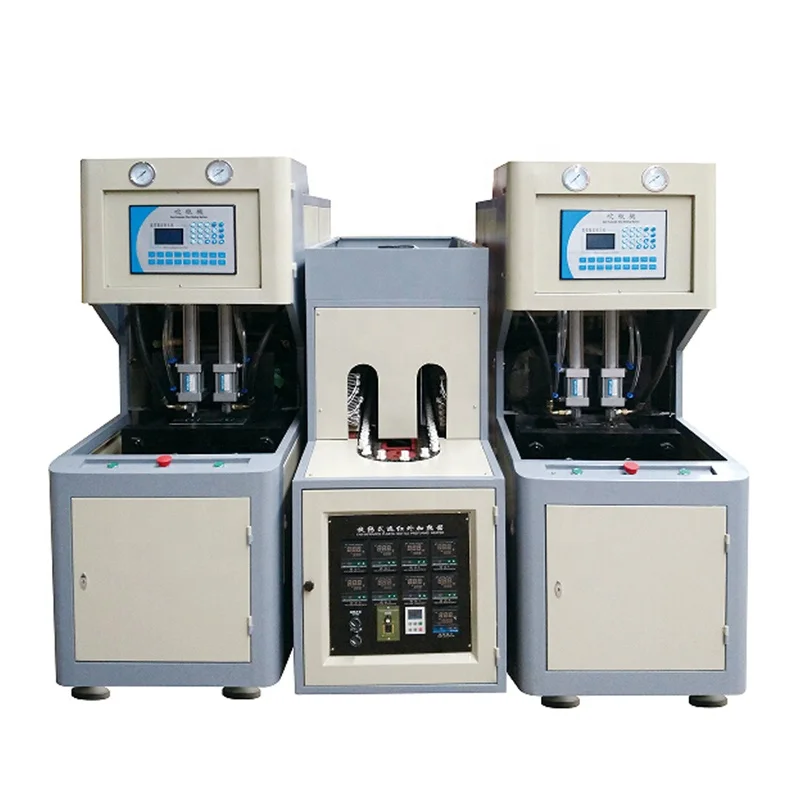

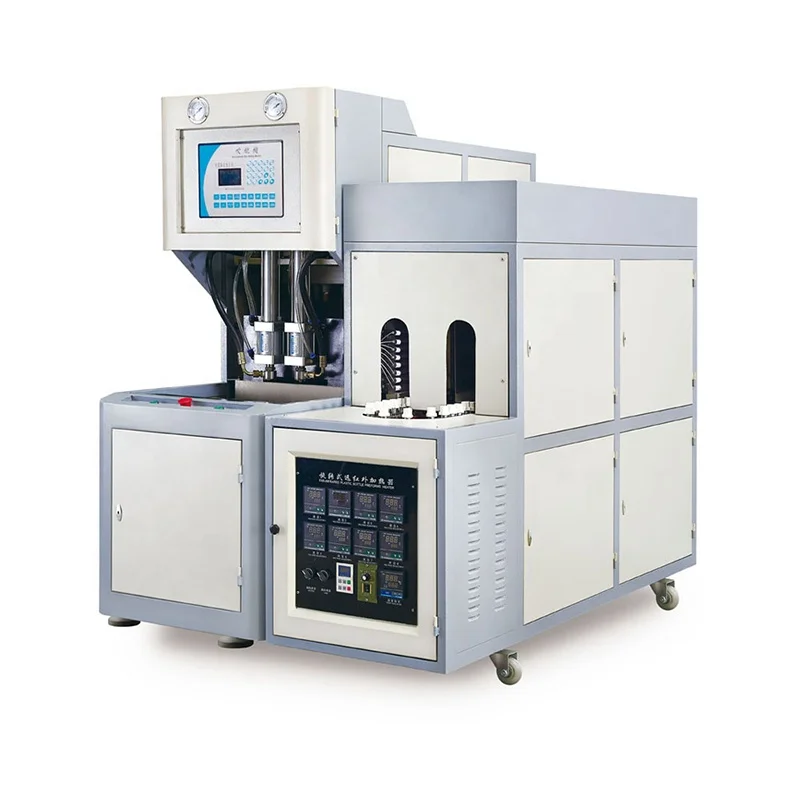

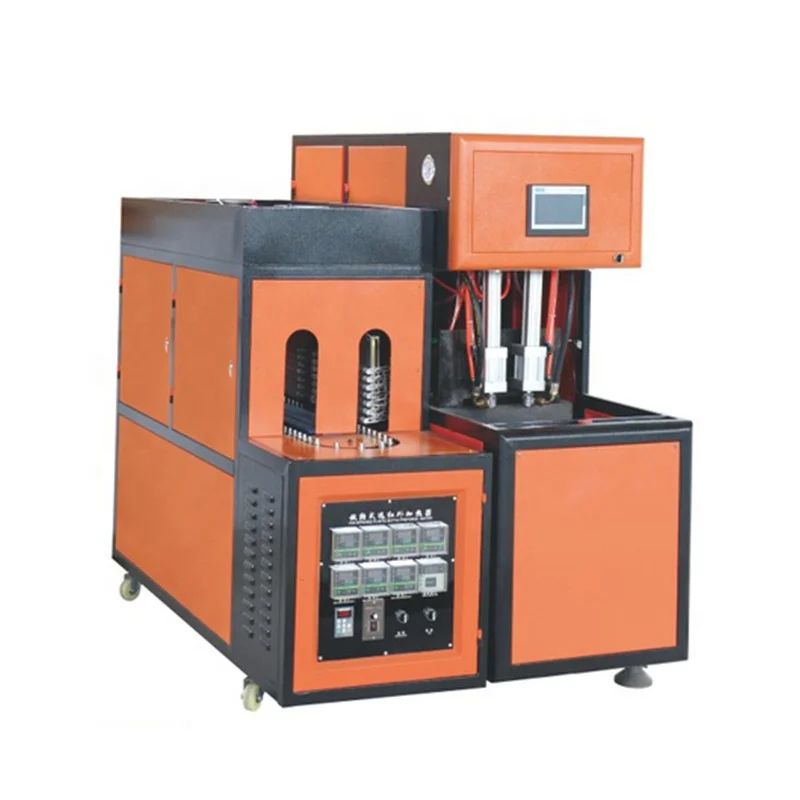

Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
500 мл 1.5L 3L полуавтоматическая напитков фруктовый сок минеральная вода бутылки выдувные машины стрейч
- Категория: Выдувная машина >>>
- Поставщик: Taizhou Shunke Moulding Co., Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 224129.48 $* | 235335.47 $* |
| Aug-16-2025 | 222246.81 $* | 233358.48 $* |
| Jul-16-2025 | 186461.1 $* | 195784.85 $* |
| Jun-16-2025 | 218479.38 $* | 229403.35 $* |
| May-16-2025 | 190227.20 $* | 199738.71 $* |
| Apr-16-2025 | 214712.68 $* | 225448.44 $* |
| Mar-16-2025 | 212829.34 $* | 223470.31 $* |
| Feb-16-2025 | 210945.86 $* | 221492.76 $* |
| Jan-16-2025 | 209062.77 $* | 219515.13 $* |
Характеристики
Semi-automatic blow moulding machine Main part: | ||||
Pneumatic part | Valve | SMC/PARK/FESTO/AIRTAC etc | ||
Cylinder | ||||
Electric part | PLC | Mitsubishi/Siemens/Delta etc | ||
Operating system | Mitsubishi/Siemens/Delta etc | |||
Contactor | Schneider | |||
Relay | OMRON | |||
Infrared thermometer | America raytek | |||
Note | All of the electrical components adopts CE\UL\CCC approved international advanced high-tech product. | |||
Semi-automatic blow moulding machine performance:
1.Stable performance with advanced PLC.
2.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously in the infrared preheater.
3.High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the
reflecting board in the preheating area and eternal temperature in the preheater with an automatic thermostatic apparatus.
4.High safeties with security automatic-locking apparatus in each mechanical action,which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
5.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
6.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
7.Strong clamping force with high pressure and double crank links to lock the mold.
8.Operating: Manual.
9.Safe,reliable and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
10.Low cost,high efficiency,easy operation,easy maintenance,etc.
11.Contamination is avoided for the bottle body.
12.Ideal effect of the chilling with the chilling system for the bottle mould.
13.Easy installation and starting.
14.Low rejection rate:less than 0.2 percent.
15.Manual saving, one man is enough for operation the machine.
16.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
17.Power saving design that can increase your profits.
18.Separated type air controlling system, which is designed for avoiding waste pollution.
2.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously in the infrared preheater.
3.High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the
reflecting board in the preheating area and eternal temperature in the preheater with an automatic thermostatic apparatus.
4.High safeties with security automatic-locking apparatus in each mechanical action,which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
5.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
6.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
7.Strong clamping force with high pressure and double crank links to lock the mold.
8.Operating: Manual.
9.Safe,reliable and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
10.Low cost,high efficiency,easy operation,easy maintenance,etc.
11.Contamination is avoided for the bottle body.
12.Ideal effect of the chilling with the chilling system for the bottle mould.
13.Easy installation and starting.
14.Low rejection rate:less than 0.2 percent.
15.Manual saving, one man is enough for operation the machine.
16.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
17.Power saving design that can increase your profits.
18.Separated type air controlling system, which is designed for avoiding waste pollution.
If you have any requirement for Semi-automatic blow moulding machine, welcome to contact me!!!
Main products
![]()
Packing & Delivery
![]()
Plastic bottle blow molding machine
Package::Anti-rust oil is smeared first, then plastic waterproof film, and finally standard plywood case/ fumigated wooden
boxoutside for export.
Spare parts together with the machine shipment
Package::Anti-rust oil is smeared first, then plastic waterproof film, and finally standard plywood case/ fumigated wooden
boxoutside for export.
Spare parts together with the machine shipment
Company Profile
![]()
Taizhou Shunke Moulding Co., Ltd.
Taizhou Shunke Moulding Co., Ltd.
We are specialized in producing water bottle package line include injection machine, preform mould, cap mould and blowing machine for more than 10years.
We can provide the customers a whole line of bottle package line with best quality with good service.
![]()
![]()
![]()
![]()
FAQ
How can I get samples?
We provide you free samples for further checking, but only can be 5-10 samples.
Buyer pay the delivery cost, we will deliver to you by DHL, FedEx, TNT, UPS etc...
How can I place an order?First, Let us know your detailed inquiry.
Second, Confirm with us about the price, payment term, delivery time and warranty time etc...
Third, Make Proforma Invoice for proceeding payment and confirm the samples, drawing or other details.
Forth, We start production after your confirmation of product or drawing.
How can I pay for the order?
First, we support to trade you via Alibaba insurance order.
Second, Small amount can be via Paypal, Western Union, Alibaba insurance order,
Big amount can be via T/T and L/C at sight
Why selling price on Alibaba is a range price and different with the price we tell you?
Our PET preform and cap price are based on the price of raw materials and exchange rate.
We provide you free samples for further checking, but only can be 5-10 samples.
Buyer pay the delivery cost, we will deliver to you by DHL, FedEx, TNT, UPS etc...
How can I place an order?First, Let us know your detailed inquiry.
Second, Confirm with us about the price, payment term, delivery time and warranty time etc...
Third, Make Proforma Invoice for proceeding payment and confirm the samples, drawing or other details.
Forth, We start production after your confirmation of product or drawing.
How can I pay for the order?
First, we support to trade you via Alibaba insurance order.
Second, Small amount can be via Paypal, Western Union, Alibaba insurance order,
Big amount can be via T/T and L/C at sight
Why selling price on Alibaba is a range price and different with the price we tell you?
Our PET preform and cap price are based on the price of raw materials and exchange rate.
Our machines price are based on the steeland labor cost and exchange rate.
Our moulds are customized thing, even same product is not same price, it is influenced by many factors.
So the published price is a range price and it is for reference only.
Please contact customer service for the latest price.
Finally, thank you very much for your inquiry, we assure you of our best service at all times.
Provide One-stop Service and Turnkey Solutions of PET Preform&Cap for Liquid Packaging
Our moulds are customized thing, even same product is not same price, it is influenced by many factors.
So the published price is a range price and it is for reference only.
Please contact customer service for the latest price.
Finally, thank you very much for your inquiry, we assure you of our best service at all times.
Provide One-stop Service and Turnkey Solutions of PET Preform&Cap for Liquid Packaging
