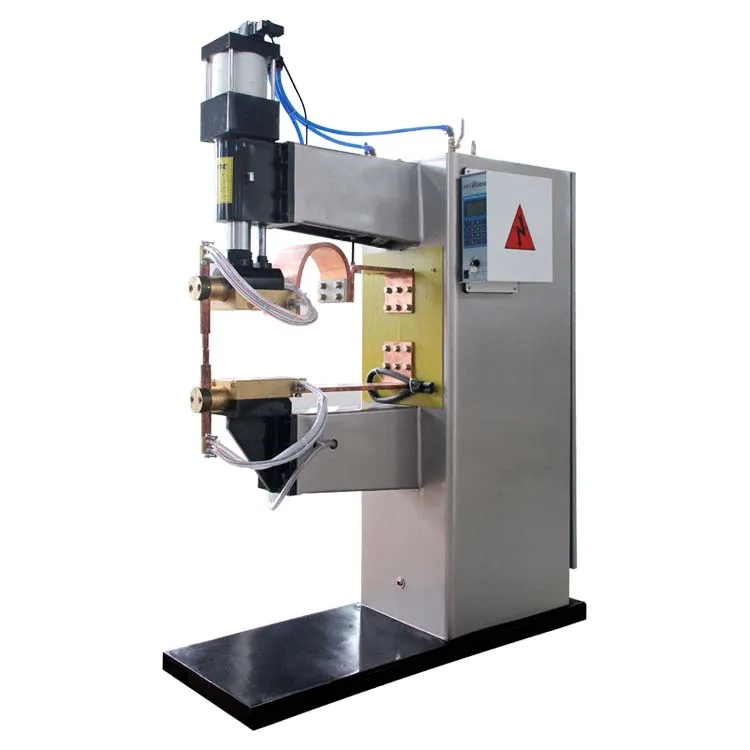

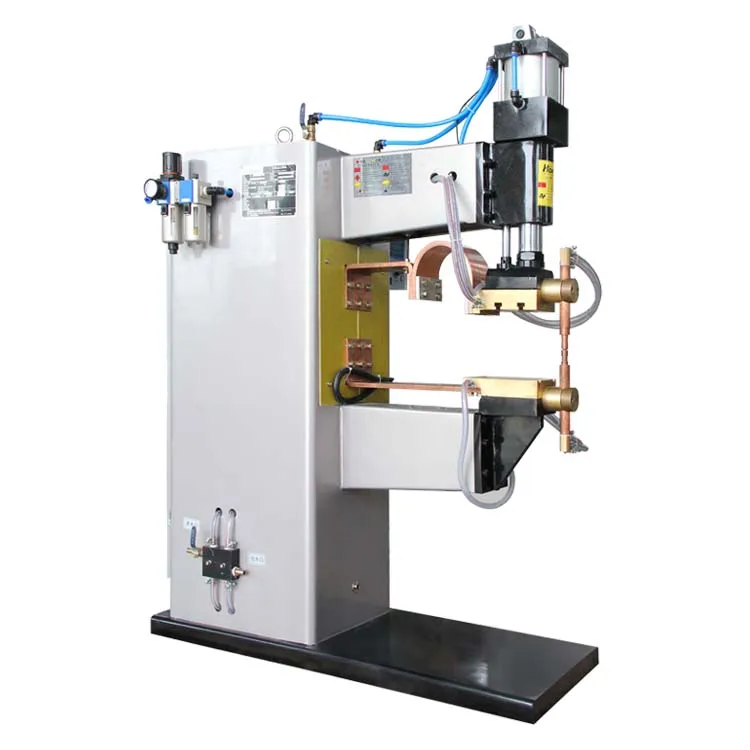

DN SERIES PENUMATIC AC SPOT&PROJECTION WELDING MACHINE



Introduction

     This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.



Feature

• The special design of one body tube cylinder can guarantee the welding stability and velocity


• Multi-pass water cooling system make sure the reliability of long time working.


• Spot and projection welding functions.


• Computer control system with steady-voltage and current, Multi-Time Discharge(MTD], can satisfy various working requirements with ease.


• Can weld iron, copper, aluminum





Item Model	DN-25	DN-35	DN-50	DN-75	DN-100	DN-150	DN-200
Rated capacity KVA	25	35	50	75	100	150	200
Rated Primary voltage V	380	380	380	380	380	380	380
Rated frequency Hz	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Maximum welding input KVA	38	54	70	146	216	340	450
Rated duty cycle %	50	50	50	50	50	50	50
Arm length mm	340	380	380	380	380	450	450
Maximun compression N	2500	4700	4700	7300	7300	12000	12000
Electrode  stroke  mm	60	80	80	80	80	100	100
Welding capability Low carbon steel mm	2.0+2.0	2.5+2.5	3.0+3.0	4.0+4.0	4.5+4.5	5.0+5.0	6.0+6.0





Application

    It can applied to iron wire products, hardware decorative lighting, kitchen utensils, small household appliances, small hardware, etc.
