Автоматическая печатная машина для производства пластиковых пакетов 4
- Категория: Установки трафаретной печати >>>
- Поставщик: Wenzhou,Lisheng,Printing,&,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.94 $* | 0.90 $* |
| Aug-16-2025 | 0.73 $* | 0.34 $* |
| Jul-16-2025 | 0.81 $* | 0.3 $* |
| Jun-16-2025 | 0.78 $* | 0.70 $* |
| May-16-2025 | 0.19 $* | 0.49 $* |
| Apr-16-2025 | 0.10 $* | 0.22 $* |
| Mar-16-2025 | 0.51 $* | 0.93 $* |
| Feb-16-2025 | 0.62 $* | 0.85 $* |
| Jan-16-2025 | 0.93 $* | 0.80 $* |
Характеристики
Product Description

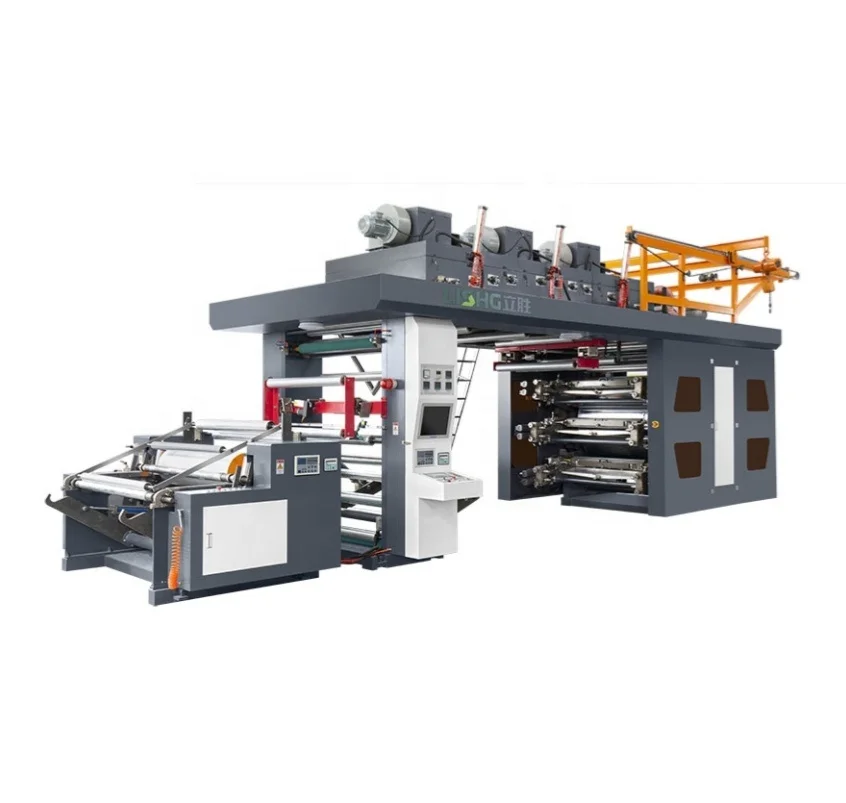

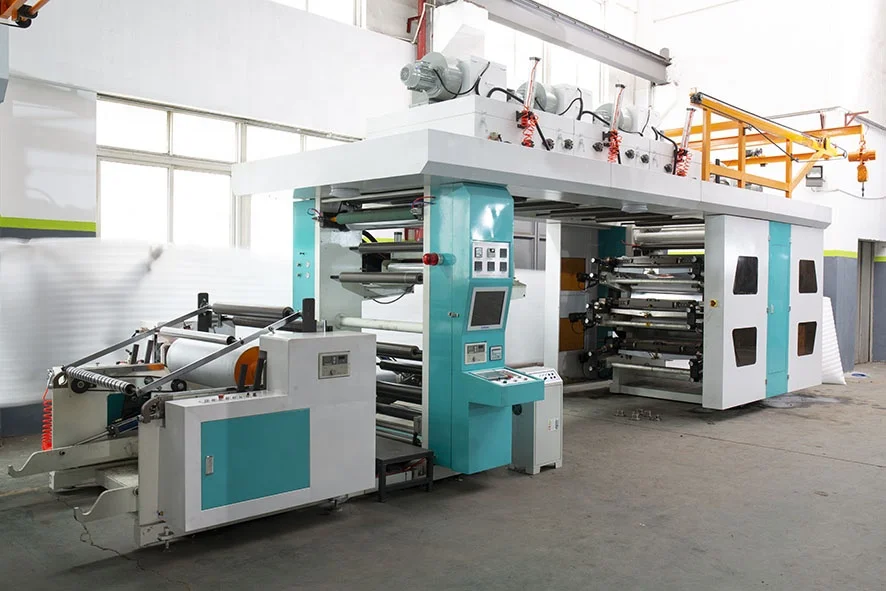

This central impression (central drum)flexographic printing machine is suitable for printing such packing materials as paper material between 20--200gsm.And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.
Model | YTC-61200 | ||||||
Material Feeding Width | 1200mm | ||||||
Max Printing Width | 1160mm | ||||||
Material | Paper roll to roll 20--250gsm | ||||||
Thickness of plate | Resin or rubber plate, 1.7mm, 2.28mm, 2.54mm, 2.84mm can be customized | ||||||
Printing length | Customized is available from 300-800mm | ||||||
Maximum machine speed | 160m/min | ||||||
Printing Speed | 80--150m/min | ||||||
Register precision | ±0.15mm | ||||||
Structure type | Central impression（central drum）, Gear drive | ||||||
Print Resolution | 80~1000 LPI | ||||||
Ink transfer way | Ceramic anilox roller | ||||||
Transmission of printing rollers | Helical gear | ||||||
Max. oven temp. | Max. 80℃(room temp. 20℃）with temperature control system | ||||||
Suitable Ink | Water based ink / Solvent ink | ||||||
Machine weight | 9000kg | ||||||
Machine Size | 1100X2870X3640mm | ||||||
HS code | 844316009 | ||||||
Main Features
1) Central impression type printing machine with better color registration. Due to the big drum, the printed material is
supported by the big drum, and greatly improving color registration, especially with extensible materials.
2) All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, increase
the registration precision.
3) Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
4) The machine is equipped with blower and heater; and the heater employed central temperature control system,
automatic temperature controller, and separated heat source.
5) The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6) Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7)Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance,
beating small, achieves finally perfect printing effect.
8)Accurate printing effect achieved by special gear transmission device.
9)The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.
supported by the big drum, and greatly improving color registration, especially with extensible materials.
2) All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, increase
the registration precision.
3) Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
4) The machine is equipped with blower and heater; and the heater employed central temperature control system,
automatic temperature controller, and separated heat source.
5) The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6) Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7)Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance,
beating small, achieves finally perfect printing effect.
8)Accurate printing effect achieved by special gear transmission device.
9)The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.
Detailed Images
Feeding Material Part
1.Automatic stop machine when break the material. When machine stop, keep tension and avoid the material loose or line deflection.
2.Auto pneumatic loading&unloading for unwind system, equipped with air shaft , EPC and automatic tension control system with magnetic brake.
3.Roller core diameter: 76mm
4.Discharge maximum diameter: 1000mm
3.Roller core diameter: 76mm
4.Discharge maximum diameter: 1000mm

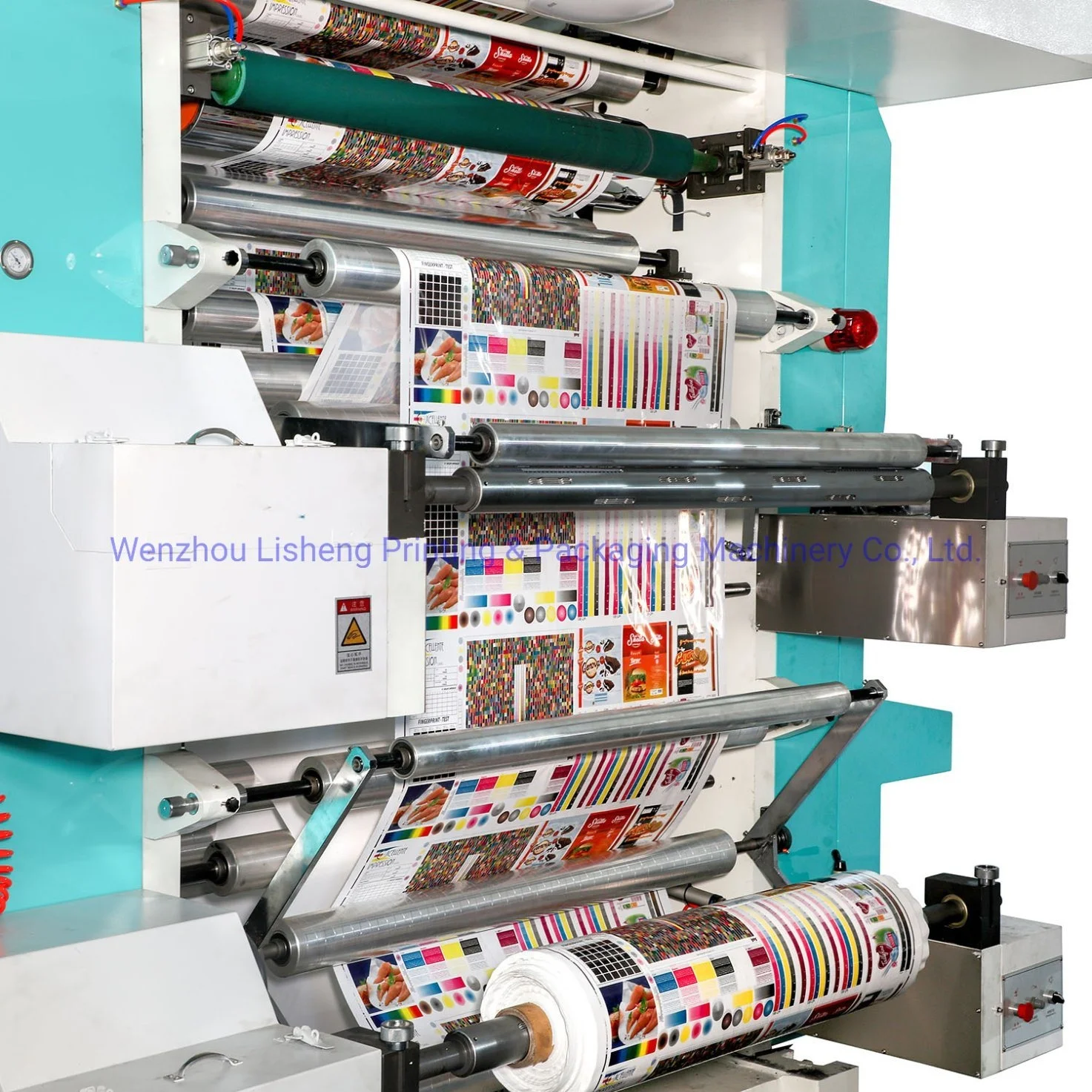

Printing Sections
1.Printing consists of: central drum, plate roller, ceramic anilox roller, single doctor blade and chamber doctor blade.
2.Plate roller circumference: 300-800mm.
3.Print material: resin plate or rubber plate.
4.Transmission: central drum with big gear drive the printing station.
2.Plate roller circumference: 300-800mm.
3.Print material: resin plate or rubber plate.
4.Transmission: central drum with big gear drive the printing station.
Drying System
1.Use hot air drying, intelligent constant temp control.
2.Drying units are installed after the printing units, and air volume can be adjusted by independent damper/panel.
3. The dryting system after the printing it is about 30kw.
Rewinding Part
1.big drum friction rewind system and central way rewind system for paper and plastic film rewind
2.Roller core diameter: 76mm
3.Discharge maximum diameter: 1000mm
4.Different material and weight have different design.
PS: Above configurations just for your reference. Know more details please connect with us! Thanks and best regards!

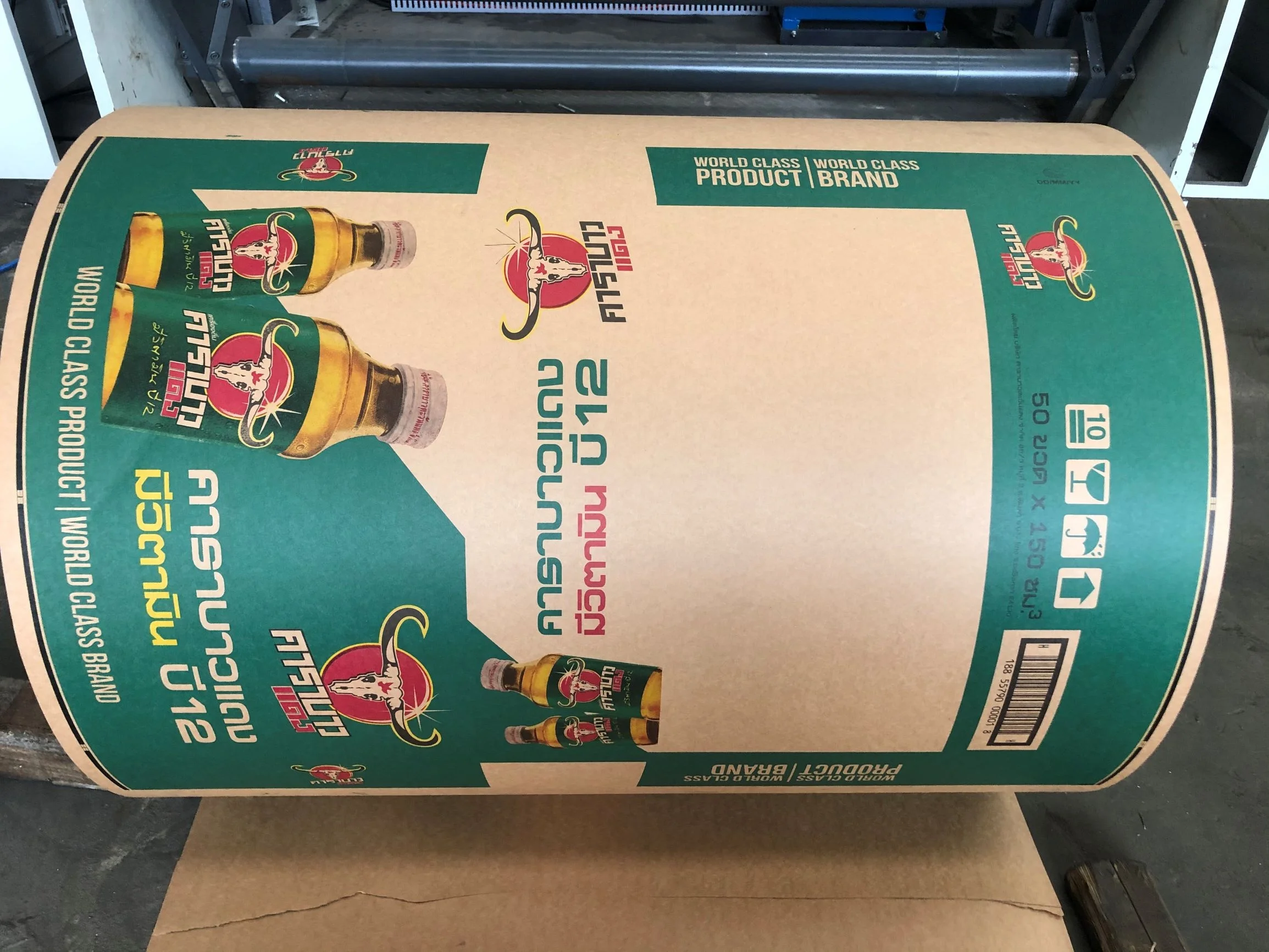

Sample pictures
Certifications
After Sales Service
Company Introduction
Wenzhou Lisheng printing and packaging machinery co, LTD is located in pingyang county, zhejiang province, is a company with nearly 15 years experience in research and manufacture of flexo printing machine, professional production of various kinds of flexo printing machine including stack type flexo printing machine, central impression flexo presses, applicable to printing paper, film non-woven fabrics, woven bag packaging materials, etc.
FAQ
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 80USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 80USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
