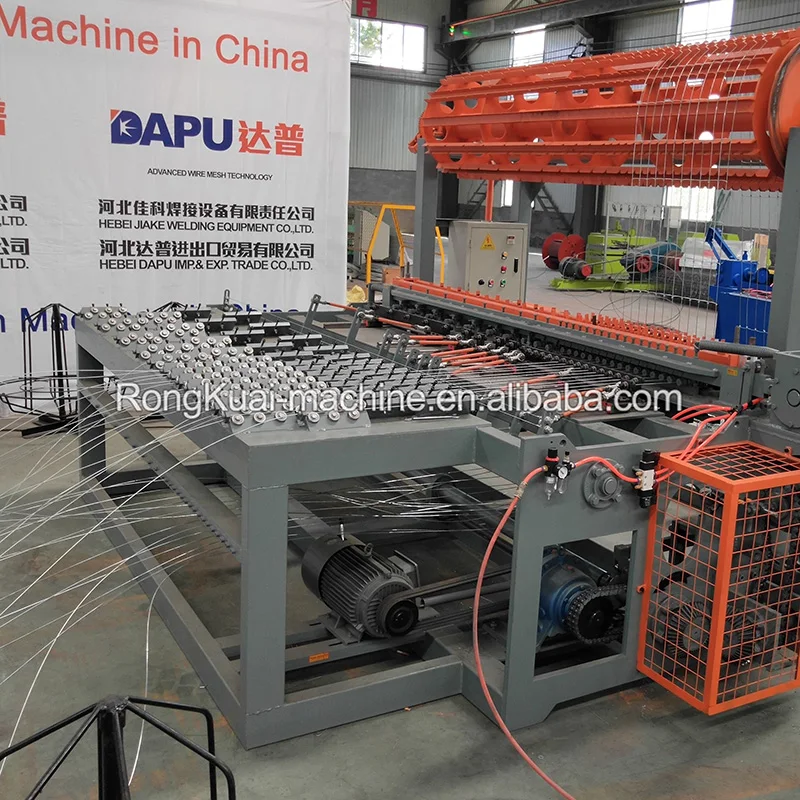

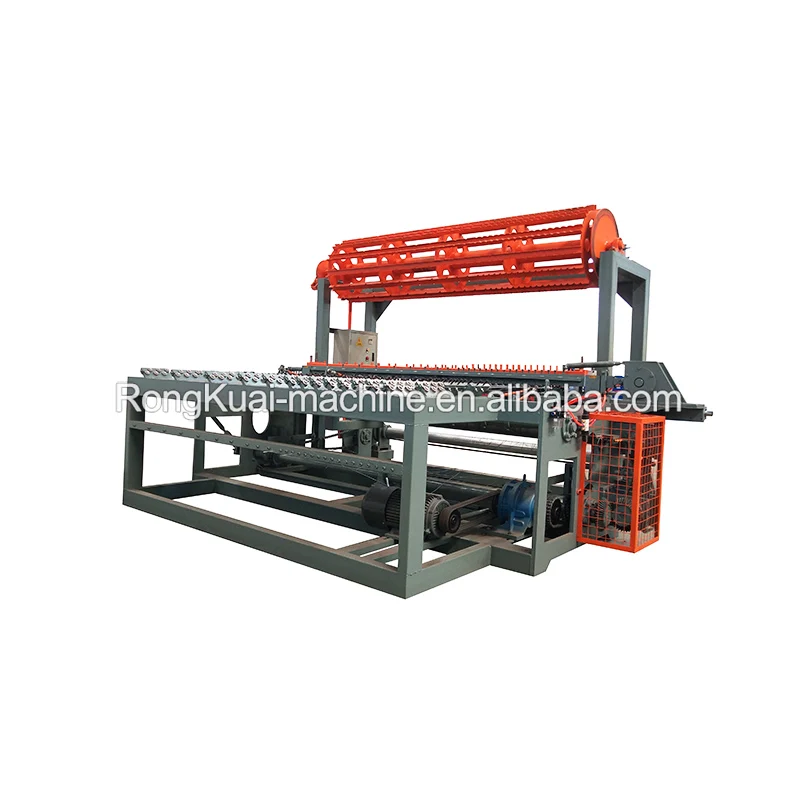

The grassland fence machine is also called a field fence machine, hinge joint fence machine or cattle fence machine, farm fence machine. This machine can produce grassland fence which is widely used for preventing environmental balance, preventing landslide, and used as livestock fence.
We can design the machine according to your wire diameter, mesh hole size, and mesh width.
Model | CY-A | CY-B | CY-C | CY-D |
Max.mesh width | 1427mm | 1880mm | 2000mm | 2500mm |
Motor capacity | 4kw | 5.5kw | 7.5kw | 11kw |
Line wire number | Max.11pcs | Max.13pcs | Max.19pcs | Max.24pcs |
Cross wire (twine wire) diameter | 1.8-2.5mm (300-500N/MM2) | |||
Line inner wire diameter | 1.8-3mm (300-1400N/MM2) | |||
Line side wire diameter | 1.8-3.5mm (300-1400N/MM2) | |||
Speed | Max.60 rows/min | |||
Line wire space | Min.75mm/Min.50mm | |||
Cross wire space | 50-500mm (adjustable) | |||
Roll length | Max.400m or more | |||
Size of the machine | 2.8×3.2×2.4m | 3.3×3.2×2.4m | 3.4×3.2*2.4m | 3.9×3.4*2.4 |
Weight of the machine | 3T | 3.5T | 4.0T | 4.5T |
![]() | ![]() | |
Straightening rollers 1.Straightening rollers are specially designed for hard wire. | Schneider electric&Detla inverter 2.Frequency-variable motor is controlled by Delta inverter, adjustable working speed, saving 30% | |
![]() | ![]() | |

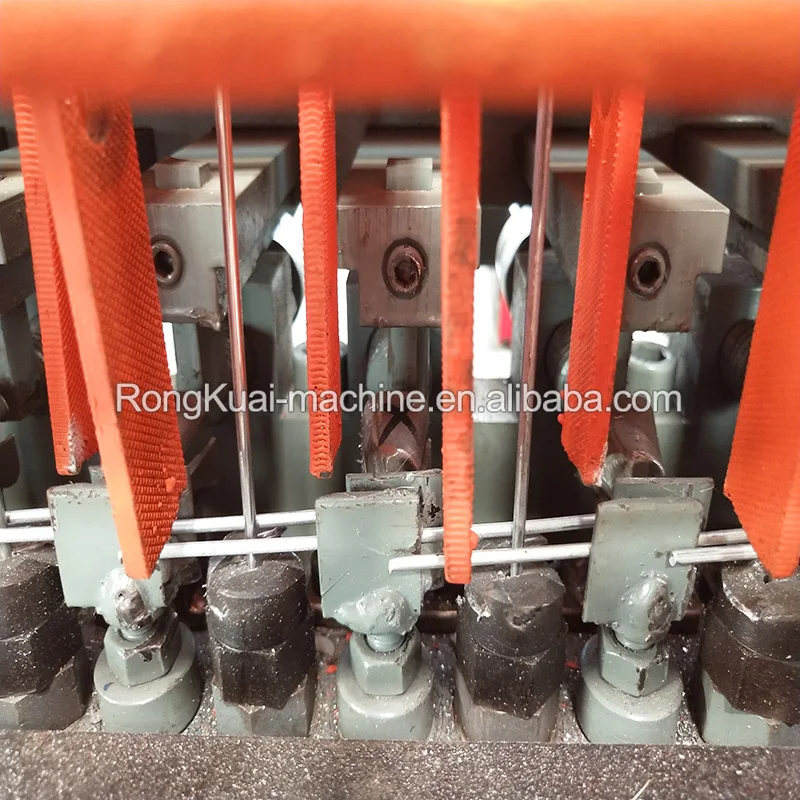

GUOMAO brand reducer 3. Guomao brand reducer, the best brand in China. Long service life, good quality, high stable working. | Twist head 4.Twisted head is made of hardened mold steel(HRC28), long service life. | |
![]() | ![]() | |
Push rod 5.Every cross wire is equipped with one push rod, more powerful. | Pneumatic twisting and cutting 6.Pneumatic twisting and cutting, speed faster, high output power. | |
![]() | ![]() | |

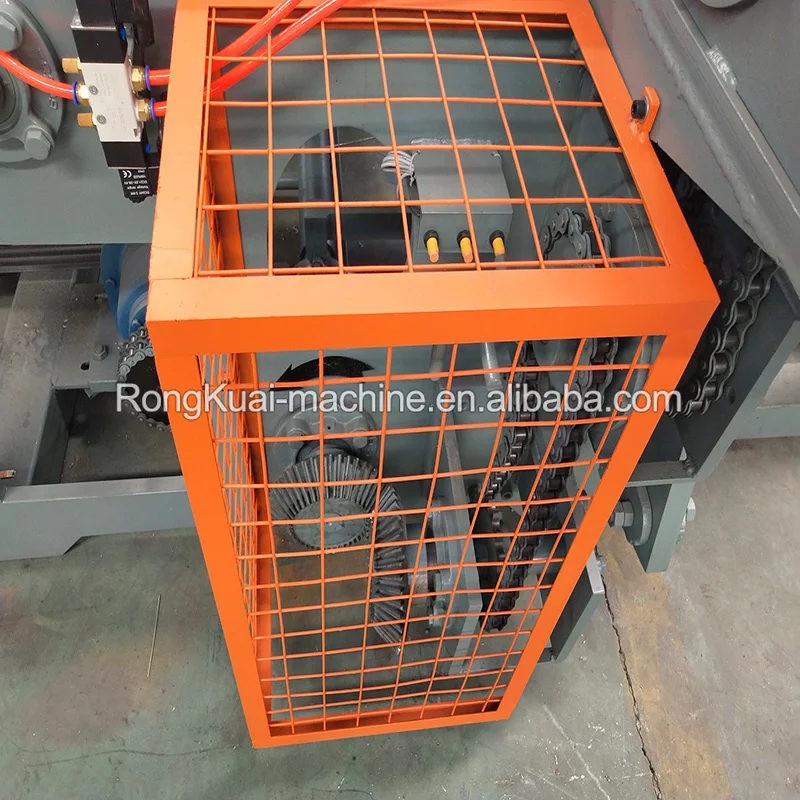

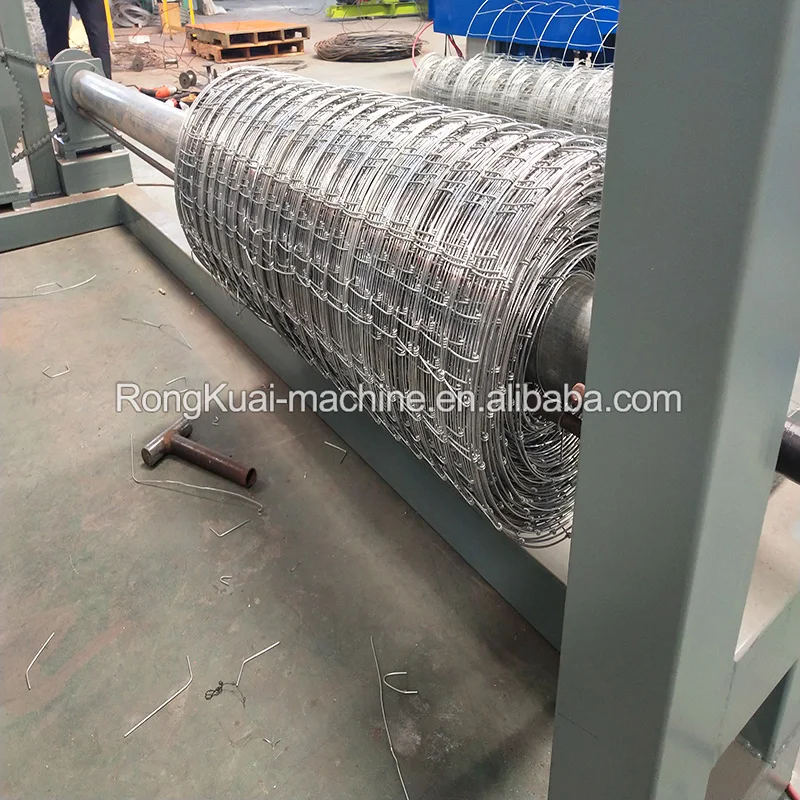

Fence for gear 7.Gear cover protect the safety of operator, also protect the machine. | Automatic mesh roller system 8.Automatic Mesh roller system is strong, easy to install and take off. |

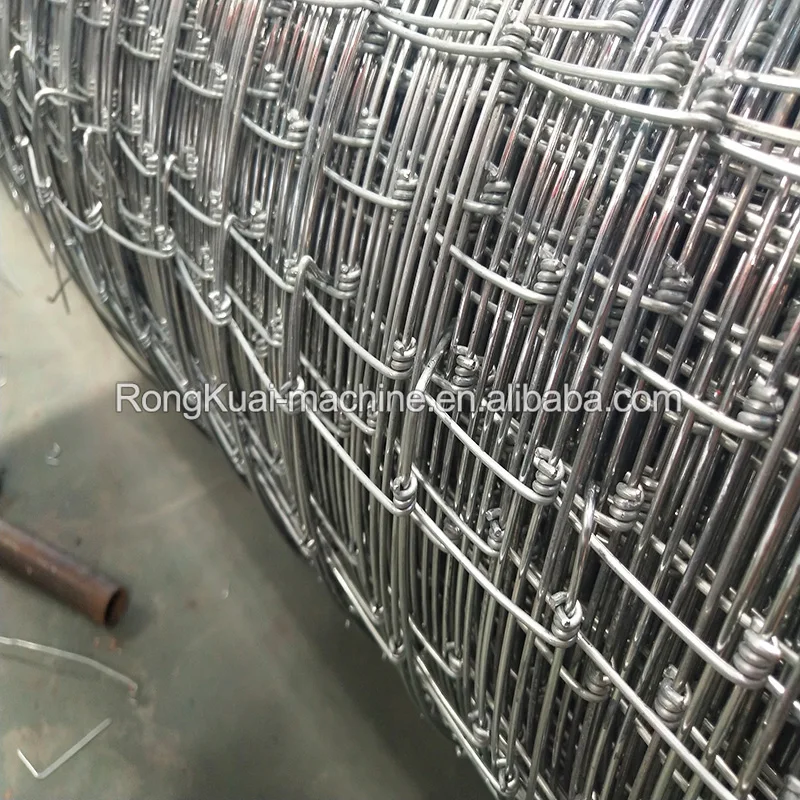

Hinge joint fence also known as hinge knotted field fence. Galvanized steel stay wire is individually cut and wrapped on the horizontal line wire, the robust hinge joints eliminated unwieldy wraps, twists, and ties. The unique sturdy but flexible structure provide maximum strength and tensile strength to withstands impact from horse, cows, pigs, deer, and goats.
The height, length, and wire diameter are all can be customized by your request. Here is your best choice of hinge joint field fence for grass field husbandry, ranch, forestry center, autobahn, and so on.
1.We can provide detailed installation videos, Manuals, electrical schemes, layouts to help your machine installation.
2.Our best engineer to buyer’s factory for installation, debugging, and training.
3.We can provide online after-sales service is available.
4.We can provide free accessories for one year.
CE Certification | ISO Certification | Report for qualify evaluation | Patent |
![]() | |||
Appearance design patent certificate | Single circuit mechanism of welding electrode patent certificate | Horizontal wire trimming device patent certificate | Pneumatic diameter wire tightening device patent certificate |
Hebei Rongkuai Machinery Manufacturing Co., Ltd is a factory of more than two thousand square meters located in Anping County, Hengshui City, Hebei Province, we are famous for welding speed. We focus on high-quality production of machinery, the best welding technology, and the fastest welding Speed, importing foreign brand accessories, has created our leader in the wire mesh machinery industry!
Main production machinery: Rebar mesh welding production line, chicken cage welding machine, welded mesh fence/flat machine, construction welded mesh machine, hexagonal wire netting machine, Chain link fence machine, etc.
We hope to have the opportunity to establish good business relations with all friends who are interested in our products, and we look forward to your visit.
Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology to develop the department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have a lot of experience in exporting. And we can supply the CE certificate, Form-E, passport, SGS report, etc, your customs clearance will be no problem.
