Глобальная версия со слотом для sim-карты уличный маршрутизатор 4g


Поделиться:


Цена:30,00 $ - 33,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 36.19 $* 38.3 $*
Aug-18-2025 35.0 $* 37.18 $*
Jul-18-2025 30.17 $* 32.60 $*
Jun-18-2025 35.61 $* 37.73 $*
May-18-2025 30.35 $* 32.15 $*
Apr-18-2025 34.84 $* 36.39 $*
Mar-18-2025 34.83 $* 36.20 $*
Feb-18-2025 34.80 $* 36.44 $*
Jan-18-2025 33.16 $* 35.37 $*

Характеристики



Product Description




































































































































Description

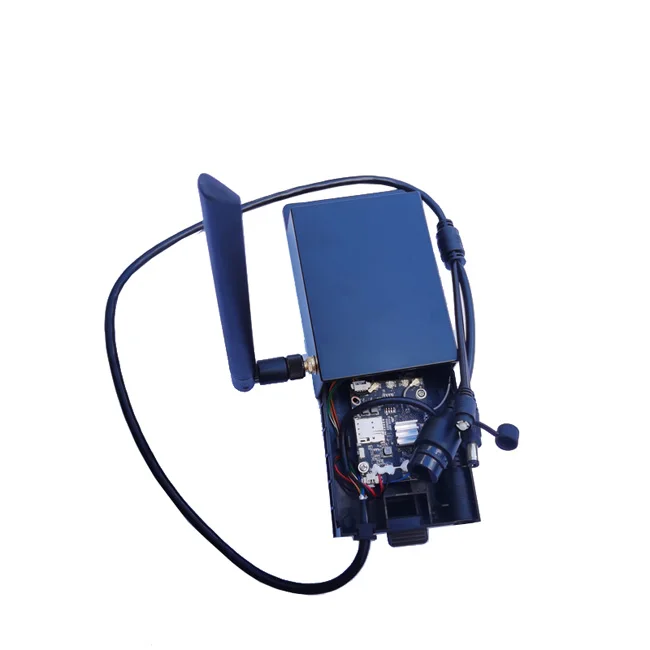

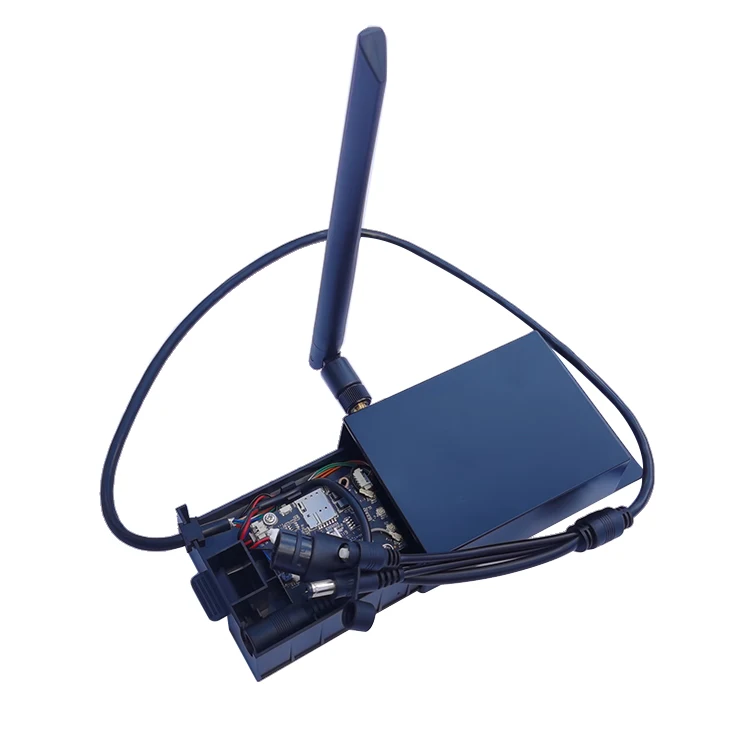

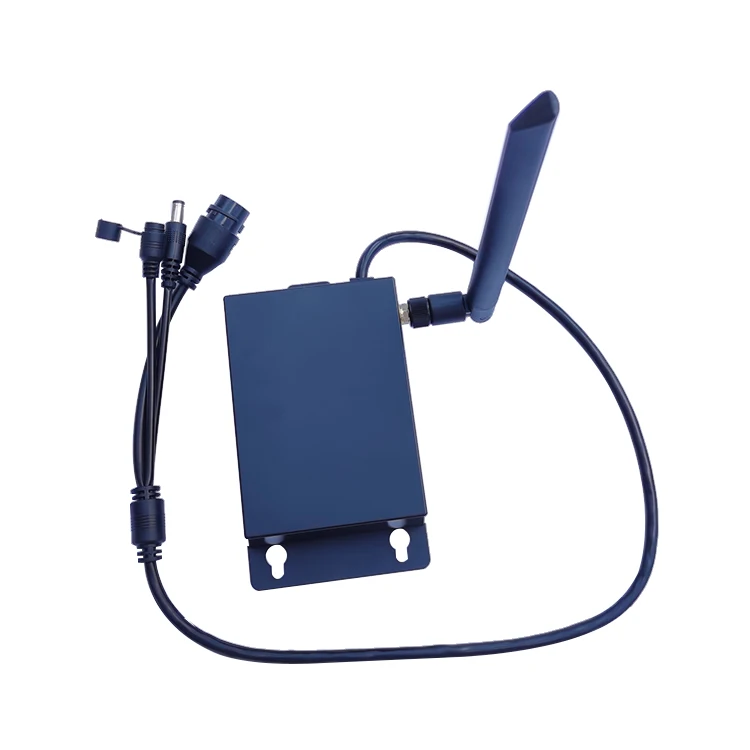

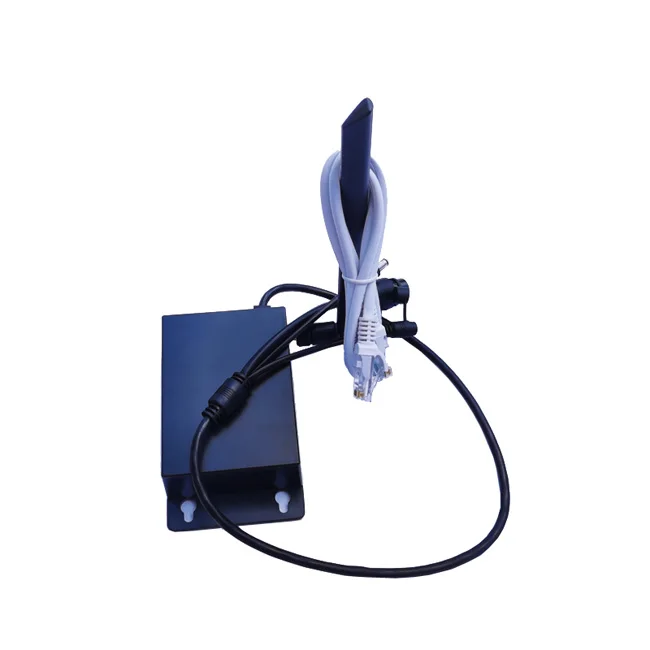

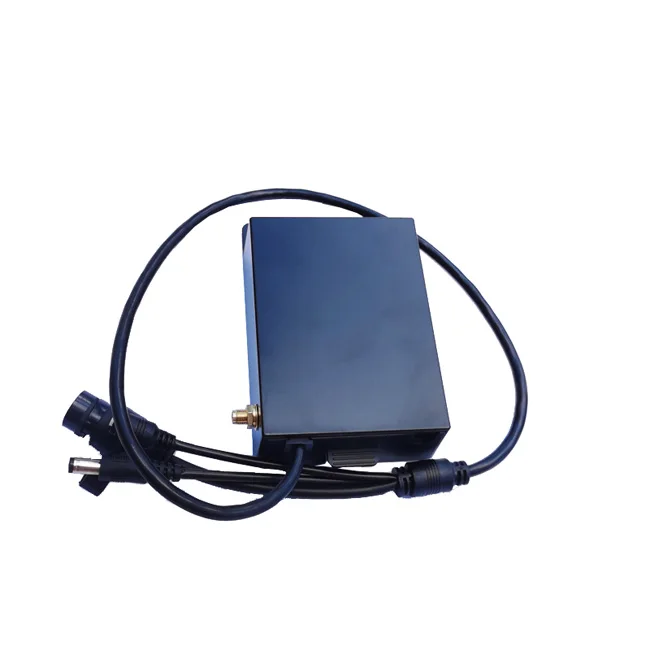

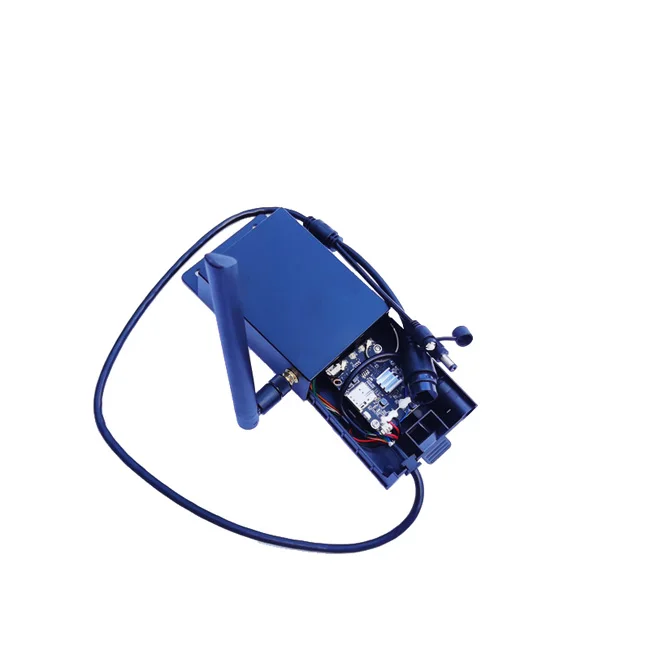

Global version with sim card slot outdoor router 4g lte

Item no.



GYL-301QC



Application Scenarios



Home,Office,IoT,Security



Concurrent Clients



30



CPU



MTK7628KN



Interface



1*FE Mbps WAN



Button



Reset,Power



Power Suppply



DC 12V/1A



Flash/Memory



2MB/8MB



SIM Card



2 FF



Antennas



2.4G:2T2R


4G:2T2R



Antenna Gain



5dBi



Frequency



802.11b/g/n:2.4~2.4835GHz



Radio Rate



2.4G: Up to 300Mbps



WPS



Support



Wireless Security



WPA-PSK/WPA2-PSK,WPA/WPA2



Modulation



11b:CCK,QPSK,BPSK


11g:OFDM


11n:QPSK,BPSK,16-QAM,64-QAM



Receiver Sensitivity



2.4G:


11b: <-84dbm@11Mbps;


11g: <-69dbm@ 54Mbps;


11n: HT20<-67dbm HT40: <-64dbm



4G Module



LTE CAT4



GNSS



GPS, GLONASS, BeiDou/Compass, Galileo, QZSS



Mode



4G Router/AP/Router



WiFi Setting



Wireless Setting,Channel bandwidth Setting,WPS



Status



CPU Status,Interface Status,4G Status


Client List


Internet Status



Network



LAN


WAN


DHCP


APN



Traffic assistant



Statistics and display the usage of traffic in 4G mode



Sys



Username Management


Reboot


Upgrade/Restore/Backup


Sys time&date


Sys logs



Setting Guide



Type of connect Internet


Network


WiFi



Operating Environment



Operating Temperature:Normal:0°C to +45°C;


Operating Humidity:-20° C to +70° C


Operating Humidity:5%~ 95%


Storage Humidity:5%~ 95%



Dimension



Device: 120*73*32mm;



Pack Box: 197*141*38mm;



Package



Device*1, User manual*1, Antenna*1pc,Ethernet cable*1pc;






We can make different frequencies according to different customers from different countries, so contact with us for more information if you have any queries!





























































Frequency






























FDD: B1/B3/B5/B8; TDD: B38/B39/B40/B41; WCDMA: B1/B8; GSM: B1/B8;



FDD: B1/B3/B7/B8/B20/B28A; WCDMA: B1/B8; GSM: B3/B8;



FDD: B2/B4/B5/B12/B13/B14/B66/B71; WCDMA: B2/B4/B5;



FDD: B1/B2/B3/B4/B5/B7/B8/B28; TDD: B40; WCDMA: B1/B2/B5/B8; GSM: B2/B3/B5/B8;



FDD: B2/B4/B12; WCDMA: B2/B4/B5;



LTE FDD: B1/B3/B5/B7/B28; WCDMA: B1/B5;



FDD: B3/B7/B28;



FDD: B1/B3/B5/B7/B8/B20; TDD: B38/B40/B41;WCDMA: B1/B5/B8;GSM: B3/B8;



FDD: B1/B3/B8/B18/B19/B26; TDD: B41; WCDMA: B1/B6/B8/B19;



FDD: B4/B13;






Packaging & Shipping


Each pc with device*1pc, adapter*1pc, user manual*1pc, ethernet cable*1pc into pp bag, pp bag into color box, 40pcs/ctn. Samples often delivered by courier such as DHL, Fedex, UPS, TNT etc., small orders often delivered by air or sea, formal orders often delivered by containers.


outdoor router wifi.jpgoutdoor wifi router.jpgoutdoor router 4g.jpg





Our Services


1. Your inquiry will be replied professionally within 24hours;


2. Sample test order accepted;


3. Logo printing, gift box, label, manual and software design order make;


4. OEM/ODM orders are highly welcome;


5. Small order accepted for market research;


6. Monthly output over 60,000 pcs guarantee your delivery on time;


7. Some models has ready stock for retailer customer;


8. Rich experience engineer support on software&hardware;


9. Payment accept T/T, Western Union and Moneygram;


10. 1 year warranty;


11. Best service after sales;





Company Information


Shenzhen Junhaoyue Technology Co., Ltd. is a high-tech company, professional in fixed wireless terminal 4g, fixed wireless terminal 3g, fixed wireless terminals and fixed wireless phone developing and manufacturing. With the development of communication technology, we involved in wifi router, 4g wifi router, 4g outdoor router and wifi 6 router developing from 2018 and have made many popular models ever since then. Our new product such as 4g dual sim router have been ready in the market also. Our products sold to Mexico, French, Greece, Netherlands, Nigeria, Angola, Argentina, Chile, Brazil, Australia, USA etc. We take credit and quality as our business principle and we sincerely hope to establish long-term cooperative relationships with customers all over the world! Warmly welcome to negotiate with us if you have any requirements!


outdoor router 4g.jpgrouter outdoor 4g lte.jpgrouter wifi outdoor.jpgrouters outdoor wifi.jpg





FAQ


Q: After the 4G card is plugged in, the 4G light of the 4G router is not lit, which causes the Internet to be unavailable?


A: In one case, the 4G card is not inserted properly. You should cut off the power of the 4G router  and re-insert the card. In


     another case, the 4G card is not activated, and the card insert shall be used after activation according to the card manual.


Q: 4G router works normally, the 4G light is on, and the mobile phone is connected to 4G router Wi-Fi but cannot access the


     Internet?


A: Enter the routing setting page (the default is 172.16.0.1, the username and password are both admin), check the status---


    whether the WAN port obtains the IP address. If it is not obtained, it is recommended to reset the 4G router reset. Identify the


    Internet through the APN setting, insert the 4G card into the mobile phone, view the APN information on the mobile phone, and


    enter the 4G router setting page---network setting---APN setting to fill the APN information of the mobile phone to 4G Router


    APN settings.


Q: 4G router WAN port address is normal, 4G lights are normal, mobile phones cannot connect to Wi-Fi?


A: Each 4G card has a data plan. In this case, please check your data plan and recharge in time.


Q: Is sample order available?
     Yes, it's available upon request;
Q: How long do you need to prepare sample ?
     Depending on different products, it may take 3-5 days;


Q: How long delivery time for formal order?


A: Generally speaking it’ll take about 20-30 days subject to your order quantity;
Q: What's your Order MOQ?


A: For sample test, can make 1pc at least;
     For standard model, usually MOQ is 1k per model.;
Q: What payment terms do you accept?


A: For samples, we accept WESTERN UNION, MoneyGram or BANK T/T in  advance;


    For formal order, 30% deposit and balance after goods ready but before shipment;


Q: How much will the express delivery cost for the sample?
A: The express delivery cost depends on the sample quantity, weight, carton measurement and which country you would like to


    send;
Q: How to ship the goods to us?


A: For samples order, usually delivered by carrier like DHL, TNT, FEDEX etc.;


     For small order, can delivered by air, also can by courier;


     For formal order, usually delivered by sea in order to save transportation cost;





Key words: 4g outdoor router, outdoor 4g router, outdoor wifi router, wifi router outdoor, router 4g outdoor, routers outdooor 4g lte, 4g router outdoor, routers outdooor 4g sim card, wifi outdoor router, 4g router with 1 poe port
