Мембранный дисковый аэратор диффузор с мелкими пузырьками и для очистки

Мембранный дисковый аэратор диффузор с мелкими пузырьками и для очистки

Категория: Water Treatment Machinery >>>
Поставщик: Jiangsu,Huanchuan,Environment,Engineering,Co.,Ltd.

Цена:6,50 $ - 7,20 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	7.11 $*	7.89 $*
Aug-15-2025	7.89 $*	7.69 $*
Jul-15-2025	6.95 $*	6.80 $*
Jun-15-2025	7.51 $*	7.59 $*
May-15-2025	6.77 $*	6.76 $*
Apr-15-2025	7.68 $*	7.84 $*
Mar-15-2025	7.82 $*	7.88 $*
Feb-15-2025	7.18 $*	7.40 $*
Jan-15-2025	7.78 $*	7.68 $*

Характеристики

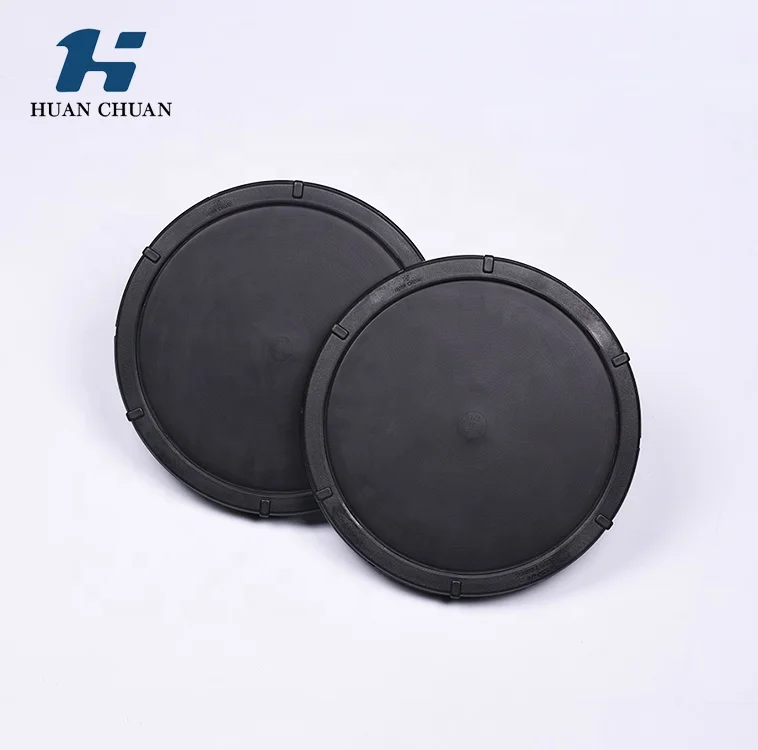

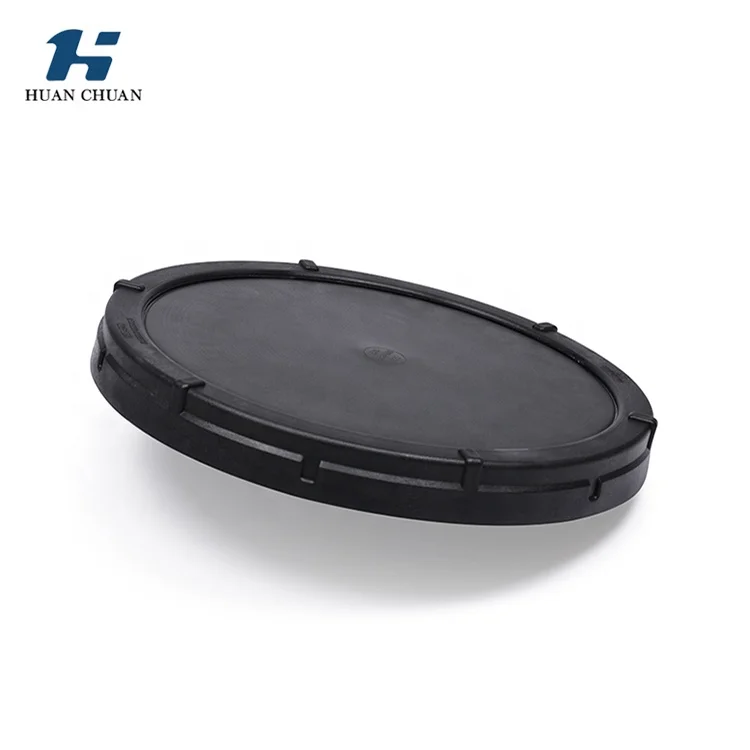

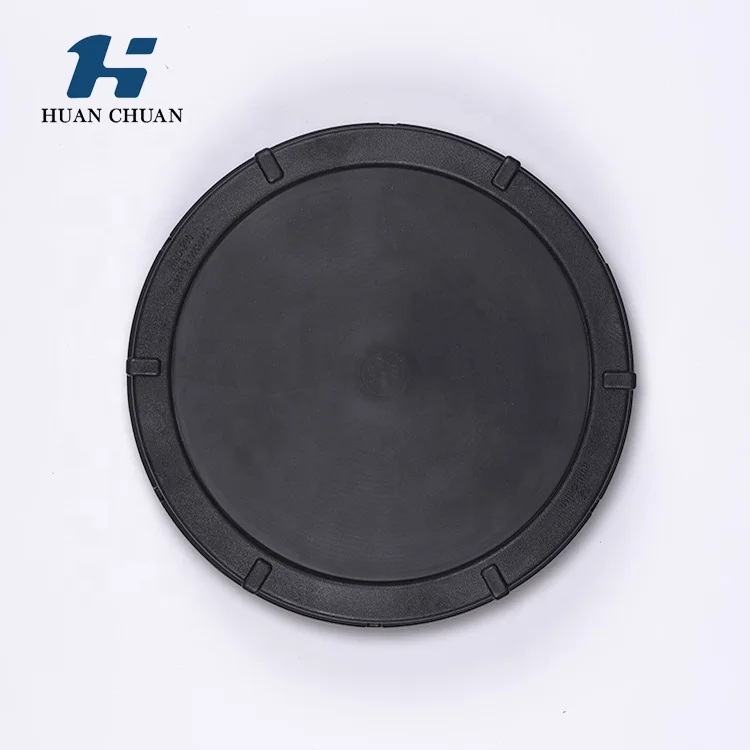

Membrane disk aerator fine bubble disc diffuser and fine air bubbles disc diffuser for water treatment

Product Details

HMD	Diameter 200mm	Diameter 270mm	Diameter 340mm
Service area	0.15-0.6m2	0.25-0.8m2	0.4-1.3m2
Air flow	1-3.8 m³/h	1.5-5.5 m³/h	0.4-1.3m2
Oxygen utilization	27%-38%	27%-38%	27%-38%
Resistance loss	1700-2500 pa	27%-38%	1500-3000 pa
Temperature	0-80℃	0-80℃	0-80℃
Membrane thickness	2±0.1mm	2±0.1mm	2±0.1mm
Perforation quantity	4400	6600	11440
Perforation size	1mm	1mm	1mm
Bubble size	1-2mm	1-2 mm	1-2 mm

Product Paramenters

1.The rubber washer and the corresponding groove are designed to ensure the air tightness of the product. Instead of using raw tape in the installation process, it is convenient to install, stable and reliable.

2.Check valve structure. When operation stops, the membrane covers the structure under the action of rebound force and water depth pressure to prevent the backflow of mud water.

3.Mechanical assembly production line, hot welding instead of adhesive process, to ensure adequate supply, uniform productquality, stable and reliable.

4.The spanner position is designed. Spanner is used to replace the traditional hand-twist installation, avoid membrane damage. And installation is convenient and reliable.
5.Product adopts single-ear pole clamp which make product bear 360 degree uniform stress. Under heat expansion and contraction as well as vibration, it can play a spring regulating effect. All single-ear clamps are 316 stainless steel material. It is more reliable in sewage.
6.Six channel design, increase ventilation cross - sectional area, reduce resistance, efficient and energy - saving. The multiple positions of the membrane jointly bear air friction, reduce local wear and extend aerator membrane service life. Also, promote product 360 ° aeration, improve the product efficiency.

Product Advantages

Advantage 1: Membrane material

1. Membrane using imported formula and material. Its good rubber elasticity, ant-shrinking, anti-hardening and anti-aging ability extending the membrane service life.

2. Membrane elasticity and blasting test.

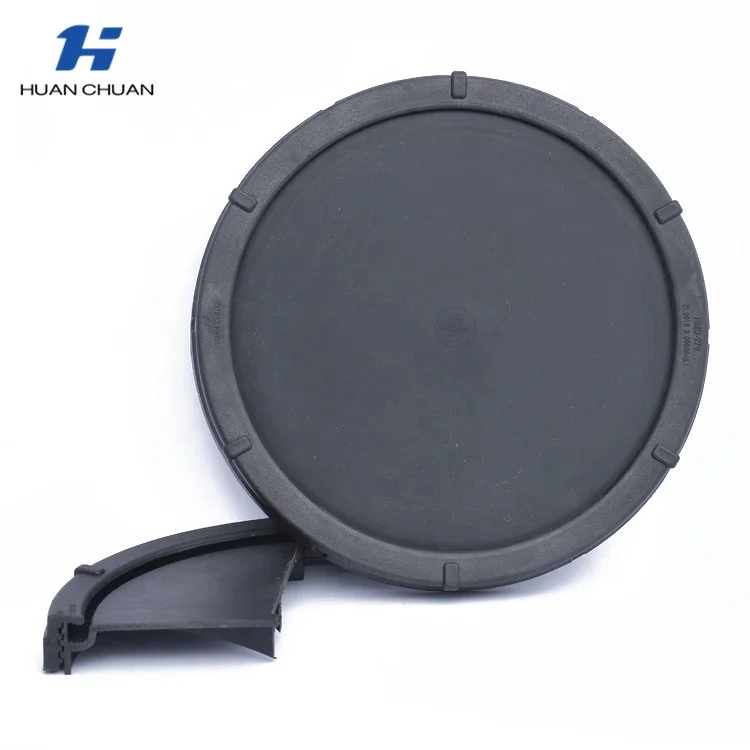

Advantage 2:Two special membrane reinforced structure design

Compared to others

Know The Products

Method1:

1.Tap the rubber saddle into the vent opening.
2.Screw the fine bubble disc diffuser into the rubber saddle internal thread.

Method2:

1.Tap the rubber saddle into the vent opening.
2.Fix the fixed adapter outside of the rubber saddle.
3.Screw the fine bubble disc diffuser into the rubber saddle internal thread.

Engineering Design

Fine bubble diffuser is the only product that we do because we want to be concentration and profession. Besides of manufacturing product, we also do aerobic plant calculation and project design. Also, we make construction in domestic market. With projects feedback, we improve product continuously to solve different problems.

Company Profile

Jiangsu Huanchuan Environment Engineering Co., Ltd. is a specialist supplier of fine bubble diffuser for waste water treatment. Based in Jiangsu Taizhou and supplying products across the world, yearly wastewater treatment project experience helps us to improve product persistently.
-Concentrate on fine bubble diffuser only.
-Our founder has over 10 years experience in rubber.
-As manufacturer, we have strong control in product quality and without middle man price.
-Philosophy of right product first, then right price.
