Машина для производства пластиковых резервуаров для воды Juneng
US $35000-$38000
TONGDA HTSll3L ПОЛНОСТЬЮ линия 3 литровая пластиковая бутылка автоматические выдувные
- Категория: Экструзионно-выдувные формовочные машины >>>
- Поставщик: Suzhou,Tongda,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.65 $* | 0.53 $* |
| Aug-16-2025 | 0.9 $* | 0.22 $* |
| Jul-16-2025 | 0.4 $* | 0.50 $* |
| Jun-16-2025 | 0.62 $* | 0.36 $* |
| May-16-2025 | 0.99 $* | 0.85 $* |
| Apr-16-2025 | 0.50 $* | 0.73 $* |
| Mar-16-2025 | 0.42 $* | 0.33 $* |
| Feb-16-2025 | 0.68 $* | 0.12 $* |
| Jan-16-2025 | 0.32 $* | 0.29 $* |
Характеристики
Products Description
HTSll-3L

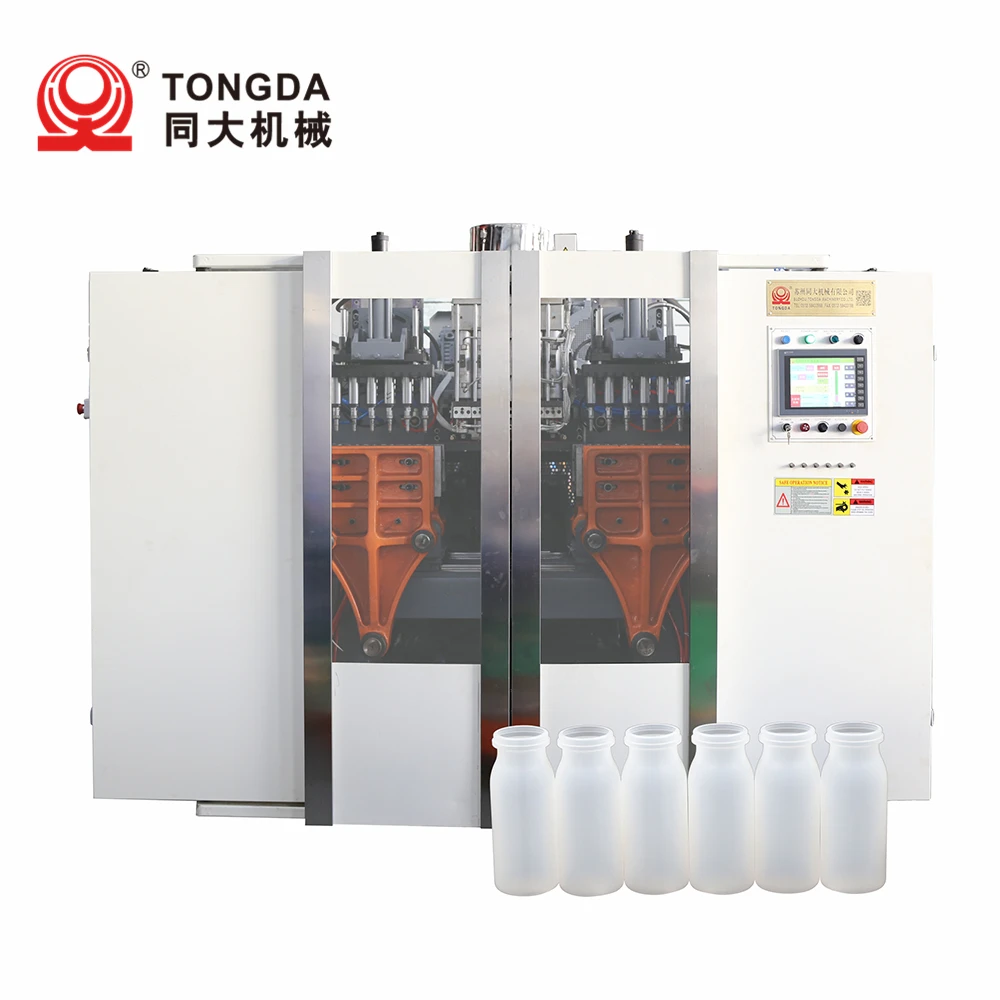

This is double station,4 or 6 die-heads.This is suitable for making milk bottles and other small bottles.
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Specification | Station | Double | |
Max.product volume | L | 0.35 | |
Dry cycle | pc/h | 800*2 | |
Output of HDPE | kg/h | 110 | |
Weight of machine | kg | 8000 | |
Size of machine(L*W*H) | m | 4.1*2.76*2.5 | |
Clamping Unit | Platen distance | mm | 160~320 |
Mold moving stroke | mm | 500 | |
Clamping force | kn | 70 | |
Extruder Unit | Screw diametre | mm | 80 |
Screw length/diametre ratio | 25 | ||
Screw heating power | kw | 19 | |
No.of heating zone | 4 | ||
Power Unit | Oil pump motor power | kw | 11 |
Screw motor power | kw | 30 | |
Total power | kw | 72 | |
Remarks | Air consumption | m³/min | 0.4 |
Blow pressure | Mpa | 0.6 | |
Cooling water pressure | Mpa | 0.3 | |
Water consumption | L/min | 80 | |
Max size of mold(W*H) | mm | 490*250 |

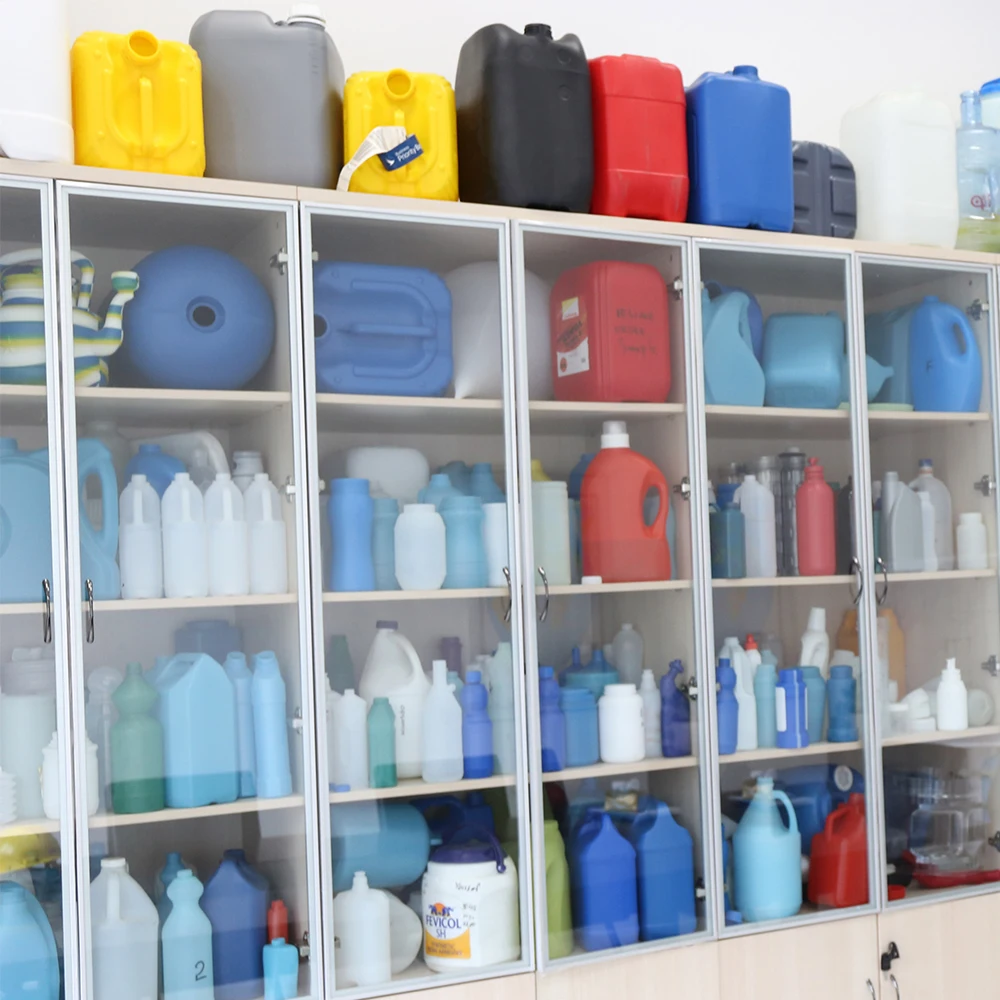

Product Application

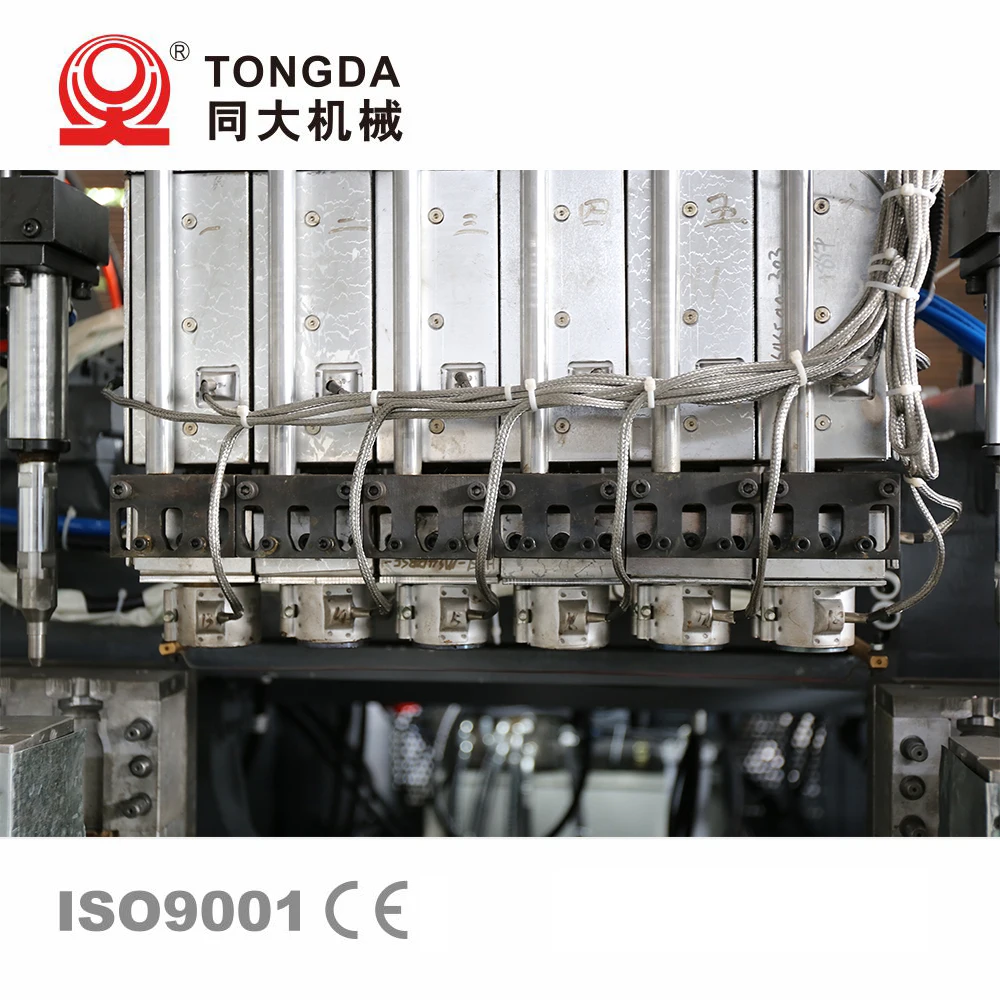

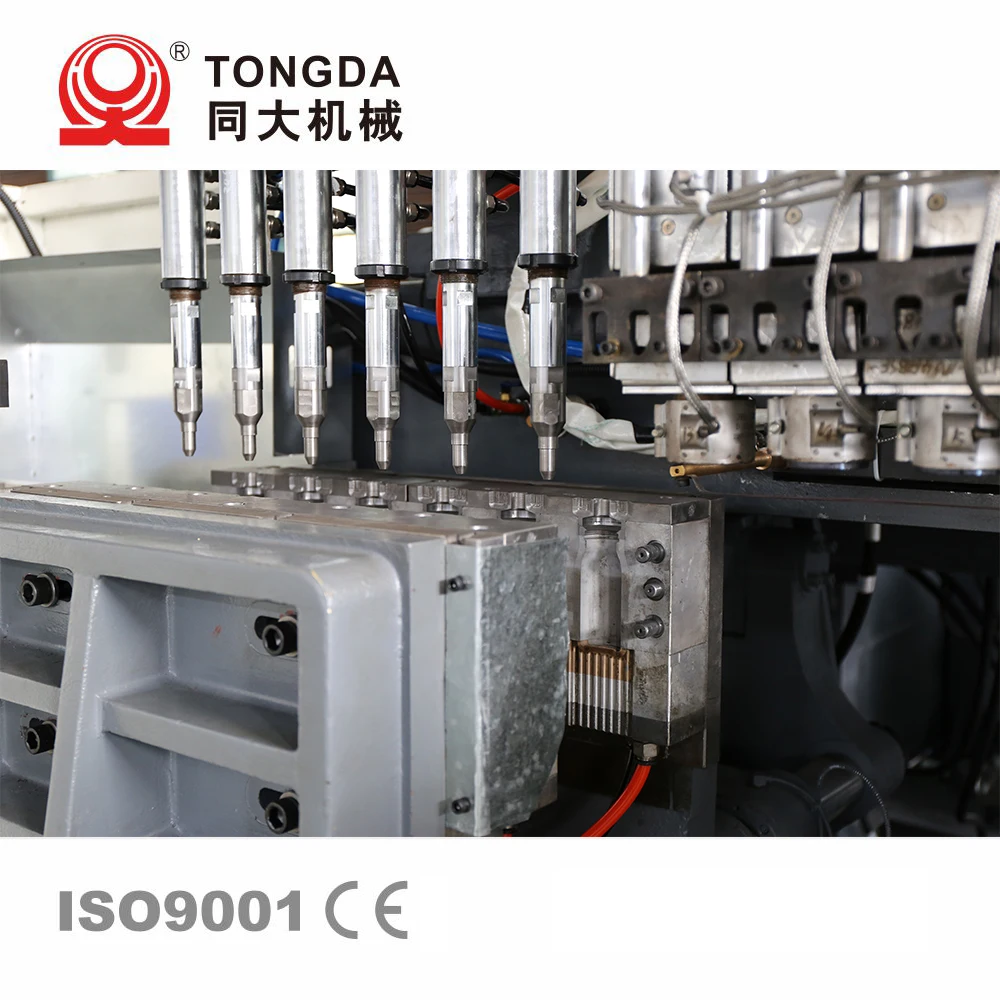

Machine Details
changing parameters,searching,
monitoring,fault diagnosis and other functions are done by the touch screen.
Recommend Products

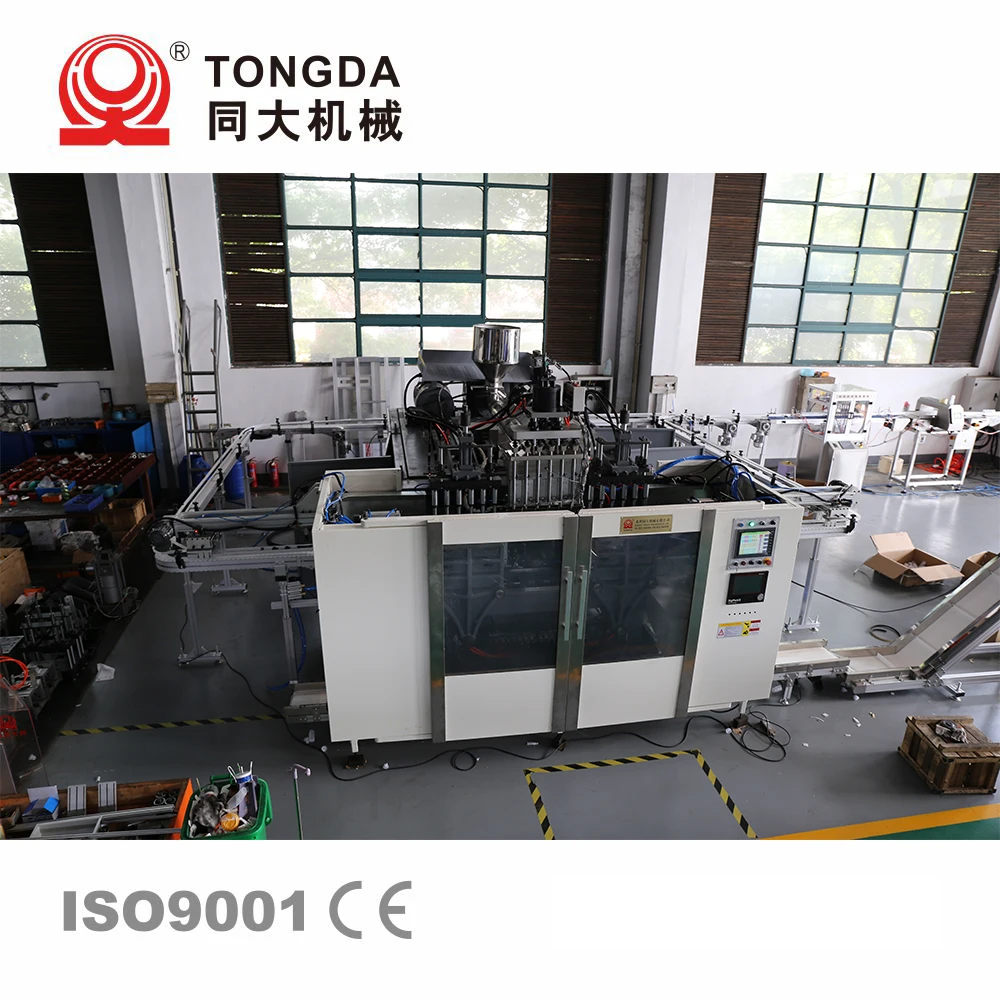

Successful Cases
Company Information
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas. Warmly welcome new and old customers to visit, to guide, 4 senior masters，15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard. "Working Together to Grow Together" is the spirit of TONGDA company, to cooperate with us and we are always at your service to provide you with strong support.
Shipping Packing
Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional blow molding machinery company we will try our best to satisfy the kinds of demand of customers.
Why Choose Us
Service Marketing Network
1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia,Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia,Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customerswith high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia,Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customerswith high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Our Machinery has been keeping good cooperative relationship with customers since our establishing.The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.
