Установка для бурения камней горных
- Категория: Mine Drilling Rig >>>
- Поставщик: Jining,Luheng,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.36 $* | 0.2 $* |
| Aug-19-2025 | 0.81 $* | 0.44 $* |
| Jul-19-2025 | 0.86 $* | 0.39 $* |
| Jun-19-2025 | 0.77 $* | 0.22 $* |
| May-19-2025 | 0.20 $* | 0.29 $* |
| Apr-19-2025 | 0.36 $* | 0.36 $* |
| Mar-19-2025 | 0.32 $* | 0.19 $* |
| Feb-19-2025 | 0.18 $* | 0.18 $* |
| Jan-19-2025 | 0.94 $* | 0.99 $* |
Характеристики
Product Description
HENGWANG HW420 track mounted crawler rotary blast hole drill rig drilling rig pneumatic
Main Features:
* 1.With larger displacement double motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. Hole range up to 127 mm now.
Related Products
Product Paramenters
Diesel Engine Specifications | ||||
Rig Model | Power | Rated Power | ||
HW420 | Yuchai YC4DK80 | 58KW | ||
HW420-1 | Yuchai YC4A108 | 73.5KW (Dust collection system as standard equipment) | ||
General Specifications | ||||
Drill depth | 30m | |||
Drill Pipe Sizes | 76*3000 mm | |||
Hole range | 110-138 mm | |||
Equipped DTH Hammer | 4’’/5’’ | |||
Rotation torque (Max.) | 2,500N.m | |||
Rotation Speed | 0-100 rpm | |||
Working pressure | 0.7-2.5Mpa | |||
F.A.D | 8-20m3/min | |||
Feed Force | 20 kN | |||
Pull Up Force | 45 kN | |||
Feed Type | Chain / cylinder | |||
Tramming Speed (Max.) | 3km/h | |||
Gradient | 25° | |||
Total Weight | 5,500 kg | |||
Transportation Dimensions | 5,100X2,260X2,500 mm | |||
Detailed Images

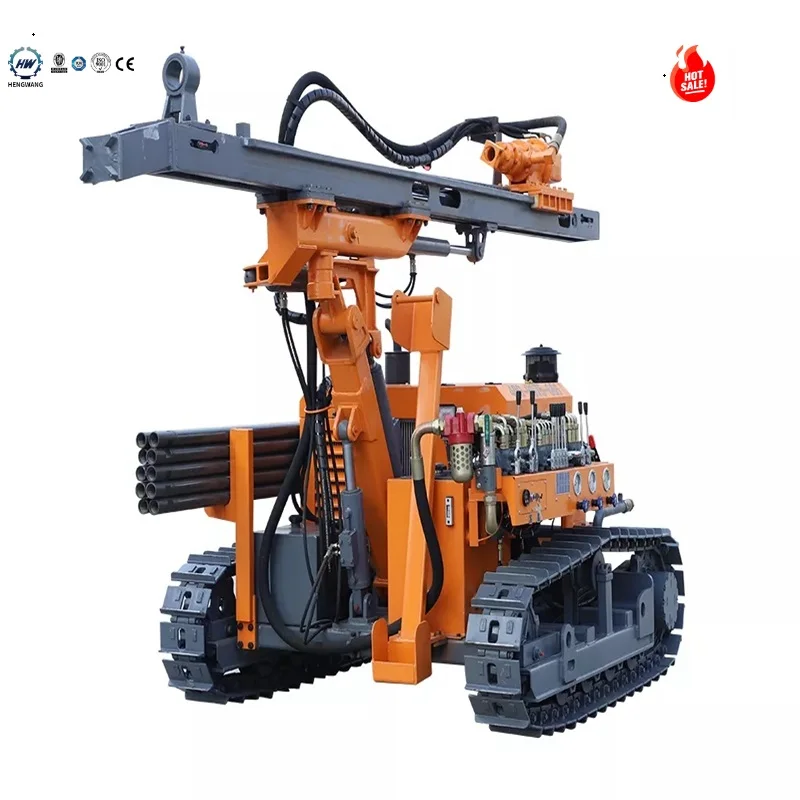

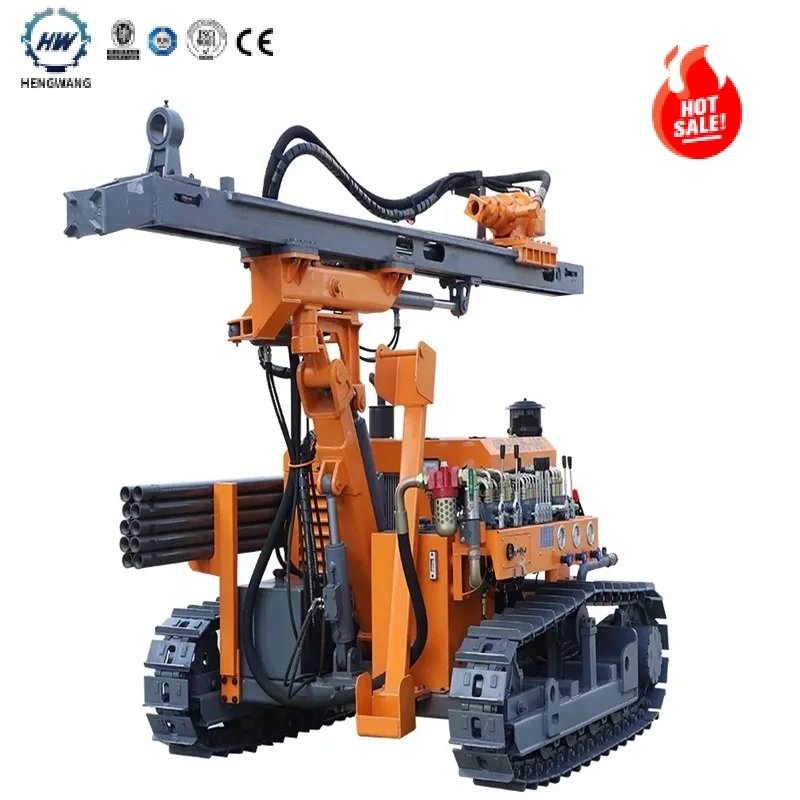

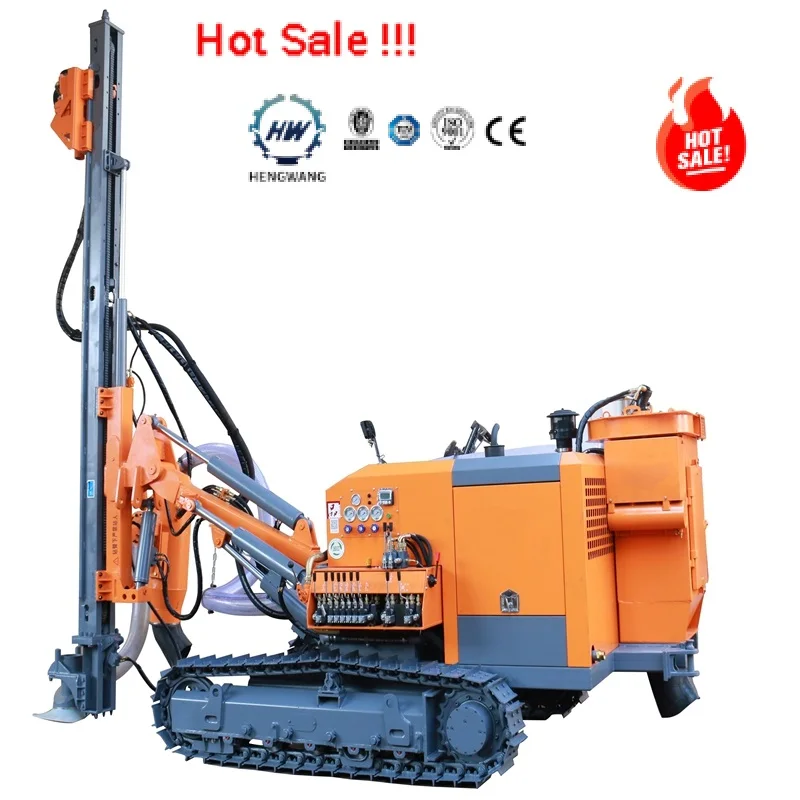

HENGWANG HW420 track mounted crawler rotary blast hole drill rig drilling rig pneumatic
drill rig detail images as follows:
Working case
