Прочный и долговечный Марина Плавучий Понтон причал сложеный на 6061-T6 анодированный рама из
- Категория: Marine Parts & Accessories >>>
- Поставщик: Taizhou,Dehao,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 11900.31 $* | 12495.32 $* |
| Aug-18-2025 | 11800.72 $* | 12390.58 $* |
| Jul-18-2025 | 9900.69 $* | 10395.78 $* |
| Jun-18-2025 | 11600.43 $* | 12180.27 $* |
| May-18-2025 | 10100.87 $* | 10605.86 $* |
| Apr-18-2025 | 11400.96 $* | 11970.31 $* |
| Mar-18-2025 | 11300.75 $* | 11865.1 $* |
| Feb-18-2025 | 11200.54 $* | 11760.5 $* |
| Jan-18-2025 | 11100.41 $* | 11655.46 $* |
Характеристики
Strong and durable marina floating pontoon wharf hold by 6061-T6 anodized aluminum alloy frame
Dock Description
Metal Frame Material | Marine Grade Aluminium 6061-T6 | Hot Dip Galvanized Steel(Optional) |
Dock Floats Material | LLDPE/HDPE with EPS Foam Filled | LLDPE/HDPE with EPS Foam Filled |
Decking Boards | WPC/Solid Wood/FRP/Poly/Aluminium | WPC/Solid Wood/FRP/Poly/Aluminium |
Structure Connection | Flexible Connection Solution | Flexible Connection Solution |
Anchorage Solutions | Piling/Sinker/Elastic/H-Beam/Stiff Arm | Piling/Sinker/Elastic/H-Beam/Stiff Arm |
Main Accessories | Fender/Cleat/Pedestal/Gangway | Fender/Cleat/Pedestal/Gangway |
Project Cases
Commercial Marina Dock [Aluminium Structure]
Commercial Marina Dock [Galvanized Steel Structure]
Commercial Marina Dock [Galvanized Steel Structure]
Residential Marina Dock [Aluminium Structure]
Commercial Marina Dock
[Galvanized Steel Structure]
Commercial Marina Dock [Galvanized Steel Structure]
Residential Boat Dock [Aluminium Structure]
Commercial Marina Dock [Galvanized Steel Structure]
Residential Boat Dock [Wooden Keel Structure]
Residential Boat Docks
Technique Paramenters
Item | Dimension | Capacity | Freeboard | Draft | Dead Load |
Aluminium Structure Floating Main Walkway #1 | 5.8m×2.0m | 2.4 KPA | 400~600mm | 50~250mm | 67.0 KG/m2 |
6.0m×2.0m | |||||
8.0m×2.0m | 75.0 KG/m2 | ||||
10.0m×2.0m | |||||
Aluminium Structure Floating Main Walkway #2 | 5.8m×2.5m | 2.4 KPA | 400~600mm | 50~250mm | 53.0 KG/m2 |
6.0m×2.5m | |||||
8.0m×2.5m | 60.0 KG/m2 | ||||
10.0m×2.5m | |||||
11.85m×2.5m | 67.5 KG/m2 | ||||
12.0m×2.5m | 83.0 KG/m2 |
Parts & Accessories

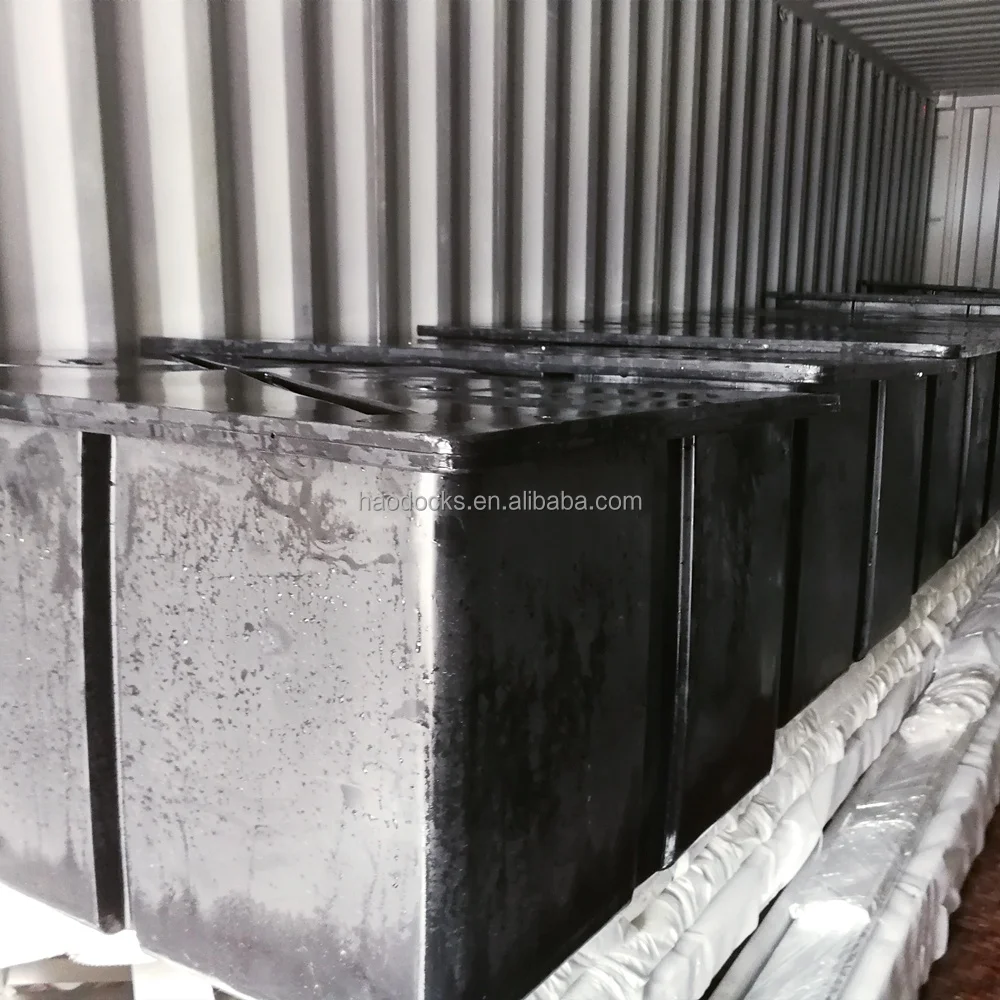

LLDPE Floats

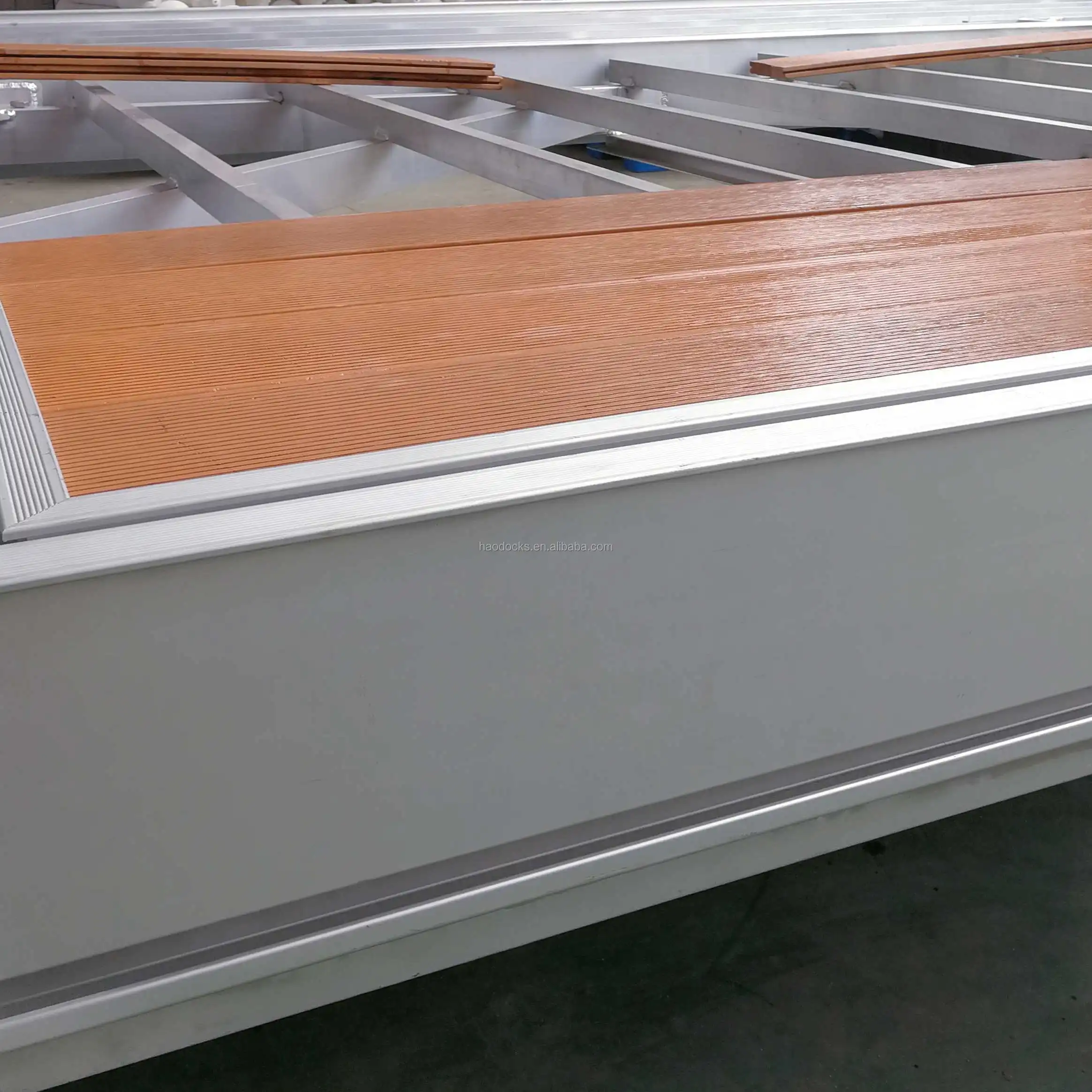

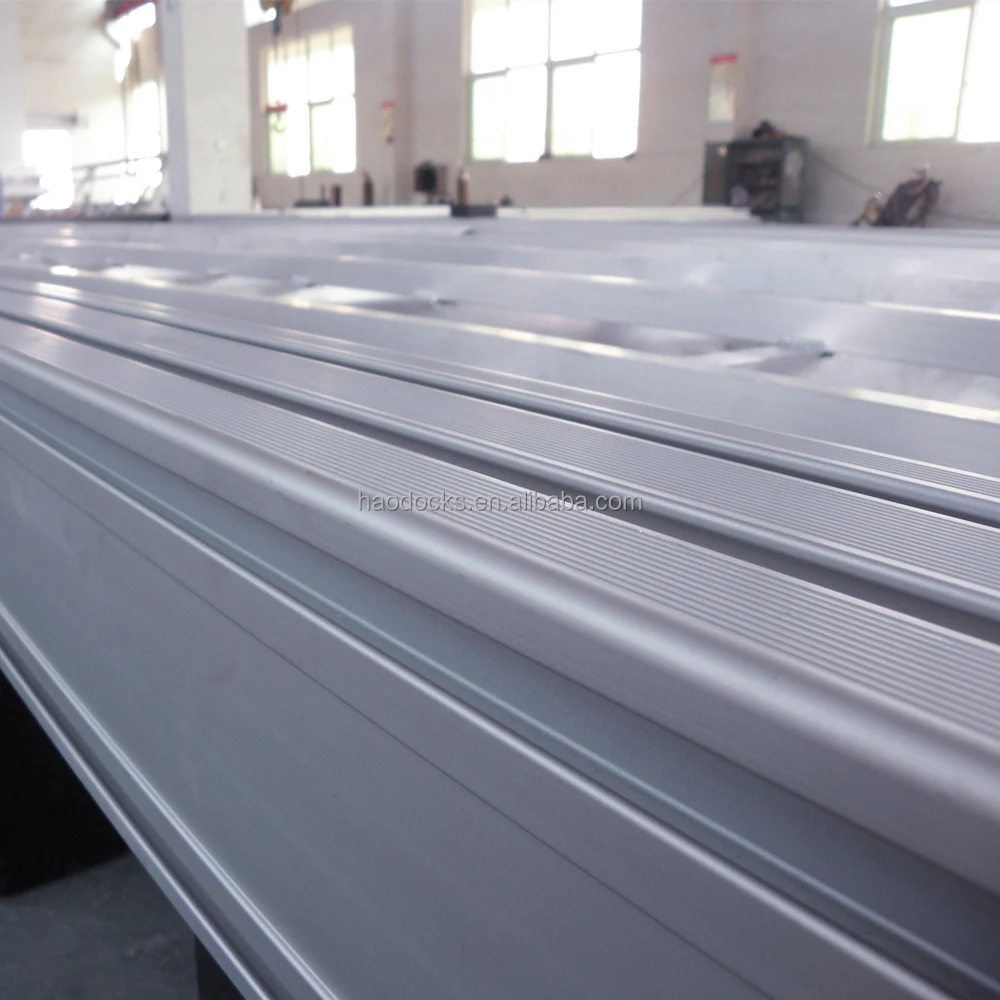

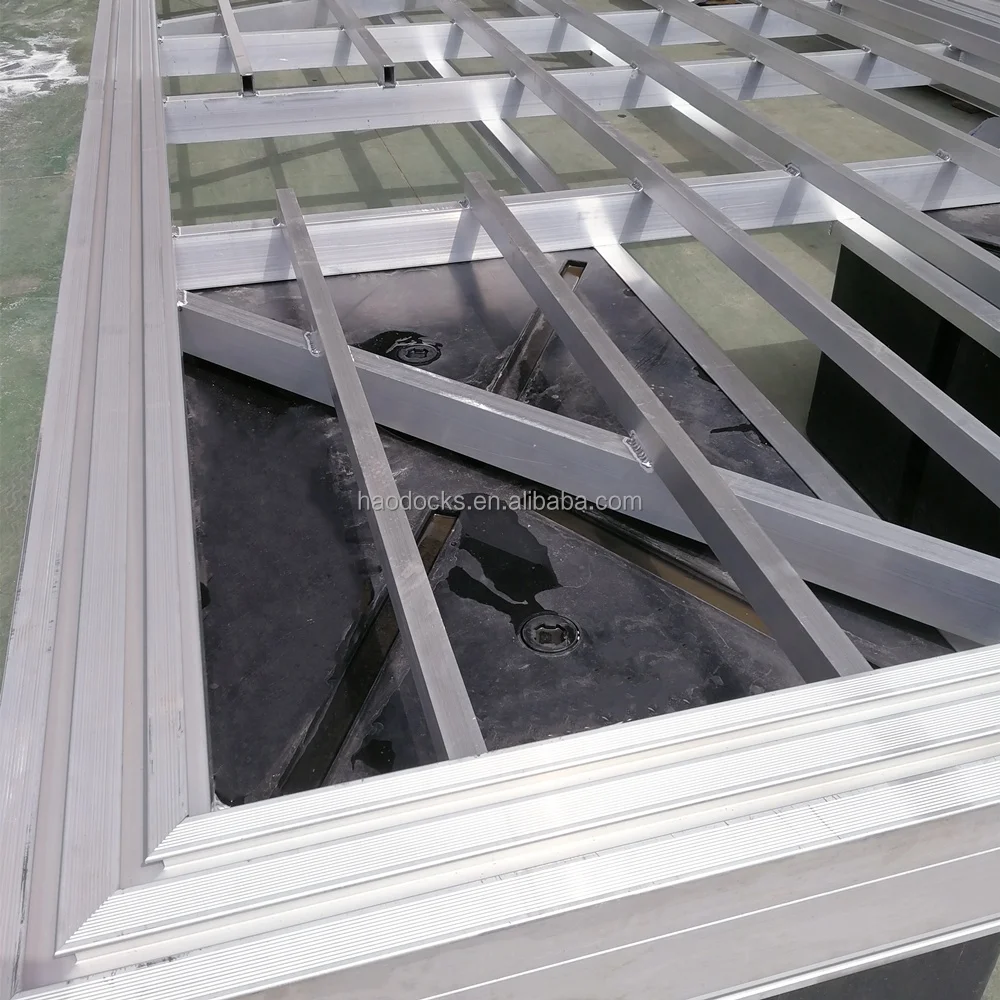

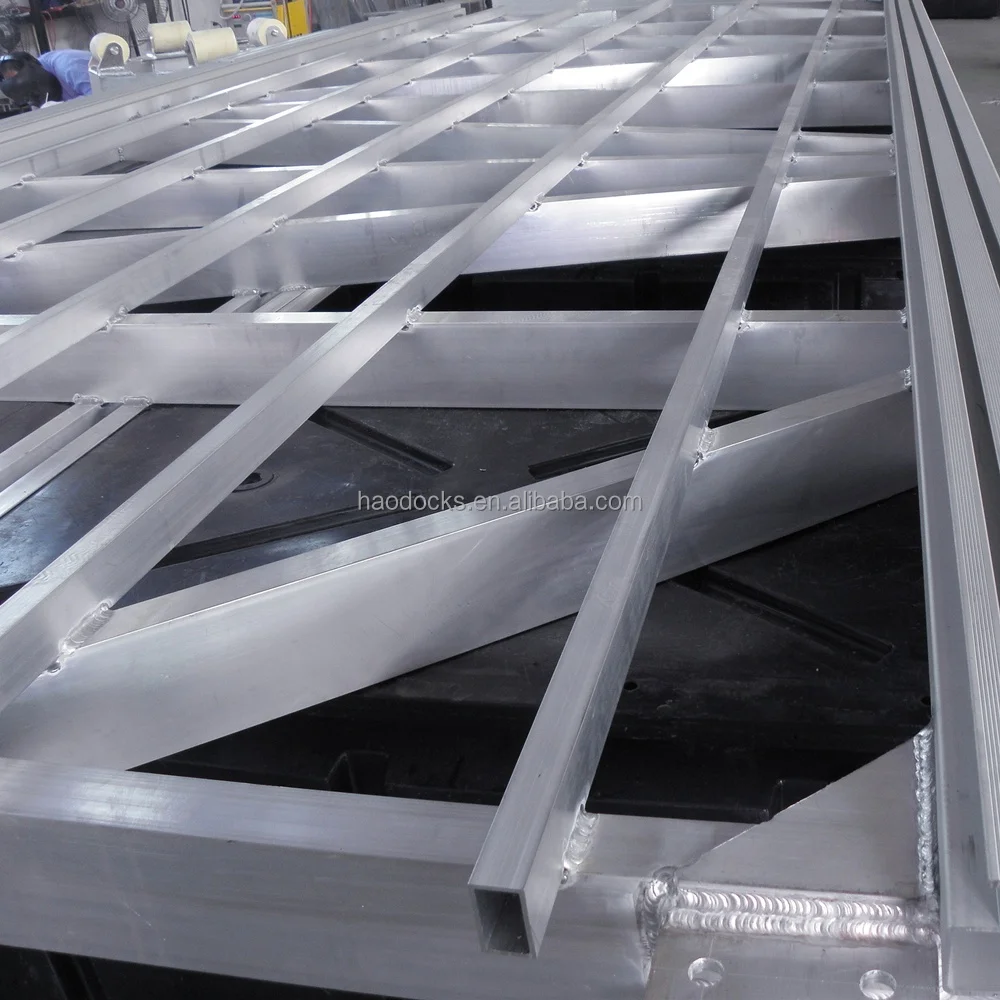

Aluminium Frame
Aluminium Gangway

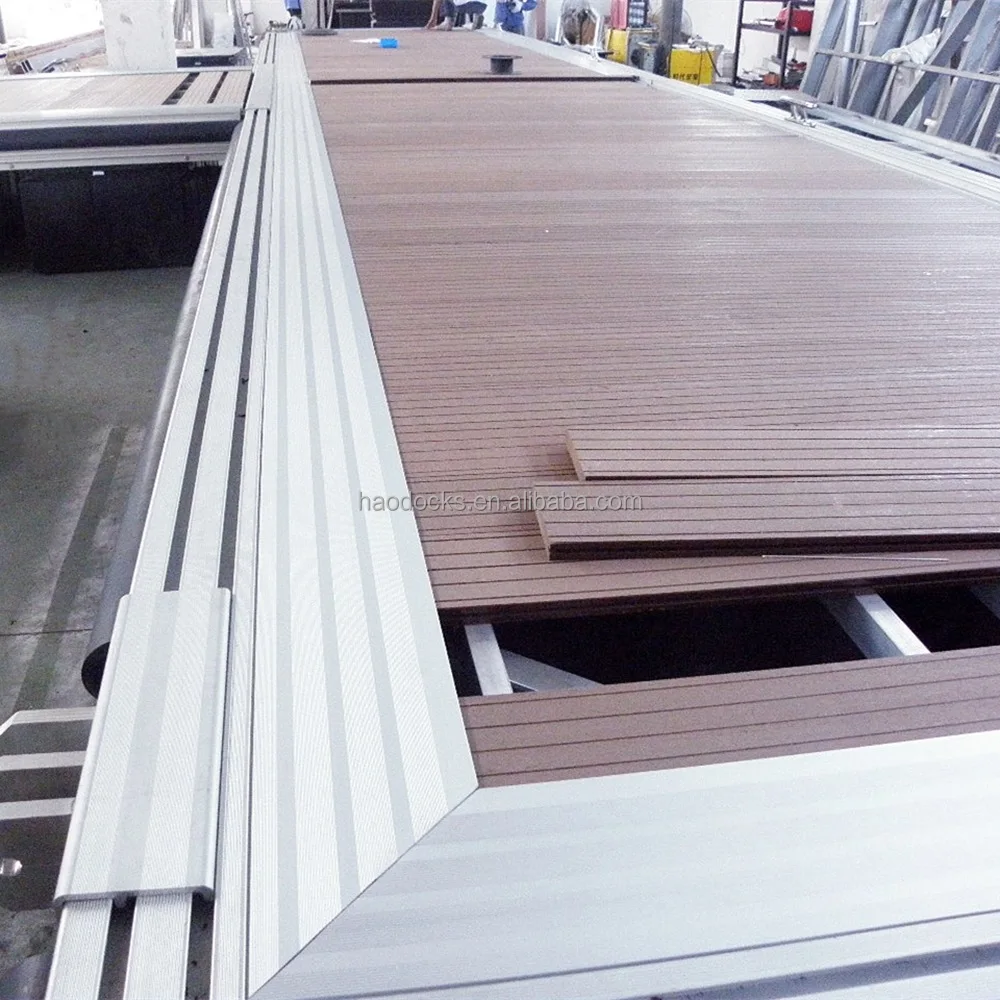

WPC Decking
SUS316 Cleat
Edge Fender
Anchorage Solutions
Pile Guide
H-Beam
Stiff Arm
Sinker & Chain
Elastic Mooring
Packing & Shipping
Customers' Questions
Q: How is the installation?
A: It will be easy if you follow our guide.
Q: What raw material do you use? Will it pollute the water?
A: We use green & recyclable raw materials. No pollution and environmentally friendly.
Q: How do i know the exactly items i need for my project?
A: Let us know the full details of your project. So we can let our engineer to analyze and proceed with layout & solution.
Q: What is the lifespan of your dock?
A: Actually it depends on the environmental condition, like UV, weather, wave, wind, temperature, salinity and etc. Normally, 20 years in freshwater and 15 years in blackish water.
Q: Are you manufacturer?
A: Yes, we have our own factory.
Q: What is the product warranty?
A: Warranty is three years for main parts and one year for accessories.
Q: Do you offer OEM/ODM?
A: Yes, We accept OEM & ODM services.
Q: What is the payment?
A: Paypal,Western Union, T/T, L/C.
Q: What will be the delivery time?
A: It will be 15 working days after payment received.
Q: How to ship the order?
A: We ship by sea. Dock sections will get dismantled before loading into containers.
Q: How to proceed with an order?
A: We will send the invoice after details decided or agreement reached. Bulk orders will be shipped by sea within agreed period, when production finished and inspection fulfilled.
Q: Can I visit your company?
A: Sure, we are located in Taizhou of Zhejiang. Please discuss with our sales for the arrangement of the reception.
A: It will be easy if you follow our guide.
Q: What raw material do you use? Will it pollute the water?
A: We use green & recyclable raw materials. No pollution and environmentally friendly.
Q: How do i know the exactly items i need for my project?
A: Let us know the full details of your project. So we can let our engineer to analyze and proceed with layout & solution.
Q: What is the lifespan of your dock?
A: Actually it depends on the environmental condition, like UV, weather, wave, wind, temperature, salinity and etc. Normally, 20 years in freshwater and 15 years in blackish water.
Q: Are you manufacturer?
A: Yes, we have our own factory.
Q: What is the product warranty?
A: Warranty is three years for main parts and one year for accessories.
Q: Do you offer OEM/ODM?
A: Yes, We accept OEM & ODM services.
Q: What is the payment?
A: Paypal,Western Union, T/T, L/C.
Q: What will be the delivery time?
A: It will be 15 working days after payment received.
Q: How to ship the order?
A: We ship by sea. Dock sections will get dismantled before loading into containers.
Q: How to proceed with an order?
A: We will send the invoice after details decided or agreement reached. Bulk orders will be shipped by sea within agreed period, when production finished and inspection fulfilled.
Q: Can I visit your company?
A: Sure, we are located in Taizhou of Zhejiang. Please discuss with our sales for the arrangement of the reception.
