Y19A ручной молоток воздушный компрессор шахтная пневматическая

Y19A ручной молоток воздушный компрессор шахтная пневматическая

Категория: Mine Drilling Rig >>>
Поставщик: Tianjin,Good,Drill,Co.,Ltd.

Цена:210,00 $ - 215,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	250.22 $*	263.10 $*
Aug-18-2025	248.85 $*	260.26 $*
Jul-18-2025	208.46 $*	218.71 $*
Jun-18-2025	244.32 $*	256.20 $*
May-18-2025	212.22 $*	223.32 $*
Apr-18-2025	239.93 $*	251.55 $*
Mar-18-2025	237.30 $*	249.29 $*
Feb-18-2025	235.3 $*	247.61 $*
Jan-18-2025	233.35 $*	245.40 $*

Характеристики

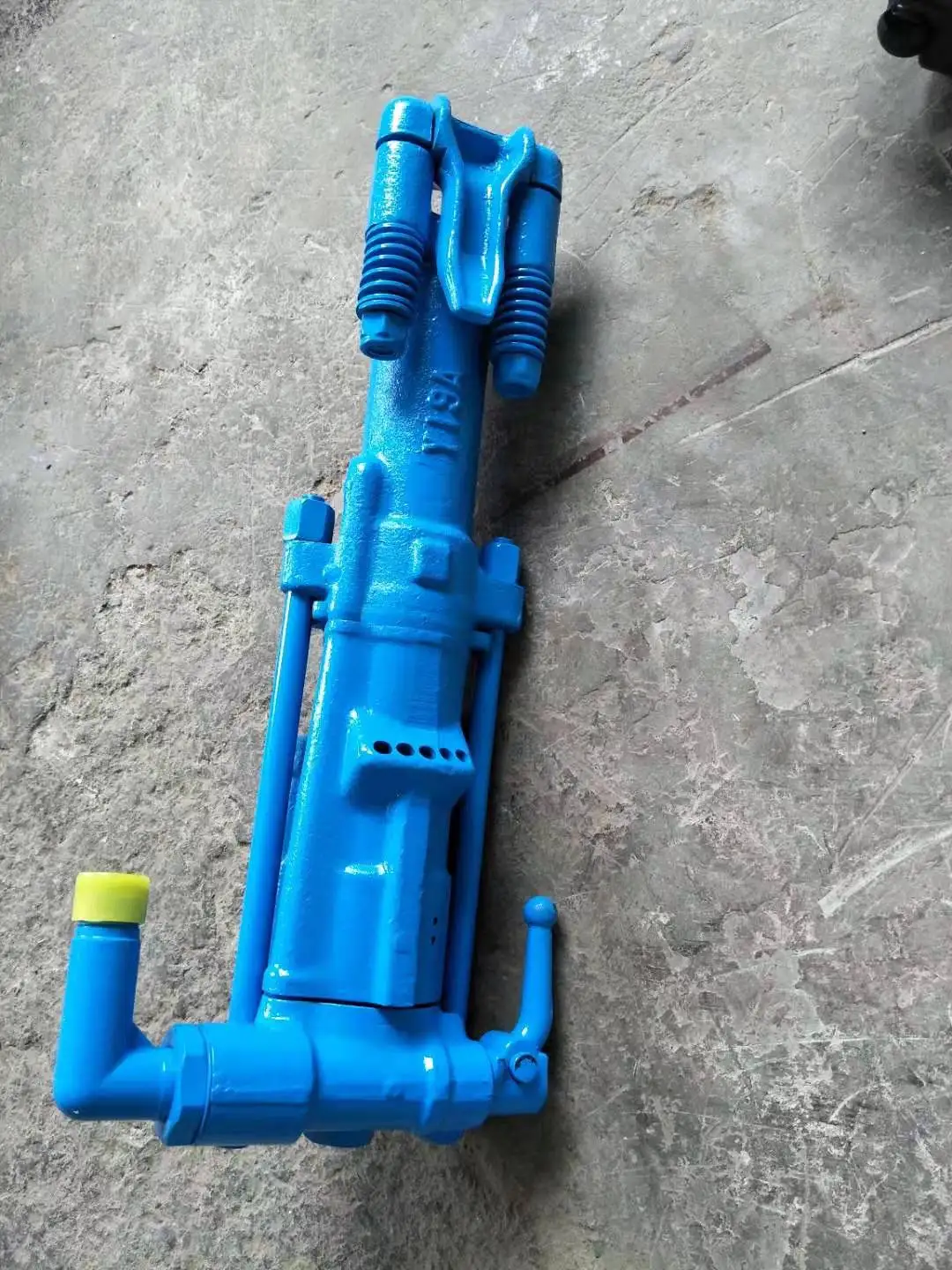

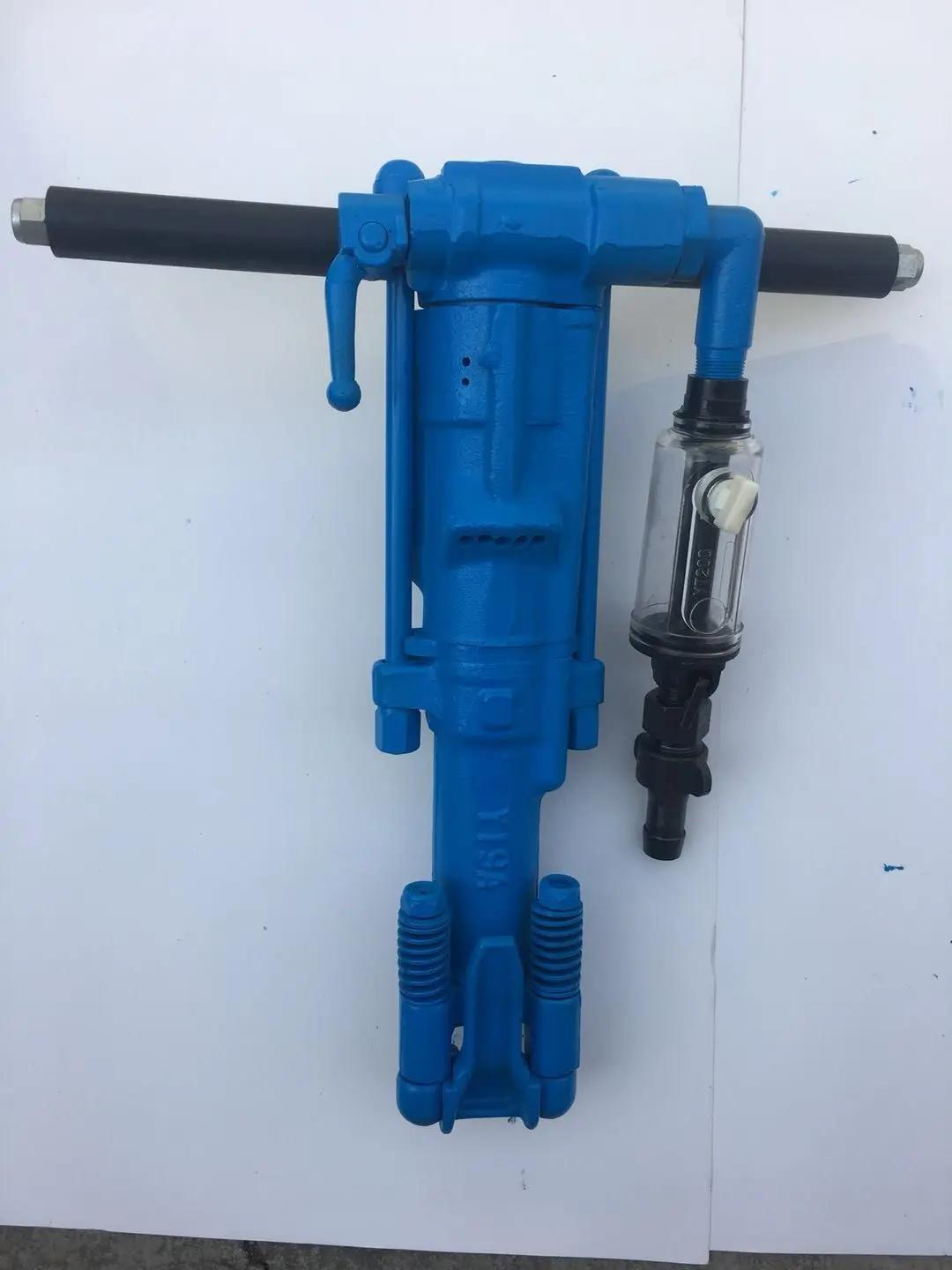

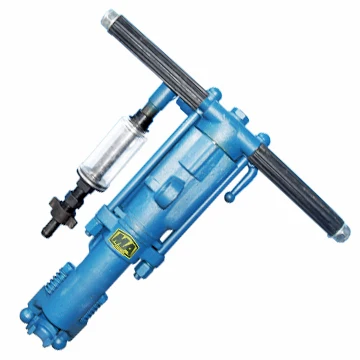

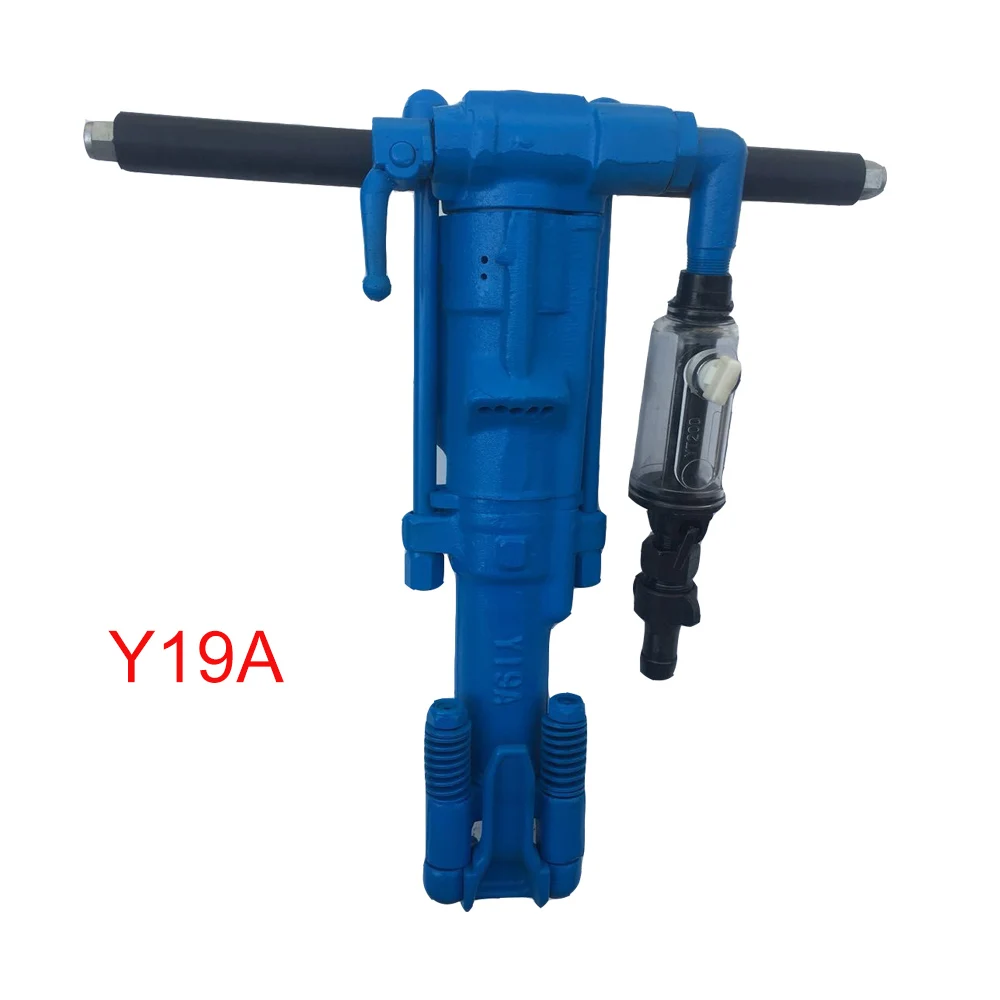

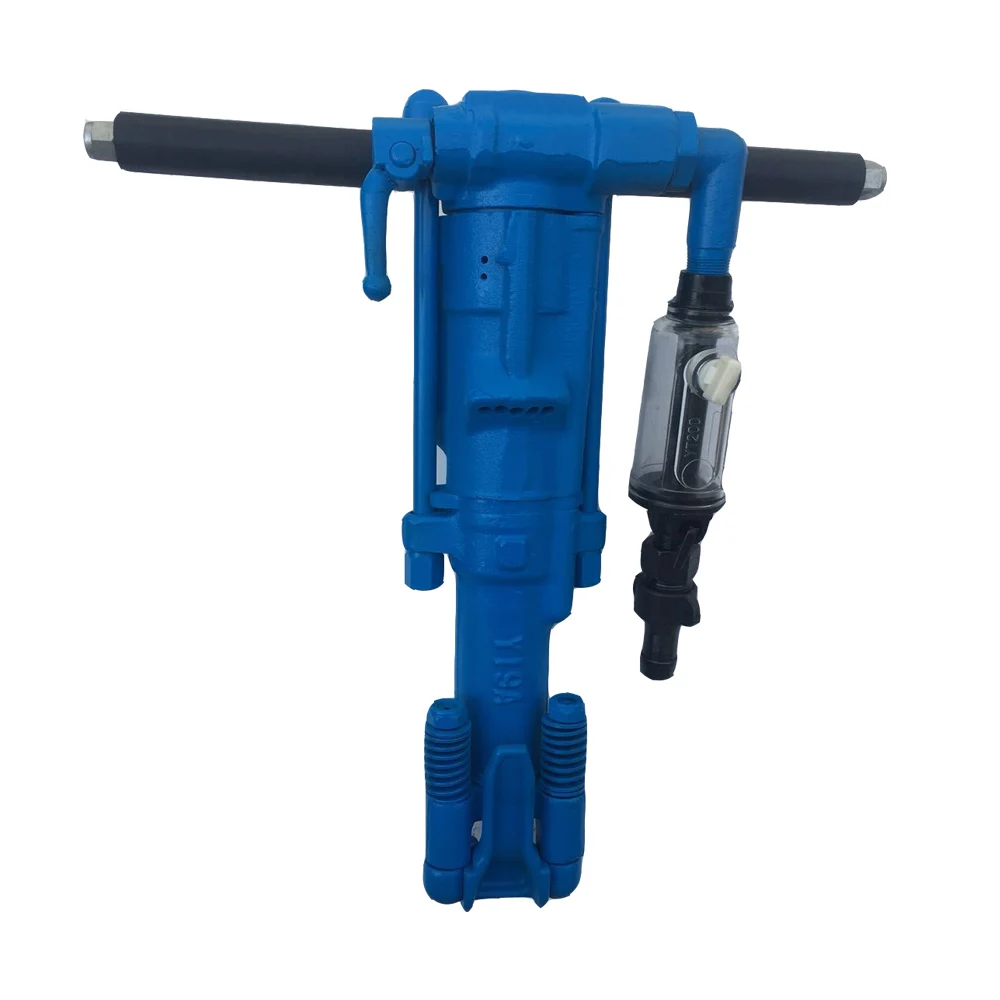

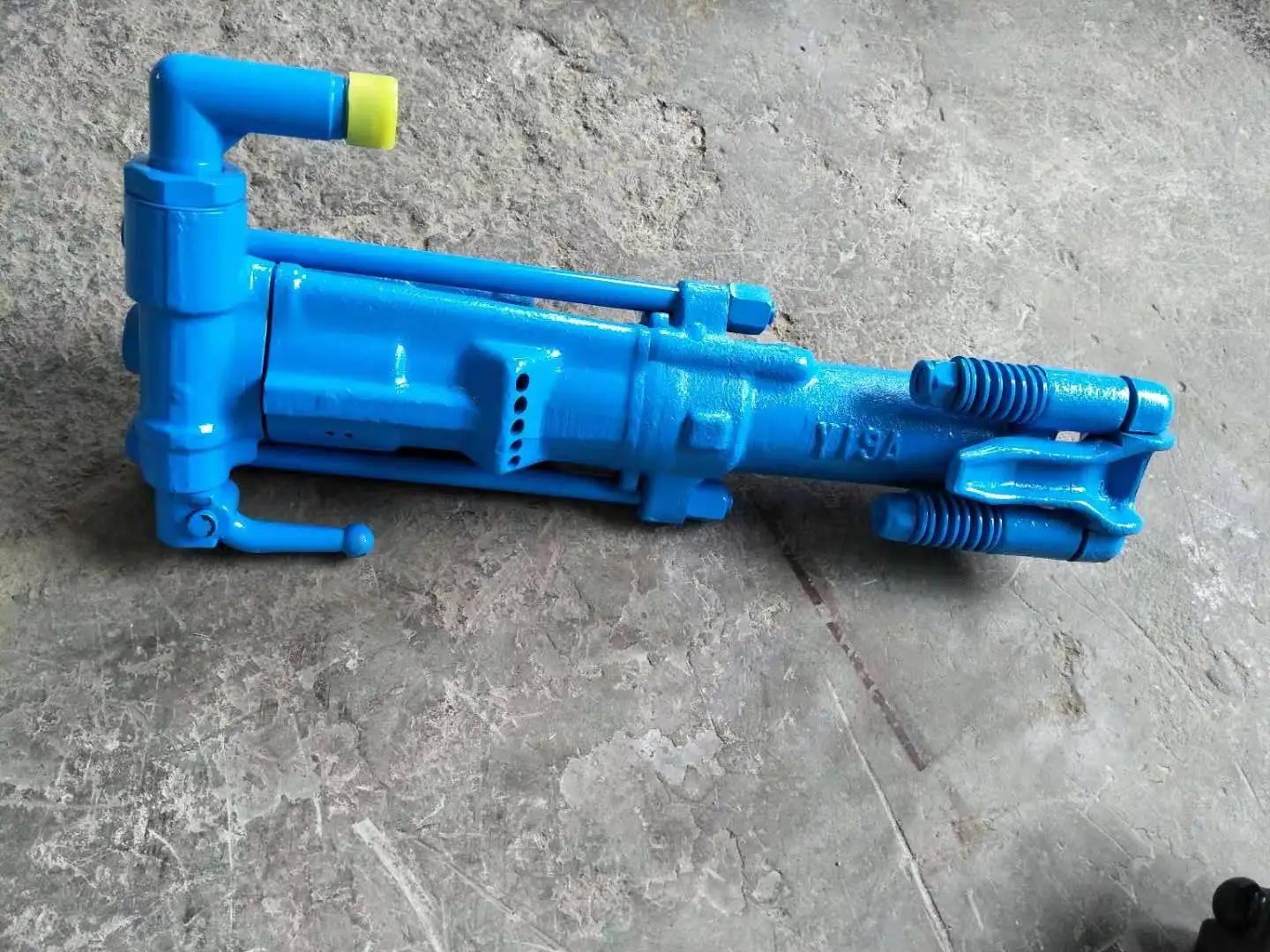

Y19A handheld jack hammer air compressor mine pneumatic rock drill

Application

The rock drill is a kind of high efficiency air leg rock drill machine. It is mainly used for digging into mine lane way and blasting holes in all drilling works. It is an indispensable machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defense stone project.
It is suitable for drilling and blasting under various of rocks at any direction angles. Blast hole dia is 34-42mm and depth 5 m. This machine could match with short air leg or long air leg.

Y19A handheld jack hammer air compressor mine pneumatic rock drill

Product Parameters

Y19A Rock Drill Specification
Weight	19kgs
Length	600mm
Size of Drill Shank	H22 x 108mm ± 1mm
Drilling Diameter	34mm- 40mm
Piston Diameter	65mm
Piston Stroke	54mm
Working Air Pressure	0.4Mpa 0.5Mpa
Impact Energy	≥28J ≥40J
Impact Frequency	≥28HZ ≥35HZ
Rotating Speed	≥180r/min ≥200r/min
Air Consumption	≤37L/S ≤43L/S
Trachea Inner Diameter	19mm
Water Pipe Inner Diameter	13mm
