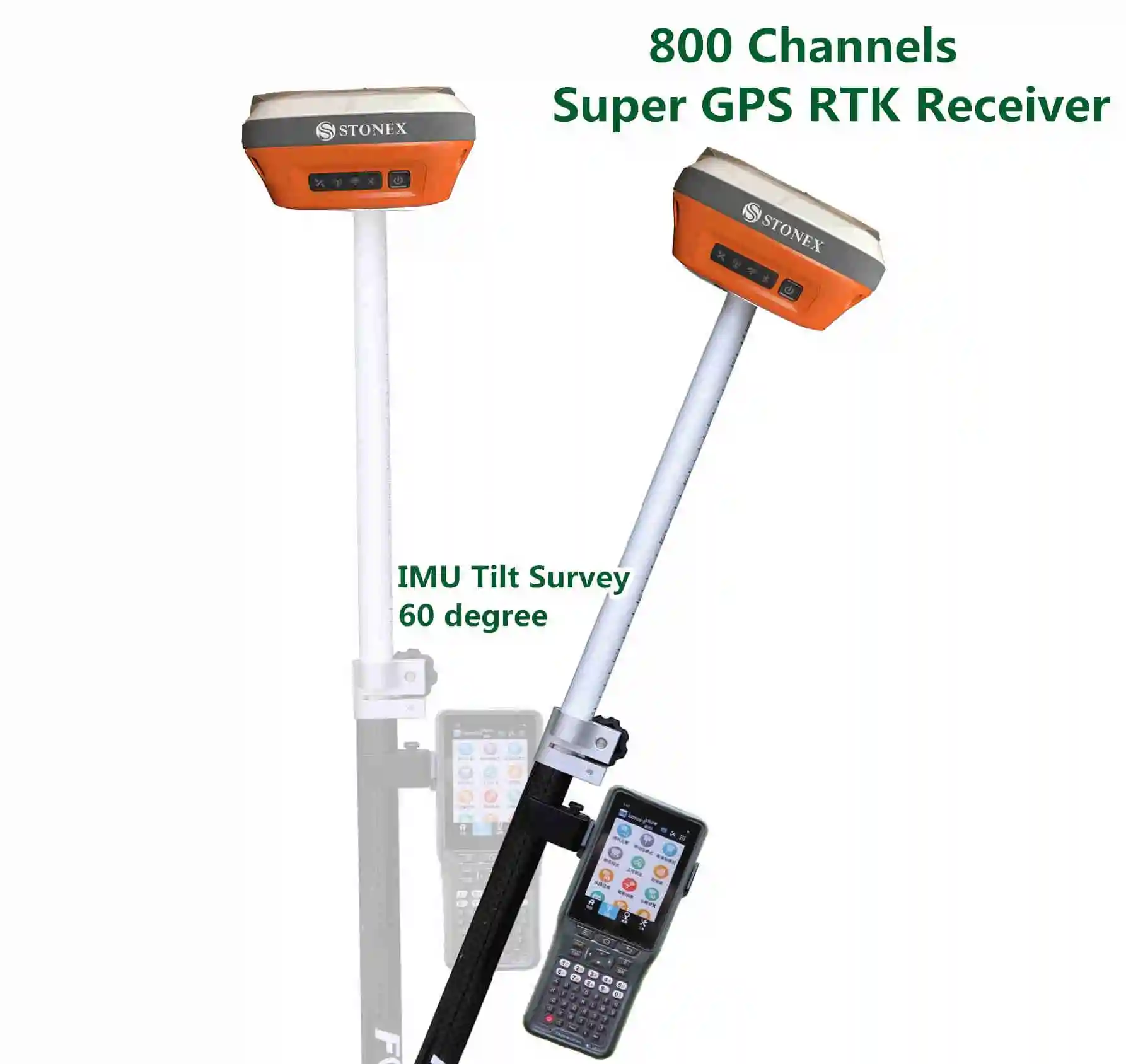

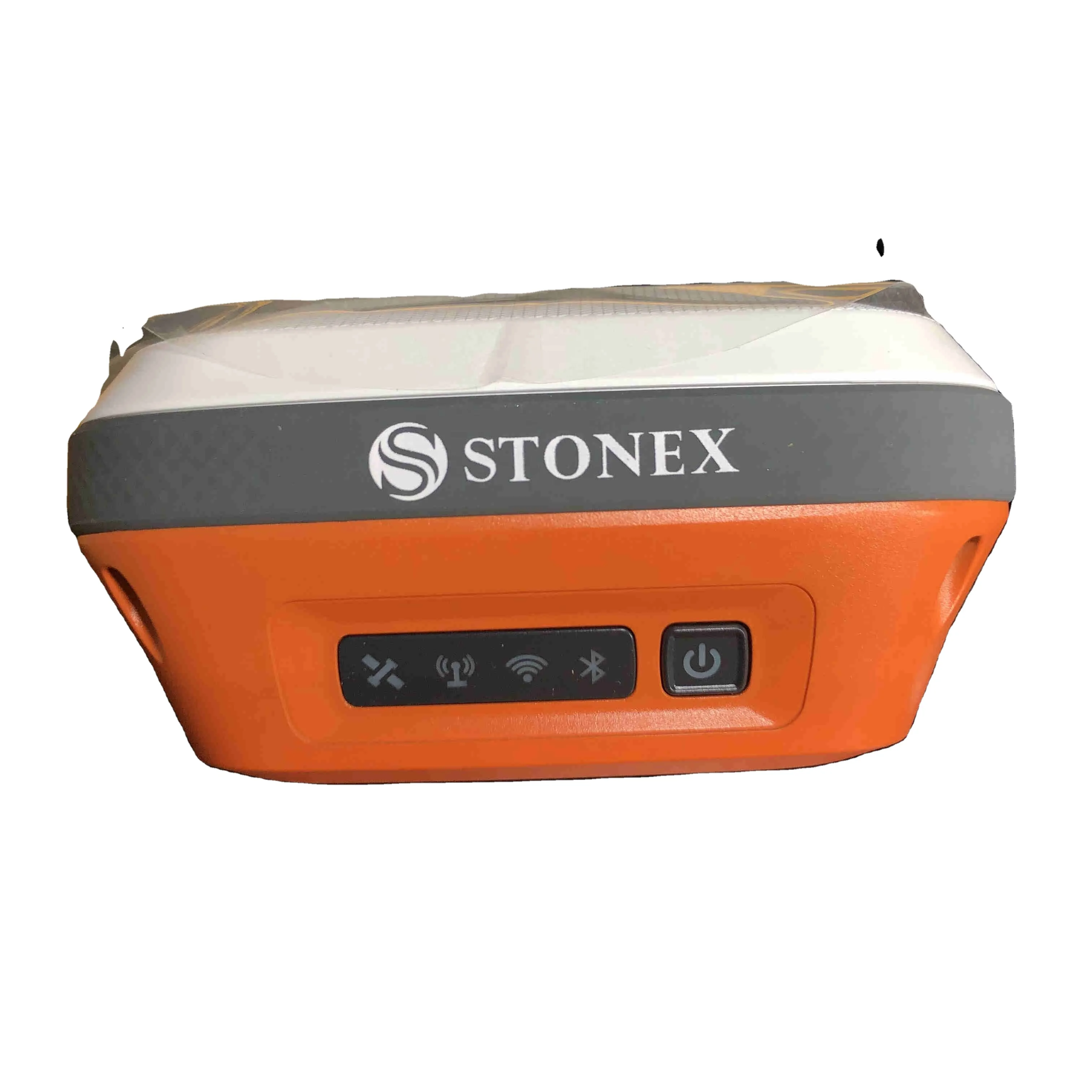

800 каналов трансивер оснащенный автоматическим наклоном IP68 Atlas gnss rtk gps stonex s3a
- Категория: Другие инструменты для испытаний >>>
- Поставщик: Suzhou,Super,Gis,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2737.76 $* | 2874.56 $* |
| Aug-16-2025 | 2714.29 $* | 2850.78 $* |
| Jul-16-2025 | 2277.34 $* | 2391.29 $* |
| Jun-16-2025 | 2668.19 $* | 2801.57 $* |
| May-16-2025 | 2323.76 $* | 2439.83 $* |
| Apr-16-2025 | 2622.90 $* | 2753.50 $* |
| Mar-16-2025 | 2599.83 $* | 2729.7 $* |
| Feb-16-2025 | 2576.82 $* | 2705.49 $* |
| Jan-16-2025 | 2553.20 $* | 2681.70 $* |
Характеристики
Product Description
SurPad 4.0
Android - Field Data Collection Software
SurPad4.0 is a GNSS surveying and mapping software. It is designed based on years of accumulated market experiences, combining them with the international mainstream of surveying and mapping data acquisition function of the software, integrating RTK control, GIS data collection and road design and layout into one place. The software has outstanding graphic interaction, powerful functions and is able to humanize operation process.
Android - Field Data Collection Software
SurPad4.0 is a GNSS surveying and mapping software. It is designed based on years of accumulated market experiences, combining them with the international mainstream of surveying and mapping data acquisition function of the software, integrating RTK control, GIS data collection and road design and layout into one place. The software has outstanding graphic interaction, powerful functions and is able to humanize operation process.
Specification
Model | S3A | ||
GNSS | Channels | 800 | |
Signals | BDS: B1, B2, B3 | ||
GPS: L1CA, L1P. L1C, L2P, L2C, L5 | |||
GLOASS: G1,G2, P1, P2 | |||
GALILEO: E1BC, E5a. E5b | |||
QZSS: L1CA. L2C. L5, L1C | |||
SBAS: L1CA, L5; | |||
L-Band | |||
Accuracy | Static | H: 2.5 mm±1ppm , V: 5 mm±1ppm | |
RTK | H: 8 mm±1ppm, V:15 mm±1ppm | ||
DGNSS | <0.5m | ||
ATLAS | 8cm | ||
System | Initialization Time | 8s | |
Initialization Reliable | 99.90% | ||
Operating System | Linux | ||
Merrory | 8GB, support expanable MisroSD | ||
Wifi | 802.11 b/g/n | ||
Bluetooth | V2.1+EDR/V4.1Dual,Class2 | ||
E-Bubble | support | ||
Tilt Survey | IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate | ||
Datalink | Audio | support TTS audio broadcast | |
UHF | Tx/Rx Internal Radio, 1W/2W adjustable, radio support 410-470Mhz | ||
Protocol | support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target | ||
Network | 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS) | ||
Physical | Interface | 1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232) | |
Button | 1 Power Button | ||
Indication Light | 4 Indication Lights | ||
Size | Φ156mm * H 76mm | ||
Weight | 1.2kg | ||
Power supply | Battery capacity | 7.2V, 24.5Wh(standard two batteries) | |
battery Life Timer | Static Survey: 15 hours, Rover RTK survey: 12h | ||
External power source | DC 9-18V, with overvoltage protection | ||
Environment | Work Temporature | -35℃ ~ +65℃ | |
Storage Temporature | -55℃ ~ +80℃ | ||
waterproof&dustproof | IP68 | ||
Humidity | 100% anti-condensation | ||
Packing & Delivery
