Профессиональная настольная лазерная маркировочная машина с кольцами для ювелирных
- Категория: Laser Marking Machines >>>
- Поставщик: DONGGUAN,BLUETOOL,IEM,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2856.70 $* | 2999.46 $* |
| Aug-20-2025 | 2832.61 $* | 2974.9 $* |
| Jul-20-2025 | 2376.85 $* | 2495.35 $* |
| Jun-20-2025 | 2784.65 $* | 2923.29 $* |
| May-20-2025 | 2424.55 $* | 2545.85 $* |
| Apr-20-2025 | 2736.99 $* | 2873.38 $* |
| Mar-20-2025 | 2712.43 $* | 2848.37 $* |
| Feb-20-2025 | 2688.33 $* | 2822.98 $* |
| Jan-20-2025 | 2664.32 $* | 2797.47 $* |
Характеристики
Products Description
The Portable Type Fiber Laser Marking Machine with JPT/MAX/RAYCUS /IPG Source
1. Model:20W Fiber Laser Marking Machine
with rotary and with PC
2. Applicable materials:
Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials,
2. Applicable materials:
Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials,
such as PVC,PC, black acrylic.
3. Applicable industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.
3. Applicable industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.
Product Paramenters
NO | ITEM | DATE |
1 | Laser power | 20W |
2 | Laser wavelength | 1064nm |
3 | Control software | Ezcad (provided) |
4 | Cutting depth | ≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut) |
5 | Minimum line width | 0.01mm |
6 | Marking Size | 110 * 110mm ( 75mm 200mm 300mm optional ) |
7 | Working voltage | 110/220V ± 10%, 50/60HZ |
8 | Cooling way | Air cooling |
9 | Graphic file format | PLT, DXF, AI, BMP, JPG |
10 | Machine Size | 780*550*1450mm |
11 | Machine weight | 100Kg |
12 | Package size | 880*680*980mm |
13 | Packed weight | 111Kg |
14 | Packing | Plywood box |
Details Images

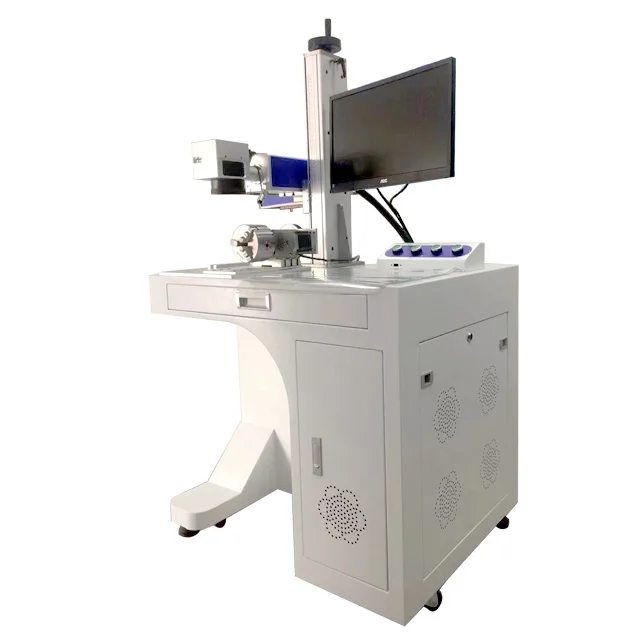

Fiber laser marking machine with rotary and PC
The control software.
1.Easy to use 2. Multiple languages to switch
3. Support Microsoft XP, Win7, Win8, Win10 systems
Lifting handle
To rotate the handle to adjust the height the height to get focus of laser as per the work piece .
It is for 500mm height adjustable
Aluminum working table
Porous positioning arrangement, compact structure, flexible adjust-ment of product position, easy processing
High performance computer
PC : win10
8GB Memory
120GB solid state disk.
JCZ control system.
* High speed intelligent marking system
* Easy to install,Debugging simple
Excellent performance, simple operation
Excellent performance, simple operation
High performance optical lens/galvanometer scanning system.
The use of large brand vibroscope and field mirror, marking speed, reliable quality, small failure rate, after-sales security
Laser source.
More optional laser source as IPG, MAX ，RAYCUS.
Optical lens.
Lens with mutiple working area (75/110/150/175/200mm)

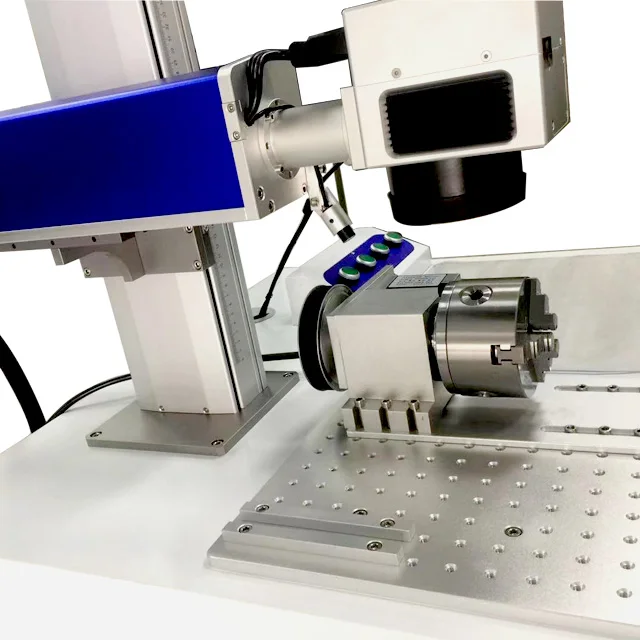

2D/3D table Rotary chuck Cutting fixture
Application
Applicable industries.
Applicable to aluminum alloy, iron, copper, aluminum, magnesium, silver jewelry, hardware, watches, tool accessories, mobile phone communications, metal oxides, medical equipment, electrical appliances, daily necessities,rare metals and alloys
Company Profile
Our Company.
Dongguan blueberry industrial equipment manufacturing co., LTD.It was founded in 2012.In 2019, the company officially changed its name to Bluetool with a registered capital of RMB 1 million.Our product line: laser metal cutting machine, laser engraving cuttingmachine, laser marking machine, pad printing machine, ultrasonic welding machine.We always use professional quality service and every customer
Product packaging
Packaging Details.
(1)Inner: plastic stretch film and white foam. Plastic stretch film winding equipment for MoistureResistance. White Foam filling is used to tighten the laser.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case.Finally, label the destination country and product number.
Recommend Products
FAQ
1.Are we factories or traders
We are the factory, the quality is guaranteed
2.Is the quality guaranteed after placing an order
We test each product for more than 72 hours to ensure that the quality of the machine is stable and reliable, and the user is applicable without worry
3.This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
4. If the machine has problem in my place, how could I do?
We have been working on laser machines in other countries for more than 10 years.Our company has customers and agents in Sri Lanka/India/Singapore/Mexico etc. We go many, many times to other countries to install machines and train
5.How’s the effect of the laser marking
If you want to know the effect, you can send the sample or drawing to us, we will do the free sample for you and show you in video how to operate it.
