Пивоваренное оборудование для 3 сосудов л коммерческий котел из нержавеющей

Пивоваренное оборудование для 3 сосудов л коммерческий котел из нержавеющей

Категория: Fermenting Equipment >>>
Поставщик: Shandong,HG,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.94 $*	0.10 $*
Aug-15-2025	0.47 $*	0.69 $*
Jul-15-2025	0.19 $*	0.68 $*
Jun-15-2025	0.0 $*	0.41 $*
May-15-2025	0.50 $*	0.9 $*
Apr-15-2025	0.1 $*	0.6 $*
Mar-15-2025	0.19 $*	0.12 $*
Feb-15-2025	0.59 $*	0.68 $*
Jan-15-2025	0.89 $*	0.54 $*

Характеристики

HG Beer Brewing 1000l Mash System Turnkey Project for Craft Beer Equipment

Model	HG-1000
Capacity	1000L/Batch
Material	SUS304
Application	Restaurants, bars, hotels, brewery
Heating way	Sean heating/ Electric heating/ Direct Fire heating
Voltage	AC380/220V,50/60HZ
Power	27Kw
Water consumption	3.5m3/T
Diameter	1360mm
Height	3000m
Degree of automation	Semi-automatic/Fully automatic

1000L brewery equipment is widely used in brewery factory, restaurant and so on. It can brew pale lager, amber lager, dark lager, ale and etc at proper temperature with different raw material. According to the client’s requirement, HG can produce stainlesssteel 304 brewhouse, copper and etc.

2-Vessel Main Features:

A typical two-vessel Combination Mash Lauter Tuns are the first combination vessel in these brewhouses line ups.Next inline is the combination of the Kettle and Whirlpool tanks.

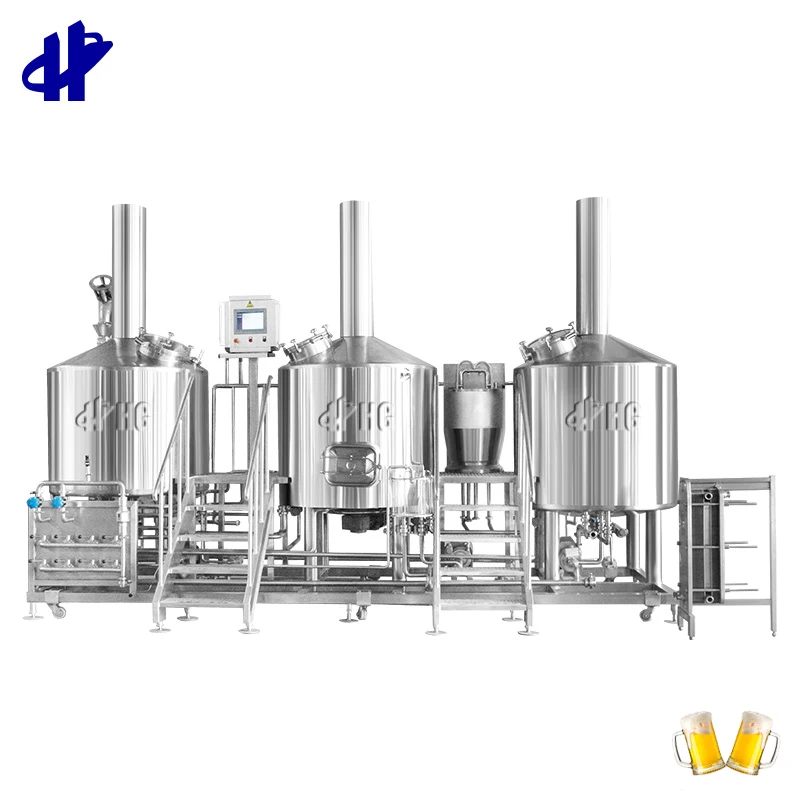

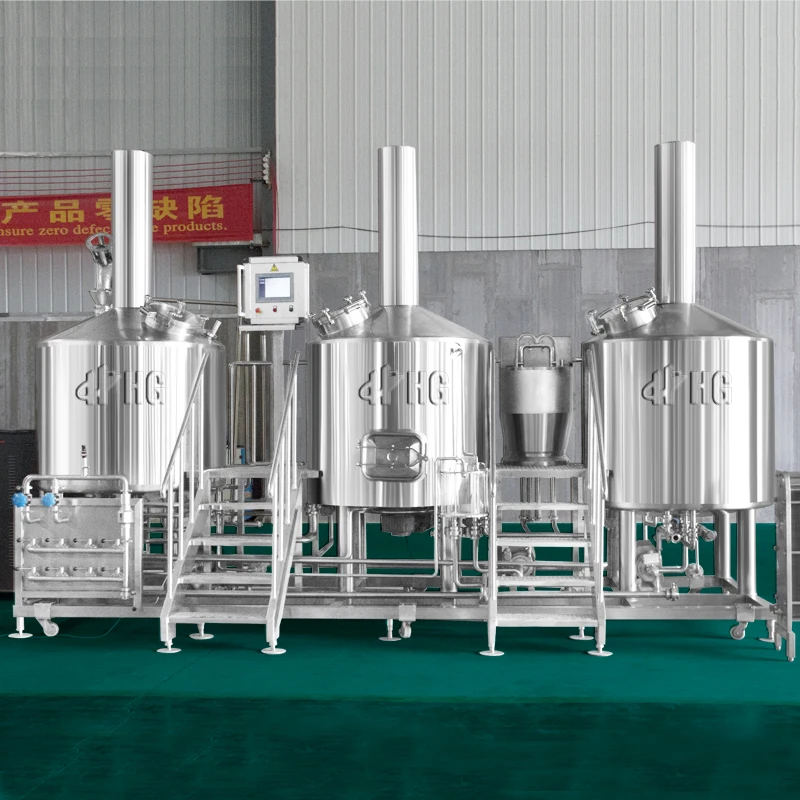

3-Vessel Main Features:

A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels.

4-Vessel Main Features:

A typical four-vessel brewhouse will include a Mash tun, Lauter Tun, Kettle and Whirlpool. Each of these tanks is dedicated to performing a single process, and is designed differently than similar vessel used for performing multiple processes.

Beer equipment advantages:

1). High cost performance.
2). Good abrasion resistance materialcopper beer equipment.
3). We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket
is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.

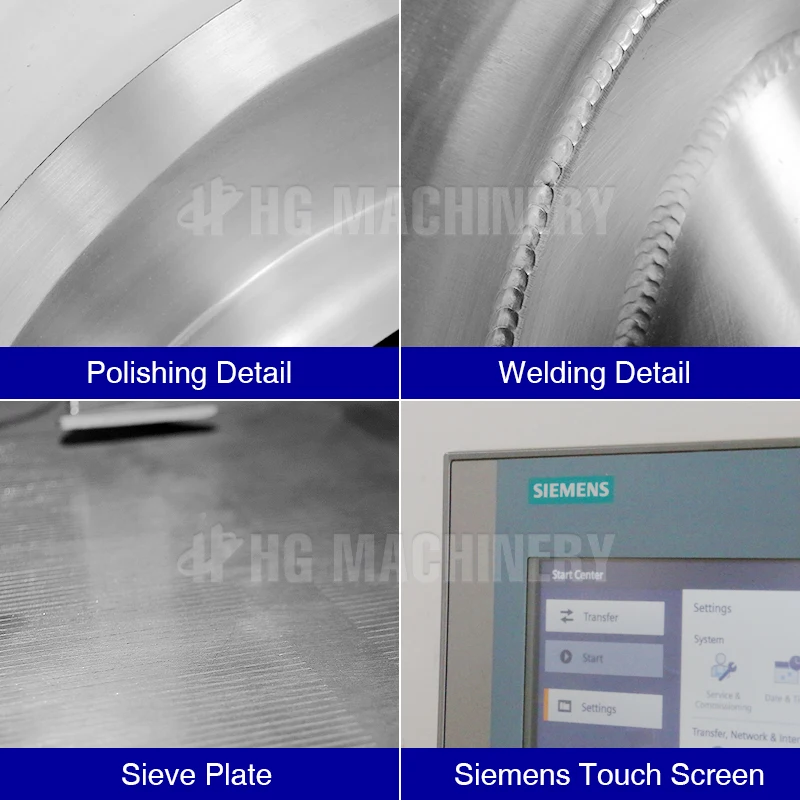

4). Polishing accuracy up to Ra0.4μ m.
5). Strict tank pressure test.
6). Energy conservation and pollution emissions.

Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
HG-100	100L/day	26US Gallon	0.25m2	650mm	2000mm
HG-200	200L/day	53US Gallon	0.25m2	850mm	2200mm
HG-300	300L/day	79US Gallon	0.3m2	950mm	2500mm
HG-500	500L/day	132US Gallon	0.5m2	1160mm	2800mm
HG-1000	1000L/day	264US Gallon	1.0m2	1360mm	3000mm
HG-2000	2000L/day	528US Gallon	2.0m2	1760mm	3150mm
HG-3000	3000L/day	792US Gallon	3.0m2	1860mm	3800mm
HG-5000	5000L/day	1320US Gallon	5.0m2	2260mm	4400mm

Q:How many years of experience in brewing equipment do you have?
A: We have more than 20 years in brewing and beer filling equipment.

Q: Where is your factory located?
A: Our factory is located in New Town, Jiyang Zone, Jinan, Shandong, China, 2 hours high speed train to Beijing.

Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.

Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.

Q: How about the installation?
A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.

The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.

Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.

1.Pre-service :

-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience

2.After service :

We guarantee the quality of the electrical elements within one year and tanks body within 1 years. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support. We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment.
