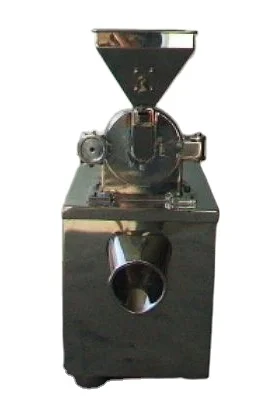

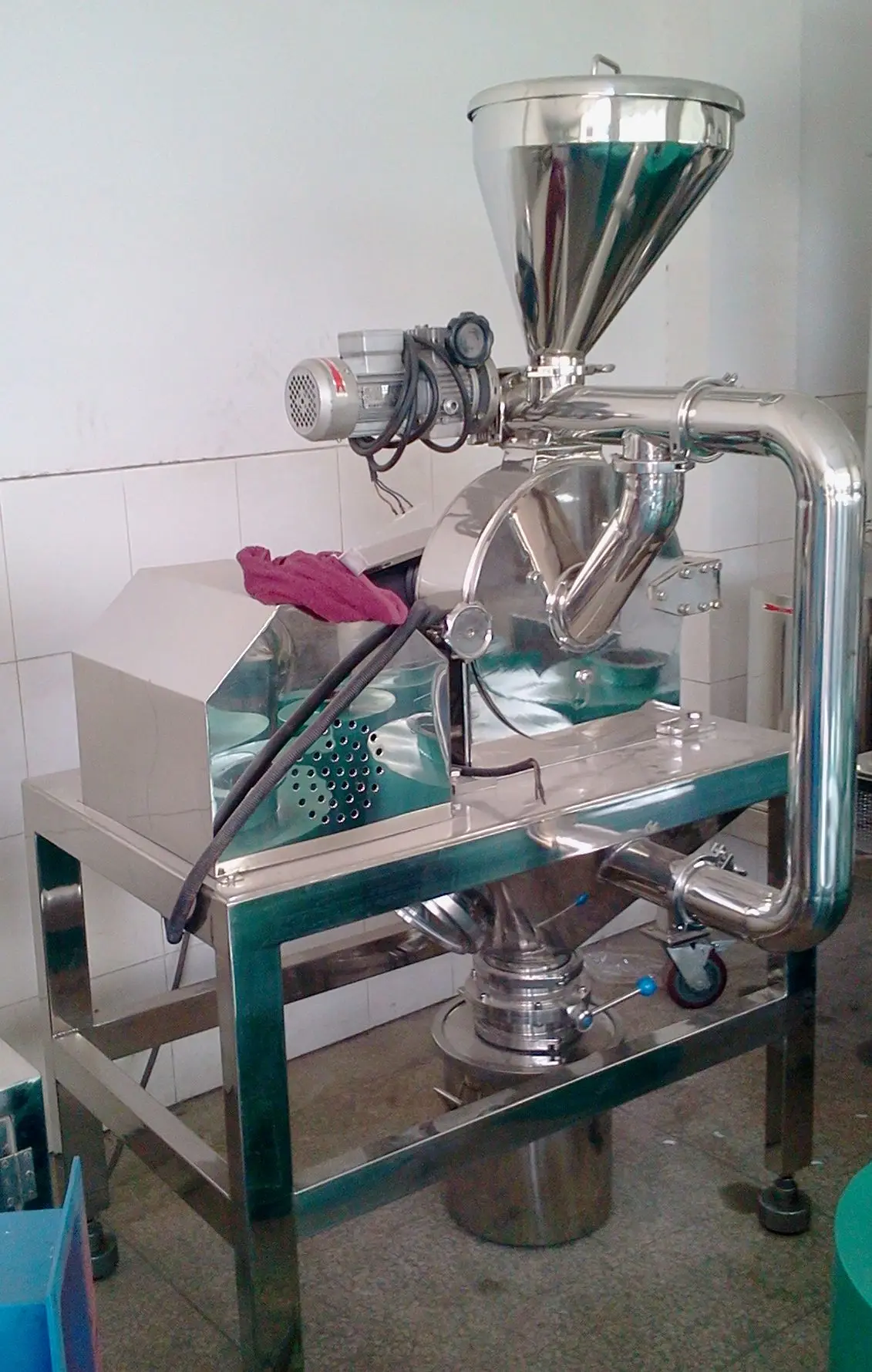

Mill Crushing Microniser Air Jet Mill For API Crushing Pulverizer

Model	type 200	type 300	type 400
Granularity(mm)	≤ 10	≤ 12	≤ 15
Coveying capacitor(kg/h)	10-150	20-300	50-500
Crushing fineness(mm)	20-250	20-250	20-250
Crushing power(kw)	5.5	7.5	11
Dust absorption power(kw)	1.5	2.2	3
L x W x H	1350x920x1800	1400x1050x2050	1600x1150x2100

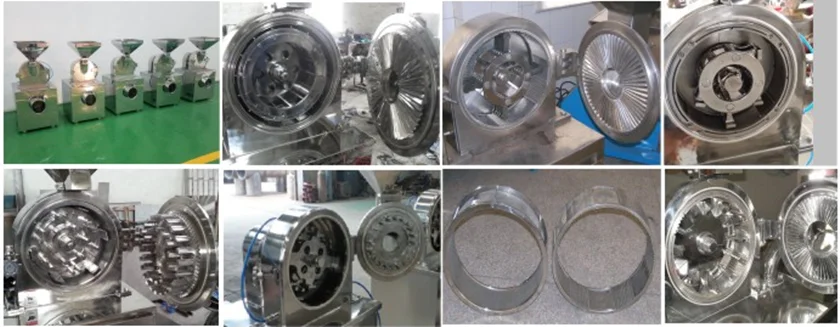

The machine consists of hopper, grading wheel, grinding blades, gear ring, pulverizing motor, discharging fan, a material collecting box, vacuum box and other components, material from the hopper into the crushing chamber, was crushed by high speed rotating blade, adjusting wheel and disc grading grading distance to achieve the fineness of materials by the requirements of the high-speed rotating blades to meet the requirements of the material from the crushing chamber to the aggregate box bag, did not meet the requirements of the material to smash in the crushing chamber, dust bin bag produced by dust collecting box, the unit according to GMP standad design, simple structure, convenient operation, cleaning low noise, high output, the machine is made of stainless steel material, there is no dust in the process.



Application

Food Processing, Pharmaceutical, Powder and energy, Petrochemical, Chemicals, Mining and minerals, Feed processing, Plastic.
