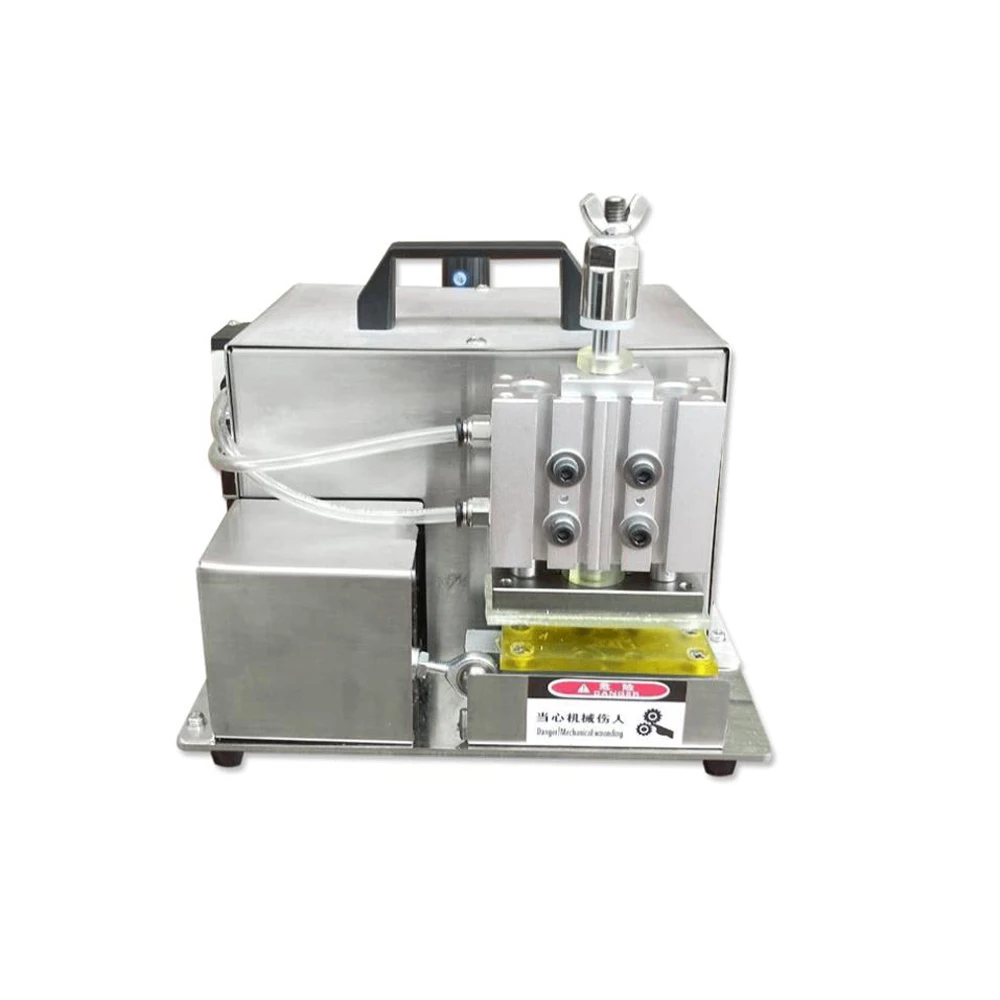

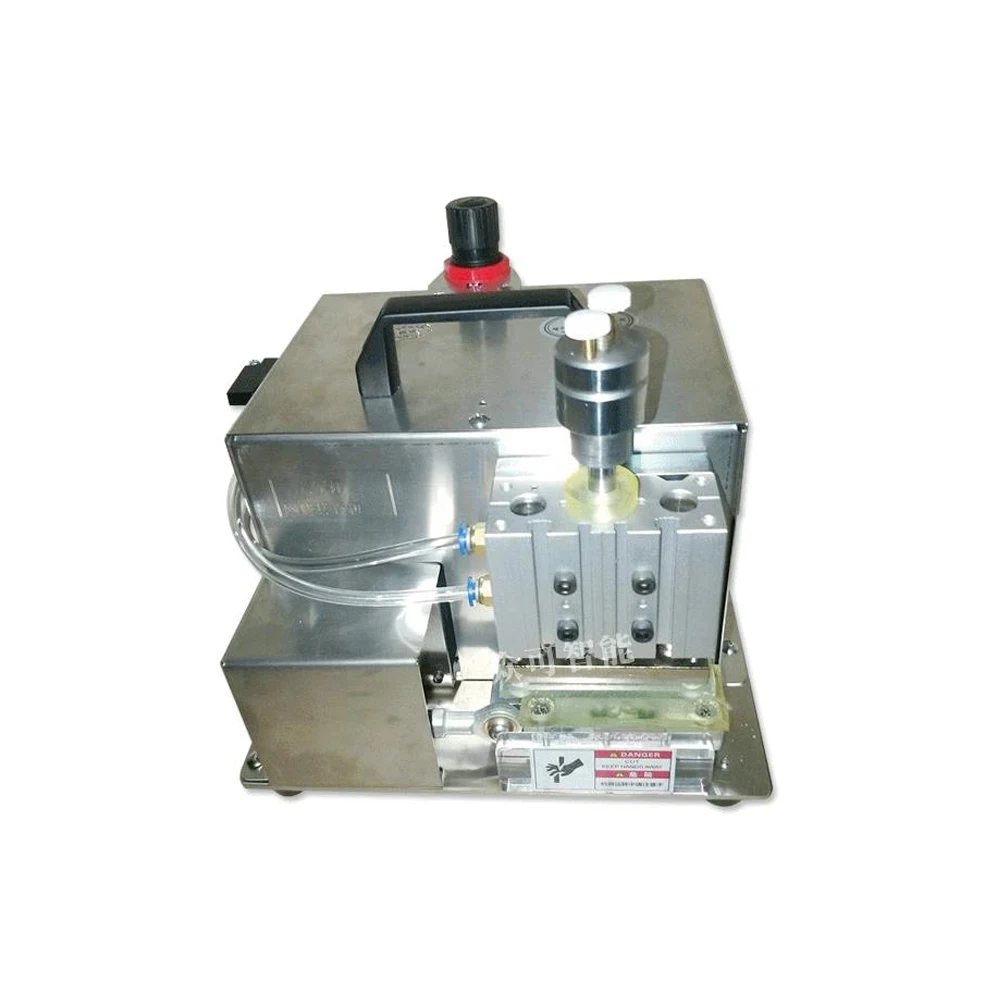

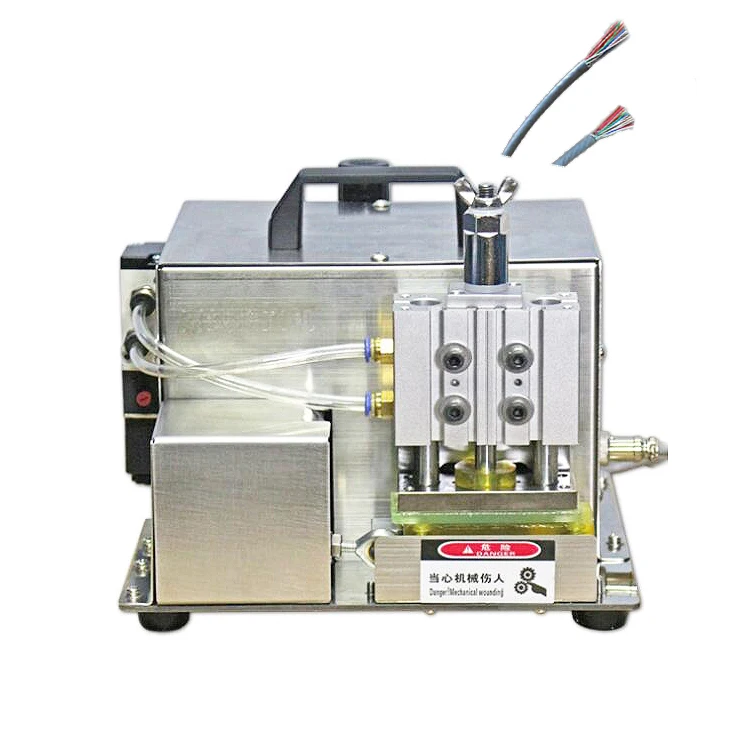

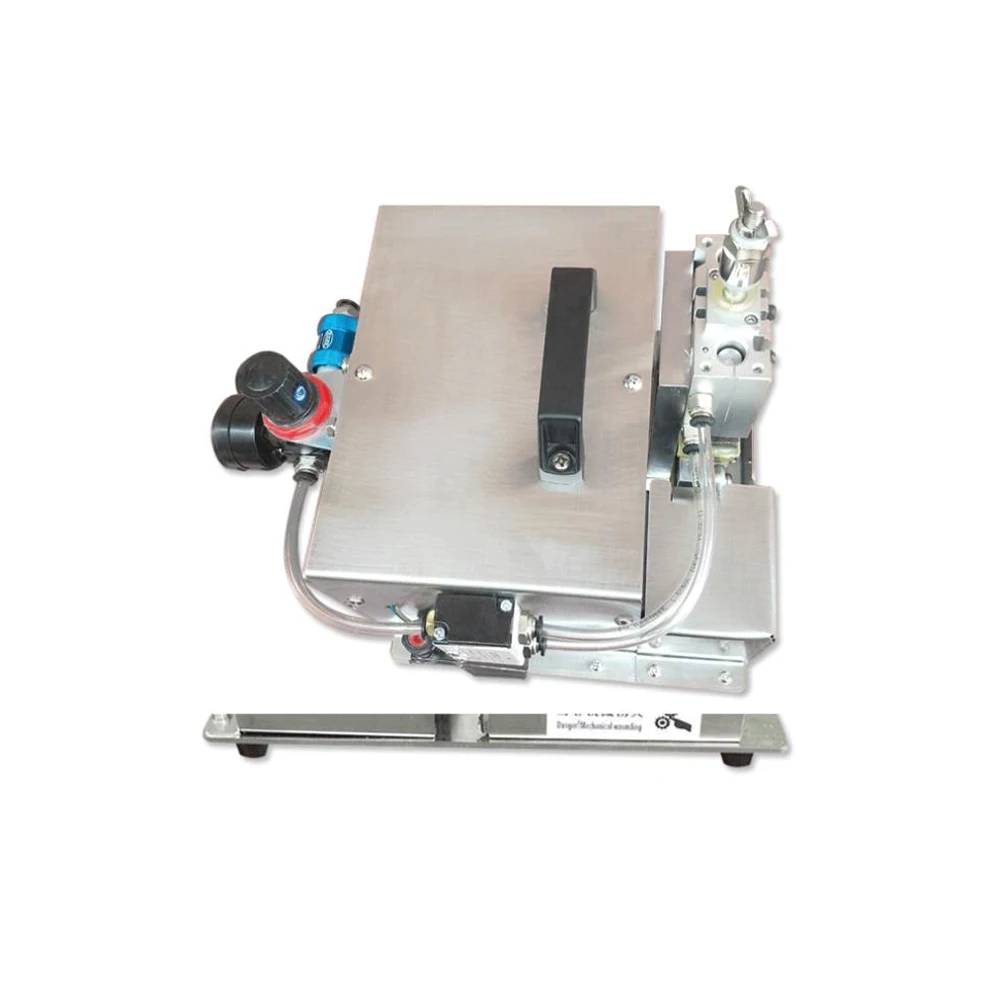

Многожильный аппарат для выпрямления сетевого кабеля Cat 5 6 витая пара разделение
- Категория: Cable Manufacturing Equipment >>>
- Поставщик: Sinrad,Technology,(shenzhen),Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 380.21 $* | 388.86 $* |
| Jul-17-2025 | 308.89 $* | 314.95 $* |
| Jun-17-2025 | 374.5 $* | 381.37 $* |
| May-17-2025 | 371.24 $* | 378.72 $* |
| Apr-17-2025 | 296.42 $* | 302.33 $* |
| Mar-17-2025 | 365.42 $* | 372.69 $* |
| Feb-17-2025 | 362.4 $* | 369.77 $* |
| Jan-17-2025 | 359.33 $* | 366.80 $* |
Характеристики
Product Description
Introduction:
This machine is not only used for straightening the network cable, but also often used in the processing of Type-C, USB3.1, HDMI and other multi-core industrial control lines.
Specification:
Model | SR-R10 |
Straightening length | 10-60mm |
Voltage | AC220V 50/60HZ |
Air source | 0.2-0.5MPa |
Machine Size | 290*240*210mm |
Machine weight | 10KG |

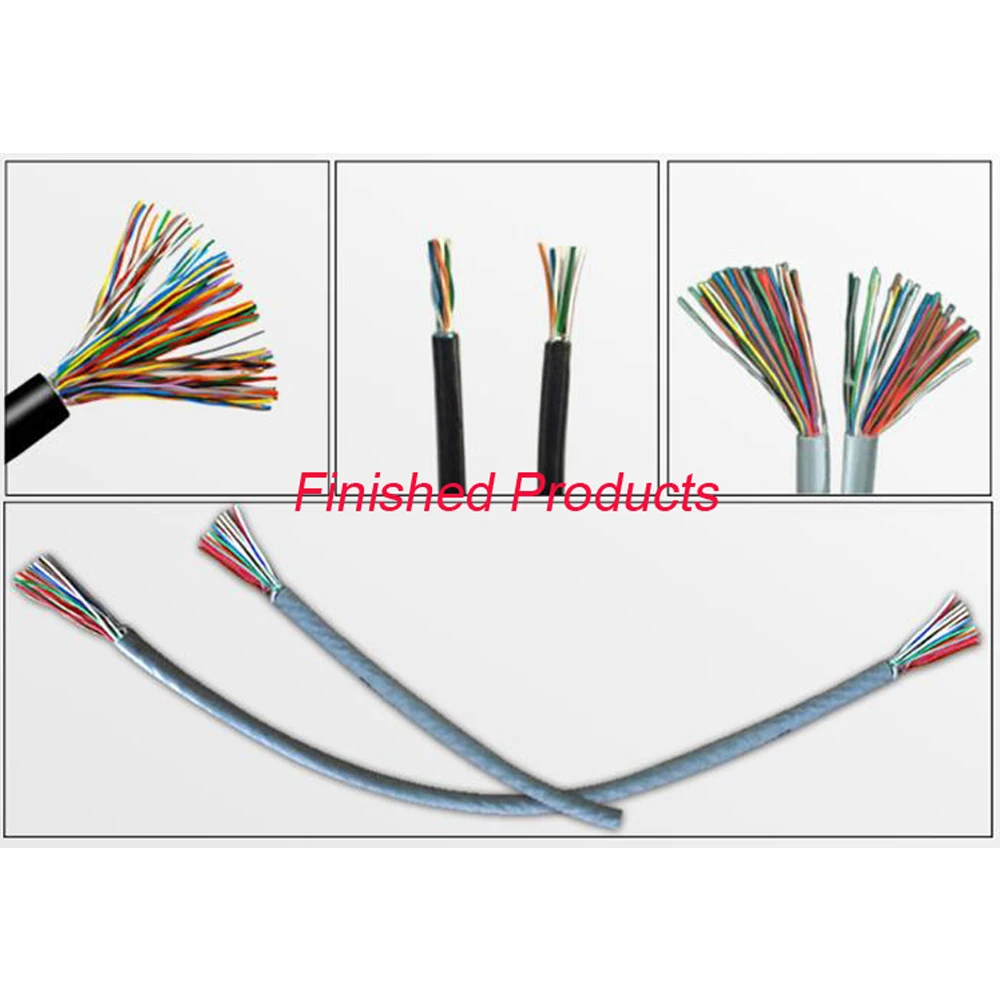

Applicable cable | Network cable, Type-C cable, USB3.1 cable, cable, twisted cable, multi-core cable |
Operating:
(1)Put the peeled cable in the middle of the rubber block of the machine.

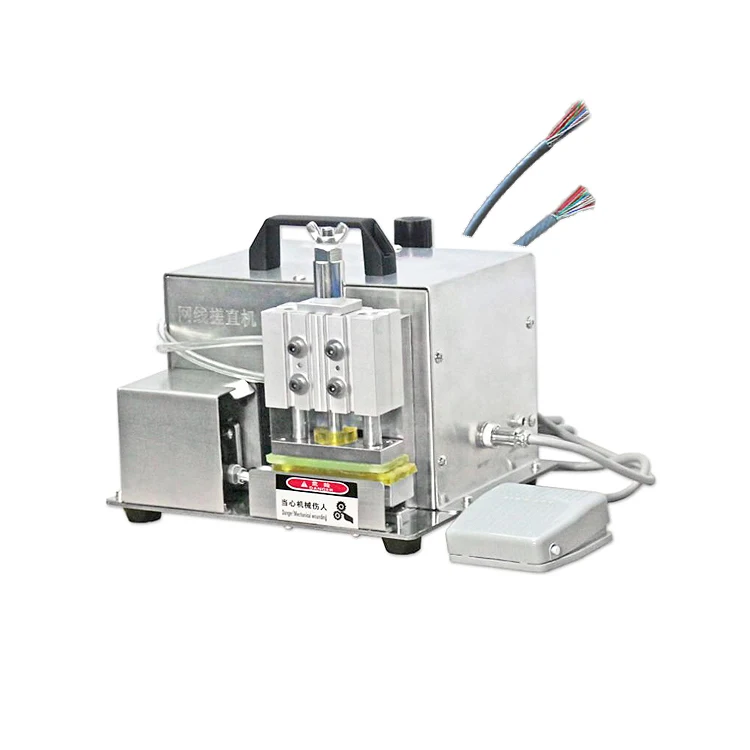

(2)Then press the foot switch, the rubber block is rubbed back and forth.
(3)When the machine is rubbing the cable, pull out the cable. The processing time should not be too long, it can be 1-2 seconds.
(4)The core wire of cable can be loosened and straightened.
Features:
(1)wide application
(2)simple operation
(3)stable operation
(4)improved efficiency
(5)small size
