Product Description

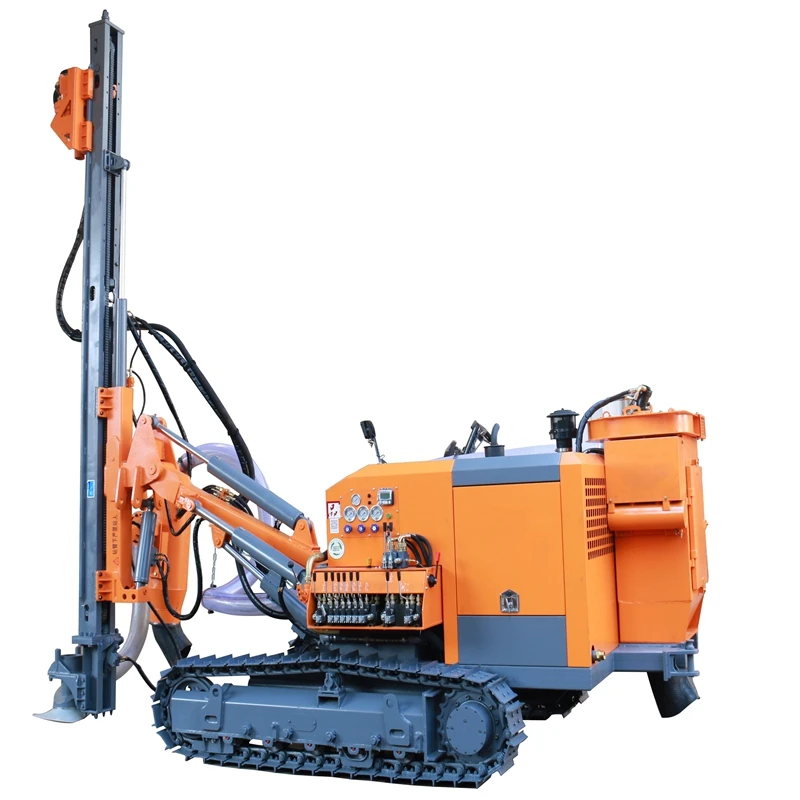

HENGWANG HW420 rock quarry gold mine coal rotary dth crawler drilling rig with dust collection
Main Features:
* 1.With larger displacement double motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. Hole range up to 127 mm now.
* 2.All Controls integrated on the control panel for convenient operation, higher work efficiency, safer and more comfortable operation.
* 3.Piston tramming motor, special processed casted track shoe for stronger tramming traction force & more stable quality.
* 4.Equipped with the own developed dry dust collection system for high efficiency & more eco-friendly.
Related Products
HENGWANG HW420 rock quarry gold mine coal rotary dth crawler drilling rig with dust collection
Product Paramenters
HENGWANG HW420 rock quarry gold mine coal rotary dth crawler drilling rig with dust collection
Parameters of surface blasting hole drill rig HW420HENGWANG HW420 water tank wet dust collect surface rotary DTH hammer diamond
bit drill rig
bit drill rig
Diesel Engine Specifications | ||||
Rig Model | Power | Rated Power | ||
HW420 | Yuchai YC4DK80 | 58KW | ||
HW420-1 | Yuchai YC4A108 | 73.5KW (Dust collection system as standard equipment) | ||
General Specifications | ||||
Drill depth | 30m | |||
Drill Pipe Sizes | 76*3000 mm | |||
Hole range | 110-138 mm | |||
Equipped DTH Hammer | 4’’/5’’ | |||
Rotation torque (Max.) | 2,500N.m | |||
Rotation Speed | 0-100 rpm | |||
Working pressure | 0.7-2.5Mpa | |||
F.A.D | 8-20m3/min | |||
Feed Force | 20 kN | |||
Pull Up Force | 45 kN | |||
Feed Type | Chain / cylinder | |||
Tramming Speed (Max.) | 3km/h | |||
Gradient | 25° | |||
Total Weight | 5,500 kg | |||
Transportation Dimensions | 5,100X2,260X2,500 mm | |||
Detailed Images

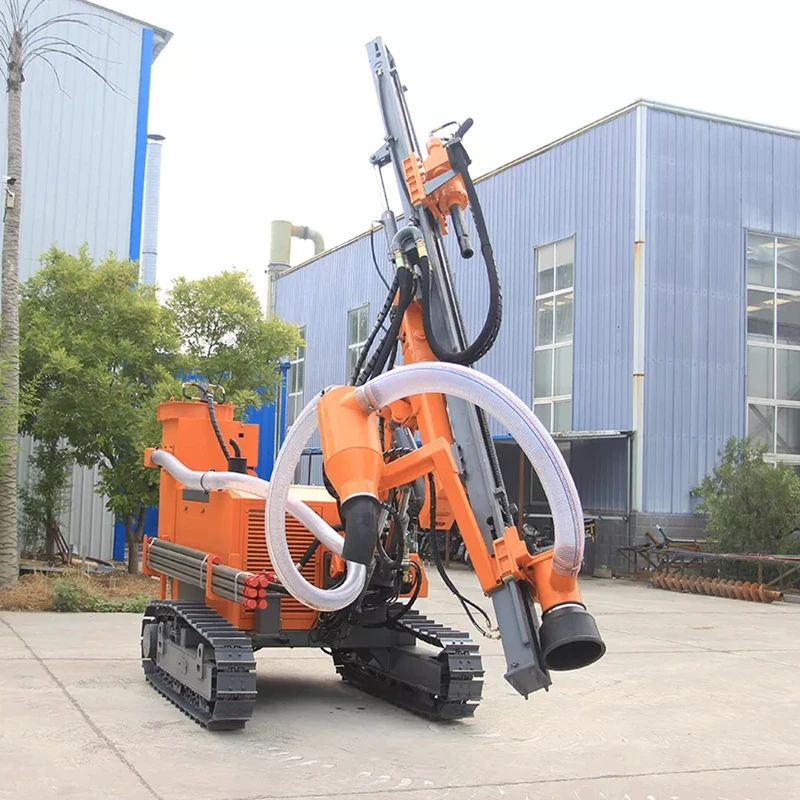

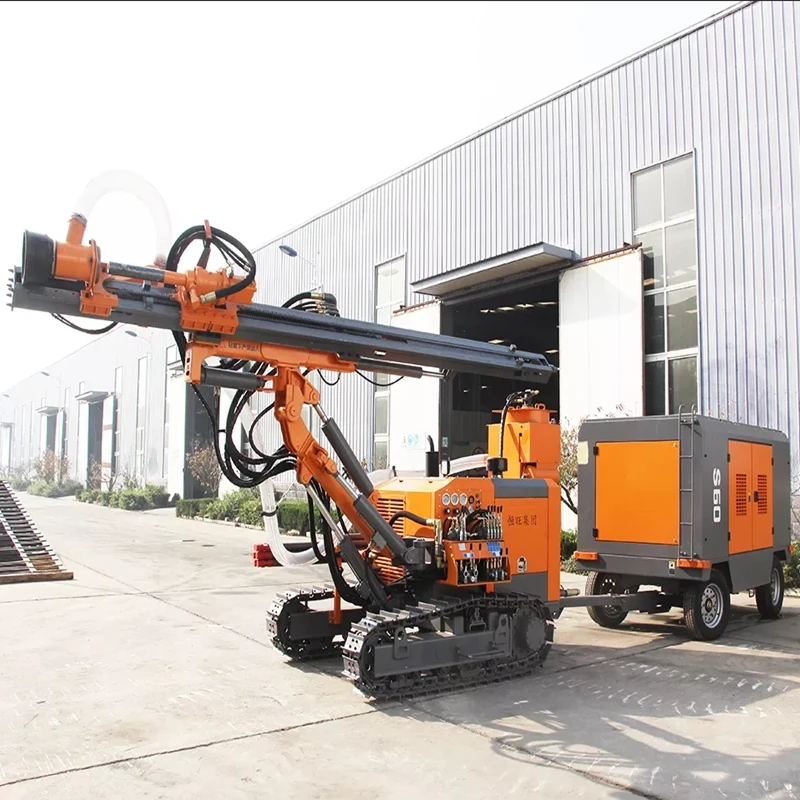

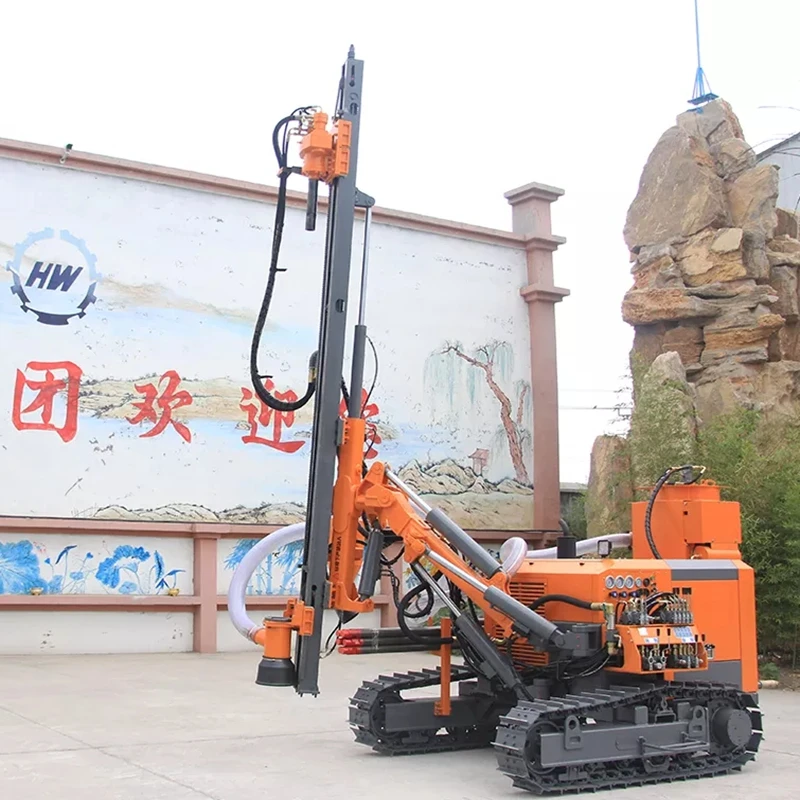

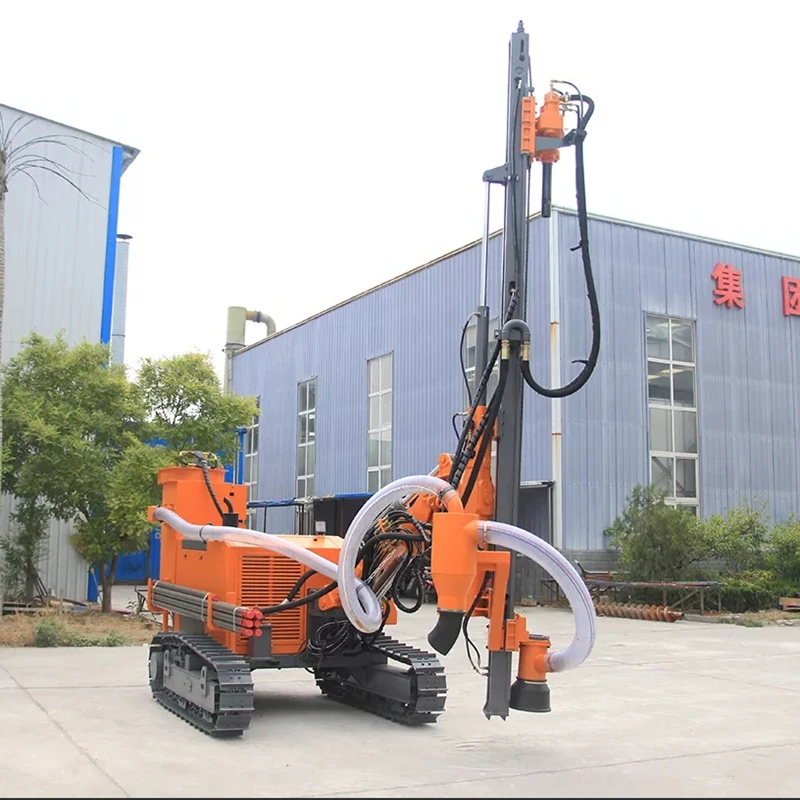

gold mine DTH surface drilling rig
drill rig detail images as follows:
The following is the Down to the hole(DTH) hammer and diamond drill bits used for rock drilling
HENGWANG HW420 water tank wet dust collect surface rotary DTH hammer diamond bit drill rig

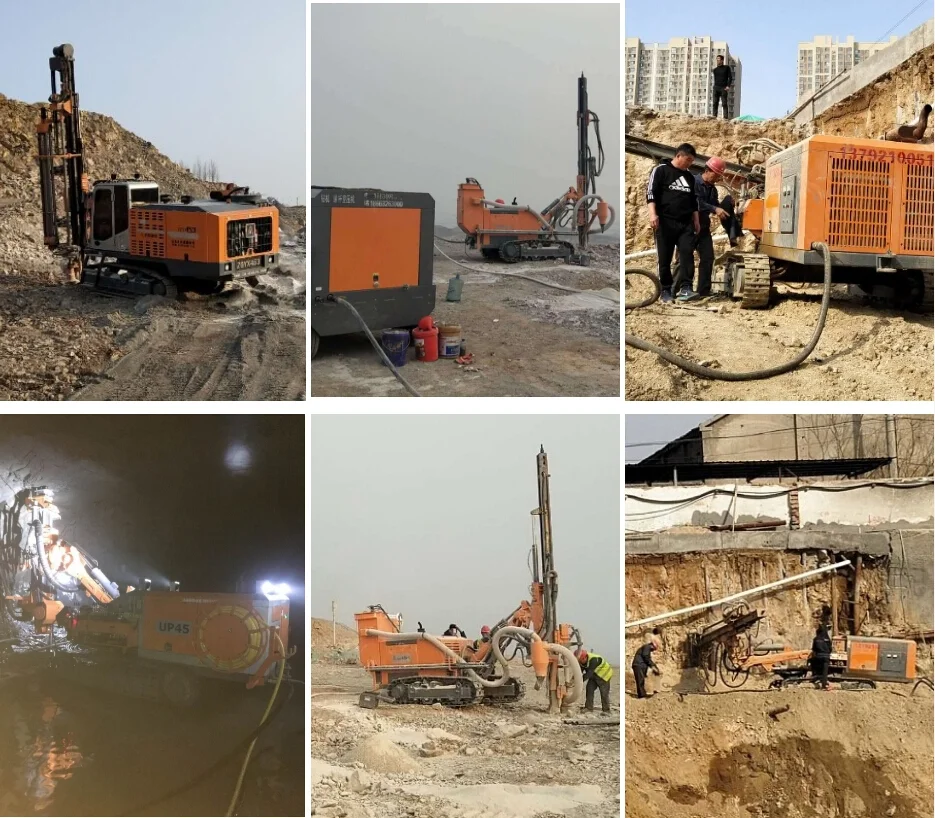

Working case
HENGWANG HW420 water tank wet dust collect surface rotary DTH hammer diamond bit drill rig
