200 сетчатая рисовая шелуха 100 размер сетки нержавеющая сталь 304 классификатор воздуха мельница для порошкового фрезерного
- Категория: Grinding Equipment >>>
- Поставщик: Jiangyin,Haixiang,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.40 $* | 0.65 $* |
| Aug-20-2025 | 0.14 $* | 0.65 $* |
| Jul-20-2025 | 0.69 $* | 0.61 $* |
| Jun-20-2025 | 0.63 $* | 0.82 $* |
| May-20-2025 | 0.88 $* | 0.75 $* |
| Apr-20-2025 | 0.65 $* | 0.26 $* |
| Mar-20-2025 | 0.22 $* | 0.92 $* |
| Feb-20-2025 | 0.12 $* | 0.93 $* |
| Jan-20-2025 | 0.82 $* | 0.99 $* |
Характеристики
FAQ
1.Is there any dust?
no,this machine is Pulse dust collector ,there is no any dust fly.
2. How long is the warranty period of the machine ?
Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will
be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error.
3.what materials can the machine pulverize?
it perfer the dry materials( Moisture ≤10%),the input size ≤ 15mm(if your materials bigger than this,you need our course crusher before pulverizer)
Company Information
1.Our company is located in Jiangyin City,near shanghai about 30 minutes far from shanghai by High-speed trains .
2. Our engineers have been in this field for 30 years,our factory have 11 years age.
Our Services
our engineers are able to go abroad to install the machines
Packaging & Shipping
Export wooden packaging
Product Description
WFJ-15/30/60 Micro pulverizer
Main uses:

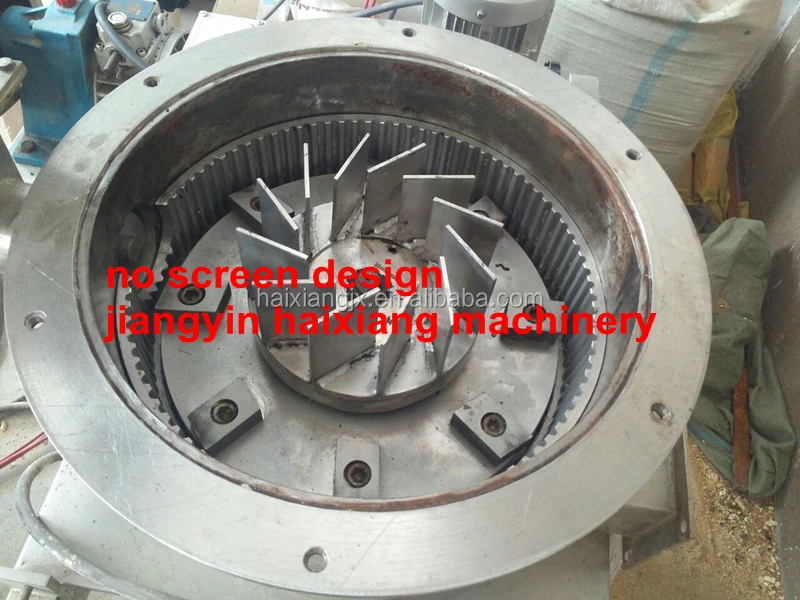

This machine is composed of three parts, the host, auxiliary electric control box, with a winnowing, no mesh or screen , uniform granule size and other properties, production process of continuous. The machine reaches the international advanced level, which are widely used in pharmaceutical, chemical, foodstuff and other industrial material crushing.

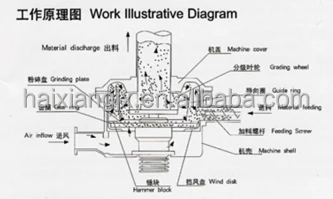

Working principle.

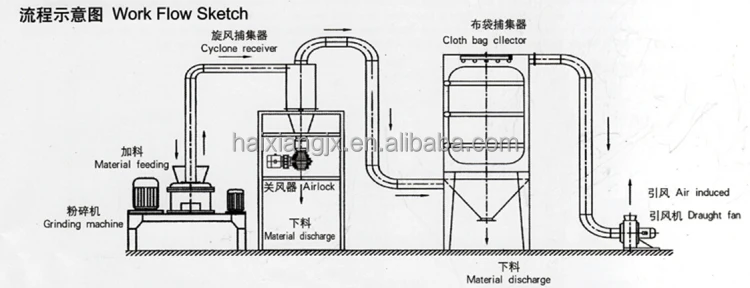

Material is fed into the crushing chamber through screw conveyor, the high-speed rotary blade shear pulverization, by means of negative pressure air transport the material into the cyclone separator, bag type dust collector, from material to product requirements.
Technical parameter :
Model | WFJ-15 | WFJ-20 | WFJ-30 | WFJ-60 |
Capacity (kg/h) | 10~200 | 20~300 | 20~300 | 50~1200 |
Inlet granules(mm) | < 10 | <12 | <15 | <15 |
Outlet granules(mesh) | 80~320 | 80~320 | 80~320 | 80~320 |
Power (kw) | 13.5 | 17.5 | 46 | 84.15 |
Spindle speed(r/min) | ~6000 | ~4800 | ~3800 | ~2800 |
Measurement(Length×Width×Height)(mm) | 4200 × 1200 ×2700 | 4700×1250×2900 | 6640×1300×3960 | 7500×2300×4530 |
Weight(kg) | 850 | 1250 | 1500 | 3200 |
