TBB power parallel three phase AC DC coupling low frequency 5KW hybrid solar inverter for solar power system
Product Description

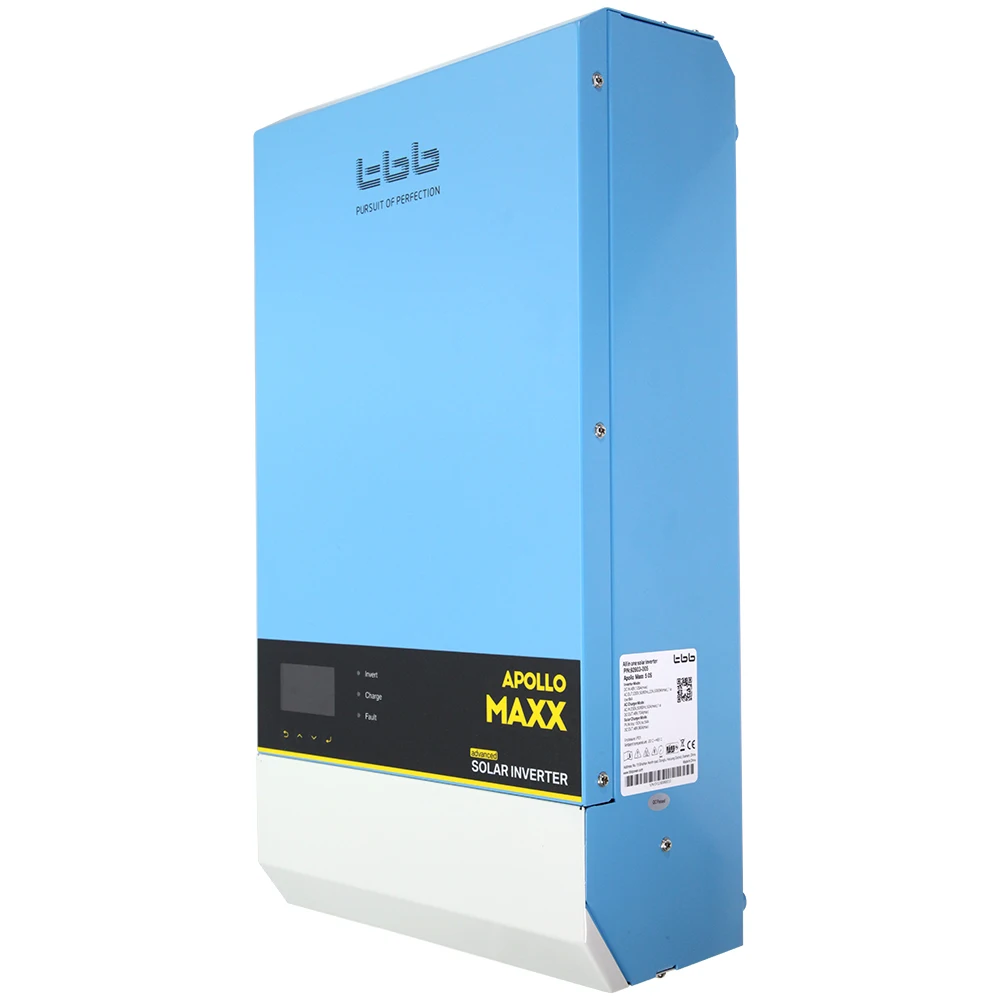

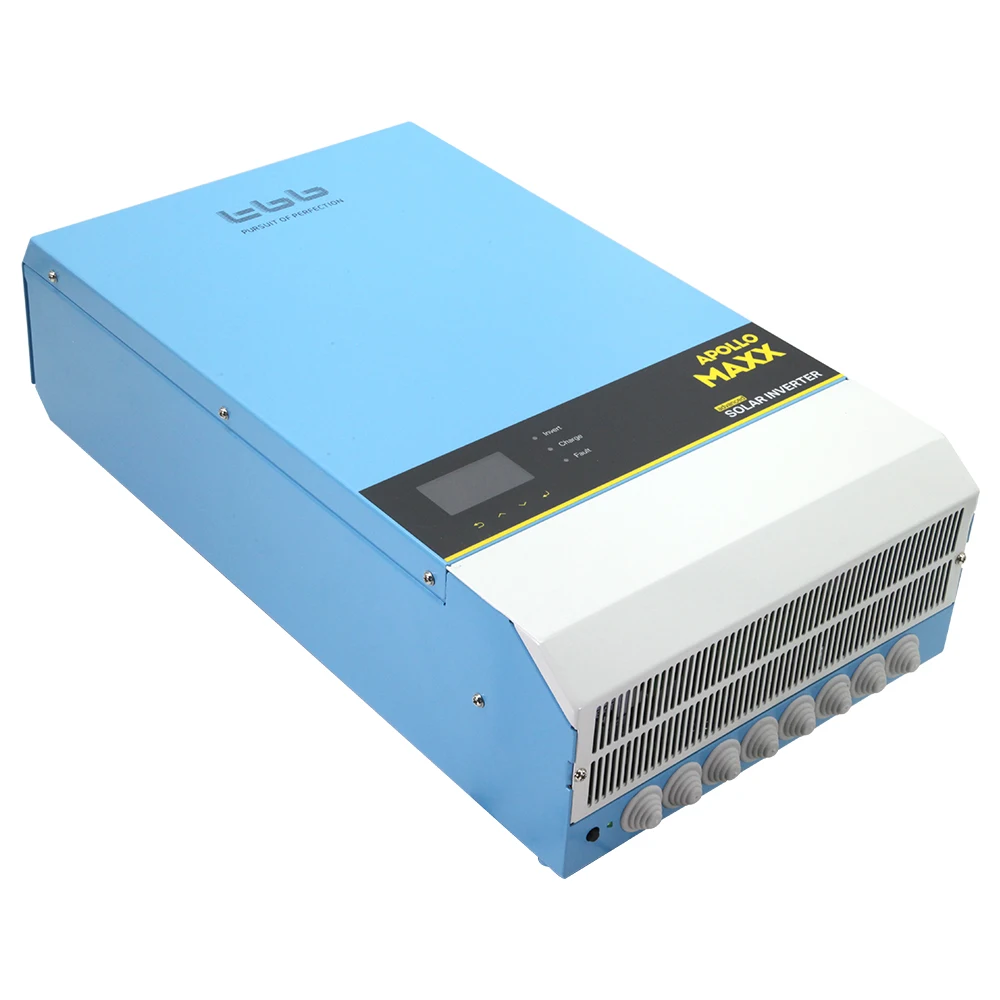

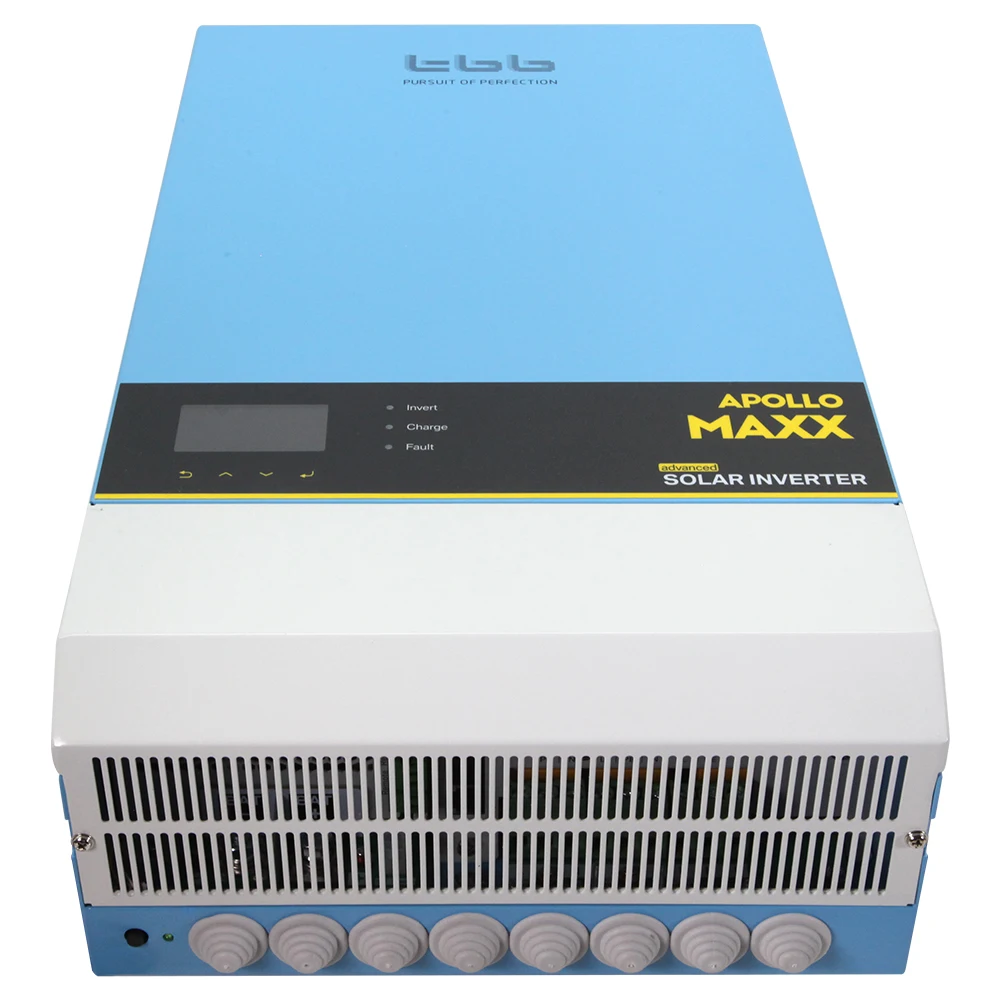

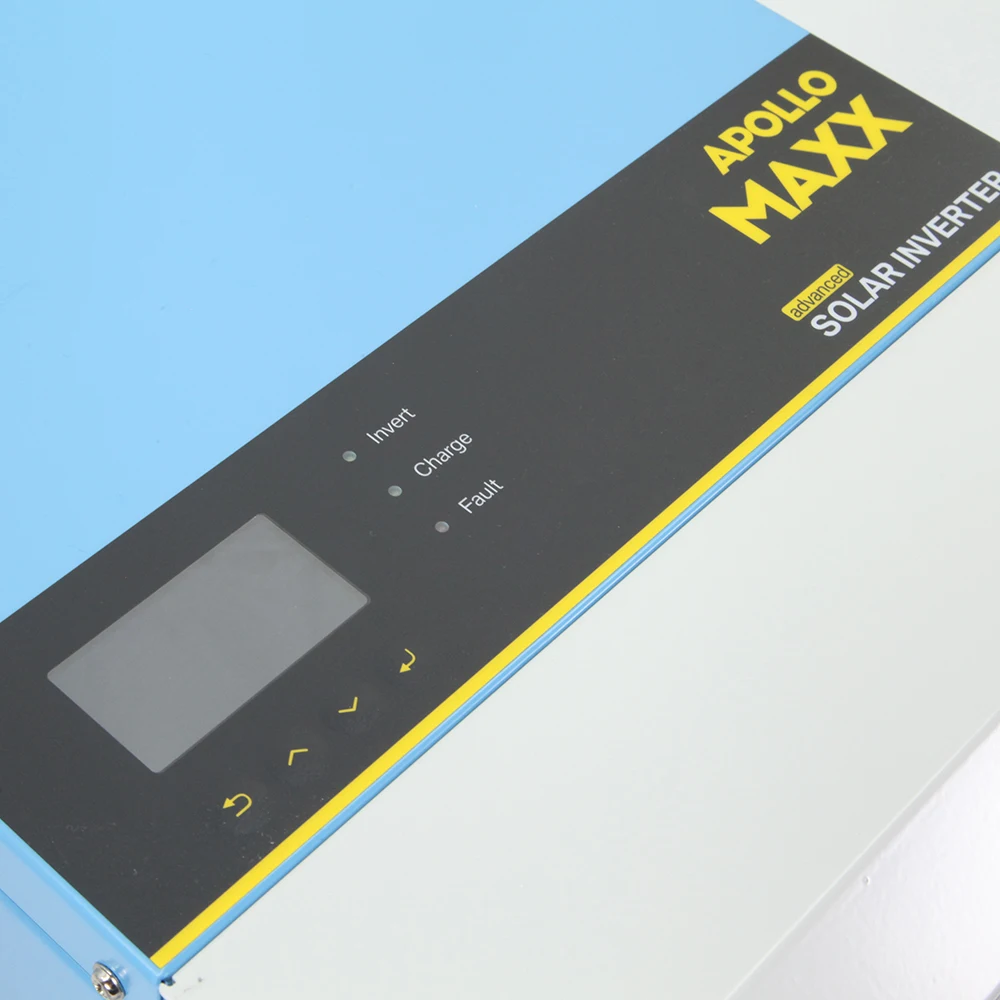

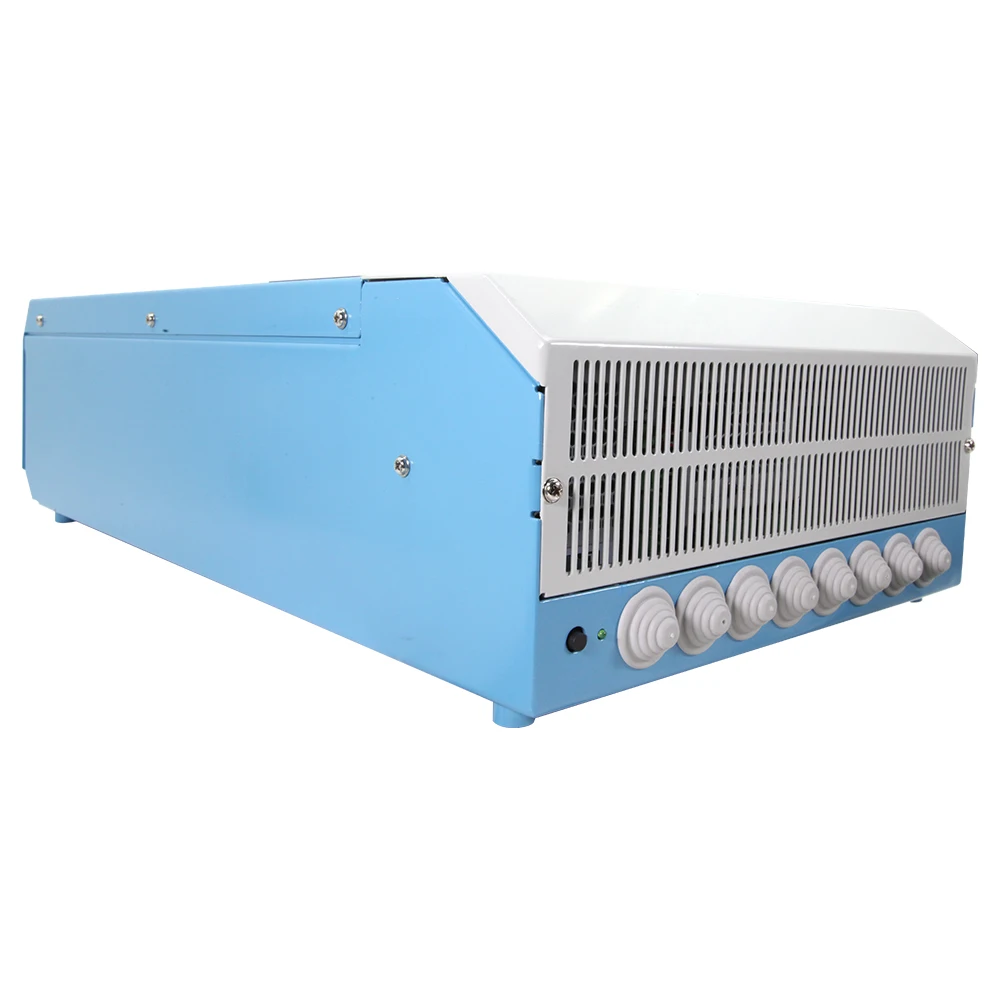

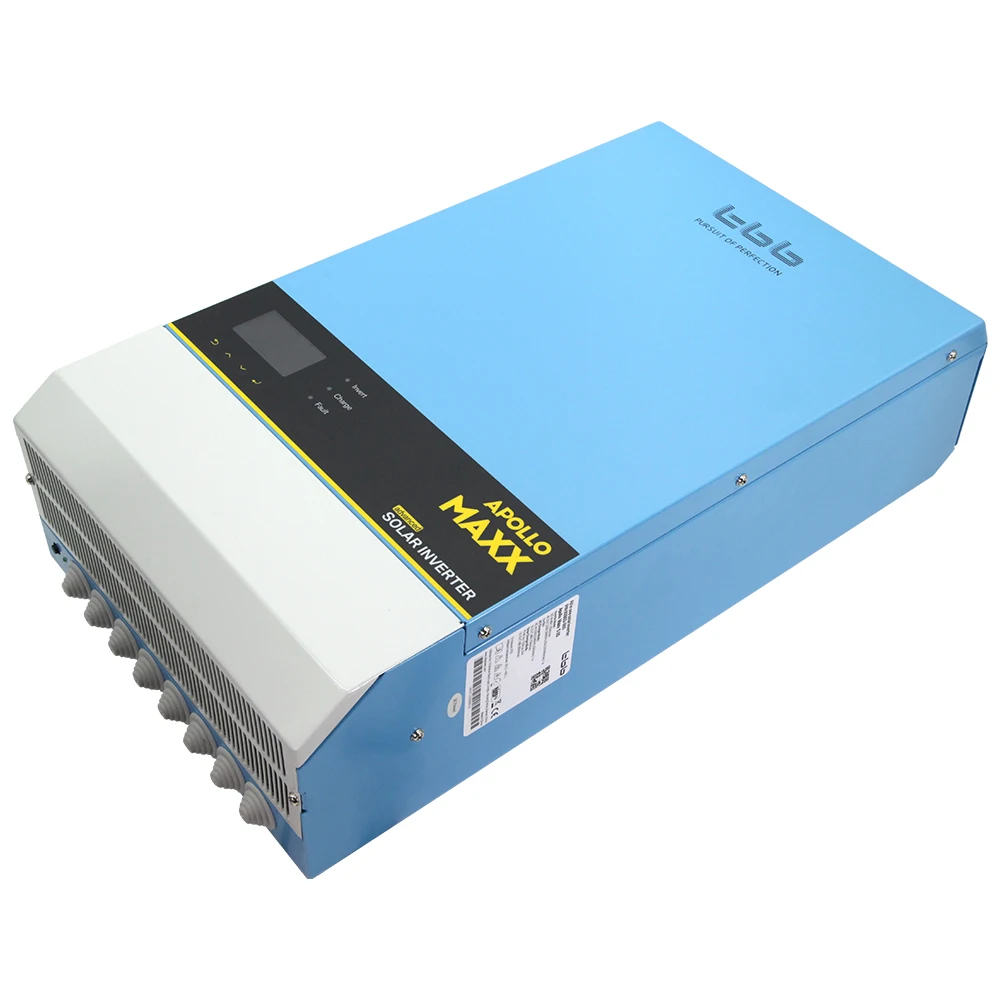

Apollo Maxx Introduction
Apollo Maxx is a powerful all in one solar inverter that integrates with multiple functions, including a high-performance true sine wave inverter, a powerful battery charger, a MPPT charge controller, a high-speed automatic transfer switch and two outputs for load management.
Apollo Maxx all in one solar inverter can be used in multiple applications. With a simple setting, you can compose a DC coupling system, power backup system or solar hybrid system.
Apollo Maxx all in one solar inverter can be used in multiple applications. With a simple setting, you can compose a DC coupling system, power backup system or solar hybrid system.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Apollo Maxx Advanced
24V/48V 2KW/3KW/5KW
Advanced all in one solar inverter
With parallel and three phase capability
1. Transformer base
2. Built-in MPPT
3. Load boost
4. Lithium battery compatible
5. Power assist and power control
6. 0ms Transfer Time
7. Poor generator compatible
8. WIFIGPRS remote monitoring
With parallel and three phase capability
1. Transformer base
2. Built-in MPPT
3. Load boost
4. Lithium battery compatible
5. Power assist and power control
6. 0ms Transfer Time
7. Poor generator compatible
8. WIFIGPRS remote monitoring
Schematic Diagram：
To make your system more intelligent, we have some optional useful accessories that can be integrated in to your systems, simple but really interesting.
1. Wireless Data Logger
(1) Data logging and accessing the internet server
(2) Available with Kinergy WIFl and Kinergy GPRS
(3) Access to NOVA online portal
(4) One stick can support one system with 6 pcs Kinergier Pro at max
(2) Available with Kinergy WIFl and Kinergy GPRS
(3) Access to NOVA online portal
(4) One stick can support one system with 6 pcs Kinergier Pro at max
2. Battery Guard devices --- BGK, Balancer, BGK-M
(1) Automatic battery equalizer for series connected batteries
(2) Significantly improve the battery life span
(3) Display battery voltage and temperature Over voltage and under voltage protection
(4) Over temperature alarm
(2) Significantly improve the battery life span
(3) Display battery voltage and temperature Over voltage and under voltage protection
(4) Over temperature alarm
3. Vision A7.
(1) Local 7'color touch screen
(2) Display Monitor and console with built in Bluetooth Access to NOVA online portal
(3) Multiple ways of internet connection: WIFl,GPRS,Ethernet option
(2) Display Monitor and console with built in Bluetooth Access to NOVA online portal
(3) Multiple ways of internet connection: WIFl,GPRS,Ethernet option
Benefit From NOVA
Comprehensive Monitoring
1. Live data and status overview
2. System configuration and parameter setting,updating
3. Daily logging with history record for production, consumption and storage
4. Social effect analysis,load management, battery SOH evaluation.
Dealer Intelligent Maintenance
1. Customized banner used to show dealer's information and slogan
2. Offer management for multiple installations
3. Maintenance team grouping and job arrangement
Efficient system maintenance to keep good relationship with customers
More details to click website: /nova.tbbpower.com
1. Live data and status overview
2. System configuration and parameter setting,updating
3. Daily logging with history record for production, consumption and storage
4. Social effect analysis,load management, battery SOH evaluation.
Dealer Intelligent Maintenance
1. Customized banner used to show dealer's information and slogan
2. Offer management for multiple installations
3. Maintenance team grouping and job arrangement
Efficient system maintenance to keep good relationship with customers
More details to click website: /nova.tbbpower.com
Specification
Model No. | Apollo Maxx 2.0M | Apollo Maxx 3.0M | Apollo Maxx 2.0S | Apollo Maxx 3.0S | Apollo Maxx 5.0S | |||||
Product Topology | Transformer based | |||||||||
Power Assist | Yes | |||||||||
Parallel & three phase | Yes | |||||||||
AC input voltage range(VAC) | 175~265 | |||||||||
AC input Frequency range(Hz) | 45~65 | |||||||||
AC input Current (transfer switch) (A) | 32 | 50 | ||||||||
Inverter | ||||||||||
Nominal battery voltage (V) | 24 | 48 | ||||||||
Input voltage range (V) | 21-34 | 42~68 | ||||||||
AC output voltage(VAC) | 220/230/240 ± 2% | |||||||||
AC output Frequency(Hz) | 50/60 ± 0.1% | |||||||||
Harmonic distortion | ＜2% | |||||||||
Load Power factor | 1.0 | |||||||||
Cont. output power at 25°C (VA) | 2000 | 3000 | 2000 | 3000 | 5000 | |||||
Max Output power at 25°C (W) | 2000 | 3000 | 2000 | 3000 | 5000 | |||||
Peak power (5 sec)(W) | 6000 | 9000 | 6000 | 9000 | 15000 | |||||
Surge | 300% | |||||||||
Maximum efficiency | 94% | 94% | 95% | 95% | 96% | |||||
Zero load power (W) | 11 | 14 | 11 | 14 | 21 | |||||
Charger | ||||||||||
Charge voltage 'absorption' (V) | 28.8 | 57.6 | ||||||||
Charge voltage 'float' (V) | 27.6 | 55.2 | ||||||||
Battery types | AGM / GEL / OPZV / Lead-Carbon / Li-ion / Flooded/Traction/TBB SUPER-L | |||||||||
Max AC charge current (A) | 50 | 80 | 25 | 40 | 70 | |||||
Temperature compensation | Yes | |||||||||
Solar Charge Controller | ||||||||||
Max output current(A) | 60 | 60 | 60 | 60 | 60 | |||||
Maximum PV power(W) | 2000 | 2000 | 4000 | 4000 | 6000 | |||||
PV open circuit voltage (V) | 150 | 150 | 150 | 150 | 150 | |||||
MPPT voltage range(V) | 65~145 | |||||||||
Charge voltage 'absorption' (V) | 28.8 | 57.6 | ||||||||
Charge voltage 'float' (V) | 27.6 | 55.2 | ||||||||
MPPT charger maximum efficiency | 98% | 98% | ||||||||
MPPT efficiency | ＞99.5% | ＞99.5% | ||||||||
Protection | a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) input voltage out of range | |||||||||
General data | ||||||||||
Main Output (AC Out1) Current (A) | 32 | 50 | ||||||||
Auxiliary Output (AC Out2) Current (A) | 32 | |||||||||
Transfer time | Yes | |||||||||
Programmable relay | 2x | |||||||||
Protection | a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) input voltage out of range g) input voltage ripple too high h) Fan block | |||||||||
CAN Bus communication port | For three phase operation, remote monitoring and system integration | |||||||||
General purpose com. Port | RS485 (GPRS，WLAN optional with kinergy) | |||||||||
Operating temperature range | -20˚C to 65˚C | |||||||||
Relative humidity in operation | 95% without condensation | |||||||||
Altitude (m) | 2000 | |||||||||
Mechanical Data | ||||||||||
Dimension (mm) (max) | 499*272*145 | 560*310*155 | ||||||||
Net Weight (kg) | 17 | 20 | 17 | 20 | 32 | |||||
Cooling | Forced fan | |||||||||
Protection index | IP21 | |||||||||
Standards | ||||||||||
Safety | EN-IEC 62477-1, EN-IEC 62109-1,EN-IEC 62109-2 | |||||||||
EMC | EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-3-11,EN61000-3-12 | |||||||||
