Techfine 10 ква ЖК-дисплей солнечный инвертор 8 кВт Чистая синусоида 220В 10ква 48В
- Категория: Солнечные инверторы >>>
- Поставщик: Guangdong,Techfine,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 530.27 $* | 541.22 $* |
| Jul-16-2025 | 430.23 $* | 439.82 $* |
| Jun-16-2025 | 521.7 $* | 531.89 $* |
| May-16-2025 | 517.74 $* | 527.84 $* |
| Apr-16-2025 | 413.61 $* | 421.34 $* |
| Mar-16-2025 | 509.22 $* | 519.59 $* |
| Feb-16-2025 | 505.46 $* | 515.31 $* |
| Jan-16-2025 | 500.93 $* | 510.51 $* |
Характеристики
Why Choose Us
★20 YEARS industrial experience with three production bases in China & Malaysia. Owns advanced equipment and instruments and builds Automatic production line.
★Optional MPPT/PWM solar charge controller 60A, MPPT Efficiency max 98%.
★DC Start & Automatic Self-Diagnostic Function.
★Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
★Automatic equipment production: stan dardizied quality、high efficiency production.
★Optional MPPT/PWM solar charge controller 60A, MPPT Efficiency max 98%.
★DC Start & Automatic Self-Diagnostic Function.
★Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.

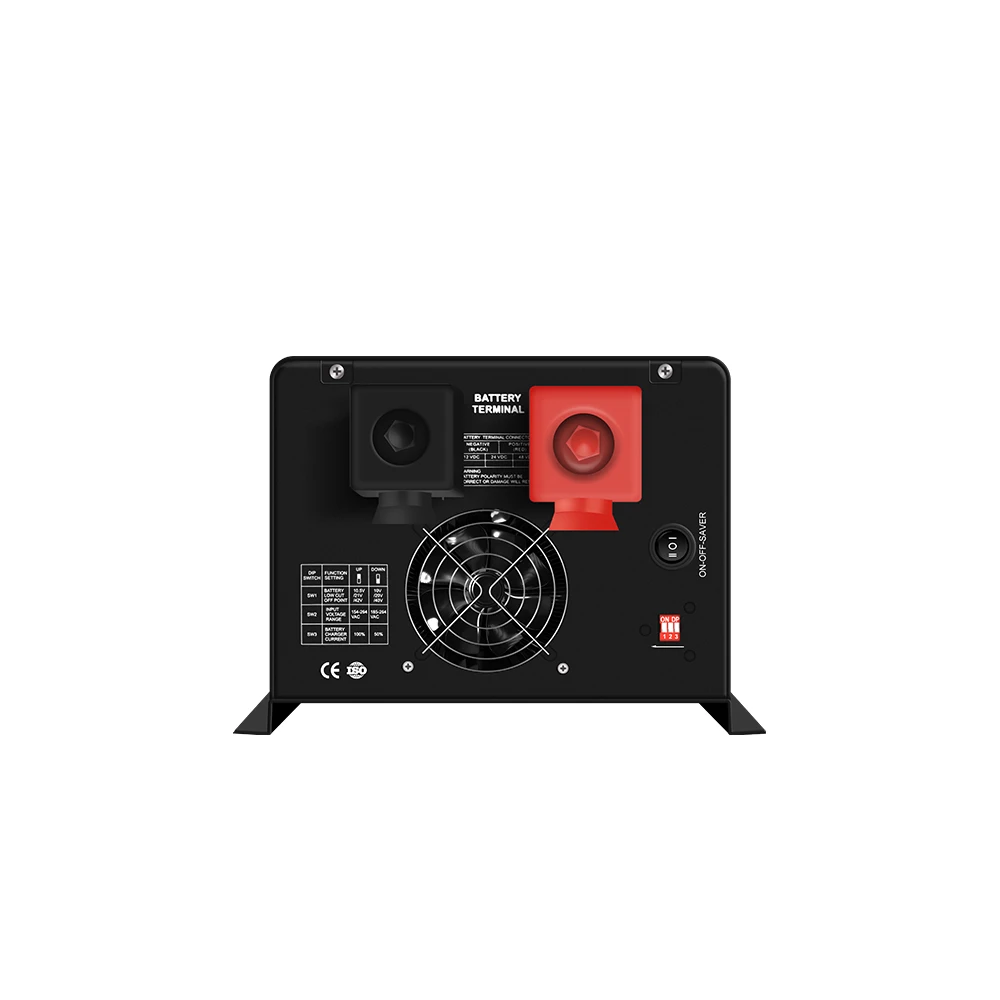

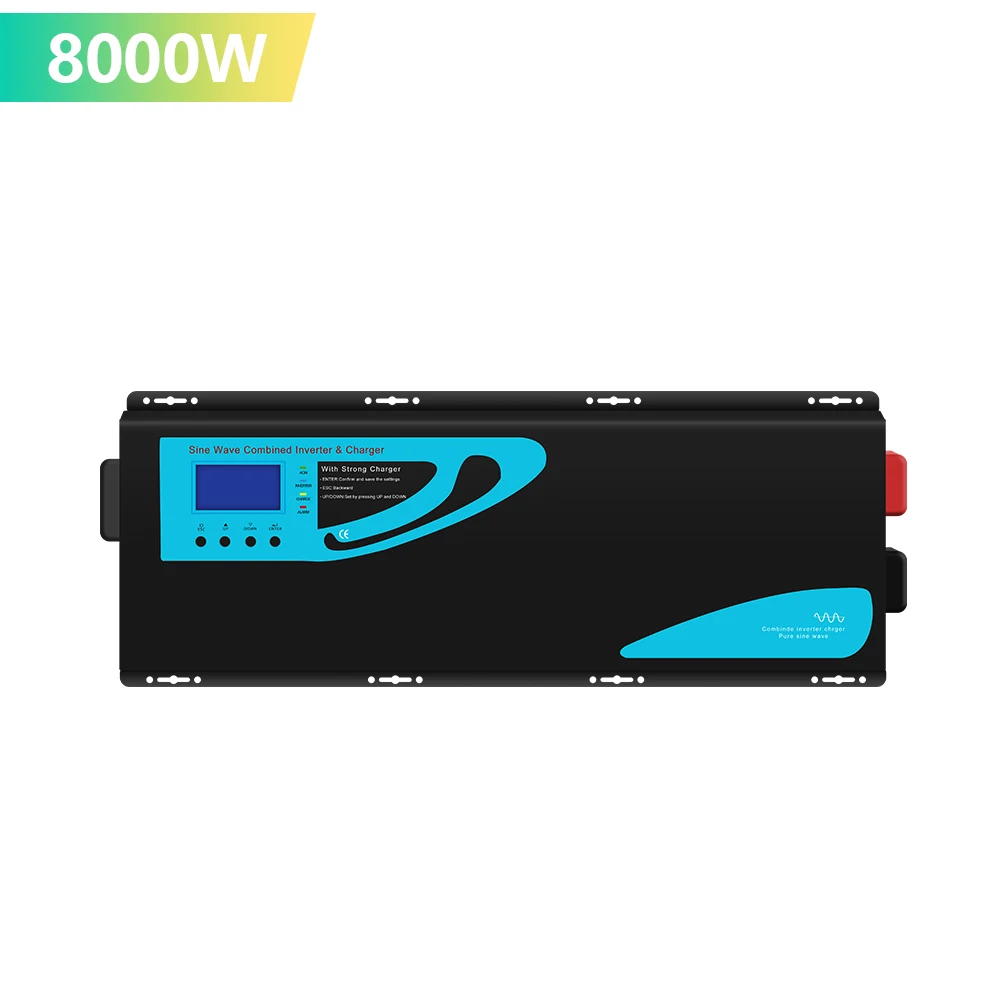

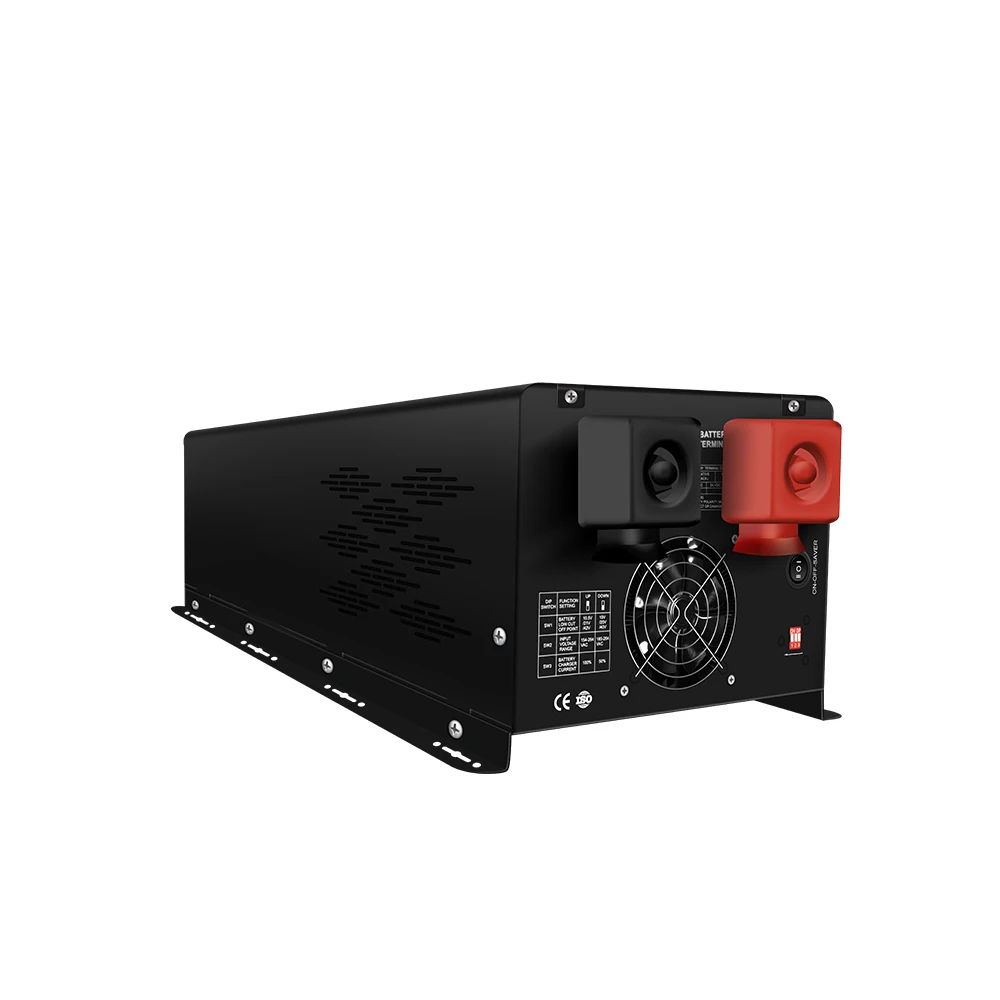

Product Detail
Product Paramenters
Model | WF6048 | WF8048 | WF10048 | ||
Input Power | 6000VA | 8000VA | 10000VA | ||
Input Nominal Voltage | 220VAC | ||||
Range of Input Voltage | 154-264VAC ± 3V （Normal Mode) 185-264 ± 3V (UPS Model) | ||||
Input frequency | 50/60Hz±5% | ||||
Output Rated Power | 4800W | 6400W | 8000W | ||
AC Output Voltage | The output voltage under AC is the same as the input voltage | ||||
AC output frequency | The output voltage frequency under AC is the same as the input frequency | ||||
Output Voltage under INV Mode | 220VAC±10% | ||||
Output frequency under INV mode | 50/60HZ±1% | ||||
Output Waveform under INV Mode | Pure Sine Wave | ||||
Battery type | External lead acid battery or water battery | ||||
Battery voltage | 48VDC | 48VDC | 48VDC | ||
Battery Charging Voltage | 54VDC | 54VDC | 54VDC | ||
Maximum AC Charging Current | 26A | 44A | 55A | ||
Range of Battery Charging Voltage | 140-280VAC | ||||
Transfer Time | ≤10ms(UPS mode)/≤20ms (INV mode) | ||||
Load peak ratio | （MAX)3:1 | ||||
Static power（W） | 31W | 32W | 33W | ||
Protection function | Input overcurrent air switch protection under AC mode | ||||
overload protection, short circuit protection, low voltage protection, (battery reverse connection insurance) under INV mode | |||||
Status display | Dot matrix fine screen plus LED display | ||||
Through the page key, you can view the AC voltage, AC frequency, PV voltage, PV current, output voltage, output frequency, battery voltage, load current and other parameters. | |||||
LED display mains, charging status, inverter status, fault status | |||||
Audible alarm | Low battery protection-continuous beeping | ||||
Low battery protection-1 second beeping | |||||
Overload-continuous beeping | |||||
Overload less than 130%-1 second beeping and shutdown the output after 30 seconds; Overload more than 150%,shutdown the output after 300ms | |||||
Malfunction-continuous beeping | |||||
Working temperature | 0℃~40℃ | ||||
Storage temperature | —15℃~45℃ | ||||
Relative humidity | —10℃~90℃Non condensing | ||||
Accoustic Noise(db) | ＜45dB | ||||

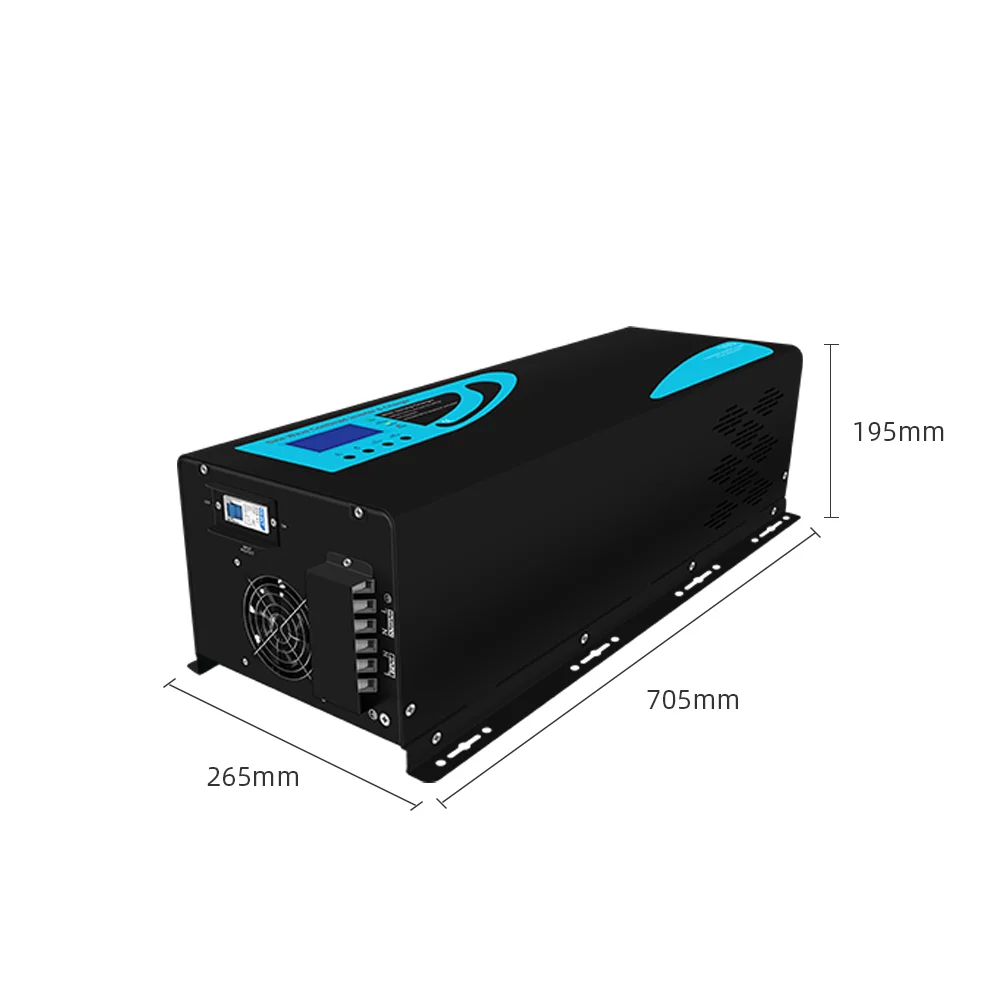

Dimension（L*W*H)mm | 705*265*195 | ||||
Weight （kg） | 35.7 | 42.7 | 44 | ||
Company Profile
20+ years rich experience professional
50+ Engineers , strong R&D
100+patent , countries and regions use TECHFINE products
400+ Employees
4000+ sets of solar system supplyed by TECHFINE
27000+ square meter factory area

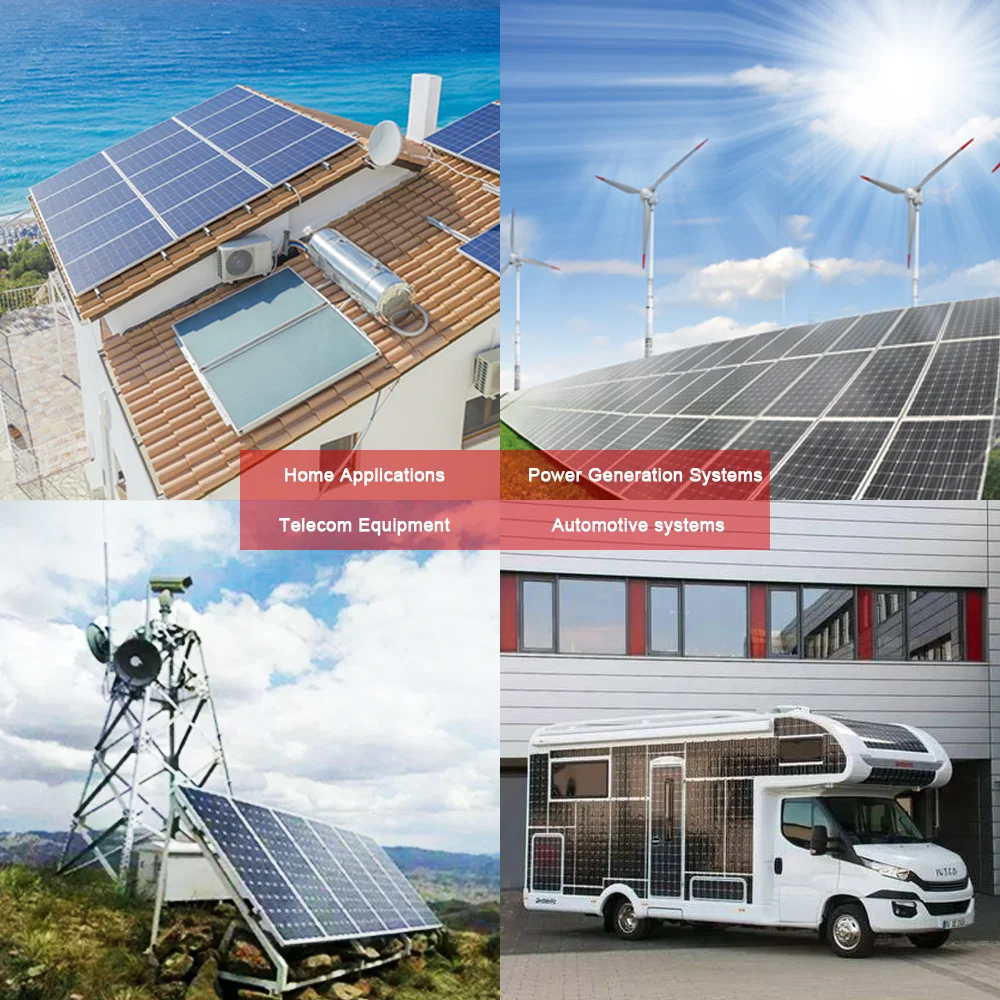

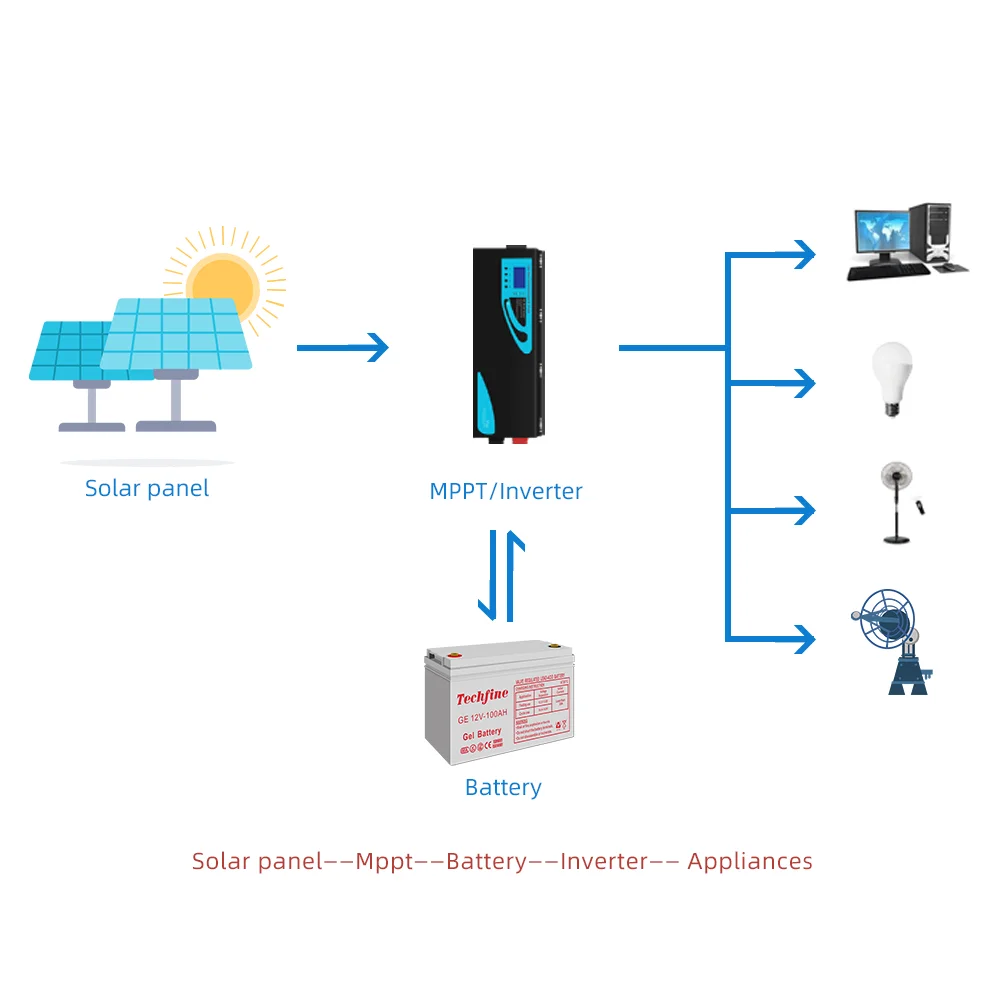

Application
Packing & Delivery
More Products
FAQ
Q1:May I take some samples to test before placing the order ?
A1:Yes, welcome to take some sample to test!
Q2:How about the delivery time?
A2:7 days for sample; 25 days for bulk order.
Q3:What is the warranty of the controller?
A3:1 years warranty.
Q4:How to solve the technical problems?
A4:24 hours after-service consultancy just for you and to make your problem to be solved easily.
Q5:What payment methods do your company support?
A5:T/T, Western Union, Paypal, L/C etc.
Q6:What are the price terms can you offer for us?
A6:We can accept EXW, FOB, CIF and so on.
Q7:Do you have any certifications for your products?
A7:We have ISO9001:2000, CE, RoHS, certificates for all of our products.
Q2:How about the delivery time?
A2:7 days for sample; 25 days for bulk order.
Q3:What is the warranty of the controller?
A3:1 years warranty.
Q4:How to solve the technical problems?
A4:24 hours after-service consultancy just for you and to make your problem to be solved easily.
Q5:What payment methods do your company support?
A5:T/T, Western Union, Paypal, L/C etc.
Q6:What are the price terms can you offer for us?
A6:We can accept EXW, FOB, CIF and so on.
Q7:Do you have any certifications for your products?
A7:We have ISO9001:2000, CE, RoHS, certificates for all of our products.
