Автоматическая упаковочная машина для древесных гранул многоцелевая установка производства на
- Категория: Wood Pellet Mill >>>
- Поставщик: Anyang,Gemco,Energy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 35700.31 $* | 37485.65 $* |
| Aug-16-2025 | 35400.5 $* | 37170.66 $* |
| Jul-16-2025 | 29700.63 $* | 31185.99 $* |
| Jun-16-2025 | 34800.84 $* | 36540.65 $* |
| May-16-2025 | 30300.45 $* | 31815.59 $* |
| Apr-16-2025 | 34200.31 $* | 35910.49 $* |
| Mar-16-2025 | 33900.75 $* | 35595.70 $* |
| Feb-16-2025 | 33600.85 $* | 35280.71 $* |
| Jan-16-2025 | 33300.39 $* | 34965.11 $* |
Характеристики
automatic wood pellet packing machine biomass power plant wood pellet mutipurpose/wood pellet making

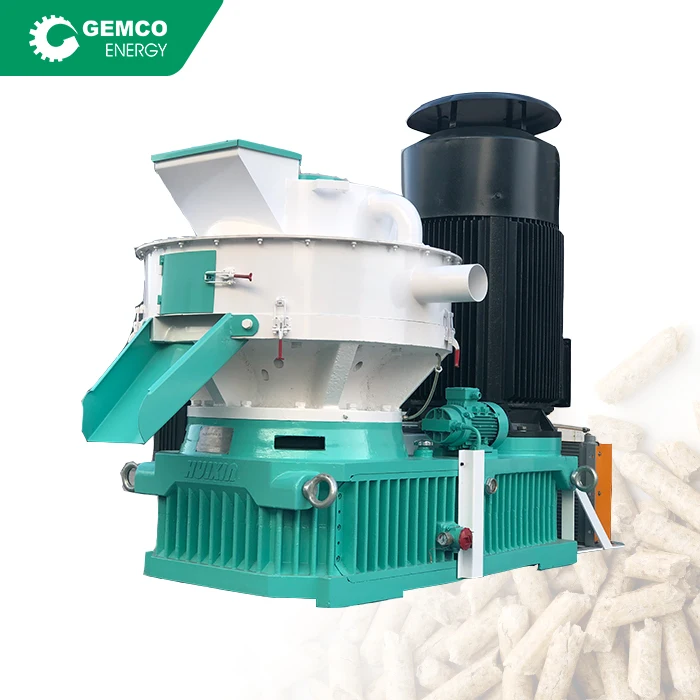

This vertical ring die automatic wood pellet packing machine from Gemco Machinery adopts unique “4-8 rollers” structure design, which greatly increasing the press rate and pellet production. The pellets are extruded out from inside. Process of pellets manufacturing combines centrifugal force with extrusion, increasing output while ensuring the hardness and density of final biomass pellets. The pressing die is based on "Vertical Double Layer" design.
Product Details
Parameters of this animal Biomass Pelletizer
| Model | Capacity (kg/h) | Power (kw) | Dimension (mm) | Weight (kg) |
| VPM630-55 | 800~1000 | 55 | 2133*920*1389 | 2586 |
| VPM630-75 | 1000~1500 | 75 | 2400*1300*1800 | 2908 |
| VPM630-90 | 1500~2000 | 90-110 | 1800*1100*1700 | 3780 |
Application: Making wood pellets for burning purpose
Raw Material: All biomass material including hard biomass material and lightweight biomass material such as pine, tree branches, polar, birch. wood chips, sawdust, bamboo shavings, coffee husks, wheat straw, peanut shell, corn stalk, sugarcane bagasse, palm fiber, etc.
Click Now for Catalogs & Factory Price!
Characteristics of automatic wood pellet packing machine
Motor of this automatic wood pellet packing machine is equipped with anti-lightening cover and bearing seat, ensuring its safety; Automatic hydraulic circulating oil system and vertical motor design help the automatic wood pellet packing machine run with greater power and stability.
Sets of roller assembly enchances operation of the biomass power plant wood pellet machine; Lenth of pellet can be adjusted by the cutter, and the final pellet from this biomass power plant wood pellet machine is finished via secondary molding; Special designed belt running with first gear stage ensures maximum energy transfer, and second gear stage with transmission ratio of 100rpm comes more resonable.
This biomass power plant wood pellet machine adopts Cast steel machine head and carbon steel die, which brings long service life.
The ring die of Gemco biomass power plant wood pellet machine is of quick-discharge holding type, feeding is controlled by the changeable frequency speed controlling system to make sure even feeding; The door plate is equipped with strong feeder from the advanced compensating snake type spring coupling, thus this Wood Pellet Machine features in compact structure, low noise and low trouble performance.
Main drive in the animal Biomass Pelletizer adopts high accurate gear drive, with an output of about 20% higher than belt drive, and the die of Ring Die Biomass Wood Pellet Machine adopts the quick removing clamps.
The ring die animal Biomass Pelletizer use double motor drive, with the character of high strength SPB belt, stable working, low noise.
Stainless steel feeder with the animal pellet mill machine, imported inverter control, feeding evenly, corectly.
Full Stainless steel strengthening feed conditioner in the animal Biomass Pelletizer, it can keep steam contact with raw material completely, and the pellet mill machine has the big opening window for checking and cleaning.
The alloy steel die of the poultry Biomass Pelletizer is made by international advanced German gun drill and American vacuum furnace, has long service life and ensure smoothly pelletizing and high quality.
The size comfirmed by customer, the Biomass Pelletizer can produce different sizes of feed pellet.
Workflow of Complete mutipurpose/wood pellet making machines Line
This Pellet Making Machine is widely used in Wood Pellet Machine Line.
How do we pack the mutipurpose/wood pellet making machines ?
Click Now for Catalogs & Factory Price!
Our automatic wood pellet packing machine service
Pre-Sales Service
- Inquiry and consulting support.
- Sample testing support.
- View our Factory.
After-Sales Service
- Training how to install the Biomass Pelletizer, training how to use the machine.
- Engineers available to service machinery overseas.
Certifications & Customers
