Вращающаяся печь из оксида кальция с хорошей вращающейся печи для продажи в Азию Индию и т.
- Категория: Оборудование с барабаном для сушки >>>
- Поставщик: Henan,Winnermac,Heavy,Industrial,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 11545.39 $* | 12122.45 $* |
| Aug-18-2025 | 11448.33 $* | 12020.16 $* |
| Jul-18-2025 | 9605.55 $* | 10085.30 $* |
| Jun-18-2025 | 11254.20 $* | 11817.83 $* |
| May-18-2025 | 9799.70 $* | 10289.65 $* |
| Apr-18-2025 | 11060.55 $* | 11613.6 $* |
| Mar-18-2025 | 10963.73 $* | 11511.87 $* |
| Feb-18-2025 | 10866.21 $* | 11409.10 $* |
| Jan-18-2025 | 10769.28 $* | 11307.30 $* |
Характеристики
Product Description

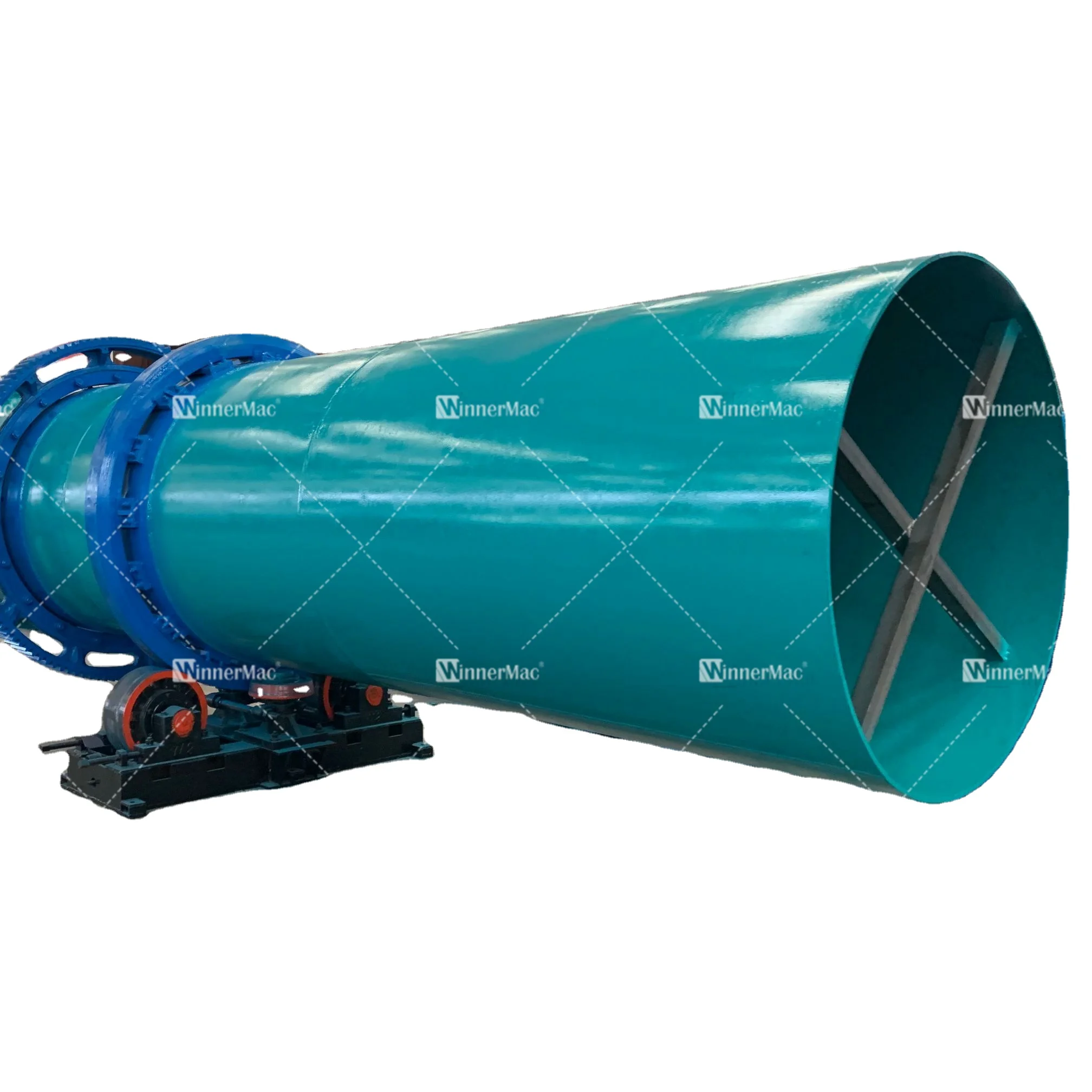

Product Application of rotary dryer
Drum drying equipment is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness
of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the
cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to
dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral
conveyor under the blade, and are conveyed, collected and packed.
of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the
cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to
dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral
conveyor under the blade, and are conveyed, collected and packed.
Features
1. High heat efficiency. The principle of heat transfer of the cylinder dryer is heat conduction and the conducting direction
keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for
evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2. Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted, such as concentration of
feeding liquid/thickness of material film, temperature of heating medium, rotating speed of the drum etc. which can change drying
speed of the under dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and
makes it applicable to dry various materials and to meet different requirements of production.
3. Short drying period. The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive
materials. It also can be pressure reducing operated if it is put in vacuum vessel.
keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for
evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2. Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted, such as concentration of
feeding liquid/thickness of material film, temperature of heating medium, rotating speed of the drum etc. which can change drying
speed of the under dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and
makes it applicable to dry various materials and to meet different requirements of production.
3. Short drying period. The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive
materials. It also can be pressure reducing operated if it is put in vacuum vessel.
Specification
Specifications | φ2.0*4 | φ2.5*5 | φ3.0*6 | φ3.6*8 | |||
Diameter(mm) | 2000 | 2500 | 3000 | 3600 | |||
Length(m) | 4 | 5 | 6 | 8 | |||
Volume(m3) | 12. 6 | 24.5 | 42.4 | 81.4 | |||
Shovelling plate | spiral type | ||||||
Fill rate | 10-20% | ||||||
Material | refractory steel/stainless steel | ||||||
Temperature available | ≤700C° | ||||||
Evaporation | 20-80Kg water/m3.h | ||||||
Heating system | downstream/direct heat | ||||||
Heat source | coal,gasoline,electricity,biofuels etc | ||||||
Revolving speed | 4-10 r/min | ||||||
Power | 5.5 Kw | 11 Kw | 15 Kw | 22 Kw | |||
Support equipment | conveyor,airheater,separator,dust collector,draught fan etc. | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
