Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Рука кормления преформ автоматические выдувные машины для пластиковых
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Zhejiang,Leeny,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 22610.47 $* | 23741.19 $* |
| Aug-18-2025 | 22420.50 $* | 23541.65 $* |
| Jul-18-2025 | 18810.7 $* | 19751.27 $* |
| Jun-18-2025 | 22040.98 $* | 23142.16 $* |
| May-18-2025 | 19190.81 $* | 20150.11 $* |
| Apr-18-2025 | 21660.10 $* | 22743.34 $* |
| Mar-18-2025 | 21470.45 $* | 22544.59 $* |
| Feb-18-2025 | 21280.88 $* | 22344.21 $* |
| Jan-18-2025 | 21090.56 $* | 22145.98 $* |
Характеристики
Product Paramenters

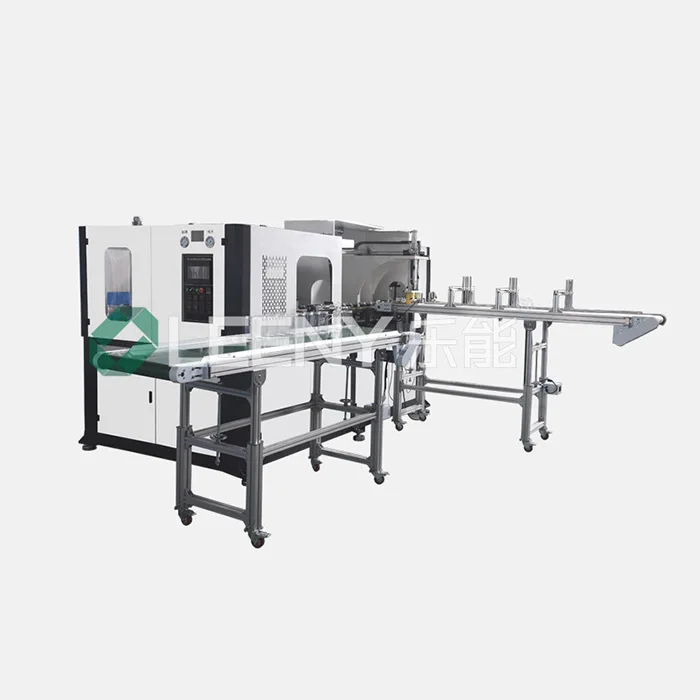

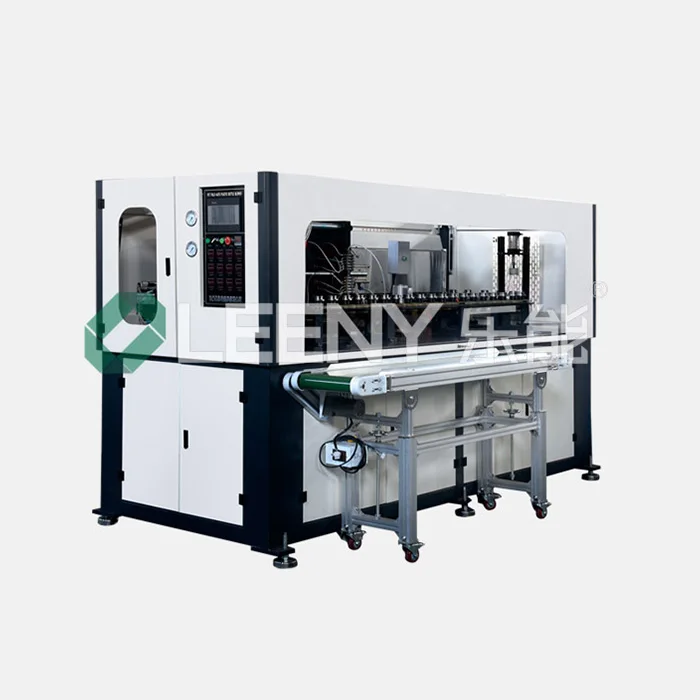

Hand feeding PET blowing machine
H2 is hand feeding wide-neck PET jar blow molding machine.It’s best choise for wide-mouth/big neck PET jar/PET can. H series bottle blowing machine is a professional equipment designed for cosmetic bottles, daily-chemical bottles,special-shaped bottles,small-quantity conventional bottles,which is simple to operate and has a wide range of applications.It is suitable for various diameter of PET bottles for various purposes.H series bottle blowing machine is not equipped with auto-loader.It is by manual.It is stable and reliable,with low cost,safe and practical alternative to traditional semi-automatic equipment.
project | LEENY-2000-2 | LEENY-2000-3 | LEENY-2000-4 |
Theoretical output | 2000 | 3000 | 4000 |
Maximum capacity of bottle | 2L | 2L | 2L |
Maximum outer diameter of bottle mouth | 110mm | 110mm | 110mm |
The maximum diameter of the bottle | 110mm | 110mm | 80mm |
Maximum height of the bottle | 320mm | 335mm | 320mm |
Number of cavities | 2 | 3 | 4 |
Number of lamps | 40 | 50 | 60 |
Maximum heating power | 60kw | 75kw | 90kw |
Machine installed total power | 65 | 82 | 97 |
Actual power consumption | 35kw | 40kw | 47kw |
Working low pressure | 0.7Mpa | 0.7Mpa | 0.7Mpa |
Low-pressure gas consumption | 1400Lre/min | 2000Ltr/min | 2000Ltr/min |
Blowing bottle high pressure | 3.5Mpa | 3.5Mpa | 3.5Mpa |
High-pressure gas consumption | 3500Ltr/min | 5250Lte/min | 5000Ltr/min |
Chiller pressure | 0.3-0.5Mpa | 0.3-0.5Mpa | 0.3-0.2Mpa |
temperature range | 10.C | 10.C | 10.C |
consumption | 30L/min | 40L/min | 40L/min |
Machine size | 2.7X1.8X2.2m | 3.6x2x2.2m | 4.5x2.2x2.2m |
Machine weight | 3500T | 4800T | 5500T |
Features of this machine:
1.Wide versatility, suitable for a variety of diameters and shapes, especially for daily-chemical products.
2.Without auto-loader, update and change preform more quickly.
3.High safety,no contact with mould-clamping and high-pressure blowing units,away from dangerous areas.
4.Low labor intensity.
5.With advanced PLC control system,excellent performance and stability.

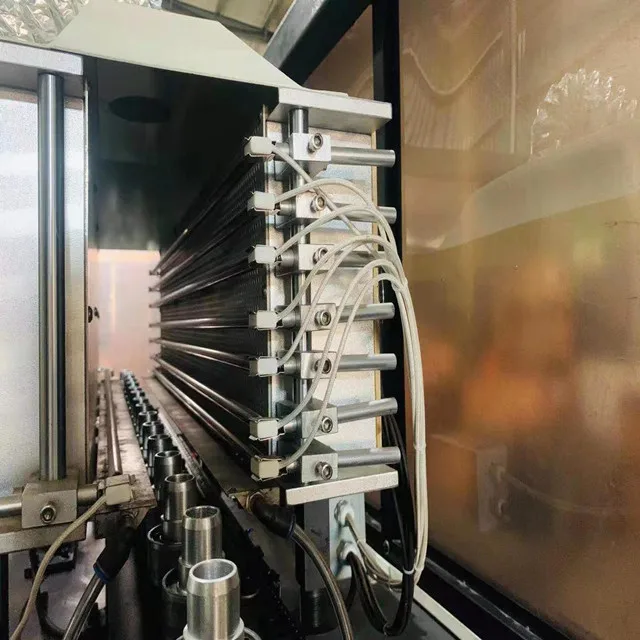

6.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.
7.Safety locking device in every mechanical action to protect operator's safety.
8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.
9.Use air cylinder instead of hydraulic cylinder, low pollution, low noise.
10.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.
11.With both automatic and manual operation method.
12.Avoid bottle contamination,easy to install and start.
13.Low scrap rate.
