Инвертор Solis 5 k кВт инвертор Hybrid Mppt для системы
- Категория: Solar Energy Products >>>
- Поставщик: Bluesun,Ess,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 740.64 $* | 755.42 $* |
| Jul-19-2025 | 600.73 $* | 612.14 $* |
| Jun-19-2025 | 729.72 $* | 744.98 $* |
| May-19-2025 | 723.92 $* | 737.87 $* |
| Apr-19-2025 | 577.72 $* | 589.92 $* |
| Mar-19-2025 | 711.13 $* | 725.93 $* |
| Feb-19-2025 | 705.11 $* | 719.16 $* |
| Jan-19-2025 | 700.1 $* | 714.5 $* |
Характеристики
Product Description

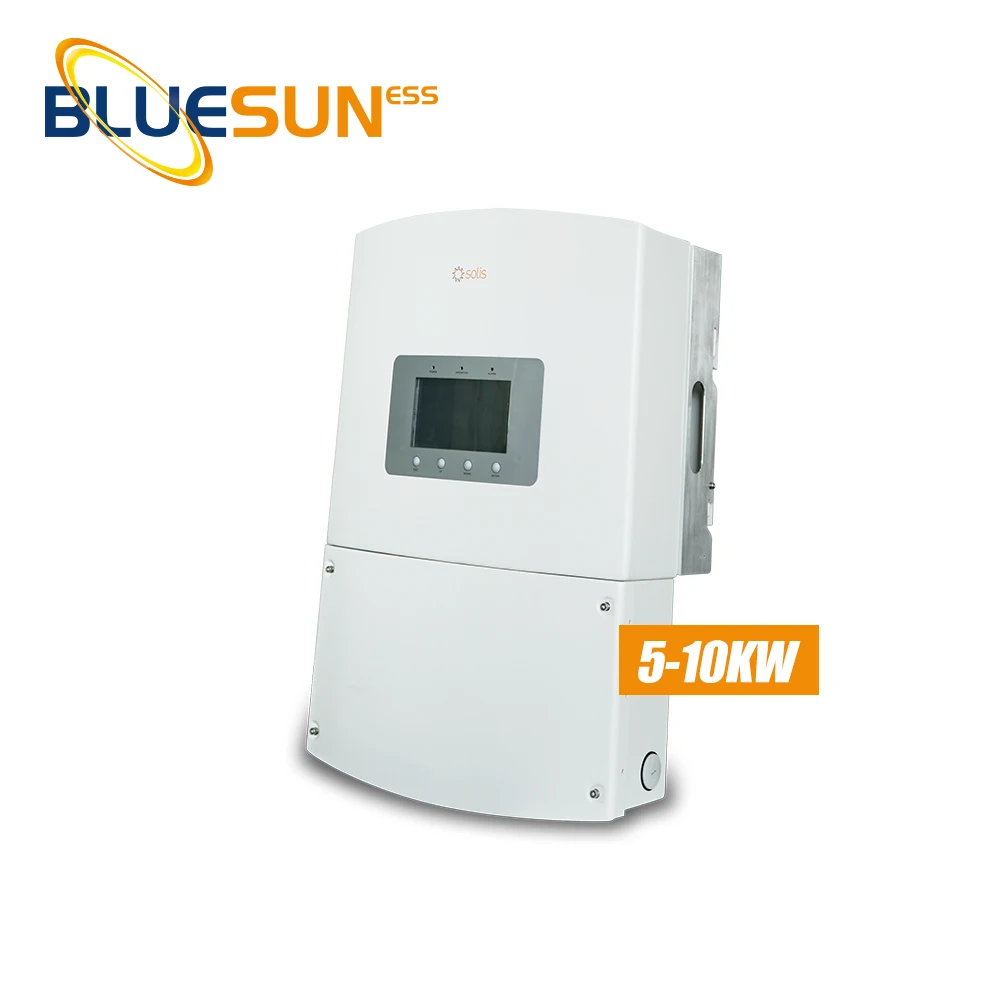

Solis Single Phase Inverters
Solis 4G Single Phase Inverters integrate DRM and backflow power control function, that
could suitable for smart grid requirement.
Single phase 4G series inverter contain 7 models which are listed below:
Solis-1P2.5K-4G, Solis-1P3K-4G, Solis-1P3.6K-4G, Solis-1P4K-4G,
Solis-1P4.6K-4G, Solis-1P5K-4G,Solis-1P6K-4G
could suitable for smart grid requirement.
Single phase 4G series inverter contain 7 models which are listed below:
Solis-1P2.5K-4G, Solis-1P3K-4G, Solis-1P3.6K-4G, Solis-1P4K-4G,
Solis-1P4.6K-4G, Solis-1P5K-4G,Solis-1P6K-4G
Technical Specifications
Model Name | Solis-1P2.5K-4G | Solis-1P3K-4G | Solis-1P3.6K-4G | Solis-1P4K-4G | Solis-1P4.6K-4G | Solis-1P5K-4G | Solis-1P6K-4G | |||||||||
Input DC | ||||||||||||||||
Recommended max. PV power | 3kW | 3.5kW | 4.2kW | 4.6kW | 5.3kW | 5.8kW | 6.6kW | |||||||||
Max. input voltage | 550V | 600V | ||||||||||||||
Rated voltage | 250V | 330V | ||||||||||||||
Start-up voltage | 60V | 120V | ||||||||||||||
MPPT voltage range | 50-450V | 90-520V | ||||||||||||||
Max. input current | 11A/11A | |||||||||||||||
Max. short circuit current | 17.2A/17.2A | |||||||||||||||
MPPT number/Max. input strings number | 2/2 | |||||||||||||||
Output AC | ||||||||||||||||
Rated output power | 2.5kW | 3kW | 3.6kW | 4kW | 4.6kW | 5kW | 6kW | |||||||||
Max. apparent output power | 2.8kVA | 3.3kVA | 4kVA | 4.4kVA | 5kVA | 5kVA | 6kVA | |||||||||
Max. output power | 2.8kW | 3.3kW | 4kW | 4.4kW | 5kW | 5kW | 6kW | |||||||||
Rated grid voltage | 1/N/PE, 220/230V | |||||||||||||||
Rated grid frequency | 50/60Hz | |||||||||||||||
Rated grid output current | 11.4A/10.9A | 13.6A/13.0A | 16.0A/15.7A | 18.2A/17.4A | 20.9A/20.0A | 22.7A/21.7A | 27.3A | |||||||||
Max. output current | 13.3A | 15.7A | 16.0A | 21.0A | 23.8A | 25.0A | 27.3A | |||||||||
Power Factor | >0.99 (0.8 leading - 0.8 lagging) | |||||||||||||||
THDi | <3% | |||||||||||||||
Efficiency | ||||||||||||||||
Max. efficiency | 97.8% | 98.1% | ||||||||||||||
EU efficiency | 97.1% | 97.3% | ||||||||||||||
Protection | ||||||||||||||||
DC reverse-polarity protection | Yes | |||||||||||||||
Short circuit protection | Yes | |||||||||||||||
Output over current protection | Yes | |||||||||||||||
Surge protection | Yes | |||||||||||||||
Grid monitoring | Yes | |||||||||||||||
Anti-islanding protection | Yes | |||||||||||||||
Temperature protection | Yes | |||||||||||||||
Integrated DC switch | Optional | |||||||||||||||
General Data | ||||||||||||||||
Dimensions (W*H*D) | 310*543*160 mm | |||||||||||||||
Weight | 11.5kg | |||||||||||||||
Topology | Transformerless | |||||||||||||||
Self consumption | <1W (night) | |||||||||||||||
Operating ambient temperature range | -25 ~ +60°C | |||||||||||||||
Relative humidity | 0-100% | |||||||||||||||
Ingress protection | IP65 | |||||||||||||||
Cooling concept | Natural convection | |||||||||||||||
Max. operation altitude | 4000m | |||||||||||||||
Grid connection standard | VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727 | |||||||||||||||
Safety/EMC standard | IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3 | |||||||||||||||
Features | ||||||||||||||||
AC connection | Quick connection plug | |||||||||||||||
Display | LCD | |||||||||||||||

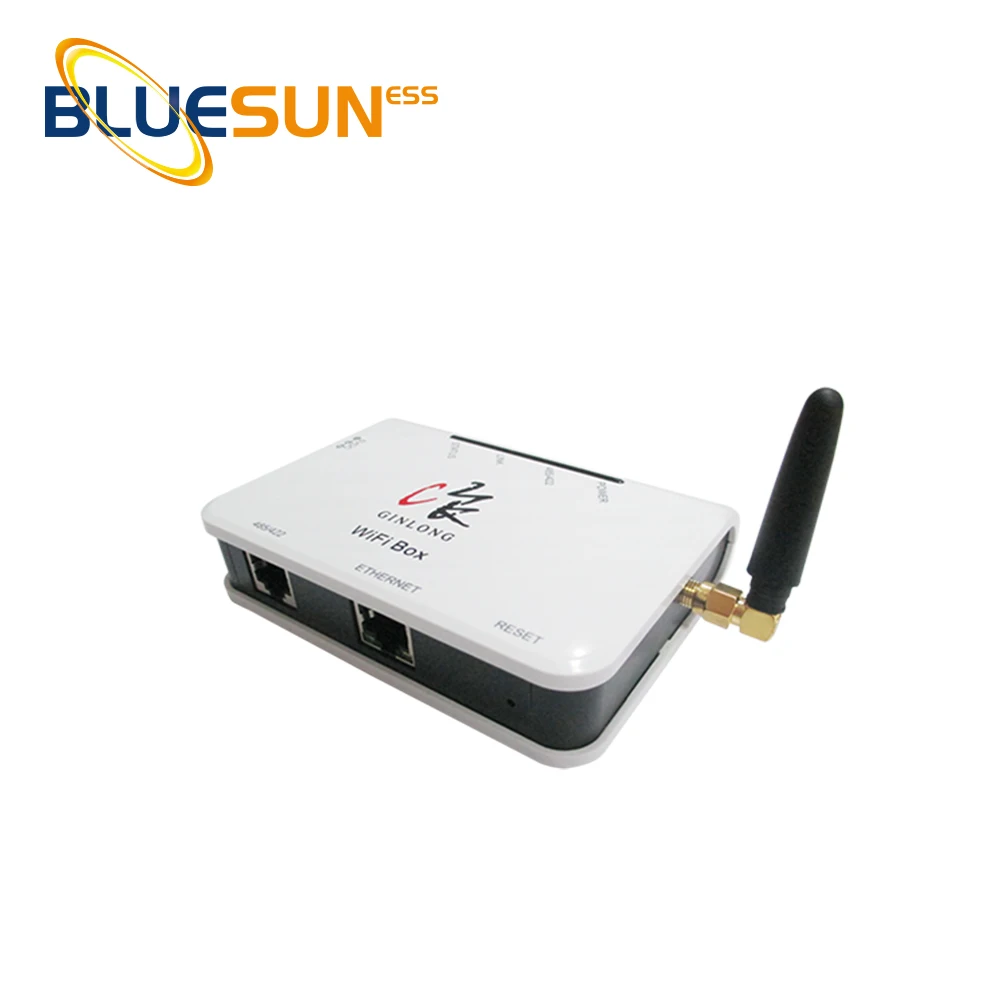

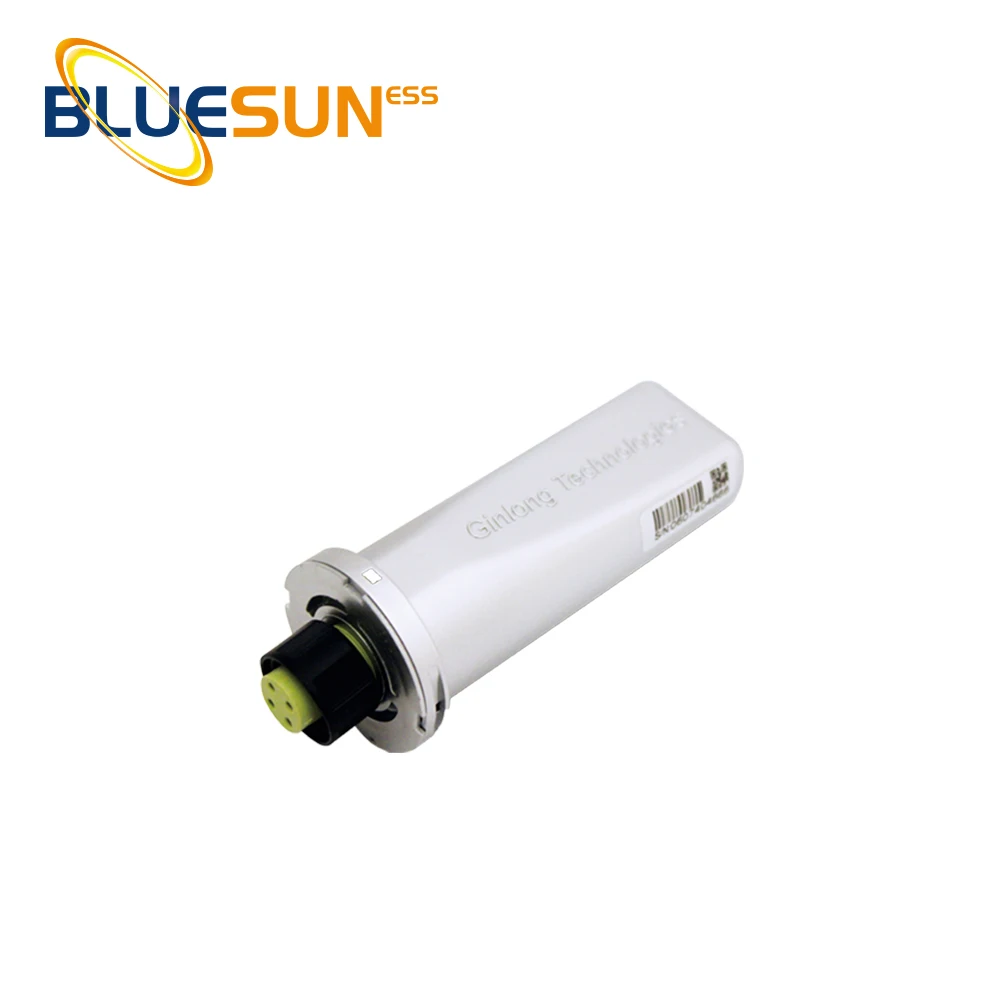

Communication | RS485, Optional: Wi-Fi, GPRS | |||||||||||||||
Packing & Delivery
Product Advantages
Project
Company Profile
Bluesun Ess Co., Ltd. is a technology trade Internet company specializing in solar field, headquartered in Hefei city, Anhui Province. The main products includes hybrid energy storage solar inverter, on grid solar inverter, off grid solar inverter and a complete set solar energy solution.
Payment
Payment Term | EXW | 30% T/T in advance, paid the balance before shipment | |||||
FOB | |||||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||||
CIF | |||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||||
Paypal | Amount lower than 5000usd | ||||||
Western Union | |||||||
Delivery Time | 7~10 days after receiving payment for one container | ||||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Gloable Exhibition
