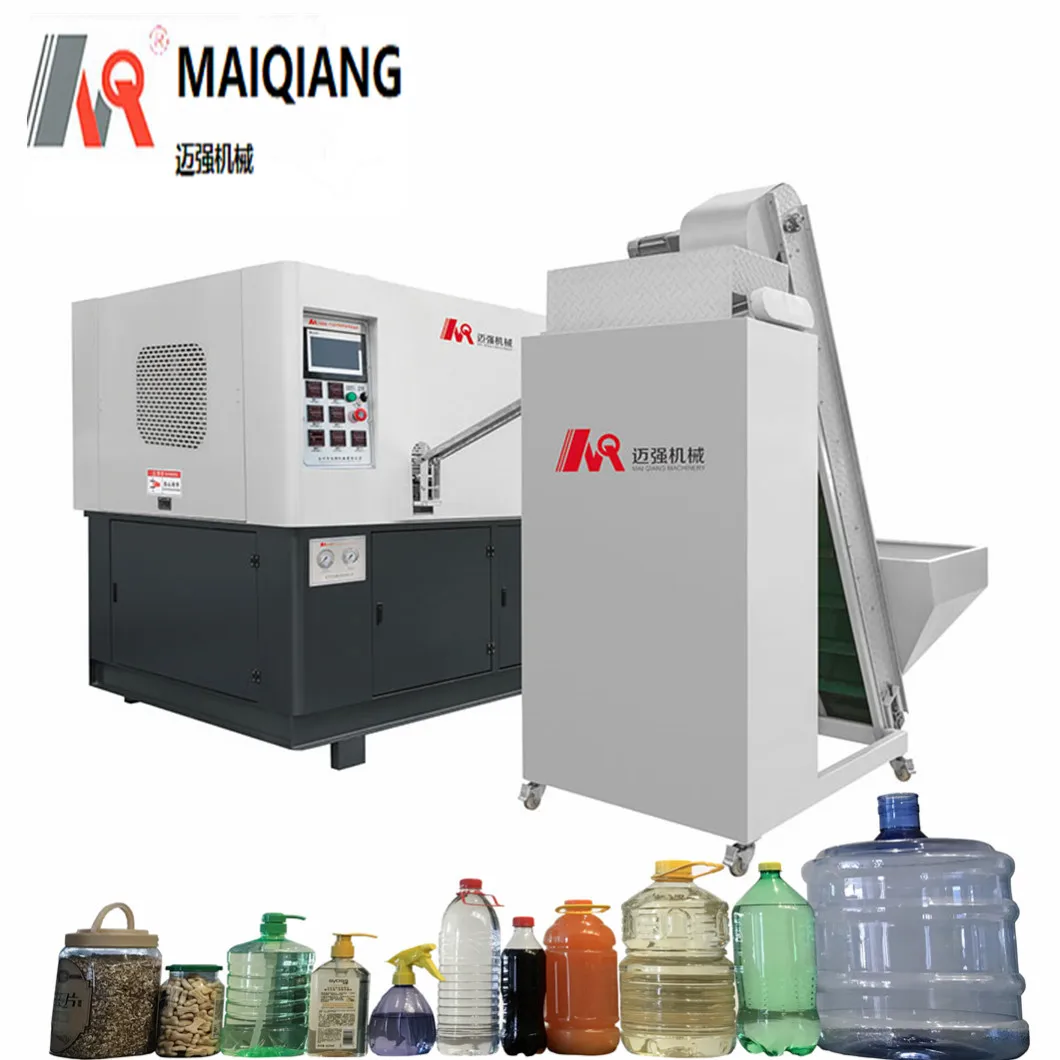

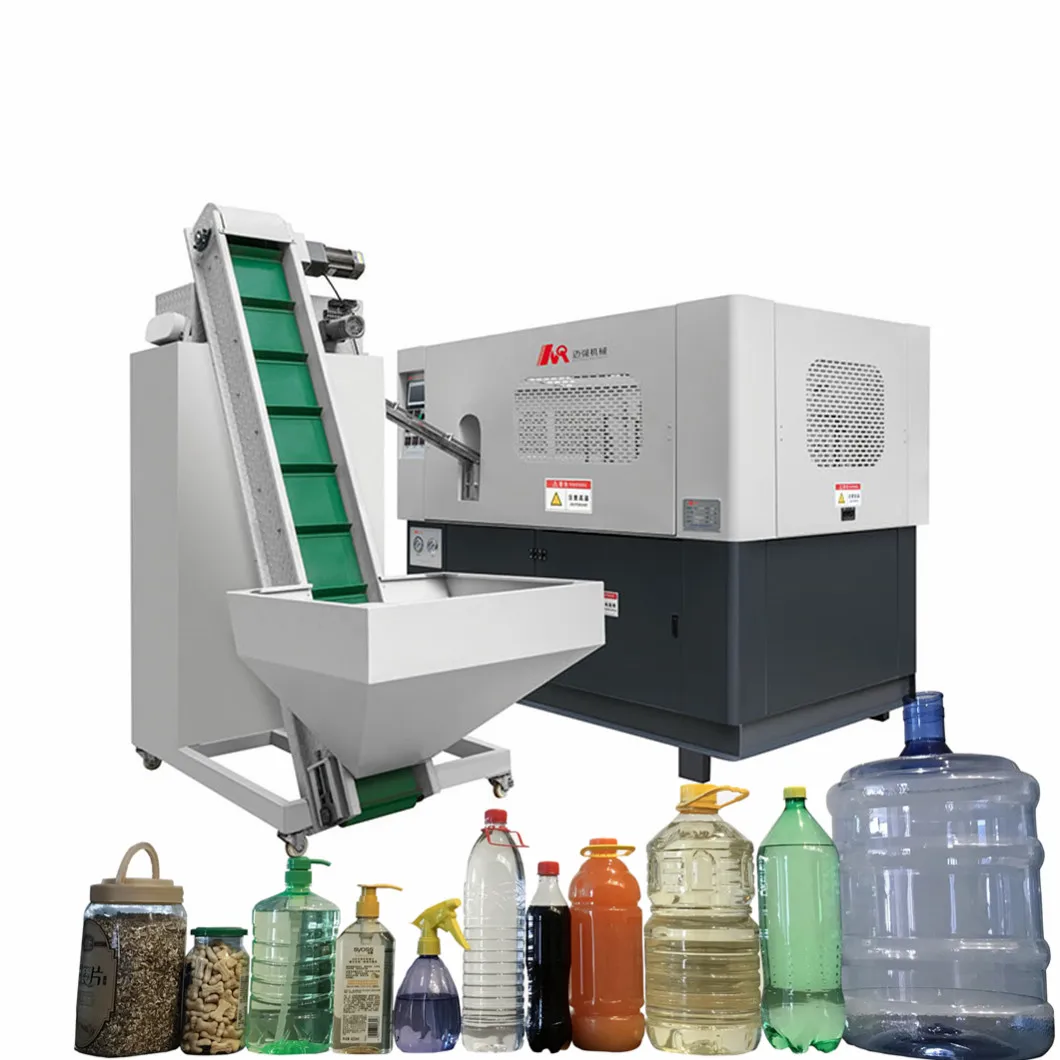

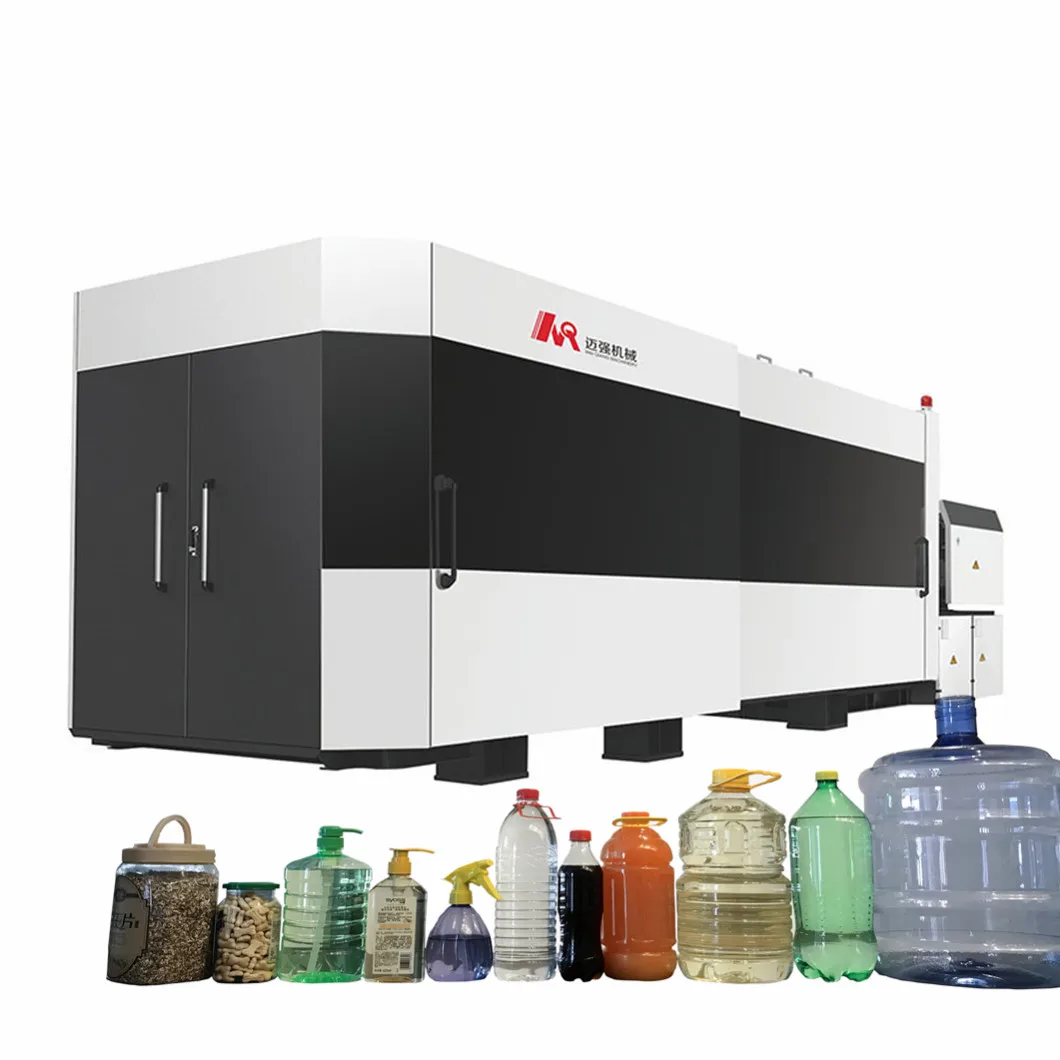

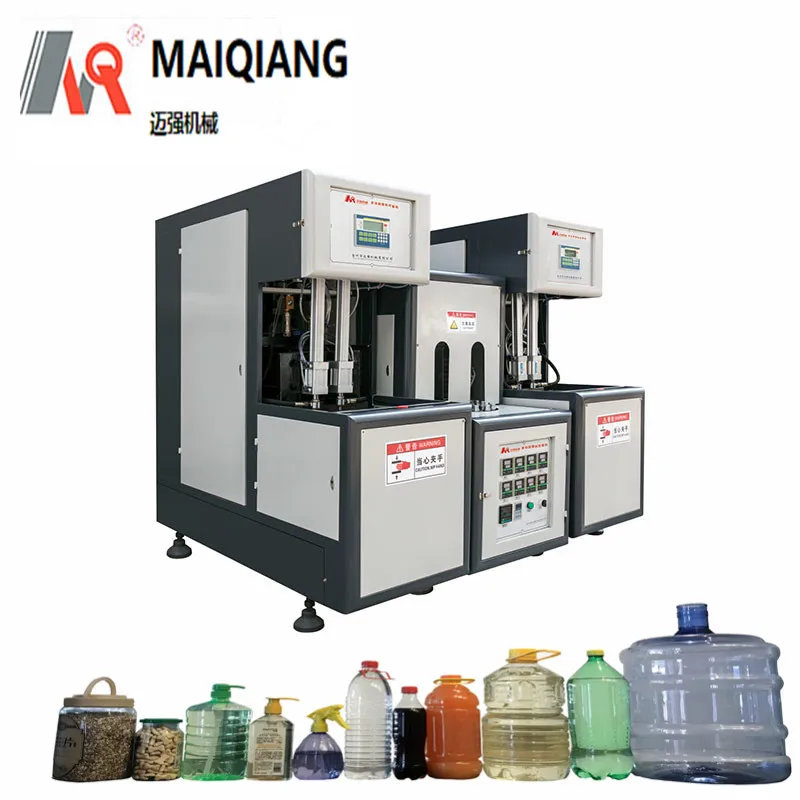

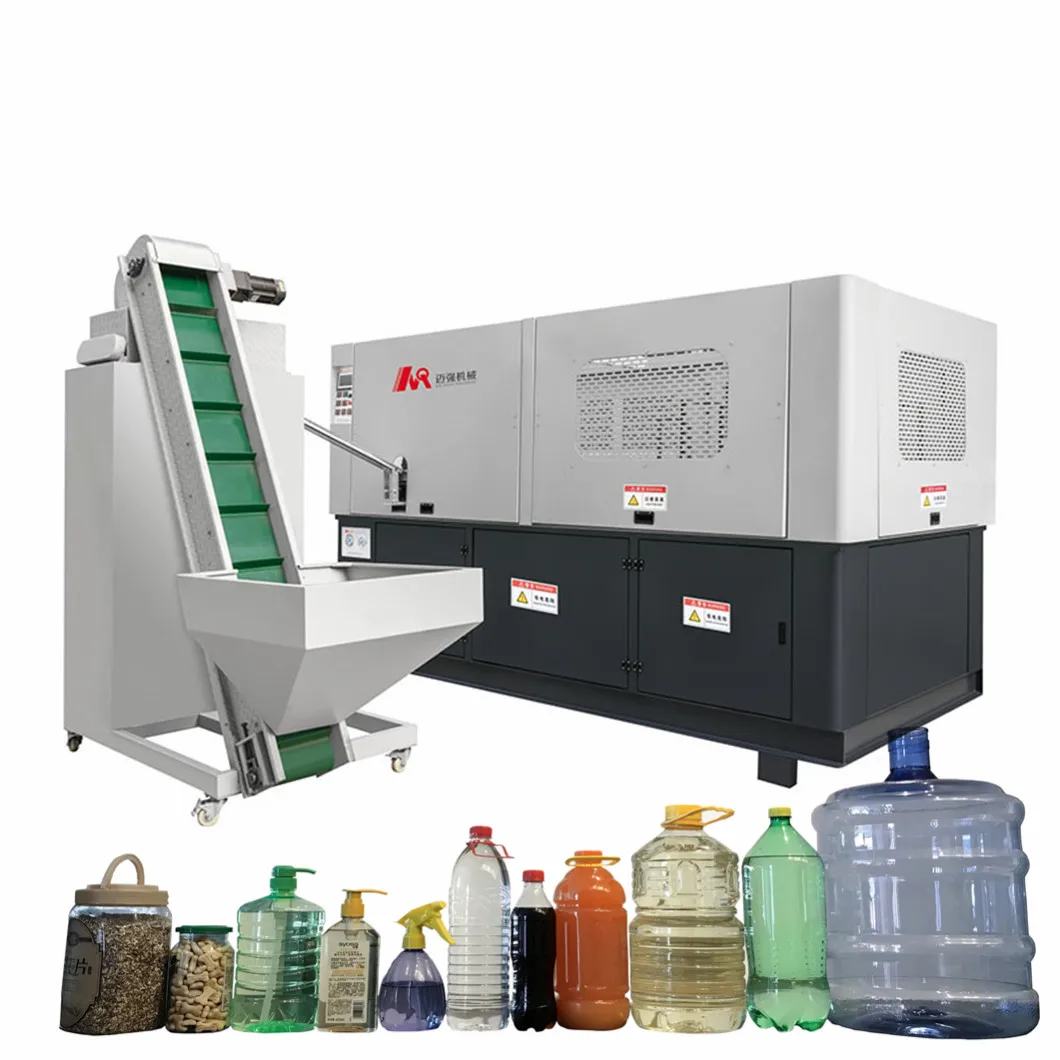

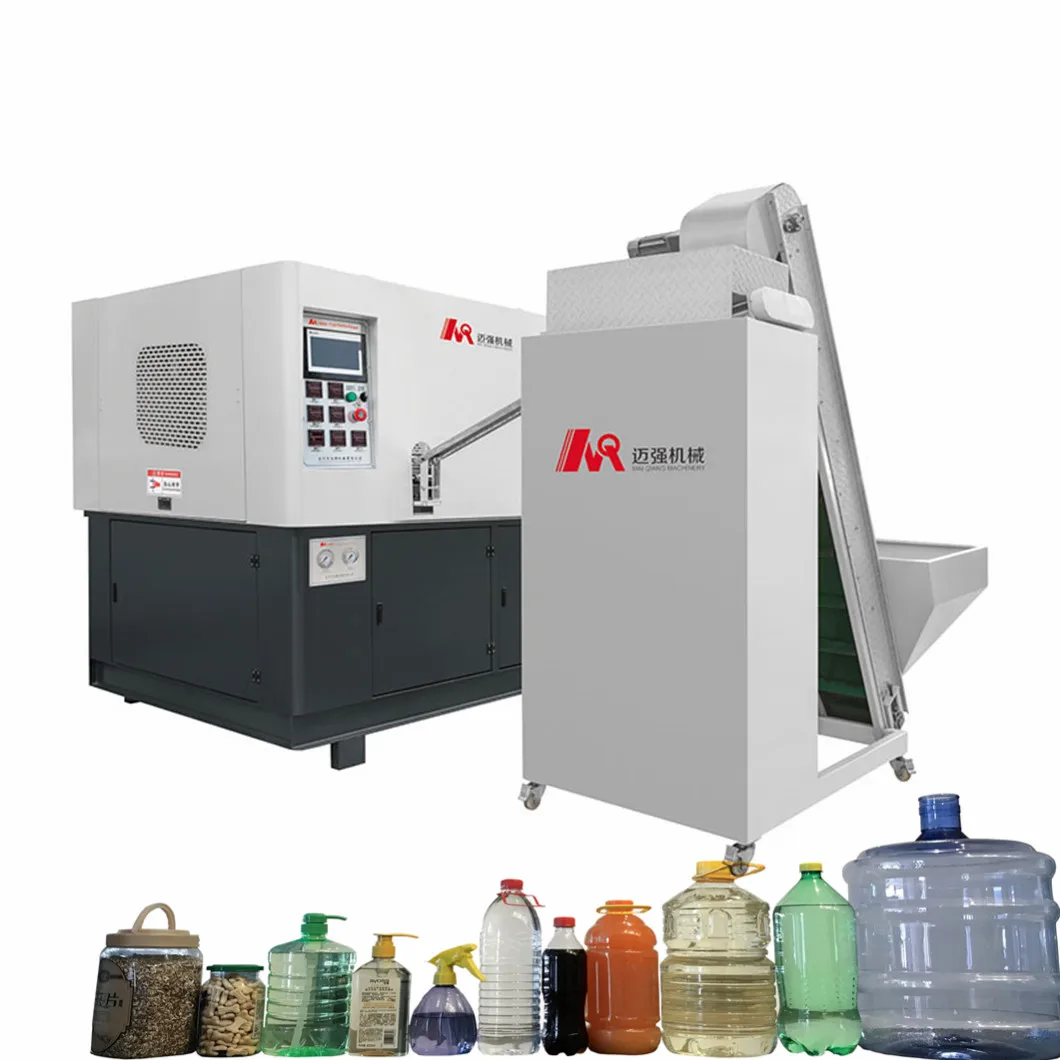

Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Л 1 литр 3 литра жидкое моющее средство питьевая вода пластиковая машина для выдувного формования бутылок из
- Категория: Выдувная машина >>>
- Поставщик: Taizhou,Maiqiang,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 13685.61 $* | 14369.74 $* |
| Aug-15-2025 | 13570.66 $* | 14249.38 $* |
| Jul-15-2025 | 11385.43 $* | 11954.20 $* |
| Jun-15-2025 | 13340.68 $* | 14007.16 $* |
| May-15-2025 | 11615.4 $* | 12196.96 $* |
| Apr-15-2025 | 13110.98 $* | 13766.58 $* |
| Mar-15-2025 | 12995.86 $* | 13645.36 $* |
| Feb-15-2025 | 12880.55 $* | 13524.17 $* |
| Jan-15-2025 | 12765.91 $* | 13403.37 $* |
Характеристики
Specification
Item | MQ-32A115 | MQ-32A215 | MQ-32A415 | MQ-32A615 |
Cavities | 1 | 2 | 4 | 6 |
Bottle Volumn | ≤2.5L | ≤2.5L | ≤2.5L | ≤2.5L |
Mould Open Stroke | 140mm | 140mm | 140mm | 140mm |
Mould Thickness | 180mm | 180mm | 180mm | 180mm |
Stretching Stroke | 410mm | 410mm | 410mm | 410mm |
Theoretical Output | 1100 bottles per hour | 1800 bottles per hour | 3200 bottles per hour | 5200 bottles per hour |
Bottle Diameter | 50-125mm | 50-125mm | 50-125mm | 50-125mm |
Bottle Height | 40-410mm | 40-410mm | 40-410mm | 40-410mm |
Thread Size | 28-58mm | 28-58mm | 28-58mm | 28-58mm |
Voltage | 380V/50-60HZ | 380V/50-60HZ | 380V/50-60HZ | 380V/50-60HZ |
Total Power | 14KW | 22KW | 36KW | 48KW |
Use Power | 7KW | 12KW | 18KW | 26KW |
Working Pressure | 8bar | 8bar | 8bar | 8bar |
Blow Pressure | 30bar | 30bar | 30bar | 30bar |
Low Pressure Oxygen Consumption | 0.5m³/min | 0.8m³/min | 1.2m³/min | 1.6m³/min |
High Pressure Oxygen Consumption | 0.7m³/min | 1.2m³/min | 1.6m³/min | 2.4m³/min |
Water Consumption | 16-25L/min | 20-30L/min | 20-30L/min | 30-45L/min |
Pass Rate | ≥99.8% | ≥99.6% | ≥99.2% | ≥99.0% |
Machine Features:
1.Low labor and energy cost, high efficiency and profit, with automatic bottle embryo delivery process.
2.The blow molding machine has automatic alarm, automatic fault detection and judgment function, easy and fast maintenance.
3.Omron, Festo, Parkers are our accessories suppliers.
4.Easy operation and stable performance with Mitsubishi or Siemens human-computer interface control program.
5.Strong penetrability, even heating and energy saving with Philips infrared lamp.
6.The blow molding machines are widely used in the production of mineral water bottles, edible oil bottles, food packaging bottles, daily chemical bottles, agricultural medicine bottles, and many other plastic container packaging fields.
