Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Высокая скорость 6 cavity 9000bph мотором автоматическая машина для выдувания
- Категория: Выдувная машина >>>
- Поставщик: Zhangjiagang,Fillex,Beverage,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.88 $* | 0.2 $* |
| Aug-19-2025 | 0.85 $* | 0.53 $* |
| Jul-19-2025 | 0.14 $* | 0.97 $* |
| Jun-19-2025 | 0.25 $* | 0.84 $* |
| May-19-2025 | 0.19 $* | 0.87 $* |
| Apr-19-2025 | 0.34 $* | 0.54 $* |
| Mar-19-2025 | 0.47 $* | 0.91 $* |
| Feb-19-2025 | 0.94 $* | 0.8 $* |
| Jan-19-2025 | 0.19 $* | 0.13 $* |
Характеристики
Product Description
High Speed 6cavity servo motor automatic bottle blowing machine
Fillex's SERVOPET series blow molding machine is the most stable two-step fully-automatic pet stretch-blow moulding machines(reheat). It has one to eight cavities and the maximum capacity of the products is 2L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
SPECIFICATIONS FOR BLOW MOLDING MACHINE | ||||||||
Model | SERVOPET-04 | SERVOPET-06 | SERVOPET-09 | SERVOPET-08 | ||||
Clamping System | Number of cavity(cavities) | 4 | 6 | 9 | 8 | |||
Calmping unit(KG) | 20000 | 48000 | 65000 | 96000 | ||||
Theoretical dimension(BPH) | 6000 | 9000 | 13500 | 12000 | ||||
Machine dimension(L*W*H)(m) | 3.8*2.0*1.8 | 3.8*2.0*2.0 | 5.6*2.2.1.8 | 6.2*2.2*2.0 | ||||

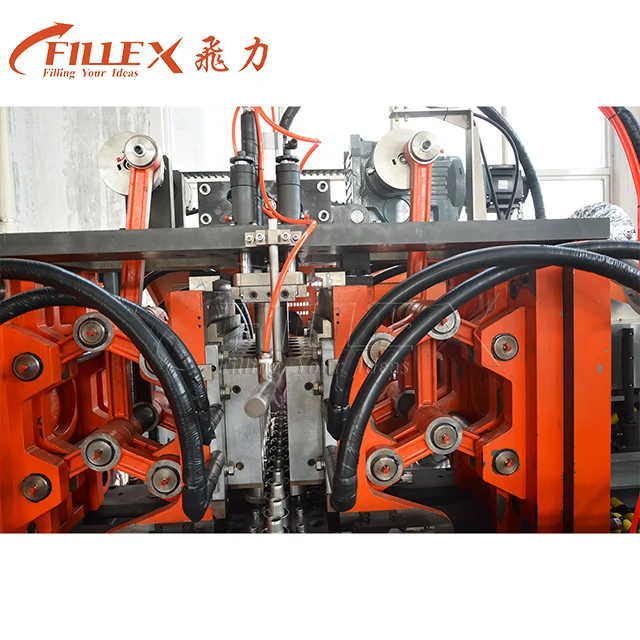

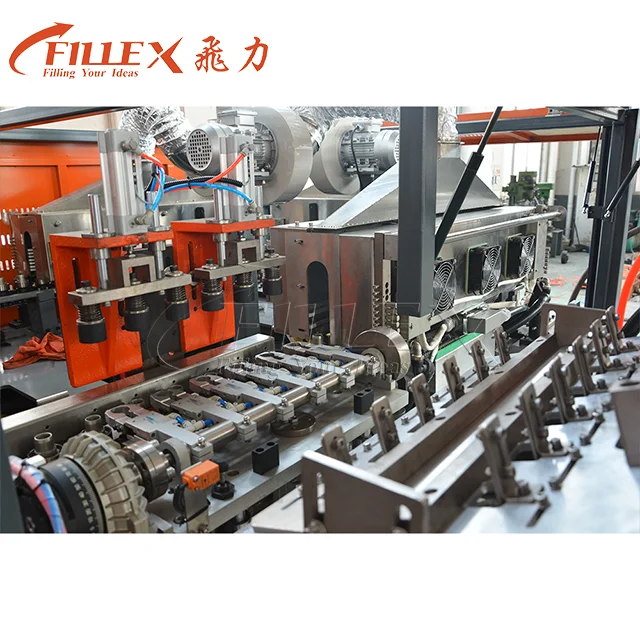

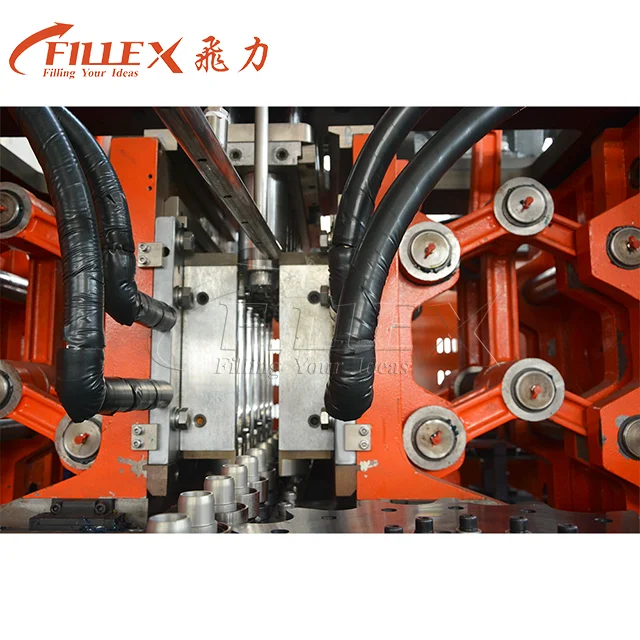

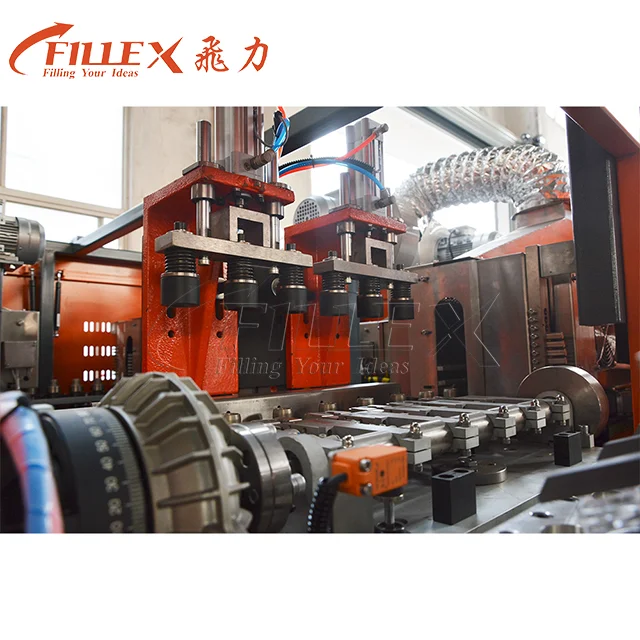

Detailed Images
Main Features
1. Conveying preforms automatically with conveyor.

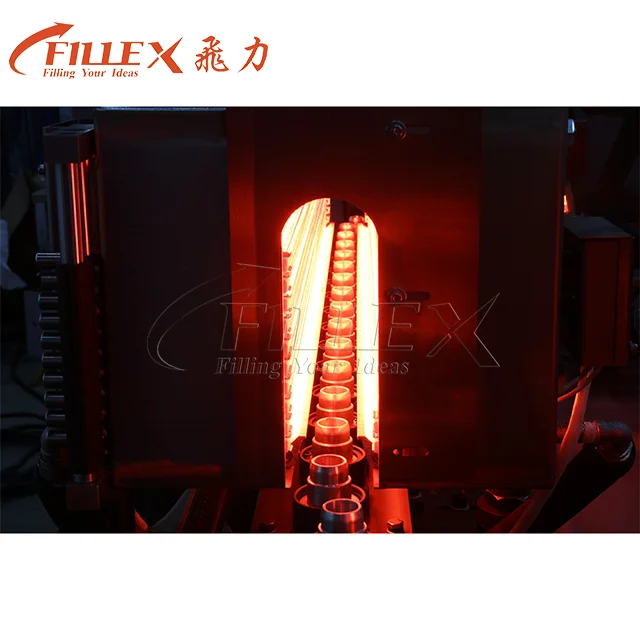

2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
3. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
4. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
5. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
6. Strong clamping force with high pressure and double crank links to lock the mold.
7. Two ways of operating: Automatic and manual.
8. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
9. Contamination is avoided for the bottle body.
Certifications
Our Service
1)We can dispatch our engineer(s) to your side for installing and debugging blow molding machines, but our engineer(s) traveling allowances, as well as lodging and board expenses, shall be charged at your side.
2) The blow molding machine quality that we sell is guaranteed 1 year.
3)We shall provide your side spare accessories for easy-damaged parts within warranty year and long time technical support.
Packing & Delivery
Packaging for Blow Molding Machine | ||
Size | 3800(L)*2000(W)*2000(D) | |
Weight | 8T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
