Product Description


Description

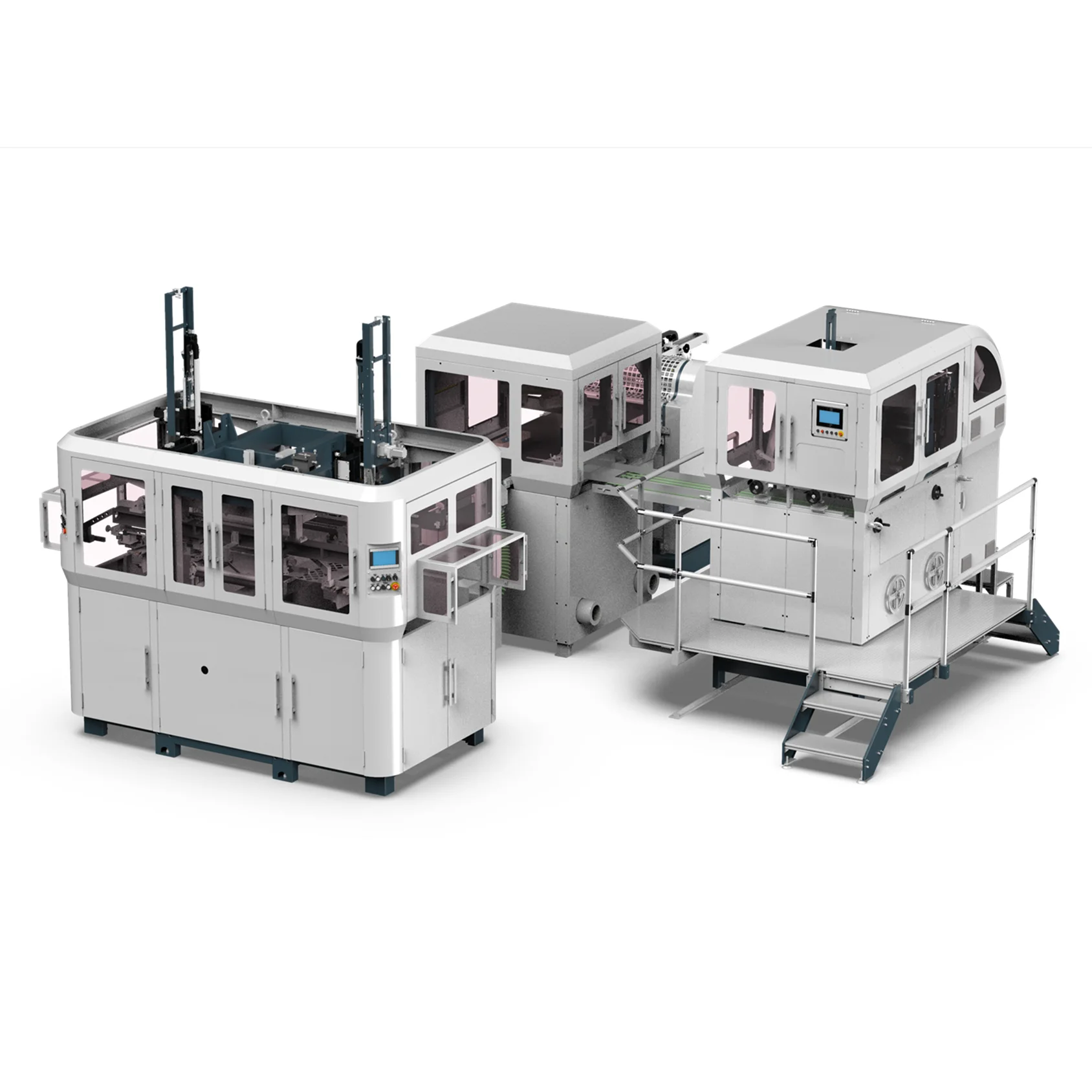

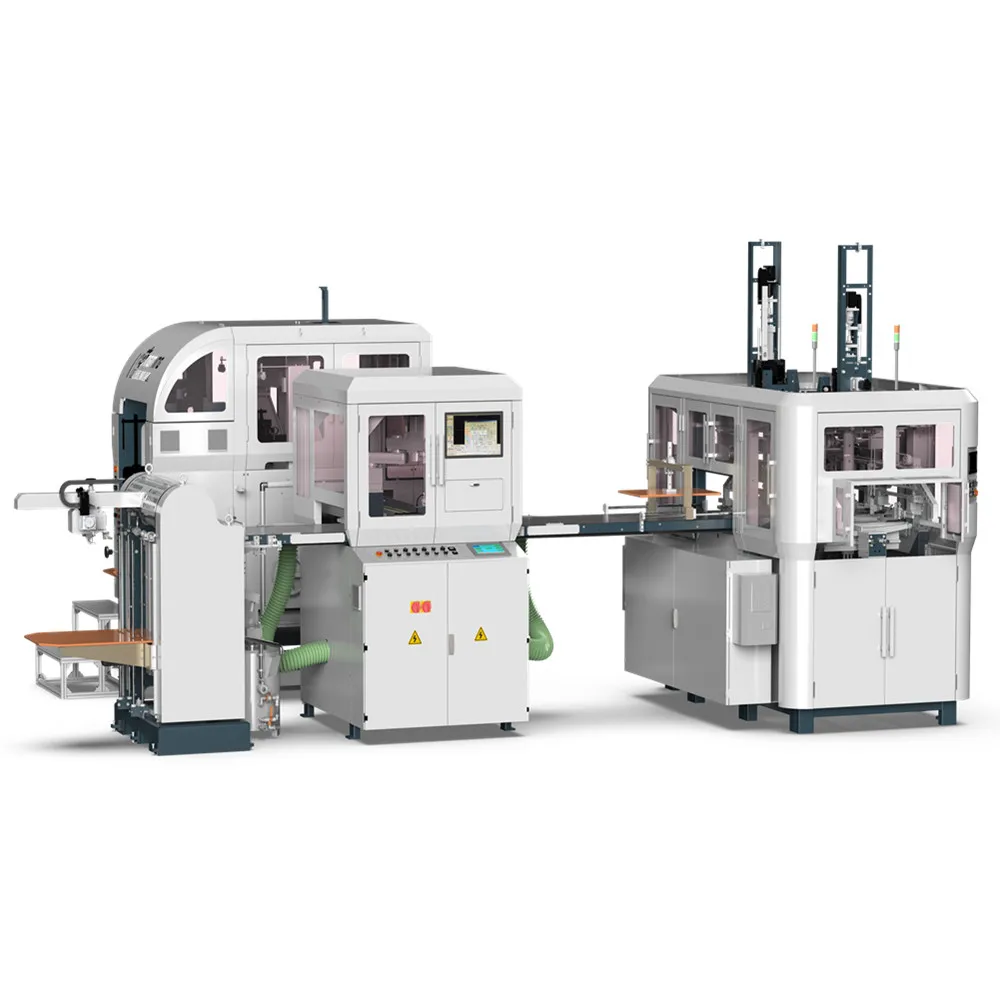

HM-ZD6418D Automatic Rigid Box Machine with Double wrapper, which designed for big-size premium boxes. It is suitable to make various types of boxes for mass production,such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, etc. Size range is more bigger, more suitable for current packaging market. Machine’s appearance is new design which is safer and more beautiful.

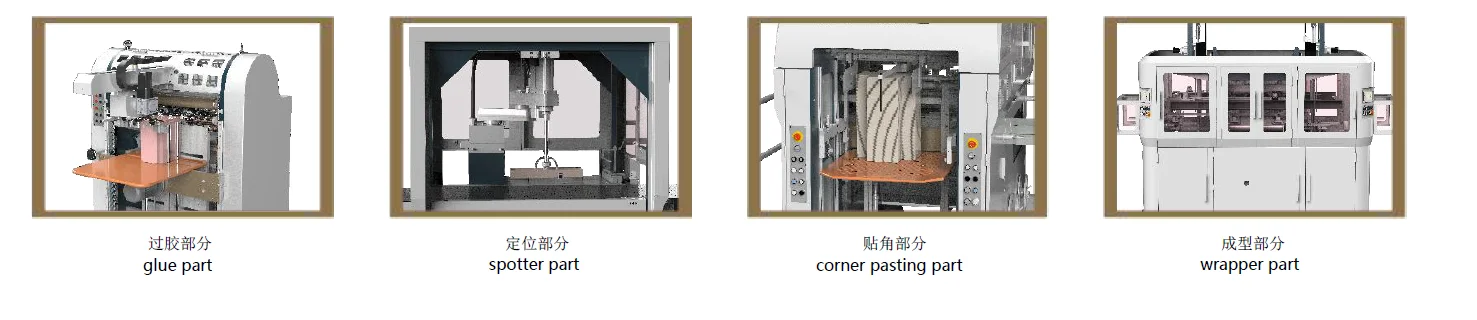

HM-ZD6418D adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.

The feeder, the gluer and the converyor are driven by well known servos which have continuously variable transmission, and enjoys high accuracy, easy adjusting, and high efficiency. The corner unit can be attached to the tape of different lengths according to the need; The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard, enhancing the spotter accuracy to± 0.05mm,and its spotting and adjusting is more faster:The forming unit employs Japan THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.

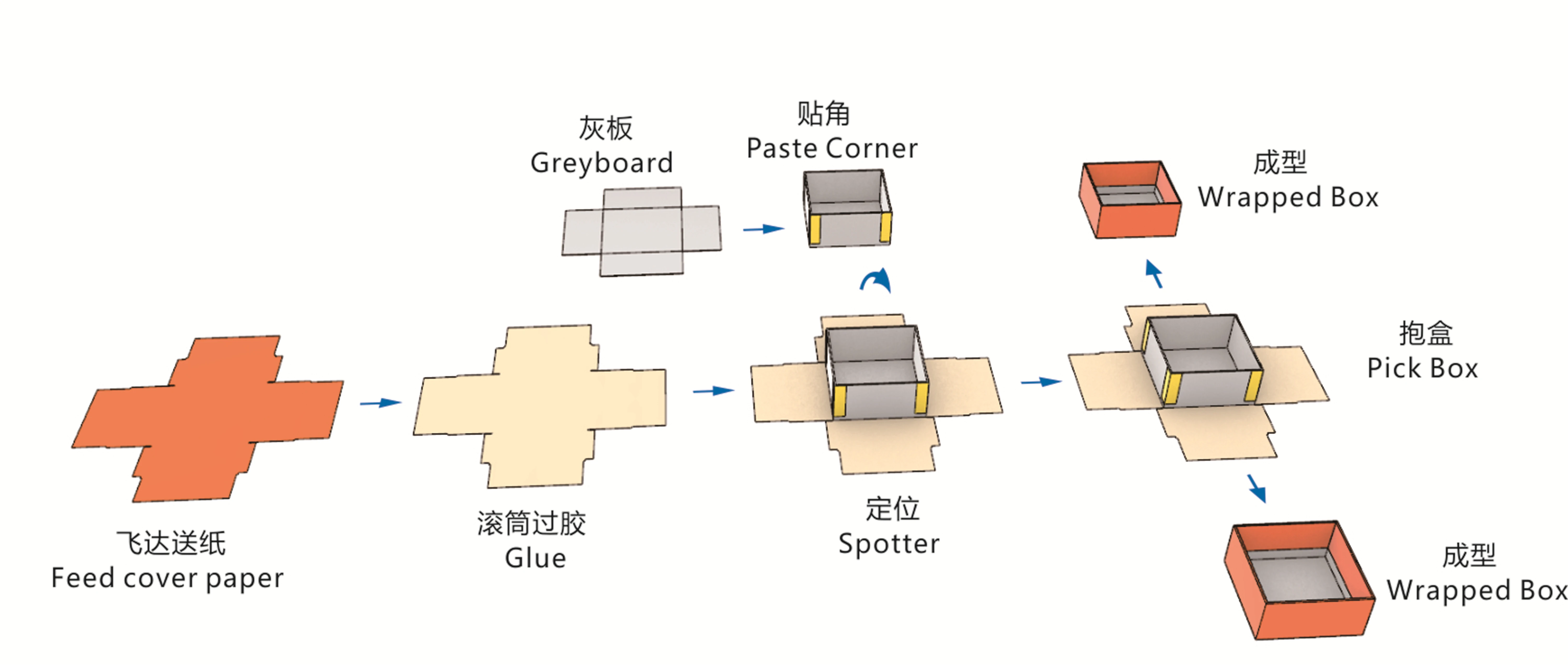

Production Process




Specification


Model
HM-ZD6418D
Length size of Greyboard
124-820mm
Width size of Greyboard
92-580mm
Greyboard Thickness
1-3mm
Length size of Cover paper
180-850mm
Width size of Cover paper
95-610mm
Cover paper Thickness
80-160gsm
Finished Box's Length Size
100-600mm
Finished Box's Width Size
50-400mm
Finished Box's Height Size
12-130mm
Paper Corner Edge
10-125mm
Cover Paper Folding-in Depth
15-100mm
Paper Pile Height Max.
750mm
Greyboard Pile Height Max.
850mm
Glue Tank Volume
40L
Air Supply
460L/min, 0.8MPa
Speed
≤45pcs/min
Total Power/Voltage
47kW/AC380V
Power Consumption
12kW/h
Net Weight
7700kg
Machine Dimension
6800*5500*3300mm

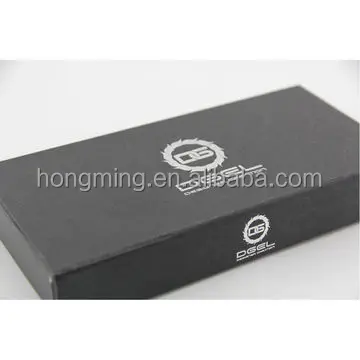

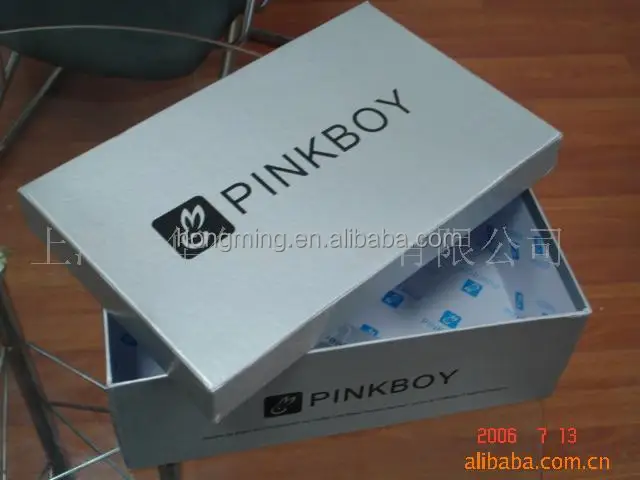

Product application










Company Profile








Guangdong Hongming Intelligent Joint Stock Co., Ltd (Formerly Dongguan Hongming Machinery Co., Ltd) is the leading professional manufacturer who makes automatic rigid box making machines and hardcover books making machines in china. It was established in 1999.

Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.

Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.

During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.

Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.


Packing & Delivery




Hongming's Exhibition




FAQ


1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines

4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
