Высокоскоростная автоматическая сверлильная машина с
- Категория: Сверлильные станки >>>
- Поставщик: Wuxi,Zhouxiang,Complete,Set,Of,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 35700.92 $* | 37485.19 $* |
| Aug-20-2025 | 35400.78 $* | 37170.26 $* |
| Jul-20-2025 | 29700.57 $* | 31185.38 $* |
| Jun-20-2025 | 34800.96 $* | 36540.68 $* |
| May-20-2025 | 30300.10 $* | 31815.78 $* |
| Apr-20-2025 | 34200.16 $* | 35910.85 $* |
| Mar-20-2025 | 33900.27 $* | 35595.32 $* |
| Feb-20-2025 | 33600.37 $* | 35280.90 $* |
| Jan-20-2025 | 33300.50 $* | 34965.99 $* |
Характеристики
Product Description
Product Application

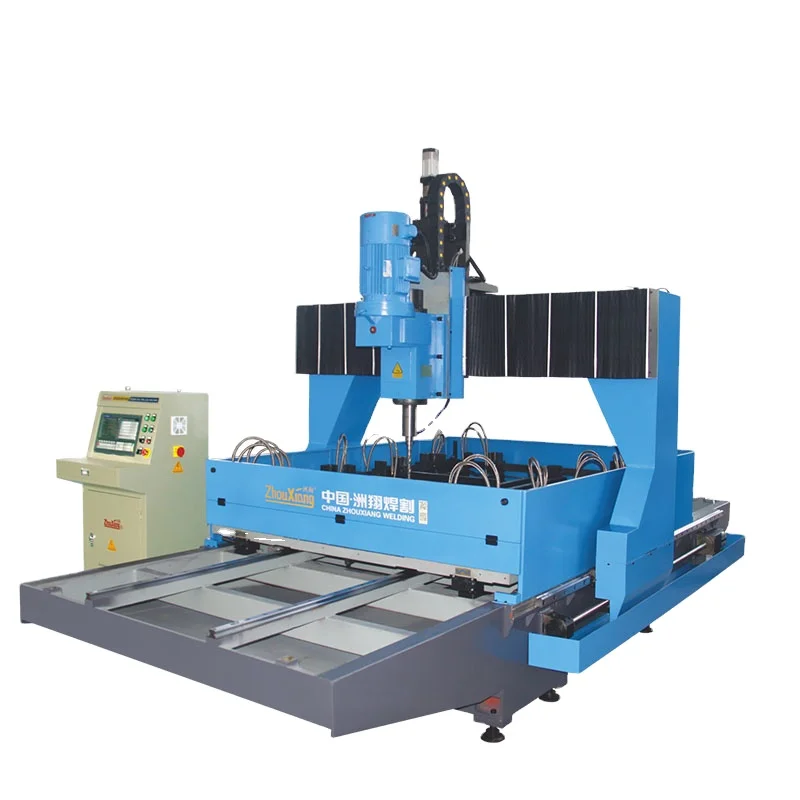

ZPZ digital driller employs AC srevo motor to drive the X axis and Y axis, while its Z axis is positioned by high accuracy raster.By using semi-closed closure digital control system,the machine has reliable performance.The operation of the machine can either be automatic or manual. This machine is widely used in steel frame contruction.
Technical Parameter | ||||||
Model | ZPZ160 | ZPZ200 | ZPZ400 | |||
Drilling diameter | φ50 | φ60 | φ60 | |||
Max dimension of workpiece | 1600×1000×80mm | 2000×1500×80mm | 2000×1500×80mm | |||
Rotary speed of main shaft | 130-400r/min | 130-400r/min | 130-400r/min | |||
Feeding type of main shaft | Hydraulic | lead screw | lead screw | |||
Quality of moveable working platform | 2 | 2 | 2 | |||
Workpiece can be tooled for once | 4pcs | 4pcs | 4pcs | |||
Clamping type | Hydraulic | Hydraulic | Hydraulic | |||
X and Y axis fast moving speed | 12m/min | 12m/min | 12m/min | |||
1. High production efficiency: There are two movable worktables. When one table is drilling, the other can handle parts (load or unload) at the same time, so the machine can do non-stop drilling; with four processing point it can load at the same time 1 ~ 4 parts for processing; 12 movable hydraulic clamps were equipped inside the worktables, which can quickly and conveniently load and unload parts; drilling head’s 12m/min rapid positioning; the spindle head adopts 3 different lengths quick-change drill chuck, which can be chosen by the drill length and thickness.
2. High precision machining: X/Y-axis is driven by AC servo motor ball screw driving system; power head and worktable are moving in a straight line rolling guide.
3. It adopts Guangzhou CNC GSK980MDc drilling system. This system has powerful function and can control 5 feeding axis with high control precision. Also equipped with Guangzhou CNC GS2000T series servo driving unit, Guangzhou CNC 110SJT servo motor with stable running and high precision position control.
4. Safe, reliable: when a table is loading and unloading the work-piece, the power head will not move to this area; numerical control system, electrical actuators, hydraulic components use brand-name imported parts.
5. It is equipped with automatic chip cleaner, cutting fluid adding automatically, also equipped with gas gun which can realize dust pneumatic blowing.
Detailed Images
Our Company
China Zhouxiang Group is established in 1991, covers an area of more than 100,000m2, fixed assets CNY200 million, with more than 400 staff, including 100 resreacher, 20 Doctor and Master, and several domestic and foreign industry experts and returnees staff. Zhouxiang is a high-tech enterprise which combines science and technology, industry production and trade into one, took the lead in the adoption of ISO9001:2008 quality management system certification, CE certification, etc. The company is located in Wuxi, the key city of the Yangtze River Delta, which is adjacent to Shanghai and has a unique transport, production and sales advantage.
Our products mainly include CNC drilling machine, H beam welding line, CNC cutting machine, H beam assembly machine, H beam welding machine, H beam straightening machine, Box beam production line, Welding manipulator, Welding rotator, Welding Positioner, Edge milling machine, Plate rolling machine, etc. It is one of the biggest professional production bases for h beam machine in China. These products are widely used on ship/car building, marine engineering, military machinery, engineering machinery, chemical machinery, petrochemical equipment, environmental protection equipment, power tower, wind tower, nuclear power, boiler, building and steel structure.
